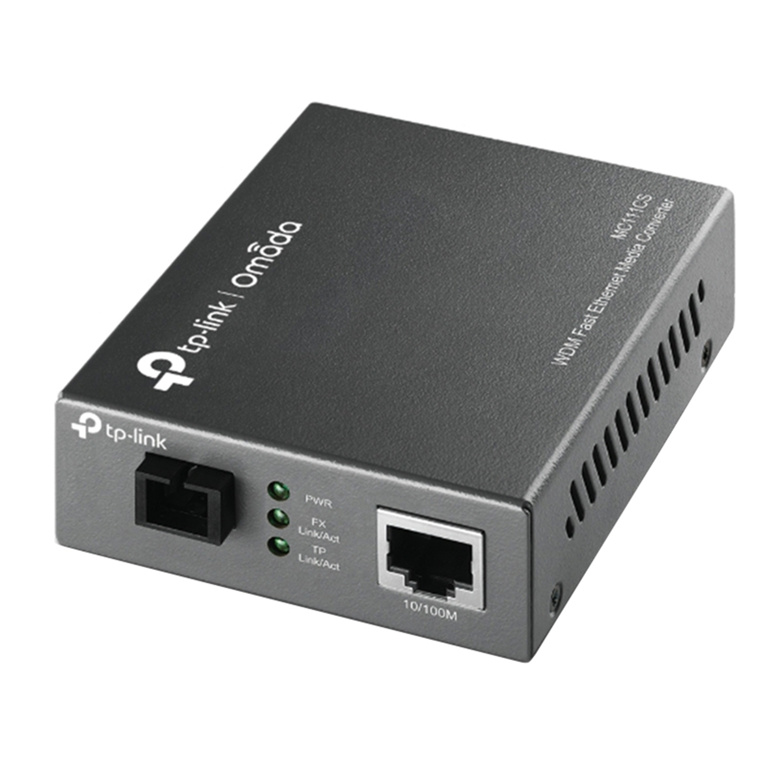

TP-Link Omada MC111CS Gigabit WDM Media Converter Up to 20 km

  • Brand: TP-Link
  • MPN: MC111CS
  • Part #: NETTPL1111
  • UPC:
PB Tech price
$ 30 .92 $ 34 .01
 +GST  inc GST
Hurry, only 5 units left!


Delivery: Order now and it ships on 19 Jun
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$30.92  +GST
$34.01

Features

TP-Link Omada 10/100Mbps WDM Media Converter

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-Link´s media converter MC112CS is just one of the examples to cooperate with MC111CS.

Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-Link´s MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20km

Specifications

Standards and Protocols

IEEE 802.3i, IEEE 802.3u

Basic Function

Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Extends fiber distance up to 20km

Interface

1x 100M SC/UPC port
1 10/100M RJ45 port (Auto MDI/MDIX)

Wave Length

1550nm Tx/1310nm Rx

WDM TX

1550nm

WDM RX

1310nm

Network Media 10BASE-T

UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)

Network Media 100BASE-T

UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100ohm STP (maximum 100m)

Network Media 100BASE-FX

Single-mode Fiber

Dimensions ( W x D x H )

3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)

Power Supply

External Power Adapter

Max. Power Consumption

1.23W

LED

PWR, Link/Act

Safety & Emission

FCC, CE, RoHS

Package Contents

MC111CS
Power Adapter
Installation Guide

Environment

Operating Temperature: 0℃~50℃ (32℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Manufacturer Part No:
MC111CS
Brand:
Product Type:
Gigabit WDM Media Converter
UPC
-
Product Family:
Omada
Shipping Weight:
0.5 kg
PB Part No:
NETTPL1111
Product Model:
MC111CS
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Provide feedback on product content: If this product page is missing key information or you spotted a mistake please let us know.
