TP-Link Omada POE20E-Outdoor PoE+ Extender (30W) Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m)
Out of stock
TP-Link Omada POE20E-Outdoor PoE+ Extender (30W) Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m)
- Brand: TP-Link
- MPN: POE20E-Outdoor
- Part #: NETTPL2000
- UPC:
View all shipping info
- Brand: TP-Link
- MPN: POE20E-Outdoor
- Part #: NETTPL2000
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors
TP-Link Omada POE20E-Outdoor PoE+ Extender (30W) Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m)
- Brand: TP-Link
- MPN: POE20E-Outdoor
- Part #: NETTPL2000
Product URL: https://www.pbtech.com/au/product/NETTPL2000/TP-Link-Omada-POE20E-Outdoor-PoE-Extender-30W-Exte
Features

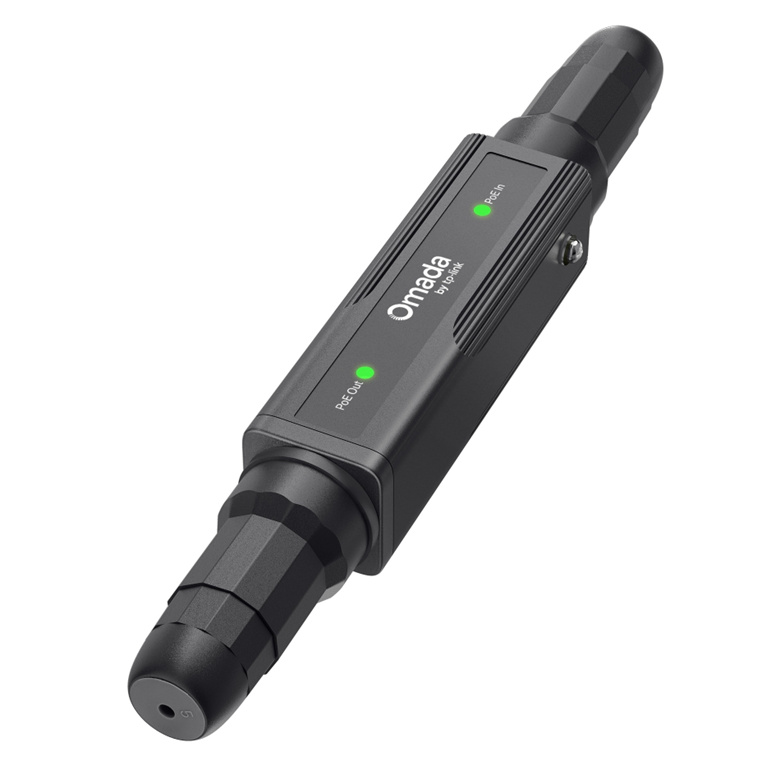

TP-Link Omada POE20E-Outdoor PoE+ Extender
The POE20E-Outdoor is a rugged Gigabit PoE+ Extender engineered to overcome network distance limitations in demanding outdoor environments. It seamlessly extends both data and power an additional 100 meters at full Gigabit speeds, delivering up to 30W of 802.3af/at compliant PoE+ to power devices like IP cameras and access points. Built for ultimate reliability, its IP68-rated weatherproof enclosure and an wide operating temperature range of -40°C to 65°C ensure flawless performance in any weather. Offering simple Plug-and-Play installation and an extended range of up to 250m* for lower-speed applications, the POE20E-Outdoor is the ideal solution for deploying surveillance and network hardware in remote locations where power and distance are a challenge.
- 2x 10/100/1000 Mbps RJ45 ports
- Compliance with 802.3af/at devices
- Supplies up to 30 W, which meets the power consumption requirements of most IP cameras
- Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m)* from the PoE power sourcing equipment
- Outdoor Weatherproof: IP68 dust &water proof; Wide operation temperatures of -40 to 65 °C and 6KV lightning protection further ensure stable operation against harsh outdoor conditions.
- Plug-and-Play, requires no configure
* POE20E-Outdoor features an adaptive data rate design. Link stability may be affected by cable length, cable quality, and the characteristics of the connected devices. Under certain conditions-such as using 160-170m Cat5e cables (tested in lab environments)-intermittent connectivity may occur. To resolve this issue(1) Manually conffgure the connected device to operate at 10 Mbps full-duplex or enable Extend Mode on the PSE, or (2) Adjust the cable length to avoid the affected range.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Interface
1x 10/100/1000 Mbps Auto-Negotiation RJ45
1x 10/100/1000 Mbps Auto-Negotiation RJ45
Network Media
10BASE-T: 2-pair UTP/STP (≤250m) of Cat. 3 or above
100BASE-TX: 2-pair UTP/STP (≤100m) of Cat. 5 or above
1000BASE-T: 4-pair UTP/STP (≤100m) of Cat. 5e or above
Max. Power Consumption
Output: 30W
LED
2x Link/Act
Dimensions ( W x D x H )
221.7 x 31 x 31.5mm (8.73 x 1.22 x 1.24 in)
Weatherproof Enclosure
IP68
OTHERS
Certification
CE, FCC, BSMI, KC
Package Contents
POE20E-Outdoor
Waterproofing Components
Ground Wire
Installation Guide
Lightning Protection
6kV
Environment
Operating Temperature: -40°C to 65°C (-40°F to 149°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 15% to 90% RH non-condensing
Storage Humidity: 15% to 90% RH non-condensing
