TP-Link Omada ER603WP-4G-Outdoor 4G CAT4 / WiFi 4 N300 Gigabit Multi-WAN Outdoor PoE Gateway (52W)
1GbE PoE++ In x1 / 1GbE PoE+ Out x2 / Nano-SIM Slot x1
Out of stock
TP-Link Omada ER603WP-4G-Outdoor 4G CAT4 / WiFi 4 N300 Gigabit Multi-WAN Outdoor PoE Gateway (52W)
1GbE PoE++ In x1 / 1GbE PoE+ Out x2 / Nano-SIM Slot x1
- Brand: TP-Link
- MPN: ER603WP-4G-Outdoor
- Part #: NETTPL6034
- UPC:
View all shipping info
- Brand: TP-Link
- MPN: ER603WP-4G-Outdoor
- Part #: NETTPL6034
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Omada 4G Cat4 N300 Outdoor PoE Gateway
- 4G Cat4 up to 300 Mbps*
- Wi-Fi 4, Support 150 Mbps on 2.4 GHz†

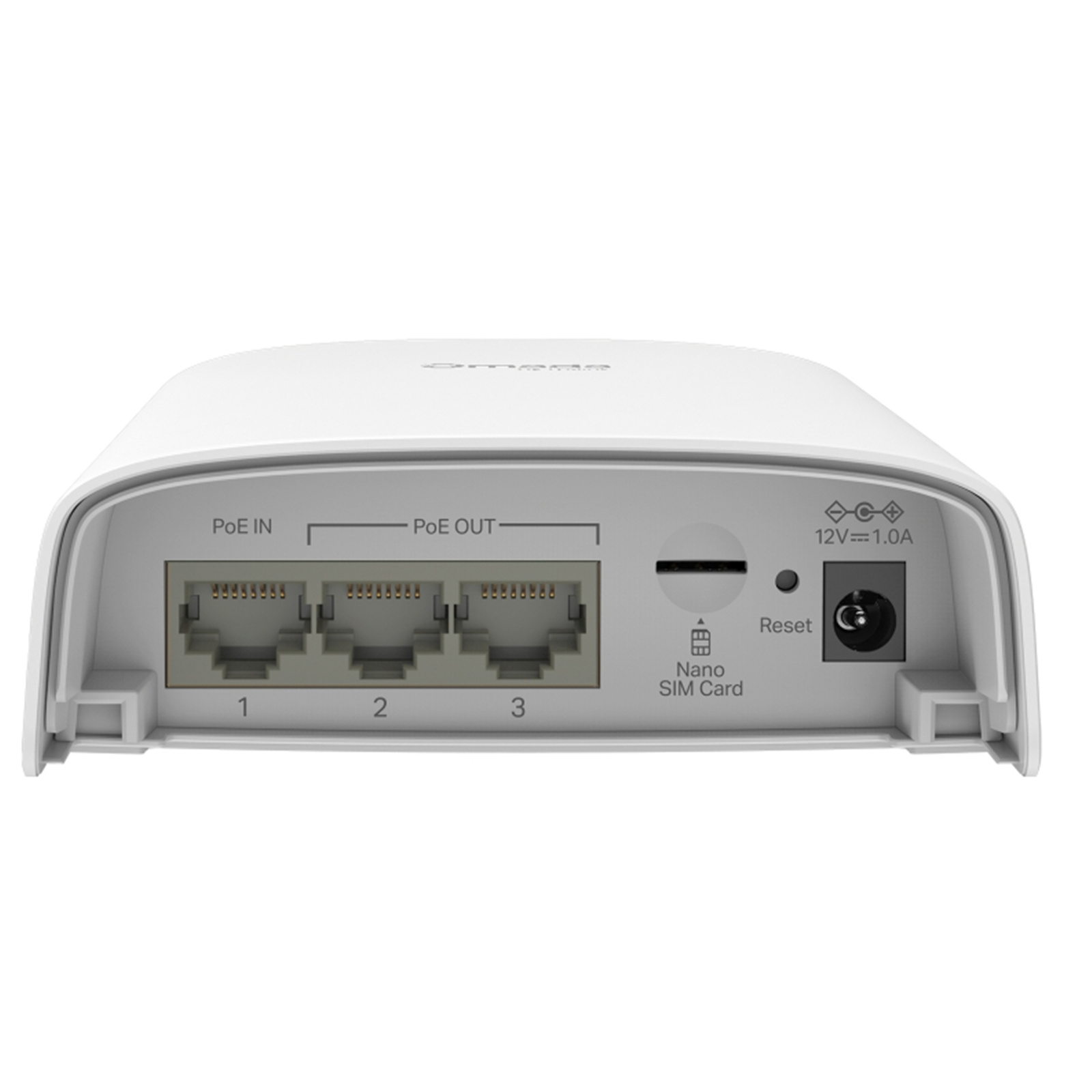

- 3× Gigabit WAN/LAN Ports (2× PoE Out, 1× PoE In)
- 1× Nano SIM Card Slot
- 802.3at/bt PoE/Passive PoE/DC Power Supply
- IP55 Weatherproof & 4 kV Lightning Protection
- Load Balancing between 4G and Ethernet WAN
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE§ VPN
- Centralized Cloud Management△
All-in-One Solution for Outdoor Connectivity
By integrating 4G network access, Wi-Fi expansion, and PoE supply into a single device, Omada delivers an all-in0one solution designed for reliable remote connectivity.
Enable Always-On Surveillance Where You Need
With stable network and flexible deployment, it provide the wireless connectivity for cameras, achieving persistent monitoring for enhanced security beyond the reach of traditional broadband.
Multiple Power Supply Options
Powered by PoE or DC to overcome mains access limitations
Plug and Play
Simply insert a Nano Sim card or plug in ethernet for stable Wi-Fi to connect surveilance cameras via cable or wireless.

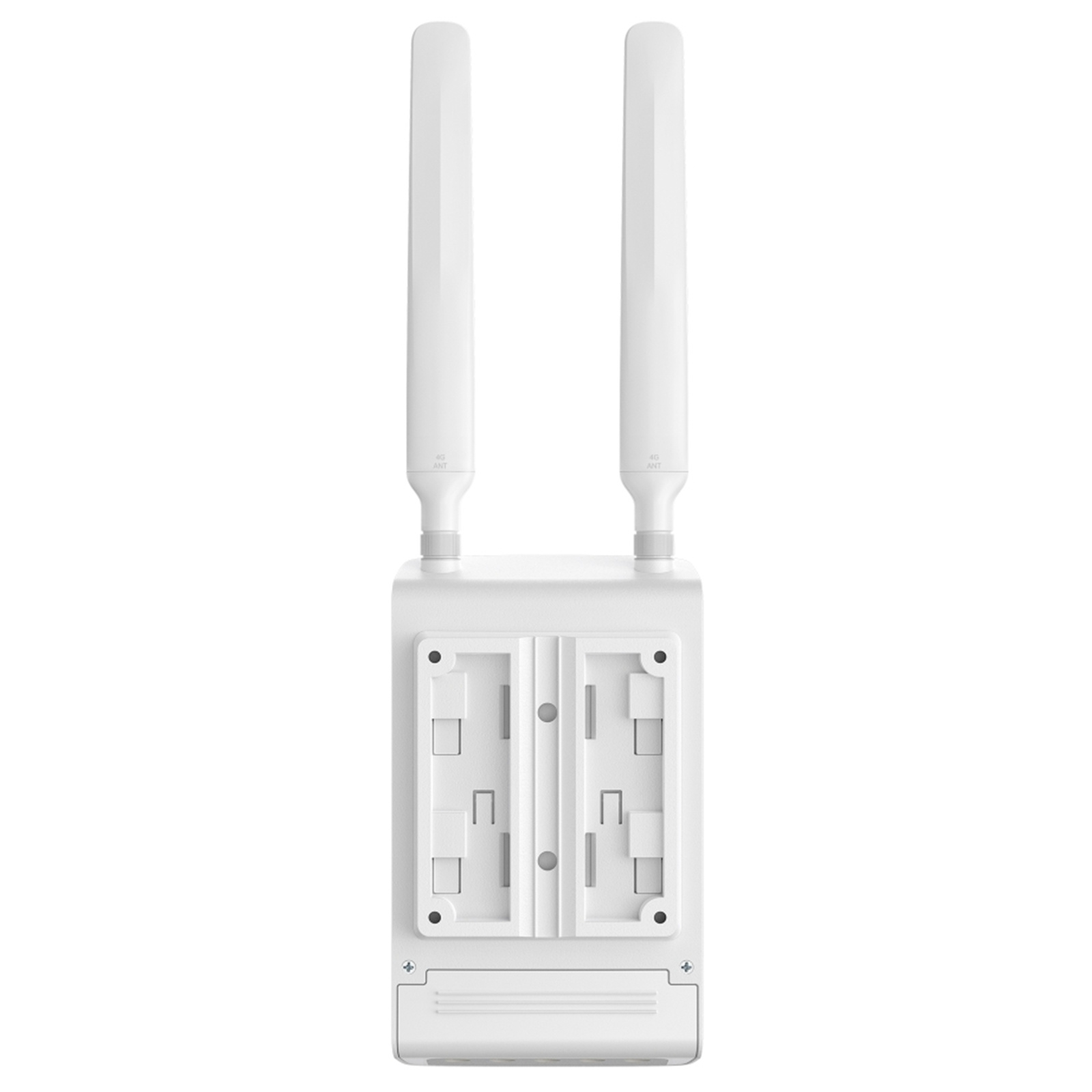

Pole/Wall Mounting
With the included mounting kits, the compact gateway can be easily installed on a wall or pole for flexible placement.
Specially Designed Weather proof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor condition.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular 4G / 5G Routers
NETGEAR LM1200 4G LTE Modem CAT4 - 2x TS9
Ubiquiti UniFi (UMR-Ultra) 4G LTE CAT4 N300 WiFi 4 Router 100M FE...
Teltonika RUT241 4G LTE CAT4 N300 WiFi 4 Industrial Router 100M...
Teltonika TRB140 4G LTE Cat 4 Industrial IoT Gateway GbE x 1 /...
Mercusys MB110-4G 4G LTE CAT4 N300 Wi-Fi Router with SIM Card...
TP-Link Omada ER603WP-4G-Outdoor 4G CAT4 / WiFi 4 N300 Gigabit Multi-WAN Outdoor PoE Gateway (52W) 1GbE PoE++ In x1 / 1GbE PoE+ Out x2 / Nano-SIM Slot x1
- Brand: TP-Link
- MPN: ER603WP-4G-Outdoor
- Part #: NETTPL6034
Product URL: https://www.pbtech.com/au/product/NETTPL6034/TP-Link-Omada-ER603WP-4G-Outdoor-4G-CAT4--WiFi-4-N
Features
Omada 4G Cat4 N300 Outdoor PoE Gateway
- 4G Cat4 up to 300 Mbps*
- Wi-Fi 4, Support 150 Mbps on 2.4 GHz†
- 3× Gigabit WAN/LAN Ports (2× PoE Out, 1× PoE In)
- 1× Nano SIM Card Slot
- 802.3at/bt PoE/Passive PoE/DC Power Supply
- IP55 Weatherproof & 4 kV Lightning Protection
- Load Balancing between 4G and Ethernet WAN
- IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE§ VPN
- Centralized Cloud Management△
All-in-One Solution for Outdoor Connectivity
By integrating 4G network access, Wi-Fi expansion, and PoE supply into a single device, Omada delivers an all-in0one solution designed for reliable remote connectivity.
Enable Always-On Surveillance Where You Need
With stable network and flexible deployment, it provide the wireless connectivity for cameras, achieving persistent monitoring for enhanced security beyond the reach of traditional broadband.
Multiple Power Supply Options
Powered by PoE or DC to overcome mains access limitations
Plug and Play
Simply insert a Nano Sim card or plug in ethernet for stable Wi-Fi to connect surveilance cameras via cable or wireless.
Pole/Wall Mounting
With the included mounting kits, the compact gateway can be easily installed on a wall or pole for flexible placement.
Specially Designed Weather proof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor condition.
Specifications
Hardware
Standards and Protocols
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP, LLDP, 802.11b/g/n
Interface
3 Gigabit WAN/LAN Ports
LTE
1 Nano SIM slot (CAT4 4G)
LTE Speed
Downlink: 150 Mbps, Uplink: 50 Mbps
Wi-Fi Speed
2.4 GHz: 300 Mbps
Antennas
2 internal Wi-Fi antennas
2 external LTE antennas
Network Media
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
PoE
PoE Standard: Passive/802.3af/at/bt PoE in for port 1
Passive/802.3af/at PoE out for port 2-3
PoE Power Budget
52 W when powered by 802.3bt Type 4 (90 W)
34 W when powered by 802.3bt Type 3 (60 W)
13 W when powered by 802.3at (30 W)
9 W when powered by Passive (the provided PoE adapter)
Network Type
LTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G HSPA+/HSDPA/HSUPA/WCDMA: B1/B5/B8 (2100/850/900 MHz)
Button
Reset button
Power Supply
Passive/802.3af/at/bt PoE or 12V/1A Adapter
A passive PoE adapter is provided
Flash
128 MB NAND
DRAM
256MB DDR3
LED
4G Signal, WLAN. WAN/LAN, SYS
Max Power Consumption
10 W without PoE
62 W with PoE
Surge Protection
4 kV surge protection
Mounting
Wall-mounting/ Pole-mounting
Dimensions ( W x D x H )
4.0 × 1.5 × 6.9 in (100.4*38.7*174.8mm) (excluding antennas)
Net Weight
0.420 Kg (including antennas)
MTBF
889200h@25°C
510826h@40°C
SDN Support
Hardware Controller
Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)
Software Controller
Omada App
Performance
Concurrent Session 50,000
New Session/Second 2,028
Static IP NAT Throughput(Upload/Download) 944.785 Mbps/939.201 Mbps
DHCP NAT Throughput(Upload/Download) 944.545 Mbps /927.491 Mbps
PPPoE NAT Throughput(Upload/Download) 939.278 Mbps /928.516 Mbps
L2TP NAT Throughput(Upload/Download) 432.126 Mbps /355.712 Mbps
PPTP NAT Throughput(Upload/Download) 513.104 Mbps /457.323 Mbps
66 Byte Packet forwarding rate (Upload/Download) 1419519 pps /1418731 pps
1518 Byte Packet forwarding rate (Upload/Download) 81068 pps/81068 pps
IPSec VPN Throughput ESP-SHA1-AES256: 192.432 Mbps
ESP-SHA256-AES256: 195.445 Mbps
ESP-SHA384-AES256: 48.55 Mbps
ESP-SHA512-AES256: 48.363 Mbps
GRE Unencrypted: 425.292 Mbps
Encrypted: 164.058 Mbps
WireGuard VPN 50.175 Mbps
OpenVPN 11.369 Mbps
L2TP VPN Unencrypted: 370.822 Mbps
Encrypted: 144.05 Mbps
PPTP VPN Unencrypted: 408.038 Mbps
Encrypted: 35.912 Mbps
Basic Functions
WAN Connection Type
Static IP
Dynamic IP
PPPoE (supports MRU Configuration)
PPTP
L2TP
DHCP
DHCP Server
DHCPv6 PD Server (only in Standalone Mode)
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
WAN DHCP 60
MAC Clone
Modify WAN Address
IPTV
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
IPv6
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
Stateful ACL
√
mDNS Repeater
√
Quality of Service
√
Bridge VLAN
√
VLAN
802.1Q VLAN
LAN DNS
√
SMS
Receive/Send SMS
Wireless Function
Wireless Encryption WPA/WPA2 Personal, WPA/WPA2 Enterprise
Multiple SSIDs 8 in total (8 per radio)
Enable/Disable Wireless Radio √
Enable/Disable SSID Broadcast √
Guest Network √
Automatic Channel Selection Algorithm √
Transmit Power Control Adjust transmit Power on dBm
Rate Limit Based on SSID/Client
Load Balance √
RADIUS Accounting √
MAC Authentication √
Reboot Schedule √
Wireless Schedule √
Support Data Rates 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
Transmission
Load Balance
Intelligent Load Balance
Application Optimized Routing
Link Backup (Timing, Failover)
Online Detection
NAT
One-to-One NAT
Multi-Net NAT
Virtual Server
Port Triggering1
NAT-DMZ
FTP/H.323/SIP/IPSec/PPTP ALG
UPnP
Disable NAT
Routing
Static Routing
Policy Routing
RIP2
OSPF2
Session Limit
IP-based Session Limit
Bandwidth Control
IP-based Bandwidth Control
VPN
IPSec VPN
6 IPSec VPN Tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec Failover
IKE v1/v2
MD5, SHA1, SHA-256, SHA2-384, SHA2-256 and SHA2-512 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
PPTP VPN
PPTP VPN Server
PPTP VPN Client (6)
6 Tunnels
PPTP with MPPE Encryption
L2TP VPN
L2TP VPN Server
L2TP VPN Client (6)
6 Tunnels
L2TP over IPSec
GRE √ (Only in Standalone Mode)
SD-WAN √ (Only in Controller Mode)
WireGuard VPN √
OpenVPN
OpenVPN Server
OpenVPN Client (3)
18 OpenVPN Tunnels
"Certificate + Account" Mode
Full Mode
Security
Attack Defense
TCP/UDP/ICMP Flood Defense
Block TCP Scan (Stealth FIN/Xmas/Null)
Block Ping from WAN
Filtering
Web Group Filtering1
URL Filtering
Web Security1
DNS Proxy
DNSSEC, DoH, DoT, DNS Override
ARP Inspection
Sending GARP Packets
ARP Scanning2
IP-MAC Binding
ARP Detection
Access Control
Source/Destination IP Based ACL
Stateful ACL
IPv4/IPv6 ACL
National Based ACL
Authentication
Web Authentication
No Authentication
Simple Password
Hotspot (Local User / Voucher3 / SMS3 / Radius3)
External Radius Server
External Portal Server3
LDAP
Management
Service
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
Web Management Interface
Remote Management
Export & Import Configuration
SNMP v1/v2c/v3
Diagnostics (Ping & Traceroute)
NTP Synchronize4
Port Mirroring
CLI (only in Standalone Mode)
Syslog Support
Others
Certification
CE, RoHS
Package Contents
ER603WP-4G-Outdoor Gateway, Antennas, Mounting Kits, Passive PoE Adapter, Quick Installation Guide
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
MAC OS, NetWare, UNIX or Linux
Environment
Operating Temperature: -30 °C to 60 °C
Storage Temperature: -40 °C to 70 °C
Operating Humidity: 5% to 95% non-condensing
Storage Humidity: 5% to 90% non-condensing
