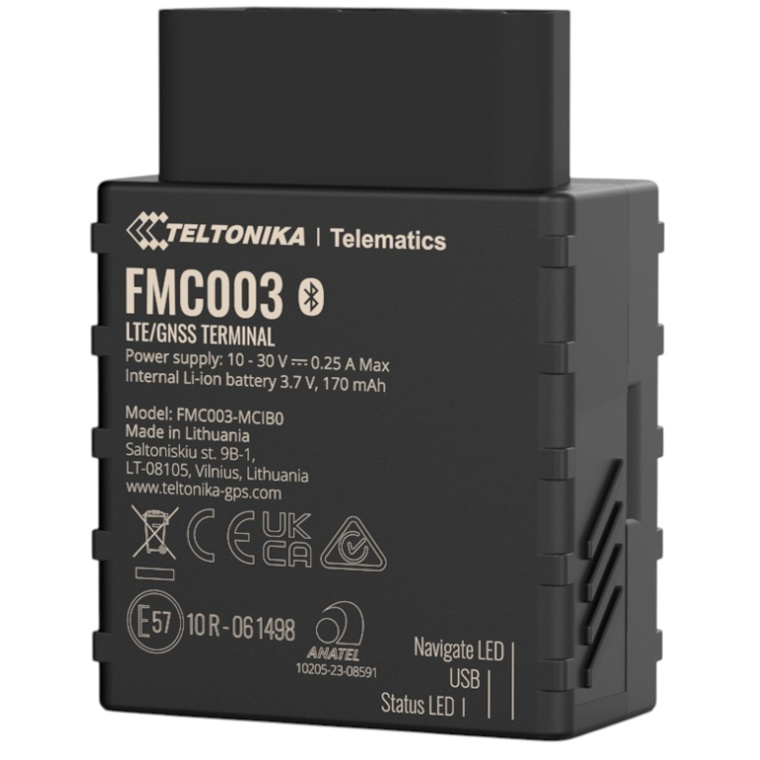

Teltonika FMC003 4G LTE Cat 1 tracker with OBD OEM data reading
Teltonika FMC003 4G LTE Cat 1 tracker with OBD OEM data reading
- Brand: Teltonika
- MPN: FMC003
- Part #: NETTTK0031
- UPC:
View all shipping info
- Brand: Teltonika
- MPN: FMC003
- Part #: NETTTK0031
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Teltonika FMC003 4G LTE Cat 1 tracker with OBD OEM data reading
- Brand: Teltonika
- MPN: FMC003
- Part #: NETTTK0031

Product URL: https://www.pbtech.com/au/product/NETTTK0031/Teltonika-FMC003-4G-LTE-Cat-1-tracker-with-OBD-OEM
Features
Teltonika FMC003 4G - Reliable 4G (LTE Cat 1) connection with fallback to 2G (GSM) network
Teltonika FMC003 is a small plug and play device with LTE CAT 1 network coverage including 2G (GSM) fallback compatibility. Main feature of FMC003 is its possibility to read OEM parameters (PIDs) via OBD port. With this device you will be able to read Real Odometer and Real Fuel Level data. More to that, device comes with supported vehicles and data list, so you do not need to guess no more, now you know what data can be read from a specific vehicle. It is a perfect tracker for a wide range of use cases - including fleet management of light commercial vehicles, driver log-book, insurance telematics (UBI), car rental & leasing and others. Device supports various Bluetooth® LE 4.0 features including sensors, beacons, firmware and configuration update via Bluetooth® which expands its already rich set of features.
- Device supports LTE CAT 1 connectivity, which allows low-power wide area technologies to be used
- Available list of vehicles with OEM parameters to be read
- Standard OBDII data reading from vehicle ECU
- Bluetooth for external devices and Low Energy Sensors

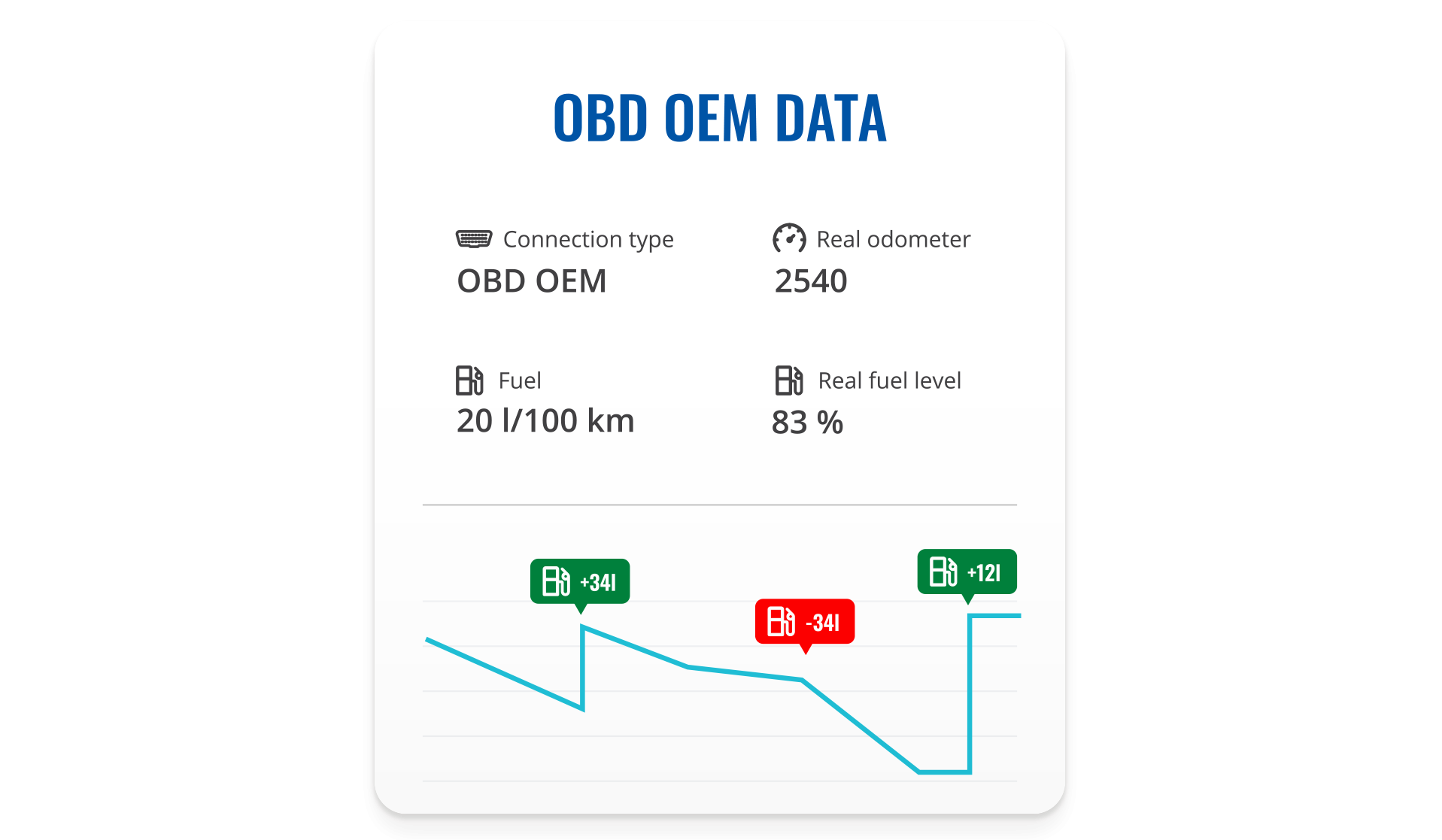

Reading OBD OEM parameters
Get real odometer & real fuel level data.

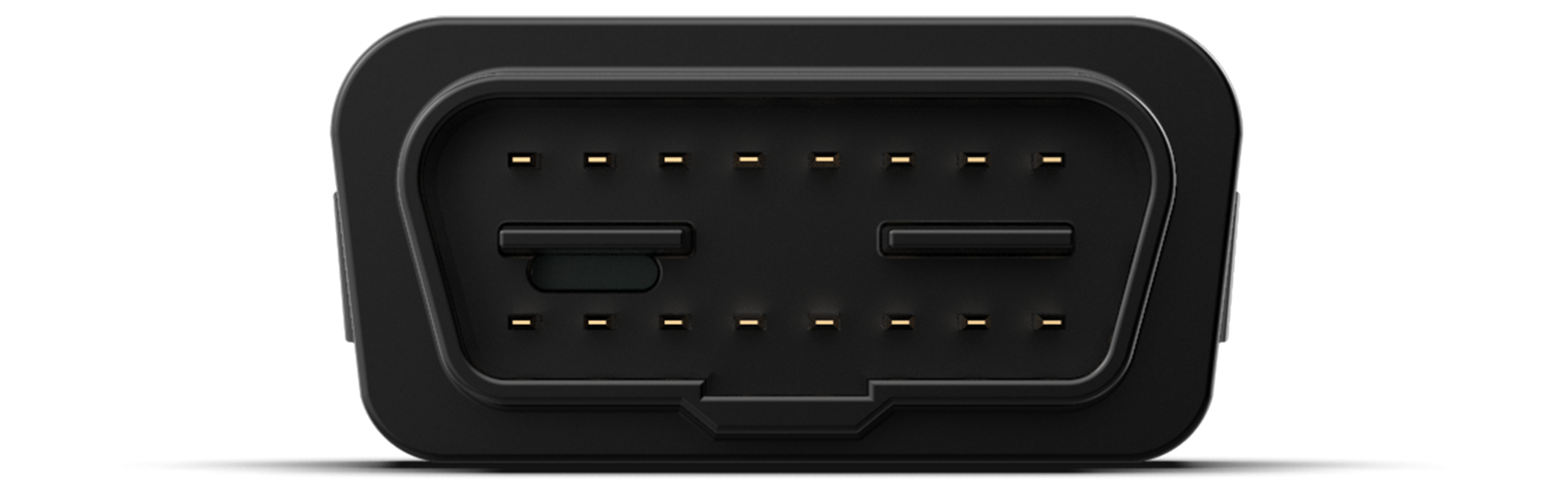

Effortless Plug & Play installation
Simply plug the device in OBD-II port and start tracking.
Electric Vehicle Support
Bringing new value and expanding usage scenarios with more than 150 supported vehicles in the EV market.

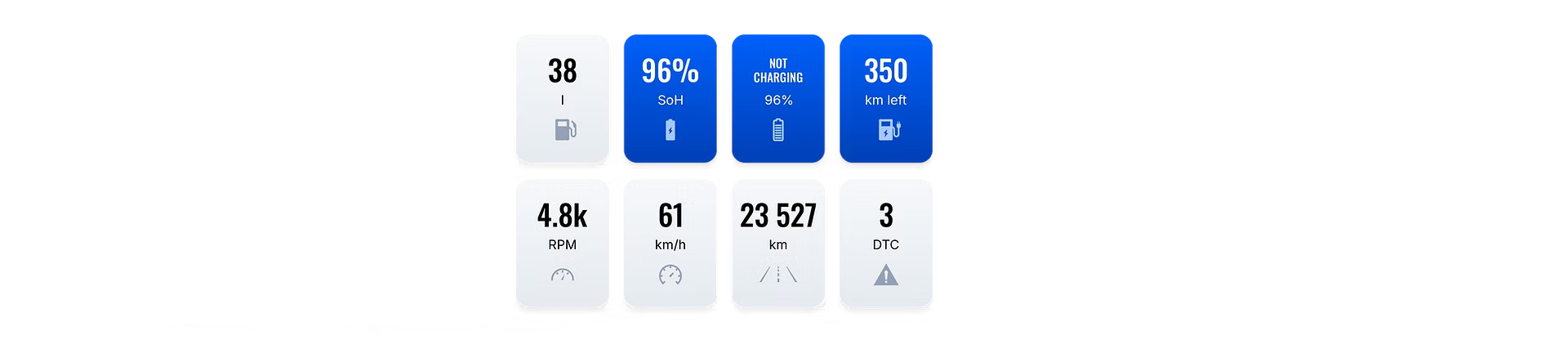

Supported vehicle and data list
Know in advance what vehicle parameters are available to optimise your fleet operations.
Specifications
Technology
LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH
Frequency Bands
4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B20, B28, 4G (LTE-TDD): B40; 2G (GSM): B2, B3, B5, B8
Transmit Power
Class 4 for GSM850/900: 23±2dBm, Class 1 for GSM1800/1900: 20±2dBm, Class 3 for LTE-TDD: 23±2.7dBm, Class 3 for LTE-FDD: 23±2.7dBm
Data Support
SMS (text/data)
GNSS
GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
GNSS Receiver
33 tracking channel, 99 acquisition channel
Tracking Sensitivity
-165 dBM
Position Accuracy
< 2.5 m CEP
Hot Start
< 1 s
Warm Start
< 25 s
Cold Start
< 35 s
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Input Voltage Range
10-30 V DC with overvoltage and reverse polarity protection
Internal Back-up Battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power Consumption
At 12V < 3 mA (Ultra Deep Sleep), At 12V < 5 mA (Deep Sleep), At 12V < 16 mA (Online Deep Sleep), At 12V < 18 mA (GPS Sleep), At 12V < 33 mA (nominal)
Bluetooth
4.0 + LE
Supported Peripherals
Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support
OBD iInterface Data
K-Line, CAN bus data
Data Reading
Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (5 baud init, 10.4 kbaud), ISO 14230-4 KWP (fast init, 10.4 kbaud), ISO 15765-4 CAN (11 bit ID, 250 kbaud), ISO 15765-4 CAN (11 bit ID, 500 kbaud), ISO 15765-4 CAN (29 bit ID, 250 kbaud), ISO 15765-4 CAN (29 bit ID, 500 kbaud)
Interface Connection
OBDII Socket
GNSS Antenna
Internal High Gain
Cellular Antenna
Internal High Gain
USB
2.0 Micro-USB
LED Indication
2 status LED lights
SIM
Micro-SIM
Memory
128MB internal flash memory
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep Modes
GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and Firmware Update
FOTA WEB, FOTA, Teltonika Configurator (USB, Bluetooth)
SMS
Configuration, Events, Debug
GPRS Commands
Configuration, Debug
Time Synchronization
GNSS, NITZ, NTP
Fuel Monitoring
OBD II
Ignition Detection
Accelerometer, External Power Voltage, Engine RPM
Weight
63 g
Dimensions (L x W x H)
67.2 x 49.6 x 25 mm
Regulatory
CE/RED/UKCA, E-Mark, EAC, RoHS, REACH, RCM, SDPPI POSTEL, CITC
