Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point
- Brand: Teltonika
- MPN: DAP142
- Part #: NETTTK10182

Product URL: https://www.pbtech.com/au/product/NETTTK10182/Teltonika-DAP142-RS232-Industrial-DIN-Rail-mount-W
Features
Teltonika DAP142 RS232 Industrial DIN Rail mount Wi-Fi Mesh Access Point
The DAP142 is a Teltonika industrial wireless access point with passive PoE, engineered for enhanced and reliable Wi-Fi coverage and performance in industrial environments. This access point is equipped with an RS232 port and two RJ45 ports, and is powered via a 3-pin power connector, making it ideal for specialised industrial applications. In addition to Wi-Fi 4 capabilities, the DAP142 supports Wi-Fi mesh, Fast Roaming, and up to 50 simultaneous connections. With an integrated DIN rail bracket, durable aluminium casing, and plug-and-play functionality, this wireless access point provides simple installation and configuration at minimum effort.
- Seamless Wi-Fi 4 with Wi-Fi mesh & Fast Roaming
- 2 x 10/100 RJ45
- RS232 port
- 1 x 3-pin power connector tailored for industrial use
- DIN Rail Bracket for easy mounting for plug-and-play deployment
Specifications
Wireless mode
IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
WiFi security
WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP
SSID/ESSID
ESSID stealth mode
Wi-Fi users
Up to 50 simultaneous connections
Wireless Connectivity Features
Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
LAN
2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU
Mediatek, 580 MHz, MIPS 24KEc
RAM
128 MB, DDR2
FLASH storage
16 MB serial NOR flash
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols
TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)
DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
VPN
OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
DNP3 Supported modes
Station, Outstation
Supported connection
TCP, RTU(RS232)
DLMS/COSEM Support
DLMS - standard protocol for utility meter data exchange, and Client
Serial RS232
Terminal block connector: TX, RX, RTS, CTS
Serial functions
Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

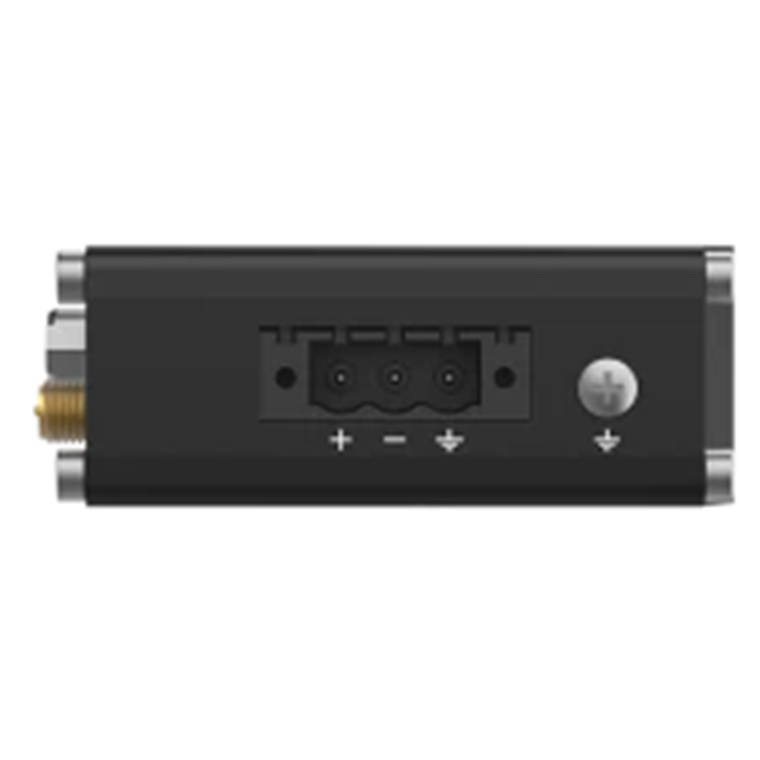

Power Connector
3-pos plugable terminal block
Input voltage range
9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption
Idle: < 1 W / Max: < 2 W
Status LEDs
2 x LAN type LED, 1 x Power LED
Antennas
1 x RP-SMA for Wi-Fi
RS232
1 x DB9 socket
Reset
Reboot/User default reset/Factory reset button
Casing material
Aluminium housing
Dimensions (W x H x D)
113.10 x 25 x 68.6 mm
Weight
149.2 g
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
Regulatory
CE, UKCA, CB, FCC/IC
