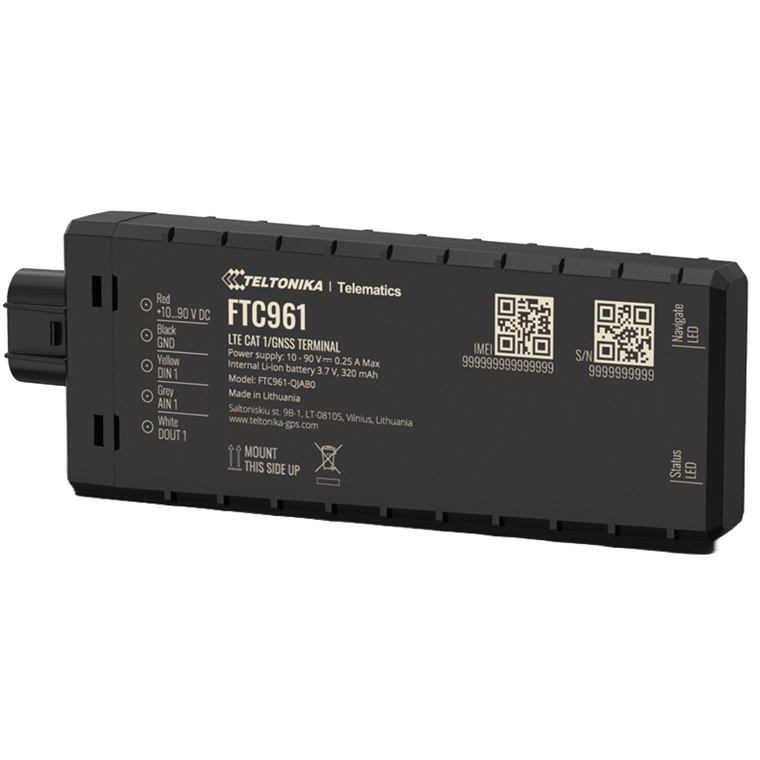

Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
- Brand: Teltonika
- MPN: FTC961
- Part #: NETTTK1031
- UPC:
View all shipping info
- Brand: Teltonika
- MPN: FTC961
- Part #: NETTTK1031
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Networking





Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
- Brand: Teltonika
- MPN: FTC961
- Part #: NETTTK1031

Product URL: https://www.pbtech.com/au/product/NETTTK1031/Teltonika-FTC961-high-voltage-4G-LTE-Cat-1-vehicle
Features
Teltonika FTC961 high voltage 4G LTE Cat 1 vehicle GPS tracker with enhanced GNSS accuracy and IP69K resistance
The Fleet Telematics (FT) platform includes both new firmware development standards and a new hardware, providing enhanced tracking accuracy with high GNSS precision, taking the tracking experience to the next level with up to 40 visible satellites, enabling considerably higher tracking quality for location-based services.
The 320mAh battery and optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage, while high power supply making FTC961 a perfect solution for monitoring and tracking various types of vehicles, including e-motorcycles, e-mopeds, e-rickshaws, and other electric vehicles.
FTC961 belongs to the BASIC products family, keeps its compatibility, reliability and endurance. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more.
In addition, IP69K casing ensures ultimate protection against dust, high pressure water, and steam, which brings unquestionable value to numerous market segments and societies, countries' budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation and any location from now!
FT PLATFORM
Fleet Telematics (FT) platform offers advanced firmware and hardware, taking your tracking experience to the next level.
HIGHER GNSS ACCURACY
More precise GNSS with up to 41 visible satellites, enabling considerably higher tracking quality for location-based services.
IP69K WATERPROOF CASING
The ultimate protection against dust, high pressure water, and steam.
LONGER PERFORMANCE, SLOWER DRAINAGE
Optimised sleep modes allow the device to operate on its own for an extended period of time and significantly reduce vehicle battery drainage.
Specifications
Brand
Teltonika
MPN
FTC961
GNSS
GNSS
GPS, GLONASS, GALILEO, BEIDOU
Receive type
135 tracking/acquisition channels
Tracking sensitivity
-165 dBM
Position Accuracy
< 1.8 m CEP
Velocity Accuracy
< 0.1 m/s (within +/- 15% error)
Cold start
< 35 s
Warm start
< 25 s
Hot start
< 1 s
Cellular
4G LTE bands
LTE FDD (CAT 1): B1/B3/B5/B7/B8/B20/B28
Data transfer
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power
Class 5 for GSM850/900: 30±5dBM
Class 3 for GSM1800/1900: 29±5dBM
Class 3 for LTE-FDD: 26±5dBM
Data support
SMS (TEXT, PDU), Network protocols (TCP)
Data codec
Codec support
Codec 8 Extended
Power
Input voltage range
10-90 V
Internal Back-up battery
320 mAh Li-Ion battery, 3.7 V (1.18 Wh)
Internal fuse
3A, 125V
Power consumption
TBA
Physical specification
Dimensions
118 x 48 x 18.5 mm (L x W x H)
Weight
118 g
Operating environment
Operating temperature (without battery)
-40 °C to +85 °C
Storage temperature (without battery)
-40 °C to +85 °C
Operating temperature (with battery)
-20 °C to +40 °C
Storage temperature (with battery)
-20 °C to +60 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP69K
Battery charge temperature
0 °C to +45 °C
Battery discharge temperature
-20 °C to +60 °C
Battery storage conditions
65 ± 20%RH
-20 °C to +25 °C for less than 1 month
0 °C to +30 °C for less than 3 months
+21 °C to +25 °C for less than 6 months
Interface
Digital Inputs
1
Digital Outputs
1
Analog Inputs
1
GNSS antenna
Internal High Gain
Cellular antenna
Internal High Gain
USB
2.0 USB Type-C
LED indication
2 status LED lights
SIM
Nano-SIM
Memory
128MB internal flash memory
Features
Sensors
Accelerometer
Scenarios
Green Driving, Over Speeding detection, Jamming detection, Excessive idling detection, Unplug detection, Crash Detection, Auto Geofence, Trip
Sleep modes
Deep Sleep, Online Sleep, Power Off Sleep
Configuration and firmware update
FOTA WEB, Teltonika Configuration Tool (TCT)
SMS
Configuration, DOUT control, Debug
GPRS commands
Configuration, DOUT control, Debug
Time Synchronization
GNSS, NITZ, NTP
Ignition detection
Digital Input 1, Accelerometer, External Power Voltage
