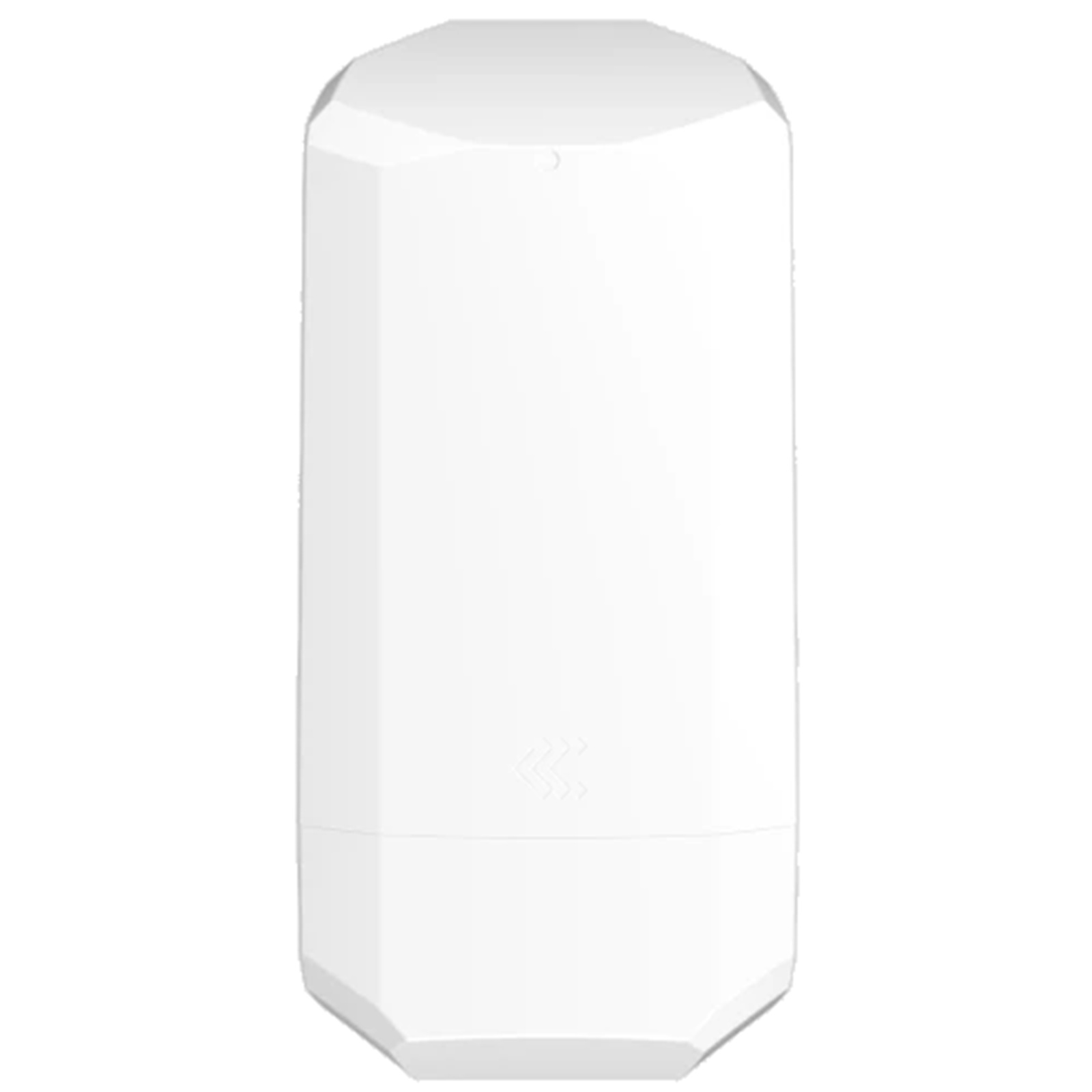

Teltonika OTD500 5G outdoor router

Ethernet

ETHERNET

2 x ETH ports (can be configured as WAN), 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

POE IN

PoE ports

1 x PoE In

PoE standards

802.3af/at

POE OUT

PoE ports

1 x PoE Out

PoE standards

802.3af Alternative B

PoE Max Power per Port (at PSE)

15 W Max (power supply unit dependent)

Network

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall

Port forward, traffic rules, custom rules, TTL target customisation

Firewall status page

View all your Firewall statistics, rules, and rule counters

Ports management

View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

Network topology

Visual representation of your network, showing which devices are connected to which other devices

DHCP

Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

QoS / Smart Queue Management (SQM)

Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

DDNS

Supported >25 service providers, others can be configured manually

DNS over HTTPS

DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

Network backup

VRRP, Wired options, each of which can be used as an automatic Failover

Load balancing

Balance Internet traffic over multiple WAN connections

Hotspot

Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

SSHFS

Possibility to mount remote file system via SSH protocol

VRF support

Initial virtual routing and forwarding (VRF) support

Traffic Management

Real-time monitoring, wireless signal charts, traffic usage history?

Security

Authentication

Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

Firewall

Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64

Attack prevention

DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

VLAN

Port and tag-based VLAN separation

Mobile quota control

Mobile data limit, customizable period, start time, warning limit, phone number

WEB filter

Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control

Flexible access control of SSH, Web interface, CLI and Telnet

TPM

Identification and authentication module, TPM 2.0 standard

SSL certificate generation

Let's Encrypt and SCEP certificate generation methods

802.1x

Port-based network access control server

VPN

OpenVPN

Multiple clients and a server can run simultaneously, 27 encryption methods

OpenVPN Encryption

DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

IPsec

XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

GRE

GRE tunnel, GRE tunnel over IPsec support

PPTP, L2TP

Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

Stunnel

Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code

DMVPN

Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

SSTP

SSTP client instance support

ZeroTier

ZeroTier VPN client support

WireGuard

WireGuard VPN client and server support

Tinc

Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Tailscale

Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA

Supported modes

Client, Server

Supported connection types

TCP

MODBUS

Supported modes

Server, Client

Supported connection types

TCP

Custom registers

MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

Supported data formats

8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

Protocol

HTTP(S), MQTT, Azure MQTT

Data to server

Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Modbus MQTT Gateway

Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modes

Station, Outstation

Supported connection

TCP

DLMS

DLMS Support

DLMS - standard protocol for utility meter data exchange

Supported modes

Client

Supported connection types

TCP

COSEM

Allows to scan meter COSEM objects for automatic detection and configuration

Power

Connector

RJ45 Socket

Input voltage range

42.5-57.0 VDC, reverse polarity protection, voltage surge/transient protection

Input voltage range for PoE

42.5-57.0 VDC, reverse polarity protection, voltage surge/transient protection

Power consumption

Idle: < 2.5 W / Max: < 9 W / PoE Max < 24 W

Physical Interfaces

Ethernet

2 x RJ45 ports, 10/100/1000 Mbps

Status LEDs

3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs

SIM

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V

Power

RJ45, PoE In, 42.5 - 57.0 VDC

Antennas

4 x internal antennas

Antennas specifications

4 x 617 - 960 / 1695 - 2690 / 3300 - 4200 / 4200 - 5000MHz, 50 O, VSWR <3.5, gain <4.9 dBi, omnidirectional

Reset

Reboot/User default reset/Factory reset button

Physical Specification

Casing material

Plastic (PC+ASA)

Dimensions (W x H x D)

110 x 49.30 x 235 mm

Weight

385 g

Mounting options

Mounting bracket (for vertical flat surface or pole mounting)

Operating Environment

Operating temperature

-40 °C to 55 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP55
