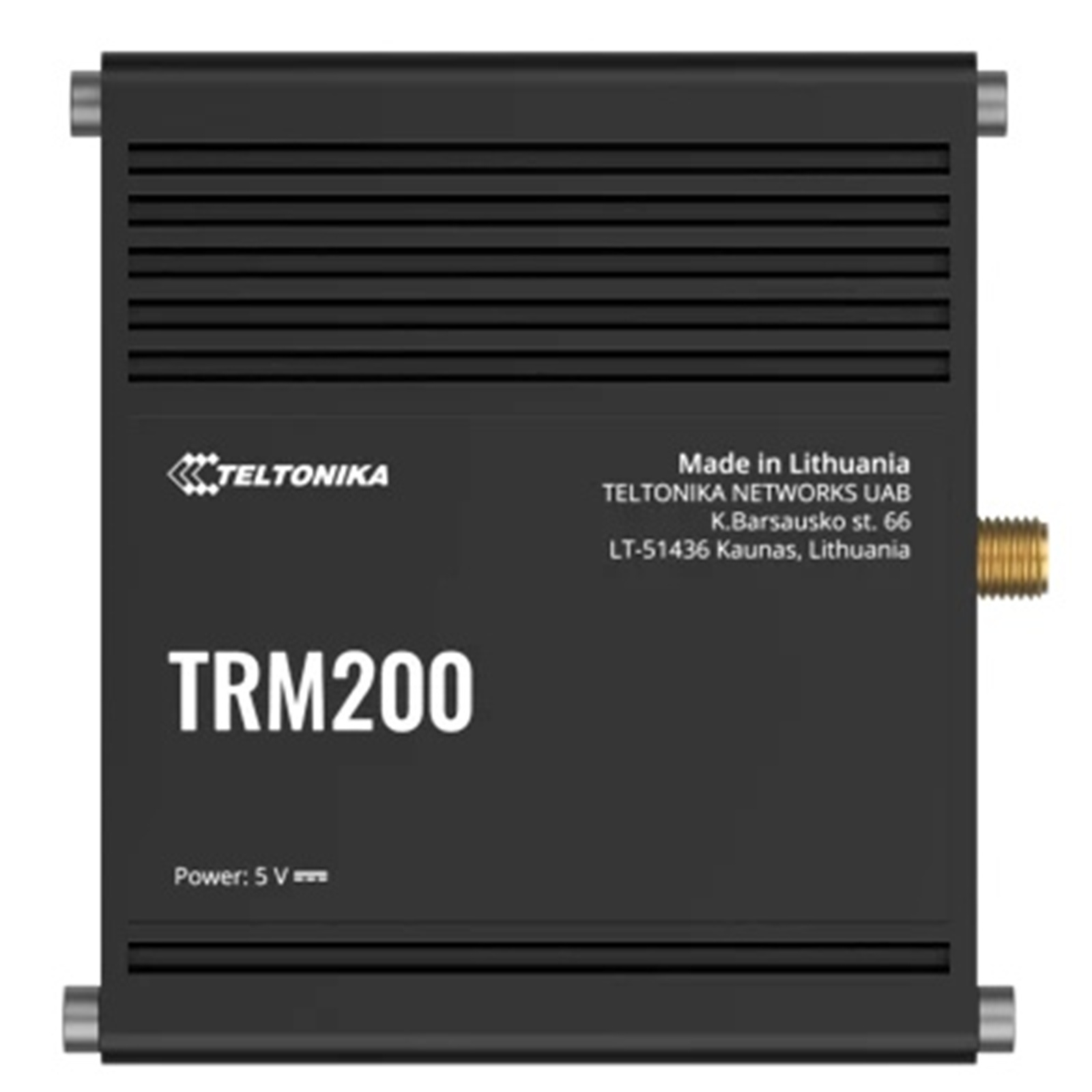

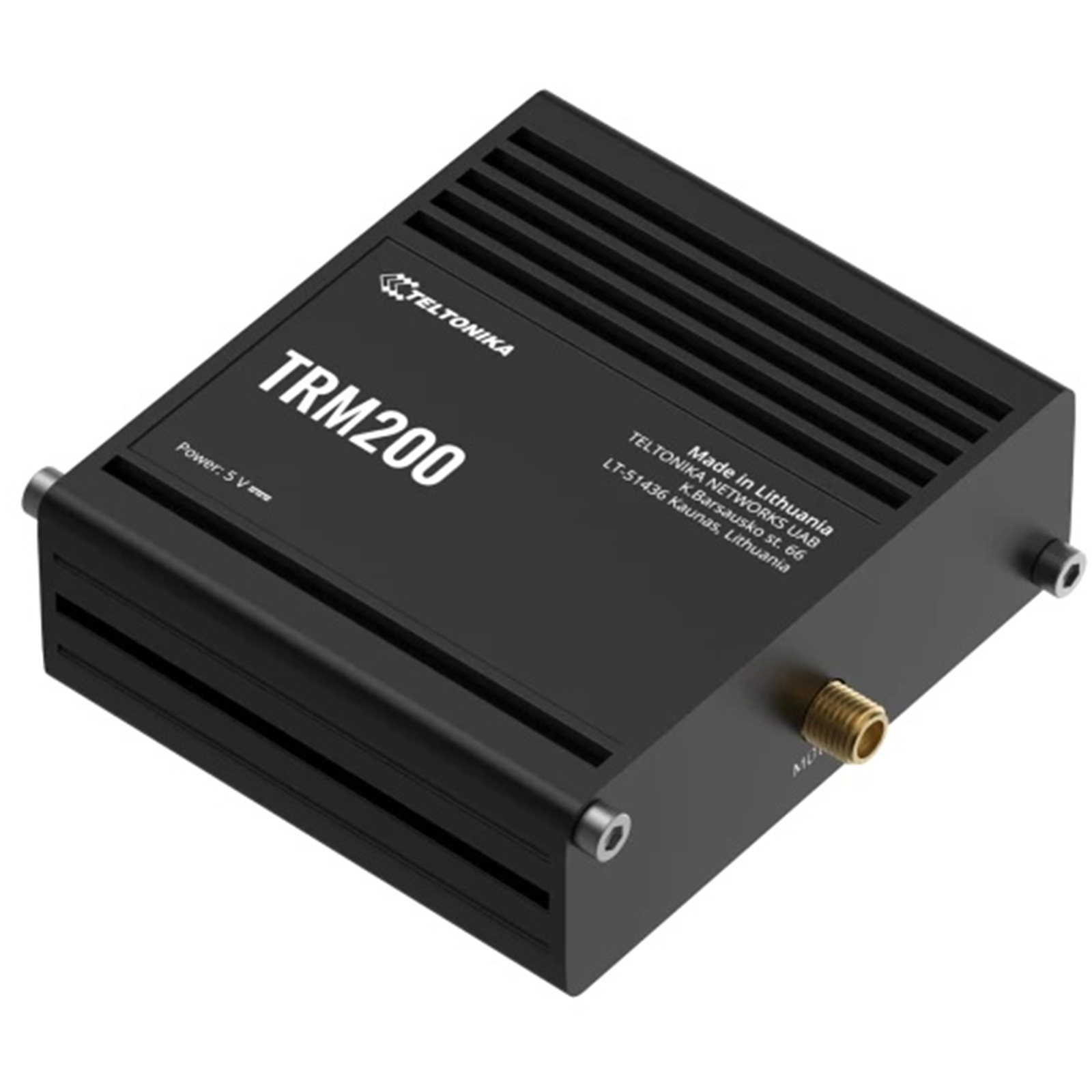

Teltonika TRM200 G/LTE Cat4 Serial Micro USB Modem
- Brand: Teltonika
- MPN: TRM200
- Part #: NETTTK1048

Product URL: https://www.pbtech.com/au/product/NETTTK1048/Teltonika-TRM200-GLTE-Cat4-Serial-Micro-USB-Modem
Features
The TRM200 is an industrial-grade LTE Cat 4 modem, providing reliable 4G connectivity with full backward compatibility for 3G and 2G networks, ensuring seamless operation across diverse environments. Equipped with a micro USB port and an external antenna, this rugged modem is a cost-effective solution for upgrading existing industrial equipment with LTE capabilities.
- 4G Cat 4, 3G, 2G
- Micro USB For powering and data connectivity
- External antenna connector
- Compact & durable Small size, easy installation
Specifications
Mobile
Mobile module
4G - Cat 4 up to 75 DL/50 UL Mbps, 3G - Up to 42 DL/5.76 UL Mbps, 2G - Up to 236.8 DL/ 236.8 UL kbps
3GPP Release
Release 9
Power
Connector
microUSB
Input voltage range
5V - powered via microUSB
Power consumption
Idle: < 0.9 W, Max: < 3.2 W
Physical Interfaces
Status LEDs
1 x Power LED, 1 x Network LED, 1 x Mobile LED
SIM
1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V
Power
1x microUSB

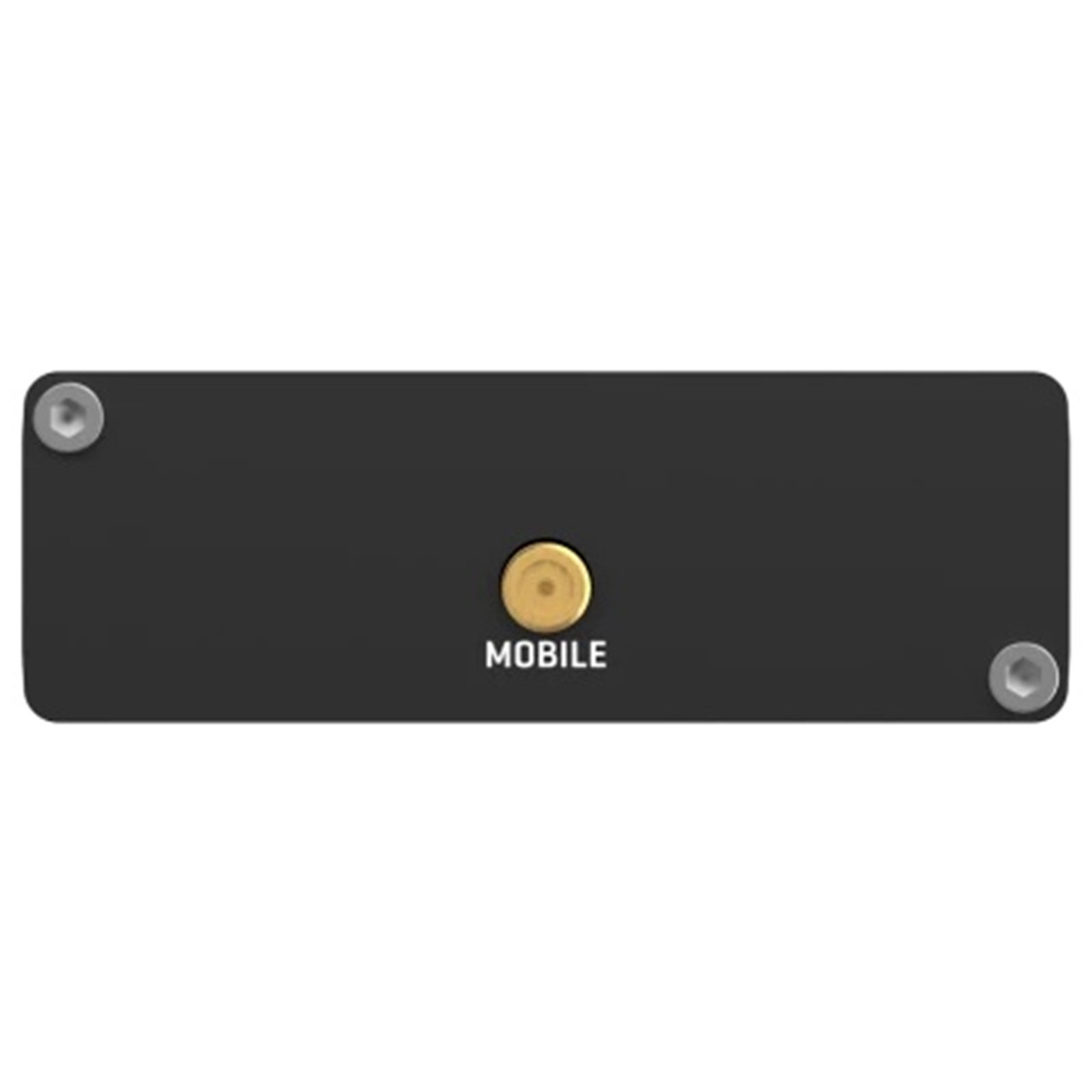

Antennas
1 x SMA for Mobile
Physical Specification
Casing material
Aluminium housing
Dimensions (W x H x D)
74.5 x 25 x 64.5 mm
Weight
274 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
TRM SOFTWARE
TRM SOFTWARE USB Driver RUT#03
Windows 7/8/8.1/10, Linux 2.6 or later, Android 2.3/4.0/4.2/4.4/5.0/5.1/6.0/7.0
NDIS Driver
Windows 7/8/8.1/10
Regulatory & Type Approvals
Regulatory
CE, UKCA, CB, EAC, UCRF, WEEE
