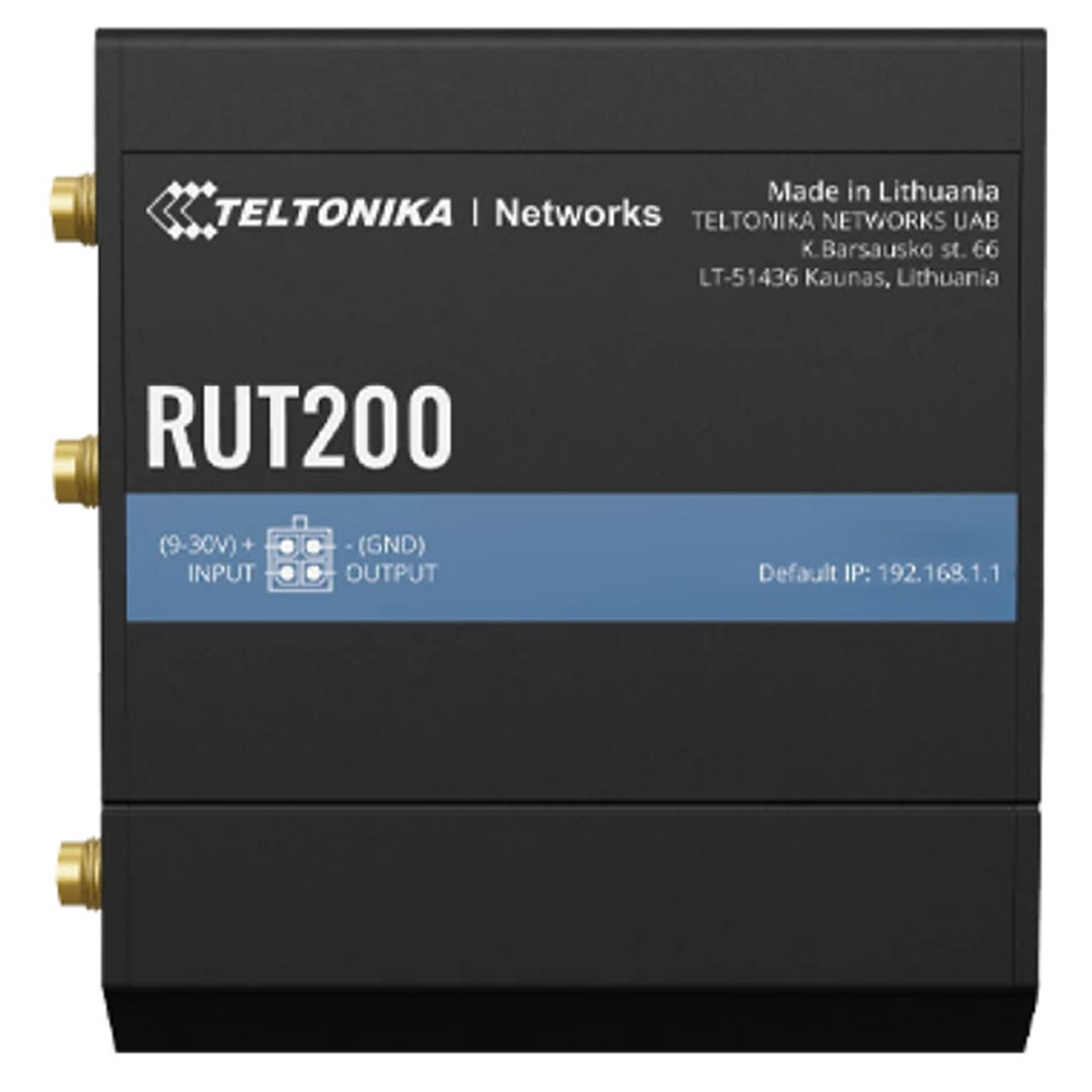

Teltonika RUT200 Industrial 4G/LTE WiFi Cellular Router
with Digital IO
Teltonika RUT200 Industrial 4G/LTE WiFi Cellular Router
with Digital IO
- Brand: Teltonika
- MPN: RUT200
- Part #: NETTTK2024
- UPC:
View all shipping info
- Brand: Teltonika
- MPN: RUT200
- Part #: NETTTK2024
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular 4G / 5G Routers





Teltonika RUT200 Industrial 4G/LTE WiFi Cellular Router with Digital IO
- Brand: Teltonika
- MPN: RUT200
- Part #: NETTTK2024

Product URL: https://www.pbtech.com/au/product/NETTTK2024/Teltonika-RUT200-Industrial-4GLTE-WiFi-Cellular-Ro
Features
RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.
CONNECTIVITY
4G/LTE (Cat 4), 3G, 2G
WI-FI
Wireless Access Point with Hotspot functionality
WAN FAILOVER
Automatic switching to available Backup connection
RMS
For remote management, access & VPN services
Specifications
Mobile module
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
3GPP Release
Release 9
Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list
Operator black/white list (by country or separate operators)
Multiple PDN
Possibility to use different PDNs for multiple network access and services
Band management
Band lock, Used band status display
SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN
Auto APN
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
Wi-Fi users
Up to 50 simultaneous connections
WAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
LAN
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Casing material
Aluminium housing, plastic panels
Dimensions (W x H x D)
83 x 25 x 74 mm
Weight
125 g
Mounting options
DIN rail, wall mount, flat surface (all require additional optional kit)
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
