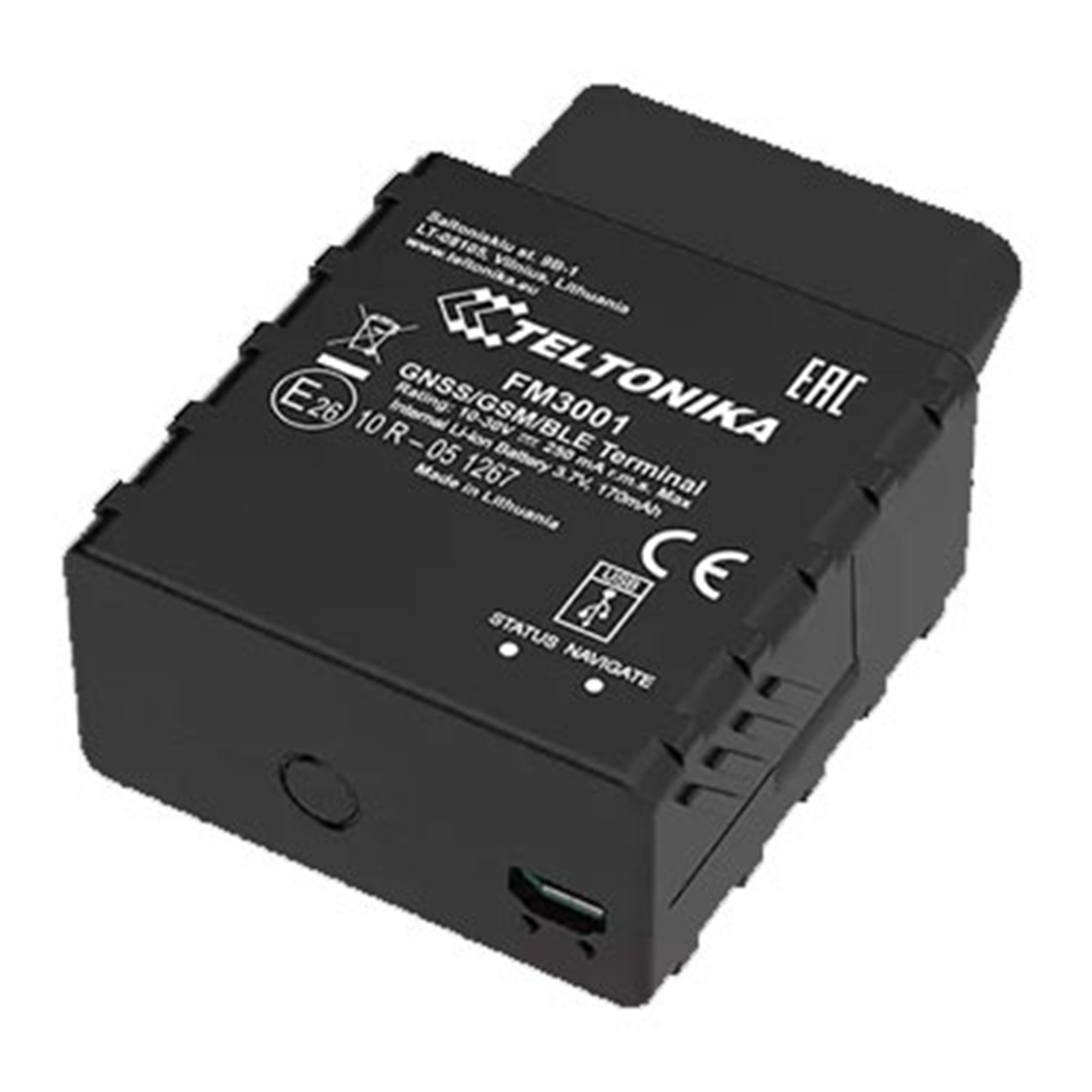

Teltonika FM3001 Advanced Plug and Track real-time tracking terminal with GNSS,3G and Bluetooth Connectivity

PB Tech price
PB Tech price
$ 57 .36
 +GST
$ 63 .09
 inc GST
$57.36  +GST
$63.09

Teltonika FM3001 Advanced Plug and Track real-time tracking terminal with GNSS,3G and Bluetooth Connectivity

  • Brand: Teltonika
  • MPN: FM3001
  • Part #: NETTTK3001
  • UPC:
PB Tech price
$ 57 .36 $ 63 .09
 +GST  inc GST


Delivery: Order now and it ships on 09 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$57.36  +GST
$63.09

Features

Teltonika FM3001 Advanced Plug and Track real-time tracking terminal with GNSS, 3G and Bluetooth connectivity

The FM3001 is EASY OBDII Plug and Play IoT tracker with GNSS, 3G and Bluetooth connectivity. FM3001 is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other where simple integration is a must. FM3001 has additional feature - reading OBDII data from on-board computer. Device supports hands free, firmware and configuration update via Bluetooth. 3G feature makes this device usable worldwide.

- Worldwide 3G network coverage
- Allows device to work without external power source
- Bluetooth for external devices and Low Energy sensors
- Allows reading CAN bus data from vehicle ECU
- Crash detection functionality working according accelerometer data

Specifications

Product code

FM3001 (FM3001Q3V301)

Module Name

Quectel UC20, Teltonika TM2500

Technology

3G/GSM/GPRS/GNSS/BLUETOOTH

GNSS

GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver

Tracking: 33/99 acquisition channels

Tracking sensitivity

-165 dBM

Accuracy

< 3 m

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

Cellular Technology

UMTS/HSPA+, GSM/GPRS/EDGE

2G bands

Quad-band 850 / 900 / 1800 / 1900 MHz

3G bands

850 / 900 / 1700 / 1900 / 2100 MHz

Data transfer

HSPA+ uplink up to 5,76 Mbps, downlink up to 14.4 Mbps, UMTS uplink/downlink up to 384 Kbps, EDGE uplink/downlink up to 236.8 Kbps, GPRS and EDGE class 12

Data support

SMS (text/data)

Input voltage range

10 - 30 V DC with overvoltage protection

Internal Back-up battery

Li-Polymer rechargeable battery, 3.7 V, 170 mAh

Power Consumption

At 12V < 2,2 mA (Ultra Deep Sleep), At 12V < 4,5 mA (Deep Sleep), At 12V < 5 mA (Online Sleep), At 12V < 12 mA (GPS Sleep), At 12V < 35 mA (nominal)

Bluetooth Specification

4.0 + LE

Supported peripherals

Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support

OBD Interface Data

K-Line, CAN bus Data

Data Reading

SAE J1850 PWM, SAE J1850 VPW, SAE J1939 CAN, ISO 9141-2, ISO 14230-4 KWP, ISO 14230-4 KWP, ISO 15765-4 CAN, ISO 15765-4 CAN, ISO 15765-4 CAN, ISO 15765-4 CAN

Dimensions

50,7 x 49,6 x 25mm (L x W x H)

Weight

63 g

Operating temperature (without battery)

-40 °C to +85 °C

Storage temperature (without battery)

-40 °C to +85 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP41

Battery charge temperature

0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

-20 °C to +45 °C for 1 month, -20 °C to +35 °C for 6 months

Interface Connection

ODBII Socket

GNSS antenna

Internal High Gain

Cellular antenna

Internal High Gain

USB

2.0 Micro-USB

LED indication

2 status LED lights

SIM

Micro-SIM

Memory

128MB internal flash memory

Sensors

Accelerometer

Scenarios

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, , Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)

SMS

Configuration, Events, Debug

GPRS commands

Configuration, Debug

Time Synchronization

GNSS, NITZ, NTP

Fuel monitoring

ODBII

Ignition detection

Accelerometer, External Power Voltage, Engine RPM

Package Contents

1 x FM3001 GPS device, USB cable, OBD2 power connector
