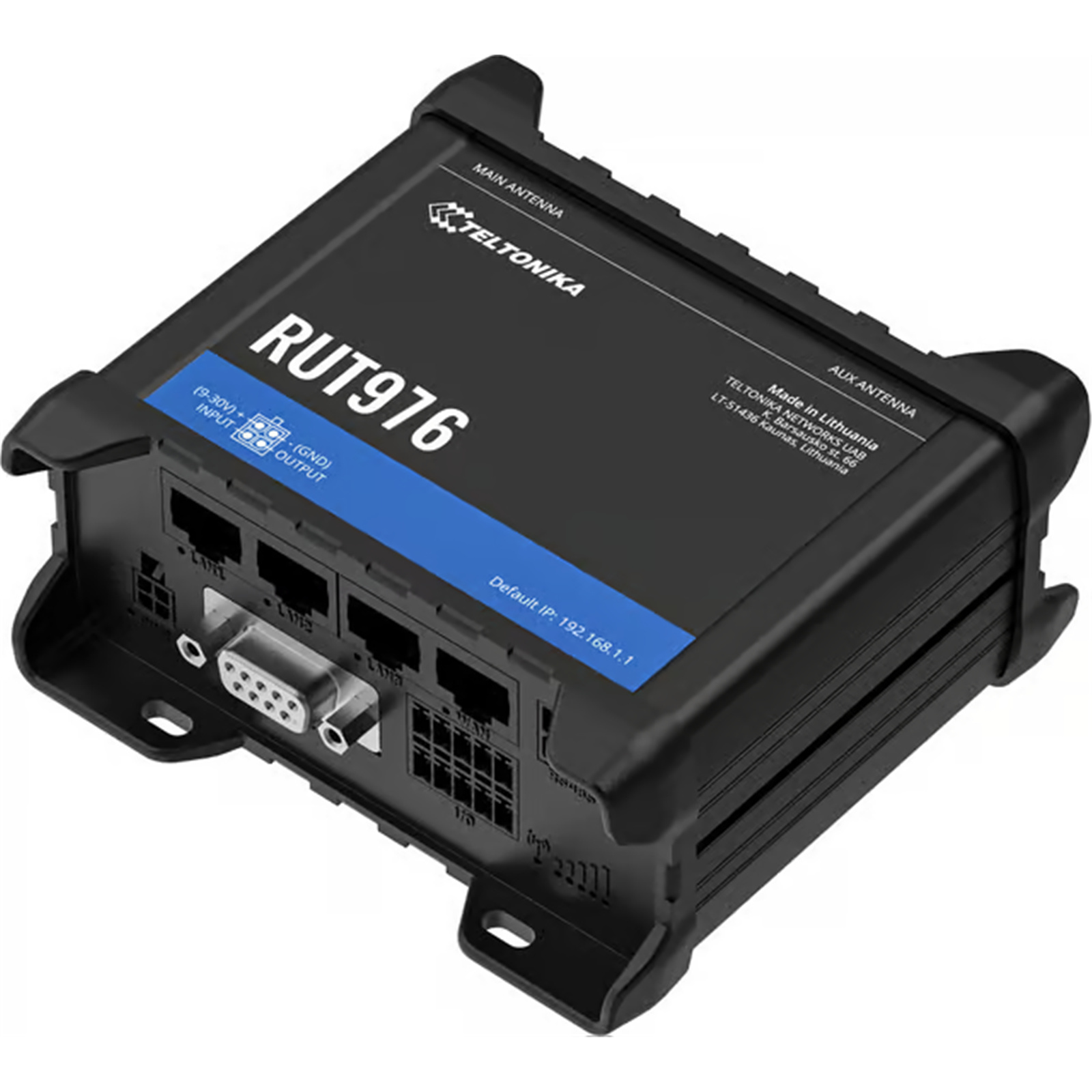

Teltonika RUT976 5G RedCap Cellular Router

Mobile module

5G Sub-6Ghz SA 223 Mbps DL , 123 Mbps UL; 4G LTE Cat 4 - LTE 195 Mbps DL, 105 Mbps UL

3GPP Release

Release 17 RedCap

Bands

5G NR SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79; 4G (LTE-FDD): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B66, B70, B71; 4G (LTE-TDD): B34, B38, B39, B40, B41, B42, B43, B48

SIM switch

2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

Status

IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

SMS

SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

USSD

Supports sending and reading Unstructured Supplementary Service Data messages

APN

Auto APN

Bridge

Direct connection (bridge) between mobile ISP and device on LAN

Passthrough

Router assigns its mobile WAN IP address to another device on LAN

Wireless mode

802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

Routing

Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

Network protocols

TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN

VoIP passthrough support

H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

Connection monitoring

Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall

Port forward, traffic rules, custom rules

CPU

Mediatek, 580 MHz, MIPS 24KEc

RAM

128 MB, DDR2

FLASH storage

32 MB, NOR Flash

GNSS

GPS, GLONASS, BeiDou, Galileo and QZSS

RS232

DB9 connector, RS232 (with RTS, CTS flow control)

RS485

RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate

Serial functions

Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client

USB Data rate

USB 2.0

Input

1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)

Output

1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)

Events

Email, RMS, SMS

I/O juggler

Allows to set certain I/O conditions to initiate event

SD Card

Micro SD (internal)

Power consumption

Idle: < 3 W, Max: < 7 W

Ethernet

4 x RJ45 ports, 10/100 Mbps

I/O's

2x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector

Status LEDs

1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power

SIM

2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)

Power

1 x 4-pin power connector

Input/output

1 x 10-pin industrial socket for inputs/outputs

Antennas

2 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS

USB

1 x USB A port for external devices

RS232

1 x DB9 socket

RS485

1 x 6-pin industrial socket

Reset

Reboot/User default reset/Factory reset button

Casing material

Aluminum housing, plastic panels

Dimensions (W x H x D)

110 x 50 x 100 mm

Weight

295 g

Mounting options

DIN rail, wall mount, flat surface (all require additional kit)

Operating temperature

-40 °C to 75 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Regulatory

WEEE
