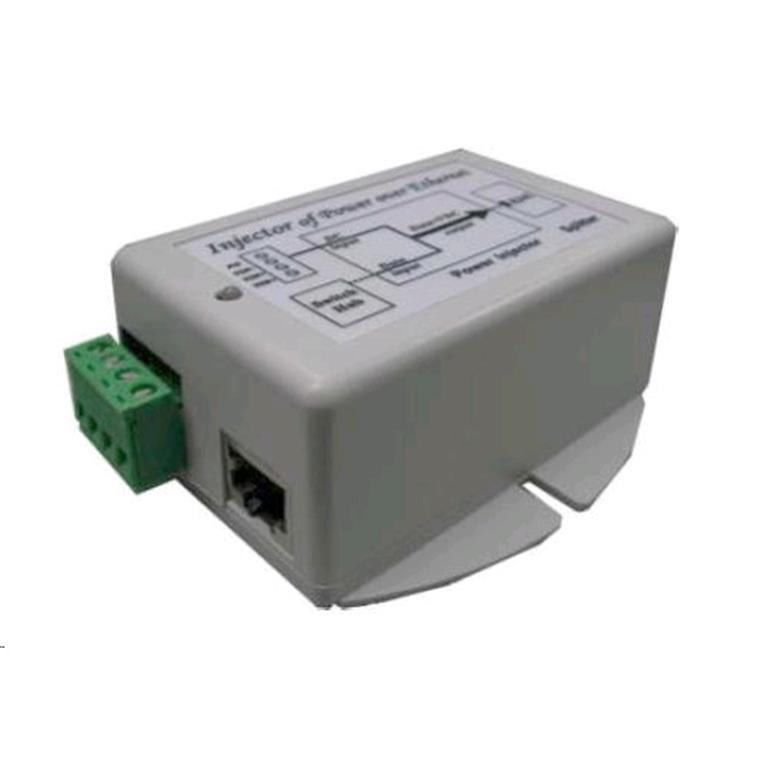

Tycon Systems TP-DCDC-1224G Tycon 9-36VDC In, 24VDC 19W Out Gigabit DC to DC Converter
- Brand: Tycon Systems
- MPN: TP-DCDC-1224G
- Part #: NETTYC1013

Product URL: https://www.pbtech.com/au/product/NETTYC1013/Tycon-Systems-TP-DCDC-1224G-Tycon-9-36VDC-In-24VDC
Features
The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at or Passive Power over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5 Ethernet cable. The output voltage is regulated and protected. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications. They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 35W.
- Input Voltage 9-36VDC
- Integrated 10/100/1000MB PoE Inserter
- Low Self Consumption Power
- Short Circuit, Over Current and Reverse/Over Voltage Protect
- High Temperature Operation
- Compact Size - Maximize Available Space
- Applications: 12V / 24V / 48V Battery Systems, Vehicle Applications, Wireless Access Points and Client Devices, IP Phone and Security Camera Systems
Specifications
DC Input Voltage
9VDC - 36VDC
DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage
24V (Passive)
Data in & Data/POE Output Connector
RJ45 (Shielded)
Output Current (max)
0.8A
Output Power (max)
19W
Self Consumption Power
1W
Dimensions
Length
85 mm
Width
76 mm
Height
36 mm
