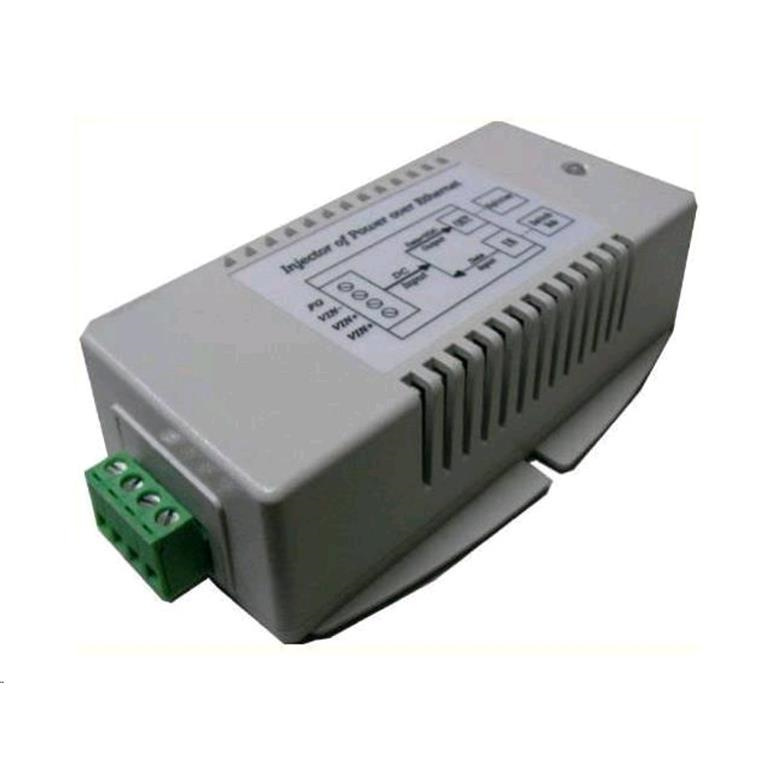

Tycon Systems TP-DCDC-4824-HP Tycon 36-72VDC In, 24VDC 30W Out DC to DC Converter
- Brand: Tycon Systems
- MPN: TP-DCDC-4824-HP
- Part #: NETTYC1024

Product URL: https://www.pbtech.com/au/product/NETTYC1024/Tycon-Systems-TP-DCDC-4824-HP-Tycon-36-72VDC-In-24
Features
The Tycon TP-DCDC-4824-HP DC to DC converters take an input of 36-72VDC and convert to 24V DC 30W regulated POE output. The Tycon TP-DCDC-4824-HP includes an integrated POE inserter to apply the DC voltage to the CAT5 cable on Pins 4,5 (V+) and Pins 7,8 (V-). It also has 2 isolated inputs to handle two power sources like a primary and backup source for uninterrupted failsafe operation. The input and output power are isolated so they can be used to convert a negative voltage to a positive voltage. Because of their wide input voltage and regulated output, they can also be used to stabilize a voltage output. Example; a voltage source is a long distance from the equipment with wide voltage fluctuations seen at the equipment.
- Great accessory for powering your MikroTik, EnGenius and Ubiquiti WiFi outdoor Long range wireless Access Points
Specifications
DC Input Voltage
36VDC to 72VDC
DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage
24VDC
Data in & Data/POE Output Connector
RJ45 (Shielded)
Output Current (max)
1.25A
Output Power (max)
30W
Self Consumption Power
2W
Dimensions
Length
125 mm
Width
75 mm
Height
38 mm
