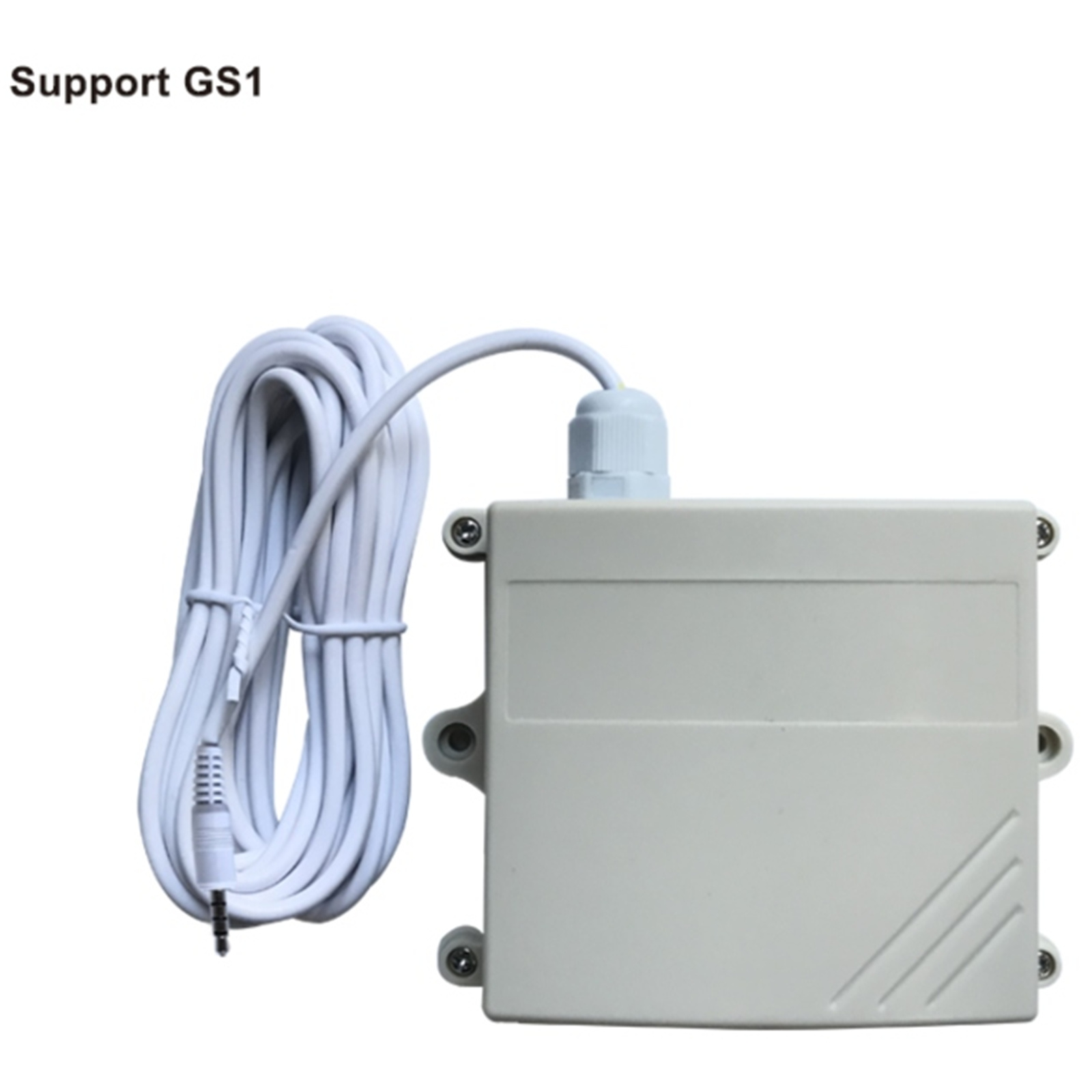

Ubibot CO2-Probe-3M-R-Audio for GS1 3 Metres
The carbon dioxide probe is an industrial-grade probe with high integration. The data is sent from the internal chip of the probe to the computer through the modbus-rs485 interface, and multiple probe scan be connected to the bus network to realize real-time monitoring of multiple field environments. In addition, the probe can also be directly connected to the power supply to display the measurement data through the LCD screen. The probe is designed with waterproof and breathable film, with the highest waterproof level up to IP65. It has super stability and anti-interference ability, strong product protection performance and first grade lightning protection, which can be used in agricultural industry and other occasions.
It is widely used in agricultural greenhouses, intelligent buildings, workshops, warehouses, pharmacies,libraries, museums, laboratories, offices, ventilation ducts and other places where carbondioxideconcentration needs to be monitored.
- RS485 interface, communication distance up to 1200 meters.
- High precision, wide range, good consistency.
- Standard audio interface design, easy to plug.
- Super stability and anti-interference.
- Wide voltage input, DC5-12V.
- Standard MODBUS RTU protocol.
- Able to accurately measure CO2 concentration.
- The product has strong protective performance and first grade lightning protection.
Specifications
Model
CO2-Probe-3M-R-Audio
Working Voltage
DC5V
Measuring Range
0~10000ppm
Measuring Accuracy
CO2:±(30ppm+3%) Accuracy(max) 0.1ppm
Output Interface
RS485
Communication Protocol
MODBUS RTU
Communication Address
0xC7
Baud Rate
1200 bit/s,2400 bit/s, 4800 bit/s, 9600 bit/s, 19200 bit/s (optional)
Standby Current
20mA
Interface Type
Audio Interface
Dimensions
65*46*29mm
Cable Length
3 Metre
