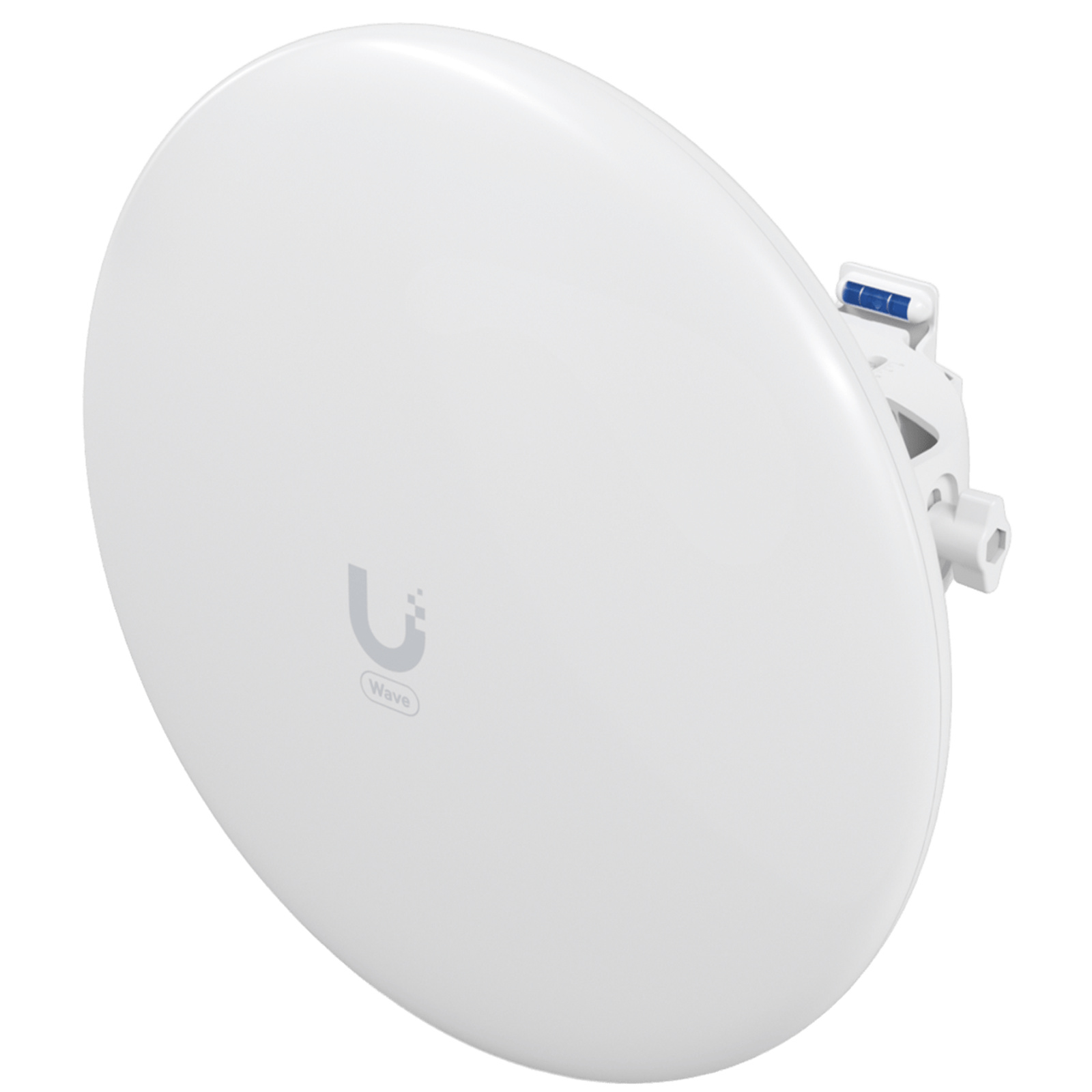

Ubiquiti UISP Wave 60GHz Nano Station Client
- Brand: Ubiquiti
- MPN: WAVE-NANO
- Part #: NETUBI0006

Product URL: https://www.pbtech.com/au/product/NETUBI0006/Ubiquiti-UISP-Wave-60GHz-Nano-Station-Client
Features
Ubiquiti UISP UISP Wave 60GHz Nano Station. 60 GHz PtMP station powered by Wave Technology. Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
- Compatibility and supported distances: 5 km link range(Wave-AP ), 4 km link range (Wave-AP-Micro)
- 2 Gbps max. throughput (1 Gbps duplex)
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) GbE RJ45 port
- Integrated GPS & Bluetooth
Building Features
Specifications
Brand
Ubiquiti
MPN
WAVE-NANO
Operating frequency
57-71 GHz + 5GHz 802.11ax (WiFi 6) Backup
Channel bandwidth
60GHz 2160, 1080 MHz
Operating channels
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region.
Modulation
16QAM, QPSK
Antenna gain
60GHz - 41dBi, 5GHz - 19dBi
Polarization
Vertically linear
Beamwidth
Azimuth: 3 dB 1.4°, Elevation: 3 dB 1.4°
Operating mode
PtMP station
Ubiquiti specific features
Wave AI, discovery protocol
Services
UISP, ping watchdog, NTP client, SNMP
Tools
Antenna alignment, discovery utility, ping, trace route, speed test
Network
Bridge/Router mode
Application requirements
UISP: Version 1.4.5 and later
Total throughput
2 Gbps (1 Gbps duplex)
Max. range
5+ km
Encryption
WPA2-PSK (AES)
Processor
Dual ARM® Cortex®-A53 cores at 1 GHz
Memory
DDR3L 512 MB
Networking interface
(1) GbE RJ45 port
Max. power consumption
20W
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-), Passive PoE 2-pairs (4, 5+; 7, 8-), for 44-54V DC only
Power supply
48V DC, 0.65A gigabit PoE adapter (included), Can be powered by a UISP Router or UISP Switch
Supported voltage range
44-54V DC, 22-27V DC
GPS
Yes
Button
Factory reset
LEDs
Power, Ethernet, GPS, link
Dimensions
256.5mm (diameter) x 113.5mm
Weight
Without mount: 932 g (2.1 lb), With mount: 1.2 kg (2.6 lb)
Enclosure materials
Aluminum alloy, UV stabilized plastic
Mount materials
Aluminum alloy, UV stabilized plastic
Pole mount diameter
25 to 63.5 mm (1 to 2.5") on pipe outer diameter
Wind loading
127 N at 200 km/h (28.6 lbf at 125 mph)
Weatherproofing
IPX6
Operating temperature
-40 to 60° C (-40 to 140° F)
Operating humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE
