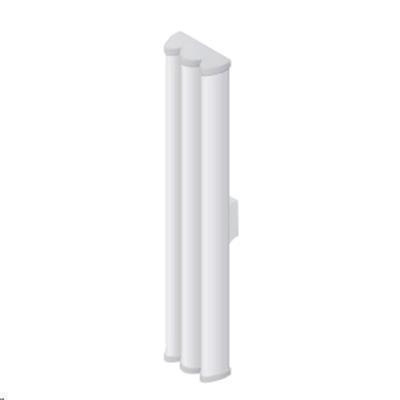

Ubiquiti airMAX Sector Antenna AM-5AC21-60, 5GHz, 21dBi, 60°

Normally $336.52

Normally $370.17

You save $16

You save $18

$ 319 .79

+GST

$ 351 .77

inc GST

Ubiquiti airMAX Sector Antenna AM-5AC21-60, 5GHz, 21dBi, 60°

Brand: Ubiquiti
MPN: AM-5AC21-60
Part #: NETUBI1111
UPC: 810354021428

FREE SHIPPING

PB Tech price

+GST inc GST

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 21 Jun

Estimated Delivery Times

NSW, VIC, ACT, QLD - Within 4-8 working days

SA, WA, TAS, NT - Within 8-12 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: AM-5AC21-60
Part #: NETUBI1111
UPC: 810354021428

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Ubiquiti airMAX ac Sector Antenna

The 5 GHz airMAX ac Sector AM-5AC21-60 2 x 2 MIMO BaseStation Sector Antenna from Ubiquiti Networks helps creating powerful point-to-point (PtP) backhaul links and point-to-multipoint (PtMP) airMAX links when paired with the RocketM5 / M5 ac BaseStation (available separately). However, it provides optimal performance with the RocketM5 ac BaseStation. The antenna has a built-in Rocket mount, so no tools are needed to install the base station.
Pairing the sector antenna with the RocketM5 / M5 ac BaseStation lets you utilize airMAX technology.

This antenna is highly resistant to noise interference in co-location deployments. The deflector-designed antenna with reduced side lobes and back lobes reject interference from other transmitters in the area, potentially on the same tower. It provides excellent gain and beam performance for high-capacity, multi-point networks.

-Carrier-class construction and 2 x 2 dual-polarity performance
-Provides sector-wide coverage and utilizes airMAX technology
-Features reduced sidelobes and backlobes that reject noise interference in co-location deployments
-Improved signal-to-noise ratio (SNR) allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM
-Increased number of bits per second for a fixed bandwidth (or data rate)
-High resistance to noise interference provides excellent gain and beam performance for high-capacity, multi-point networks
-Robust design for outdoor applications
-Provision of Rocket mount allows for tool-free installation of Rocket BaseStation

Specifications

Frequency Range
5.10 to 5.85 GHz
Gain
21 dBi
Hpol Beamwidth
60° (6 dBi)
Vpol Beamwidth
60° (6 dBi)
BeamwidthElectrical:
4°
Electrical Downtilt
2°
VSWR
1.5:1 (maximum)
Wind Survivability
125 mph (200 kph)
Wind Loading
88 lbf @ 125 mph (391 N @ 200 kph)
Polarization
Dual-linear
Cross-Polarity Isolation
25 dB minimum
ETSI Specification
EN 302 326 DN2
Mounting
Universal pole mount, Rocket bracket, and weatherproof RF jumpers (included)
Dimensions
29.5 x 6.8 x 3.1" (75.0 x 17.3 x 7.8 cm) excluding pole mount and Rocket radio (not included)
Weight
10.6 lb (4.8 kg) including pole mount and excluding Rocket radio

Manufacturer Part No:

AM-5AC21-60

Brand:

Ubiquiti

Product Type:

UPC

810354021428

Product Family:

Shipping Weight:

5.45 kg

PB Part No:

NETUBI1111

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
