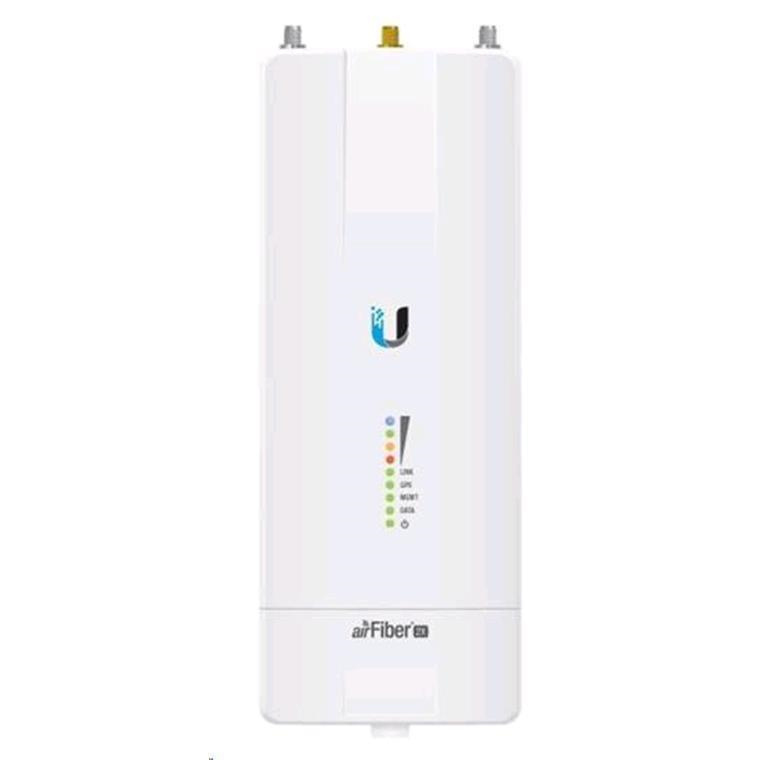

Ubiquiti airFiber 2X 2.4GHz Backhaul Radio

PB Tech price

$ 732 .34

+GST

$ 805 .58

inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Ubiquiti airFiber 2X 2.4GHz Backhaul Radio

Brand: Ubiquiti
MPN: AF-2X
Part #: NETUBI1217
UPC:

PB Tech price

$ 805 .58

inc GST

+GST inc GST

Out of stock

Delivery: Out of stock

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: AF-2X
Part #: NETUBI1217
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Ubiquiti continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing airFiber X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti antennas. Building upon the proven design of the airMAX Rocket system, airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point-to-Point (PtP) links. The airFiber X comes in multiple models for use in the 2.4GHz, 3.5GHz and 5GHz frequency bands. Ubiquiti's INVICTUS custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications. Our INVICTUS core communications processing engine surpasses all of the limitations inherent to generic Wi-Fi chips to provide superior performance, long-range capability, DFS flexibility, and power output. The airFiber X features industry leading spectral efficiency of up to 17.1 Mbps/MHz, line-rate data packet processing for up to 500+ Mbps of real data throughput, and innovative xtreme Range Technology (xRT) for up to 100+ km in range.

- Optimal Operation in Unlicensed Bands: Channel width flexibility (3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, 56 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.
- Ultra-Low Latency with HDD Technology: airFiber X is designed to provide the highest TDD throughput available and is engineered with proprietary Hybrid Division Duplexing (HDD) technology. In a backhaul link, two airFiber X radios use patent-pending HDD technology to calculate the propagation delay and know when each radio can transmit and receive, so they send packets in precise synchronization. Packet transmission latency is virtually eliminated. Co-Location: Co-location is vital in many scenarios. For example, a WISP may have limited tower space, so it must co-locate all equipment within that allotted footprint.
- GPS Synchronization: Precise GPS frame synchronization frees the airFiber X from interference for superior co-location capability. GPS enables the concurrency of TX and RX frames so you can co-locate the airFiber X radios and enhance the overall performance of your backhaul links. Clean Power Output: Using digital pre-distortion compensation and multi-IFFT processing, the innovative RF design delivers ultra-clean power output that improves noise immunity and co-location performance. This reduces the potential impact on the RF noise environment and allows for the use of higher-order modulation, such as 256QAM.

Specifications

Chipset

INVICTUS IC

Output Power

30dBm

Operating Modes

Master/Slave

Frequency Range

2400-2500 MHz

Security

128-bit AES

Interfaces

(2) RP-SMA Weatherproof (CH0, CH1); (1) SMA Weatherproof (GPS); (1) 10/100/1000 Ethernet Port (Data); (1) 10/100 Ethernet Port (Management)

Temperature Range

-40 to 55° C

PoE In

Yes, 19-29VDC

Operating System

airOS F

Max Power Consumption

17W

Number of chains

2x2

Polarisation

Dual Linear

Pole Diammeter

30-50mm

Dimensions

224 x 82 x 48 mm

IP Rating

IP54

Typical Range (Based on PtP)

100km+ (Antenna Dependent)

Manufacturer Part No:

AF-2X

Brand:

Ubiquiti

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

NETUBI1217

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
