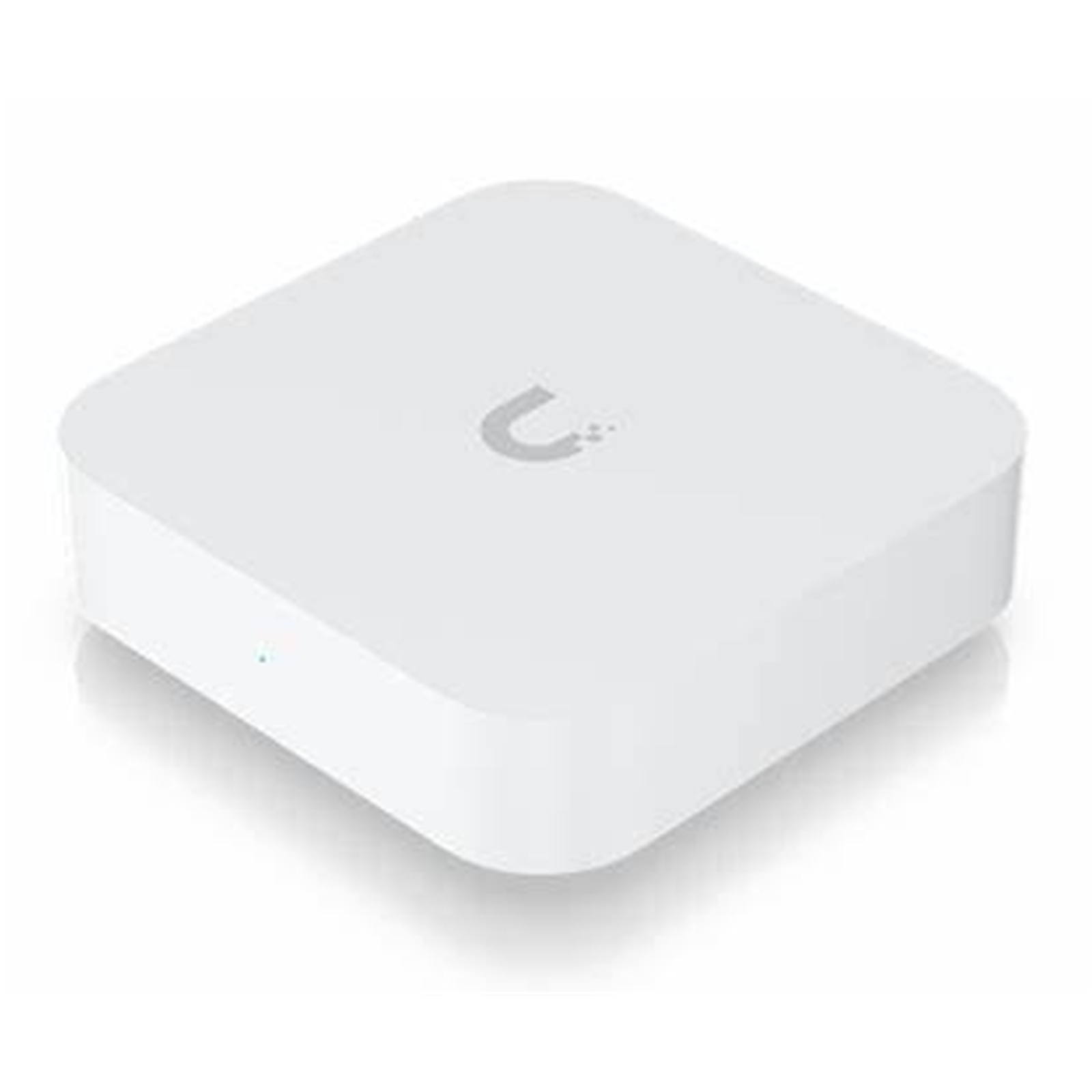

Ubiquiti UniFi (UXG-Max) 2.5G Gateway Max
2.5GbE x5
Ubiquiti UniFi (UXG-Max) 2.5G Gateway Max
2.5GbE x5
- Brand: Ubiquiti
- MPN: UXG-Max
- Part #: NETUBI2210
- UPC: 810084695401
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"simple to setup, but do check with your isp if you need a vlan tag for connection, will save you a heap of frustration."
"Old router stopped working and we already had some UniFi access points so got a same brand router. , very easy to setup and have been happy with it."
"Works well on Spark Gigabit fibre - pleasantly surprised to find no slowdown on Gigabit connection over PPPoE even with all intrusion detection and monitoring turned on. (despite w ...view more"
COMBO DEALS: Frequently Bought Together




$185.26 +GST
$203.79
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular HyperFibre Routers





Ubiquiti UniFi (UXG-Max) 2.5G Gateway Max 2.5GbE x5
- Brand: Ubiquiti
- MPN: UXG-Max
- Part #: NETUBI2210
- UPC:810084695401

Product URL: https://www.pbtech.com/au/product/NETUBI2210?srsltid=AfmBOopxbGzOrv-w5Mh5Qke1UQs1Xj7KdSfkw-oD5wOrN4XfFOe00g3Io0I
Features
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- Up to 1.5 Gbps routing with IDS/IPS

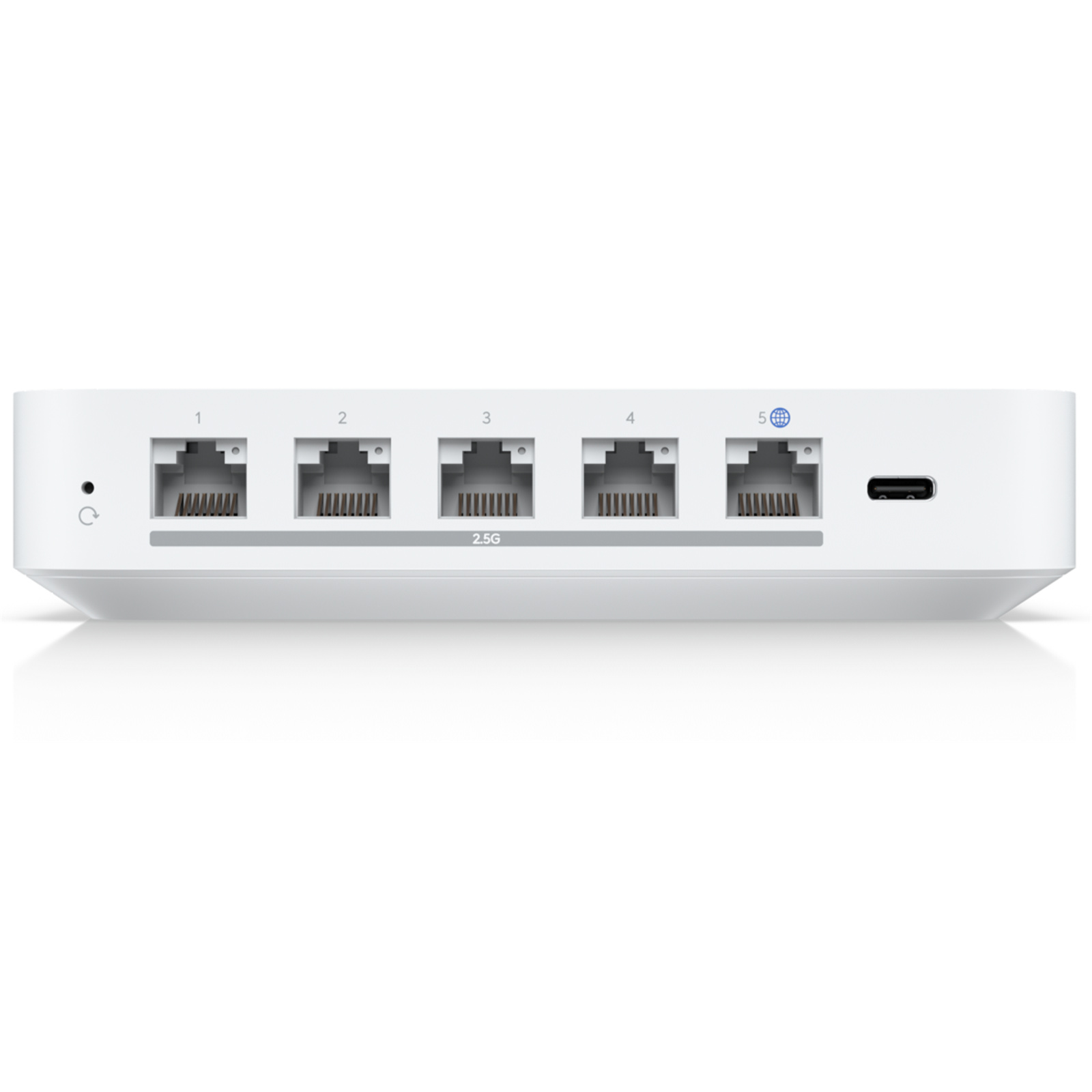

- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN
- USB-C powered (adapter included)
- Managed with UniFi Network 8.1.113 and later
Specifications
Mechanical
Dimensions
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight
520 g (1.1 lb)
Enclosure material
Polycarbonate
Resistance
IK04
Hardware
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
Memory information
2 GB DDR4
Management interface
Ethernet
Bluetooth
Networking interface
LAN:
(4) 2.5 GbE RJ45 ports
WAN:
(1) 2.5 GbE RJ45 port
IDS/IPS throughput
1.5 Gbps*
*Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation.
Power method
USB type C (5V/3A)
Supported voltage range
100-240V
Max. power consumption
9.6W
LED
Ethernet
White: link/activity
Button
(1) Factory reset
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
Gateway Features
Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Internet quality and outage reporting
Next-generation security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking
License-free SD-WAN*
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport* and Identity Enterprise VPN**
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IPv6 ISP support
Application Requirements
UniFi Network
Version 8.1.113 and later
