Ubiquiti UniFi UDR-5G-Max Dream Router 5G Max
10G SFP+ x1 /2.5GbE x4
Ubiquiti UniFi UDR-5G-Max Dream Router 5G Max
10G SFP+ x1 /2.5GbE x4
- Brand: Ubiquiti
- MPN: UDR-5G-Max
- Part #: NETUBI2594
- UPC:
View all shipping info
- Brand: Ubiquiti
- MPN: UDR-5G-Max
- Part #: NETUBI2594
- UPC:
Similar in-stock products available at PB Tech right now
Features
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage. Certified with AT&T and T-Mobile* (Verizon** coming soon).
*T-Mobile Home Internet SIMs aren't supported. Data-only plan required.
**Verizon is not supported at this time. Direct SIM/eSIM activation is expected in a future update.
Deployment
In The Box
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular HyperFibre Routers
ASUS TUF-BE6500 (BE6500) Dual-Band WiFi 7 Extendable Gaming...
Ubiquiti UniFi (UDM-PRO) Dream Machine Pro 10G Cloud Gateway with...
Ubiquiti UniFi (UCG-Fiber) 10G Cloud Gateway Fiber (SSD Tray not...
Ubiquiti UniFi (UDR7) Dream Router 7 10G Cloud Gateway with NVR...
Ubiquiti UniFi (UX7) Express 7 10G Cloud Gateway WiFi 7 Tir-Band...
Ubiquiti UniFi UDR-5G-Max Dream Router 5G Max 10G SFP+ x1 /2.5GbE x4
- Brand: Ubiquiti
- MPN: UDR-5G-Max
- Part #: NETUBI2594
Product URL: https://www.pbtech.com/au/product/NETUBI2594/Ubiquiti-UniFi-UDR-5G-Max-Dream-Router-5G-Max-10G
Features
Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage. Certified with AT&T and T-Mobile* (Verizon** coming soon).
*T-Mobile Home Internet SIMs aren't supported. Data-only plan required.
**Verizon is not supported at this time. Direct SIM/eSIM activation is expected in a future update.
Deployment
In The Box
Specifications
General
Dimensions
110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
UniFi Application Suite
Network: Yes
Protect: Yes
Access: Yes
Talk: Yes
Connect: Yes
Managed UniFi Devices
30+
Managed Cameras
(5) HD
(2) 2K
(1) 4K
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 10G SFP+
(1) 2.5 GbE RJ45

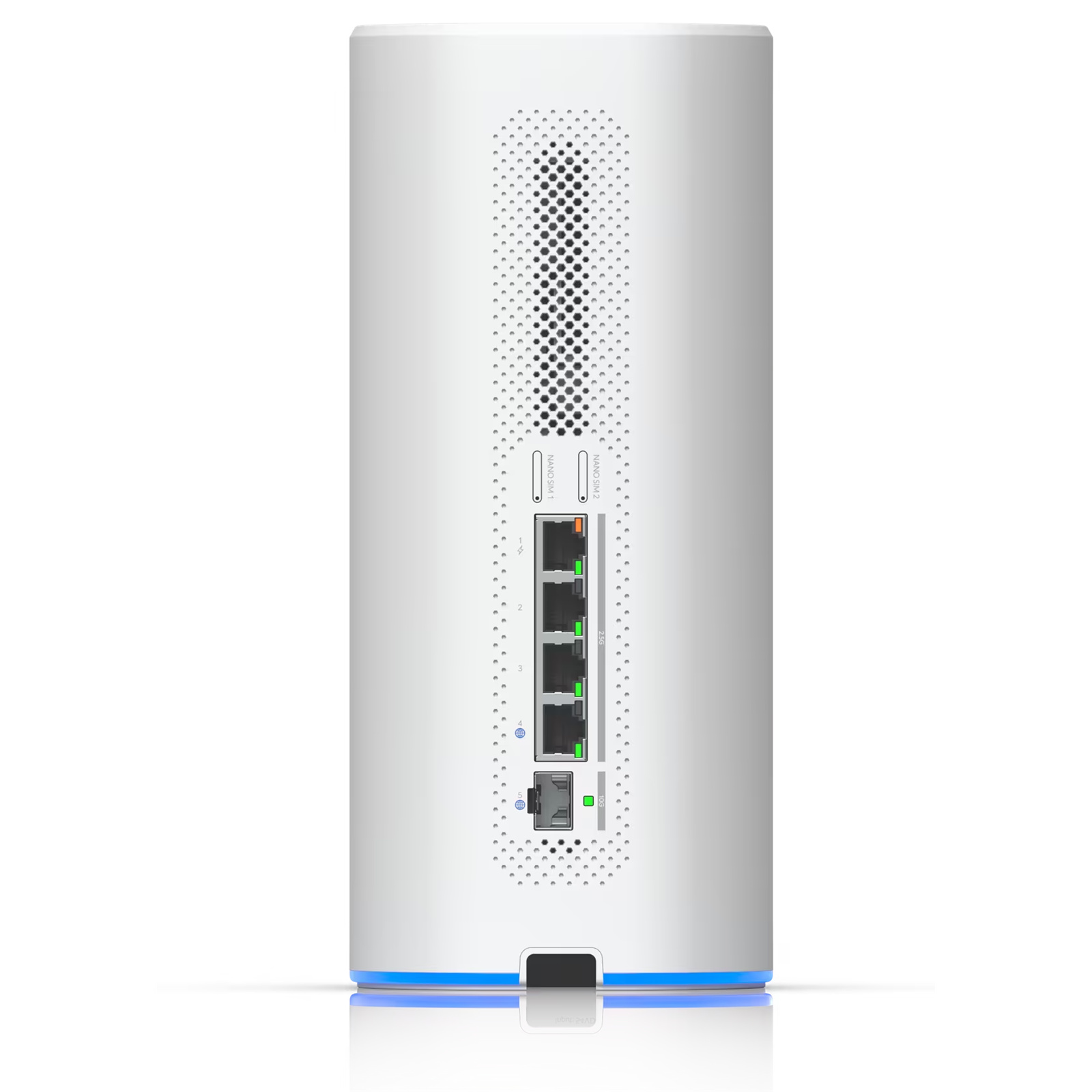

Port Layout
2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M)
10G SFP+: 1 (10G/1G)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Desktop
Coverage Area
160 m² (1,750 ft²)
Security
Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Ye
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
20,000+ with CyberSecure
VPN & SD-WAN
License-Free SD-WAN
Yes
Site-to-Site VPN
Site Magic: Yes
IPsec: Yes
OpenVPN: Yes
VPN Server
Identity Endpoint One-Click VPN: Yes
Teleport Zero-Configuration VPN: Yes
WireGuard: Yes
OpenVPN: Yes
L2TP: Yes
VPN Client
OpenVPN: Yes
WireGuard: Yes
Site-to-Site VPN Single Tunnel Throughput
Site Magic: 20
VPN Client Single Tunnel Throughput
WireGuard: 8
OpenVPN: 8
Networking
Multi-WAN Load Balancing
Yes
Dynamic Routing
OSPF: Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with UniFi LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
2,000
Virtual Network Override
Yes
All Traffic Flows
-
Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz:5.7 Gbps
5 GHz: 4.3 Gbps
2.4 GHz: 688 Mbps
MIMO
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Antenna Gain
6 GHz: 8 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max. TX Power
6 GHz: 22 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Cellular
5G NR
Category: 5G NR Sub-6
Frequency Bands: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX Power: HPUE power class 2: 26 dBm
4G LTE
Frequency Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power: HPUE power class 2: 25 dBm
3G UMTS
Frequency Bands: B1, B2, B4, B5, B8, B19
Peak Data Speed
5G NSA
Downlink 3.4 Gbps
Uplink 560 Mbps
5G SA
Downlink 1.8 Gbps
Uplink 650 Mbps
4G LTE
Downlink 1.6 Gbps
Uplink 210 Mbps
Antenna Gain
617-960 MHz: 3 dBi
1710-2700 MHz: 7 dBi
3300-5000 MHz: 8 dBi
5150~5925 MHz: 8 dBi
SIM
(2) Nano SIM
(1) Nano-SIM or eSIM
Hardware

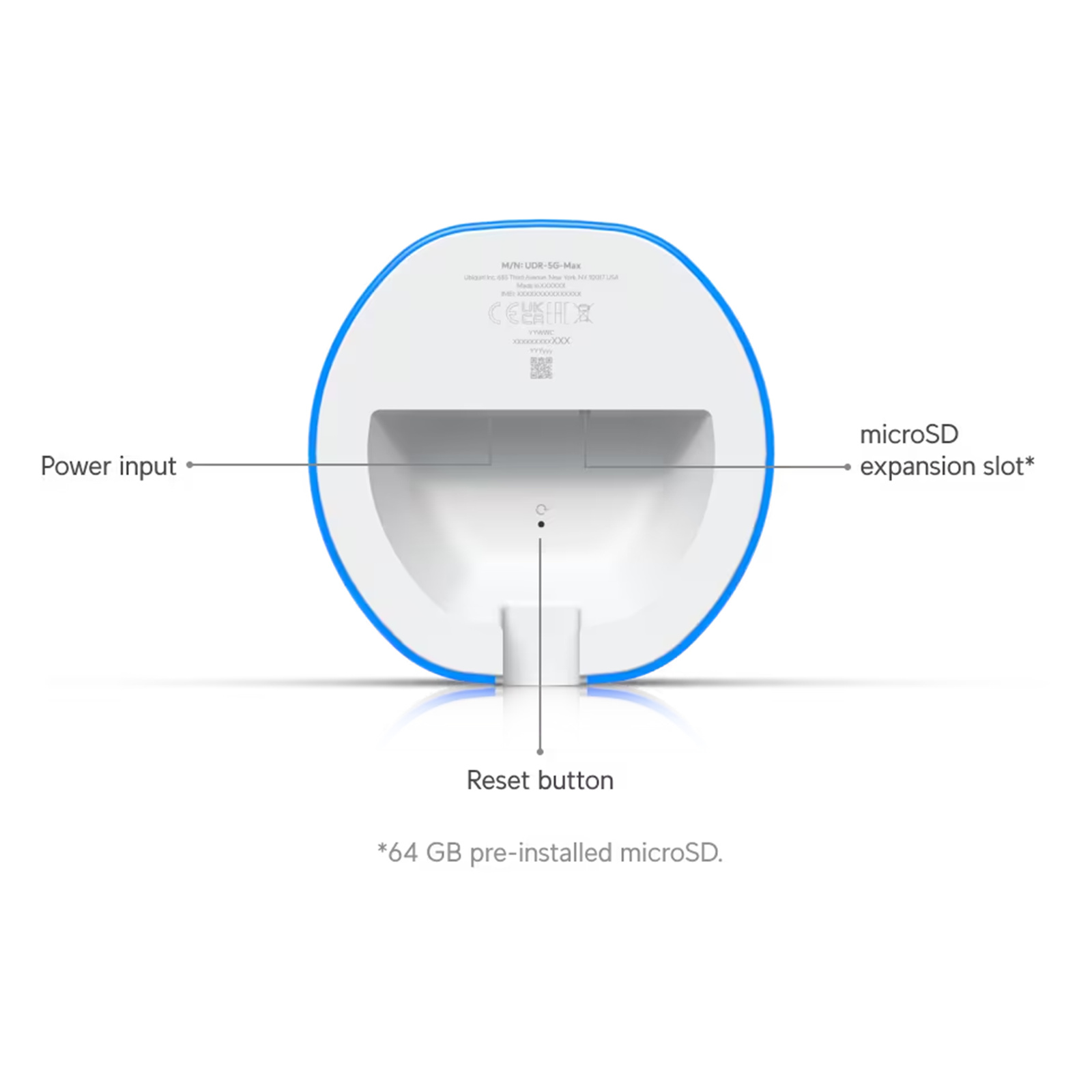

NVR Storage
Pre-installed 64 GB microSD for NVR
Expansion Slot
MicroSD Card
PoE Budget
15.4W
Max. PoE Wattage per Port by PSE
PoE: 15.4W
Voltage Range PoE Mode
44-57V
Max. Power Consumption
34.5W (Excluding PoE output)
Power Method
DC jack (54V DC/1.1A)
Power Supply
54V DC/1.1A (Adapter included)
Supported Voltage Range
100-240V AC
Heat Dissipation
115 BTU/hr (Excluding PoE output)
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
1.4 kg (3.1 lb)
Enclosure Material
Polycarbonate

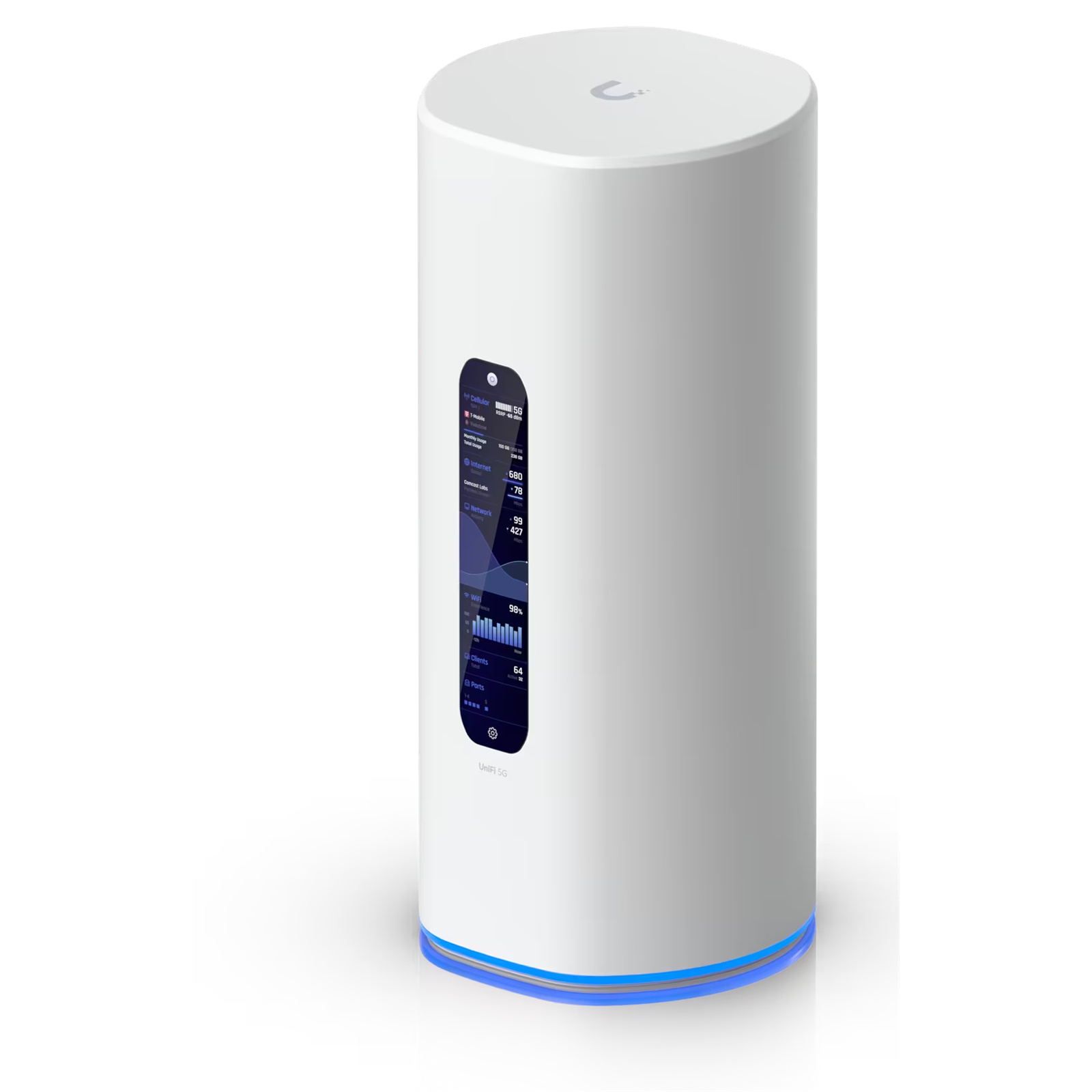

LCM Display
4.7" touchscreen
Management
Ethernet
Bluetooth
LEDs
Ethernet: Yes
SFP+: Yes
System: Yes
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®
Software
Application Requirements
Mobile App
UniFi iOS™: Version 10.33.0 and later
UniFi Android™: Version 10.36.1 and later
