Ubiquiti Unifi Access Gate Hub (UA-Hub-Gate)
Out of stock
Ubiquiti Unifi Access Gate Hub (UA-Hub-Gate)
- Brand: Ubiquiti
- MPN: UA-Hub-Gate
- Part #: NETUBI81004
- UPC: 810084699997
View all shipping info
- Brand: Ubiquiti
- MPN: UA-Hub-Gate
- Part #: NETUBI81004
- UPC: 810084699997
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Access Control





Ubiquiti Unifi Access Gate Hub (UA-Hub-Gate)
- Brand: Ubiquiti
- MPN: UA-Hub-Gate
- Part #: NETUBI81004
- UPC:810084699997

Product URL: https://www.pbtech.com/au/product/NETUBI81004/Ubiquiti-Unifi-Access-Gate-Hub-UA-Hub-Gate
Features

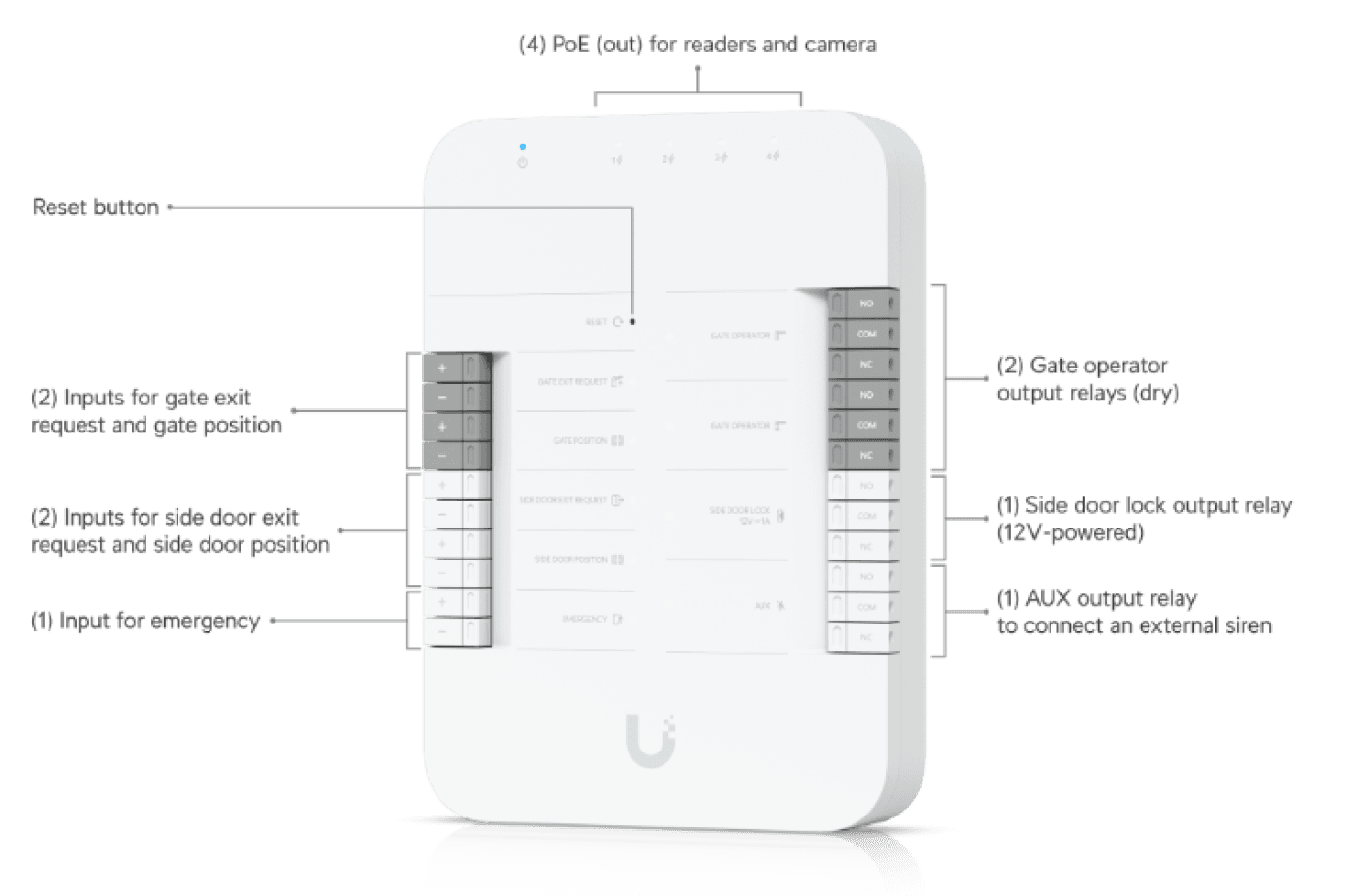

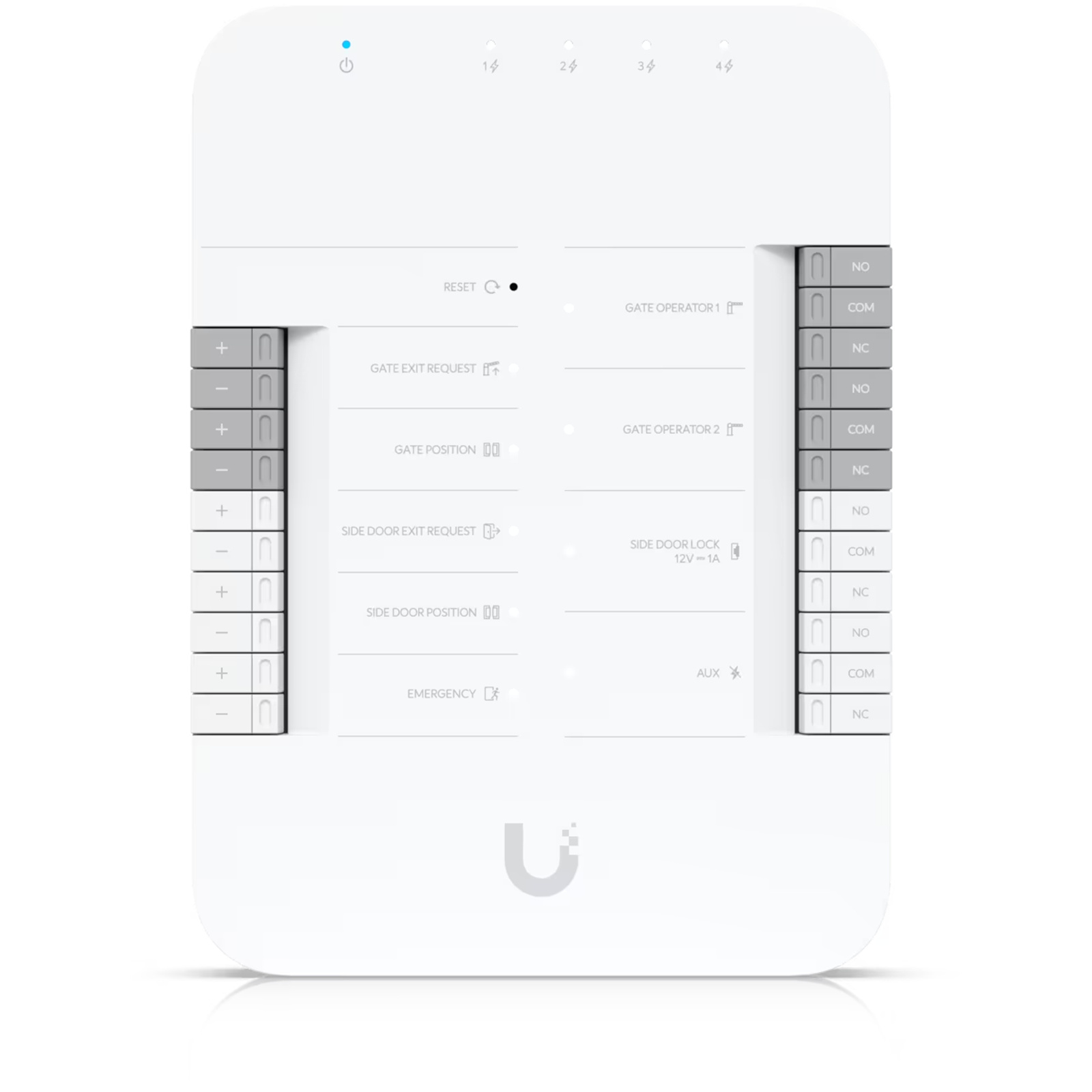

Gate Hub
An advanced Gate Hub enabling seamless gate access control via connected Access readers or Intercom.
- (2) Gate operator terminals (dry)
- (1) Lock terminal (12V) for side door
- (1) AUX terminal for an external siren
- (5) Additional inputs (sensors and emergency)
- License plate unlock (when paired with AI Camera)
- Connect and power using PoE++
- Connect up to four UniFi Access readers or UniFi Protect cameras
Specifications
Mechanical

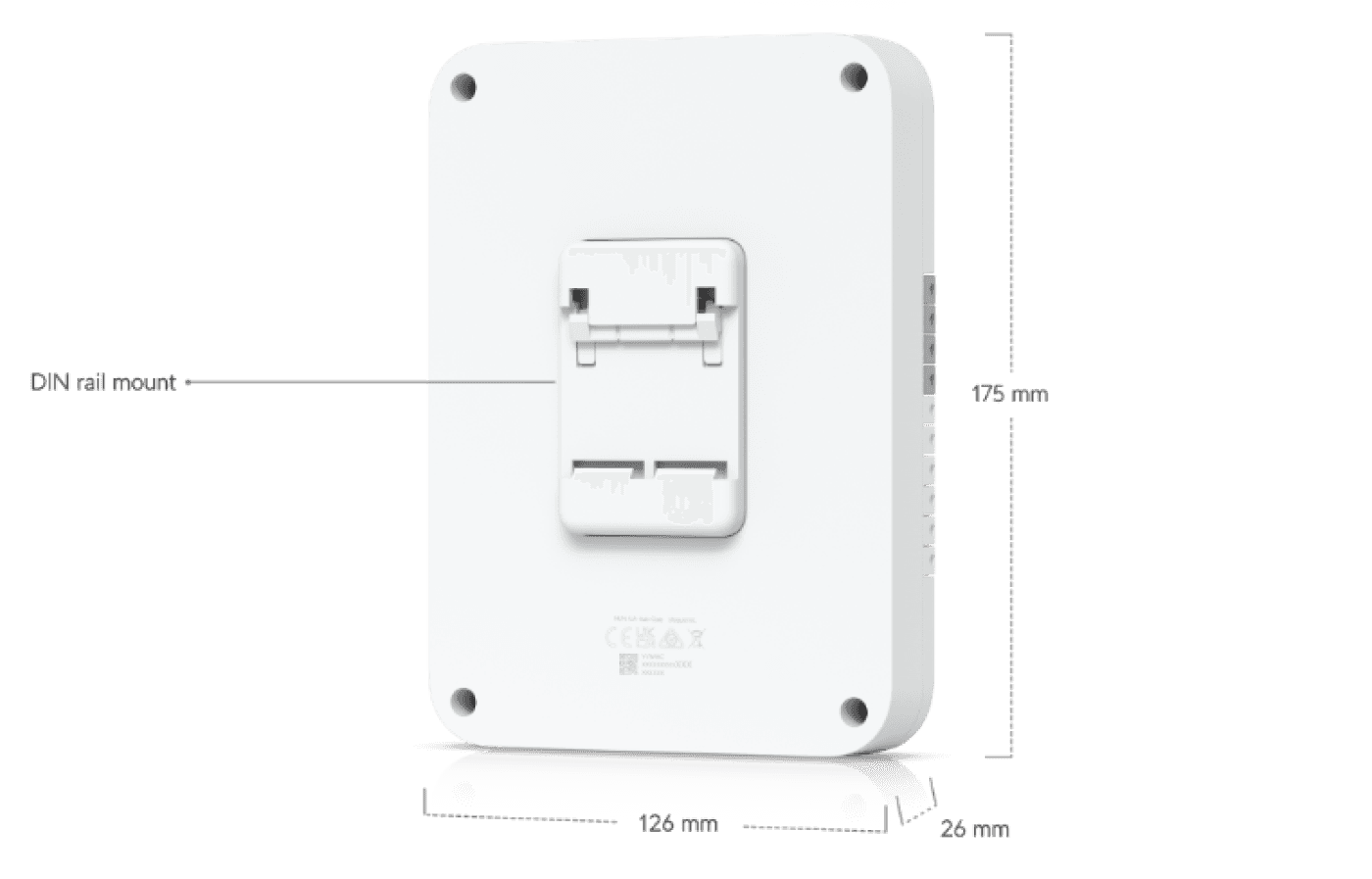

Dimensions
175 x 126 x 26 mm (6.9 x 5 x 1")
Weight
460 g (1 lb)
Enclosure material
Polycarbonate

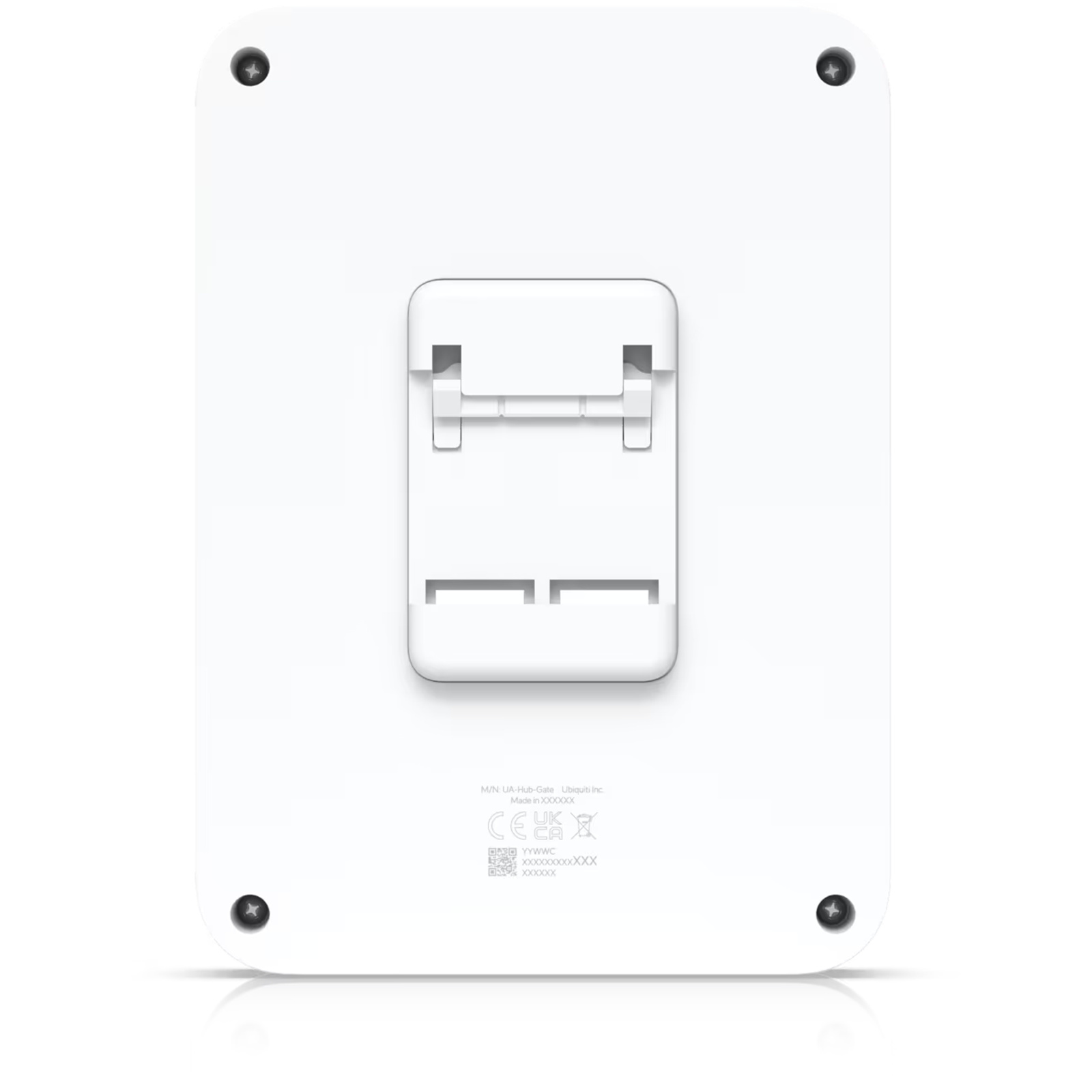

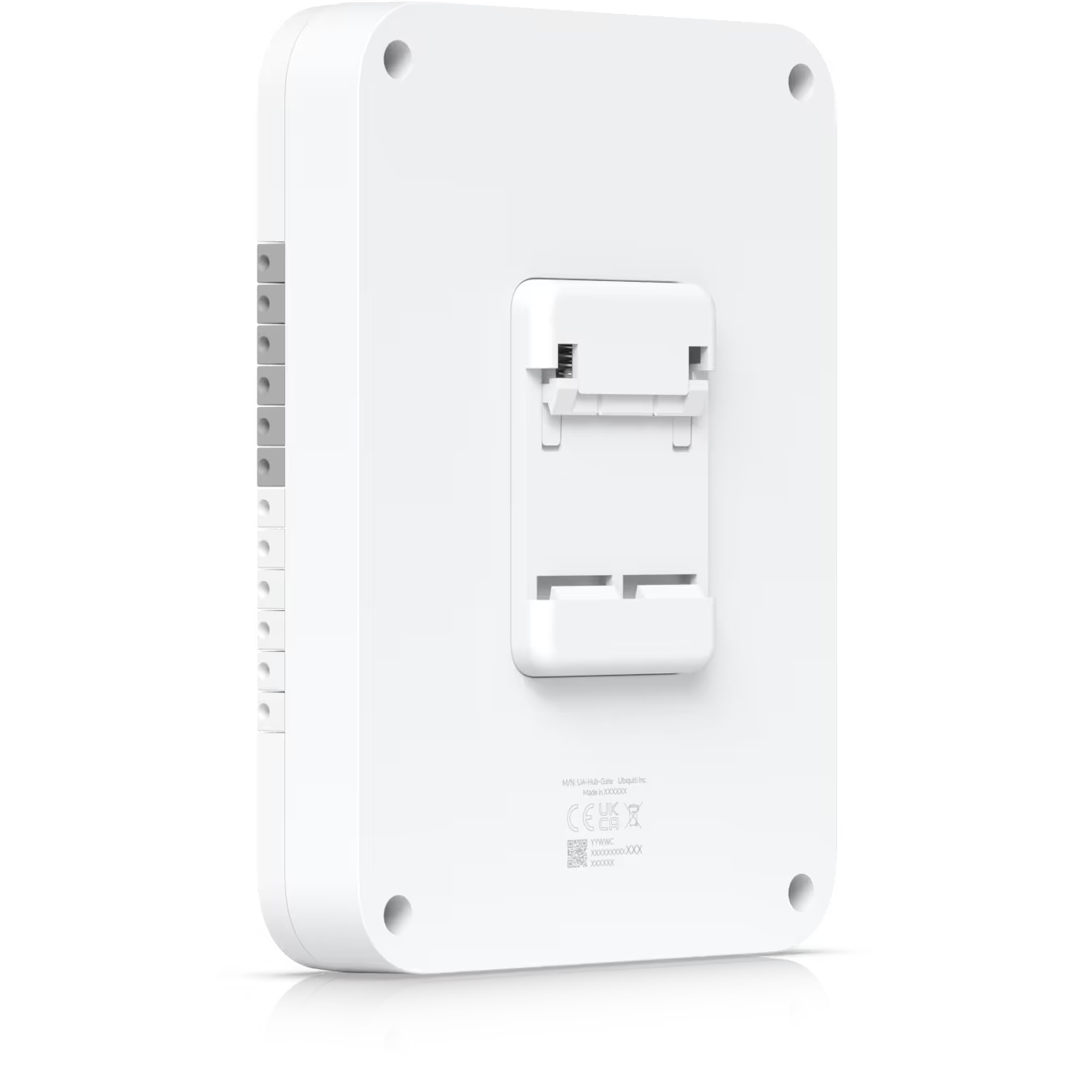

Mounting
Din-rail (Included)
Hardware

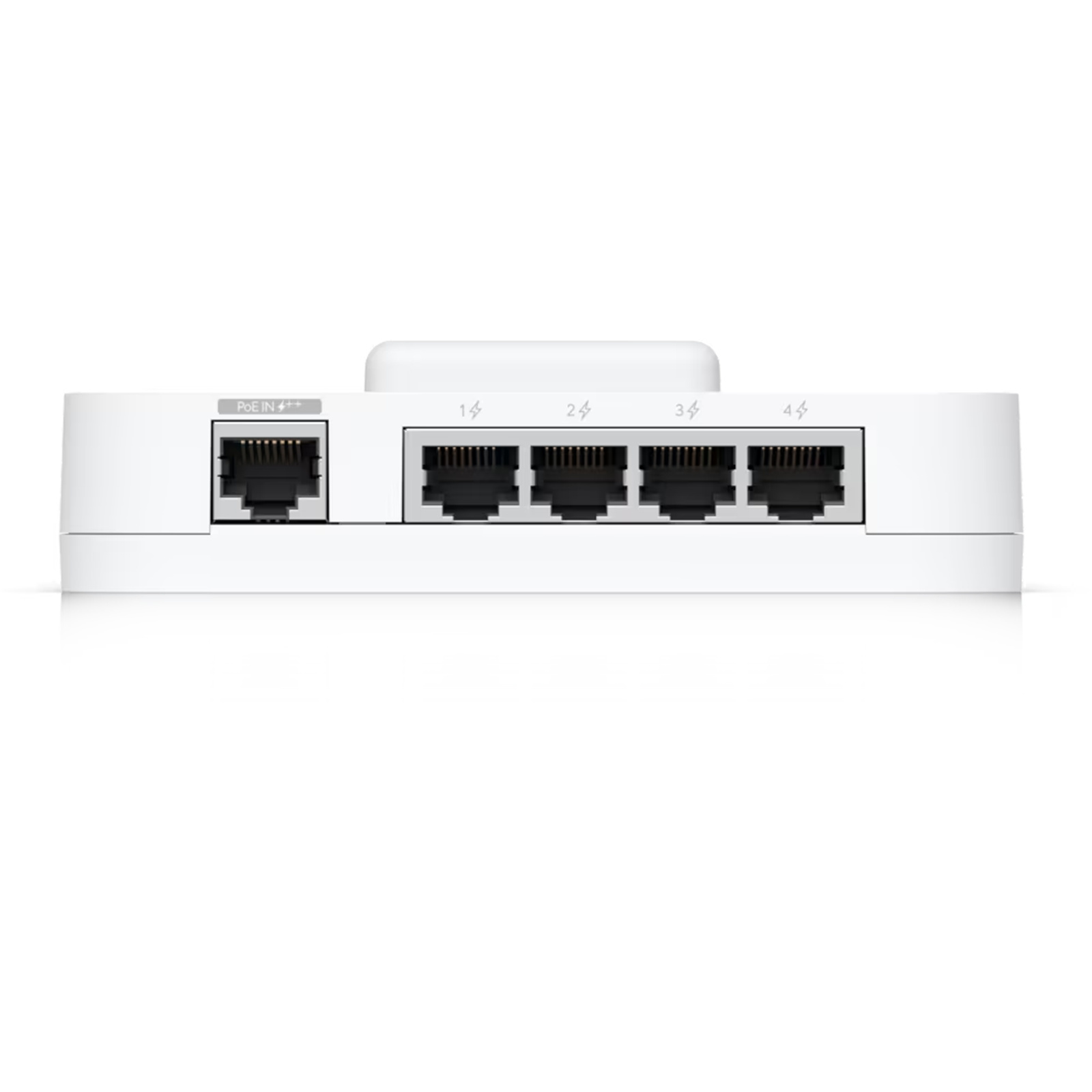

Networking interface
(5) 10/100/1000 Base-T
Power method
PoE++
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. power consumption
Without PoE output: 22W
With PoE output: 50W
PoE input
50V DC, 1A
PoE output
PoE passthrough, (4) PoE, 50V DC, Max. 28W
LEDs
White/blue
Button
(1) Factory-reset
Digital input
Gate exit request, gate position, side door exit request, side door position, emergency
Dry output relay
(2) Operator: rated 30V DC, up to 1A
(1) Aux: rated 30V DC, up to 1A
Output relay
Side door lock: 12V DC, up to 1A

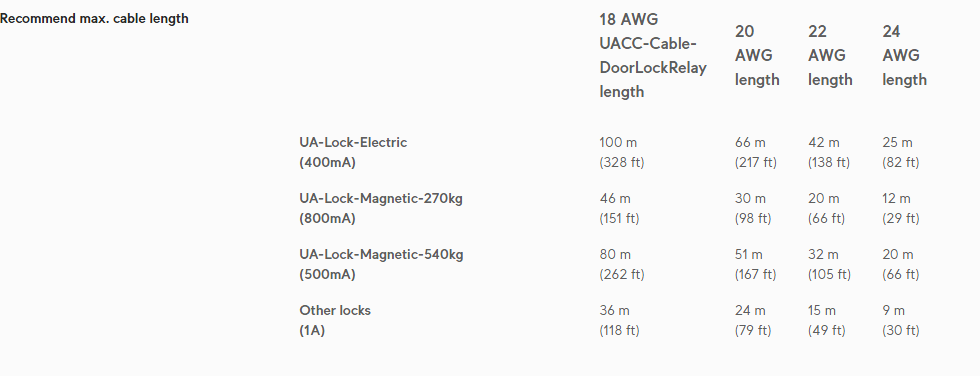

PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
Operating environment
Indoor use only with device itself
Outdoor use with waterproof junction box
Ambient operating temperature
-30 to 60° C (-22 to 104° F)
Ambient operating humidity
5 to 90% noncondensing
Software information
The software version of a product can be checked at https://unifi.ui.com
UL 294 level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1
Grade Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Hub-Gate, V01
