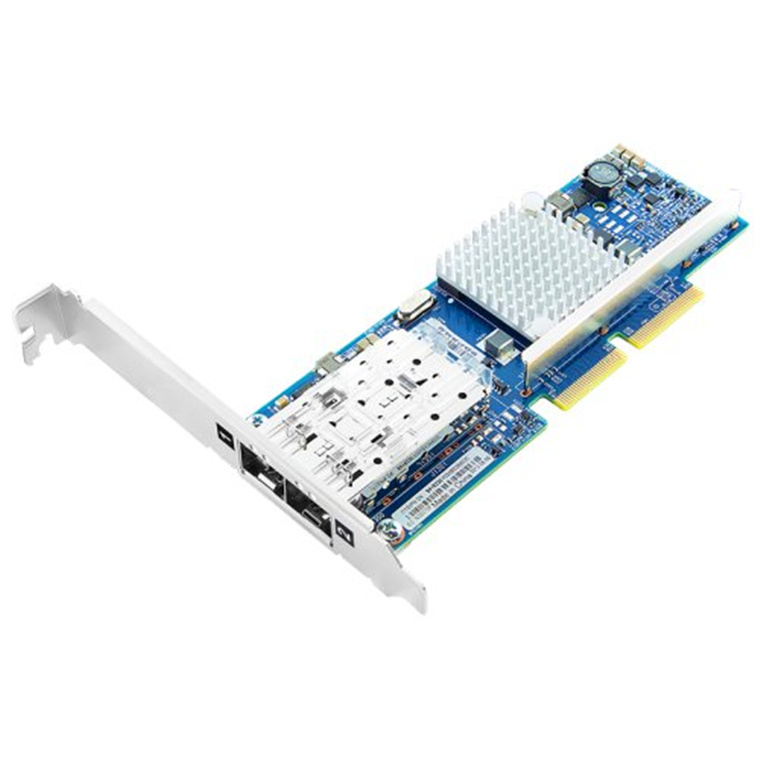

Lenovo Broadcom NetXtreme II ML2 Dual Port 10GbE SFP+ Network Adapter

Broadcom NetXtreme 10 GbE SFP+ Network Adapter Family for System x

Lenovo offers the Broadcom 10 GbE SFP+ network adapter family that is based on the Broadcom BCM57811S and BCM57810S controllers for System x® servers. These adapters use Broadcom's controller technology, which provides outstanding performance, efficiency, and scalability for the enterprise data center. The adapters connect to SFP+ Multimode Fiber SR optical modules and direct-attach copper (DAC) cables.


Did you know?

The single and dual-port Embedded Adapters (also known as mezzanine adapters) are designed specifically to fit in to a dedicated slot in servers such as the System x3650 M5. This card design allows you to use the server's standard PCIe slots for other technologies.


Features and specifications

Virtualization, cloud computing, high performance computing (HPC), and clustering initiatives are increasing workload demands. The Broadcom network adapter family is the solution of choice for workload-intensive computing environments, providing a reliable, high-performance 10 GbE connectivity solution. These adapters support PCI-SIG single root input/output virtualization (SR-IOV) and NIC partitioning (NPAR). SR-IOV delivers higher performance and lower CPU utilization with increased virtual machine (VM) scalability. QLogic NPAR enables up to four physical, switch-agnostic, switch-independent NIC partitions per adapter port. Dynamic and fine-grained bandwidth provisioning enables control of network traffic from VMs and hypervisor services.
The adapters have the following features and specifications:
-Dual-port or single-port 10 Gb Ethernet connectivity
- ASIC:
>Single port adapter: Broadcom BCM57811S controller
>Dual port adapters: Broadcom BCM57810S controller
- Choice of form factors:
>Mezzanine (Embedded) form factor adapters are supported in selected System x servers where the adapter is installed in a dedicated slot.
>ML2 (Mezzanine LOM Generation 2) adapters are supported in selected System x servers where the adapter is installed in a dedicated slot.
>The PCIe adapter is supported in a low-profile PCIe adapter slot in a wide variety of System x servers
- SFP+ port supporting fiber optic and direct-attach copper (DAC) cables
- PCI Express 2.0 x8 host interface (5 GTps)
- Full line-rate performance
- Ethernet frame: 1500 byte or 9600 byte (jumbo frame)
- VLAN support with VLAN tagging
>Supports Switch-independent NIC partitioning (NPAR) with up to four partition assignments per 10GbE link
>Supports Unified Fabric Port (UFP)
>Supports SR-IOV with up to 64 virtual functions per 10GbE link
- Performance features:
>TCP/IP Offload Engine (TOE)
>TCP segmentation/large send offload
>Receive-side scaling (RSS) for IPv4 and IPv6
>TCP/IP checksum offload for IPv4 and IPv6
>UDP/IP checksum offload for IPv4 and IPv6
>Message signal interrupt (MSI, MSI-X) support
>PXE 2.x support
- VXLAN and NVGRE offload technology support (not supported with UFP)
- Wake on LAN (ML2 and Mezzanine cards only)
- Preboot eXecution Environment (PXE) support
- IEEE 1588 Precision Time Protocol (PTP)-Ready
- Network teaming, failover, and load balancing
> Smart Load Balancing (SLB)
> Link Aggregation Control Protocol (LACP) and generic trunking
- Management using Broadcom Advanced Control Suite management application
- Support for Network Controller Sideband Interface (NC-SI) for communication with the server's onboard IMM2 management processor. This support enables the sharing the network interface with the IMM2 and the operating system, thereby eliminating the need for a separate management network (ML2 and Mezzanine cards only)
- Power consumption:
>Single port mezz card: 4.74 W typical
>Dual port mezz card: 7.14 W typical
>Dual port ML2 card: 14.4 W typical
>Dual port PCIe card: 7.08 W typical
- Compliance
>IEEE 802.3ae (10 Gb Ethernet)
>IEEE 802.1q (VLAN)
>IEEE 802.1p (Priority Encoding)
>IEEE 802.3x (Flow Control)
>IEEE 802.1au (Congestion Notification)
>IPv4 (RFQ 791)
>IPv6 (RFC 2460)
