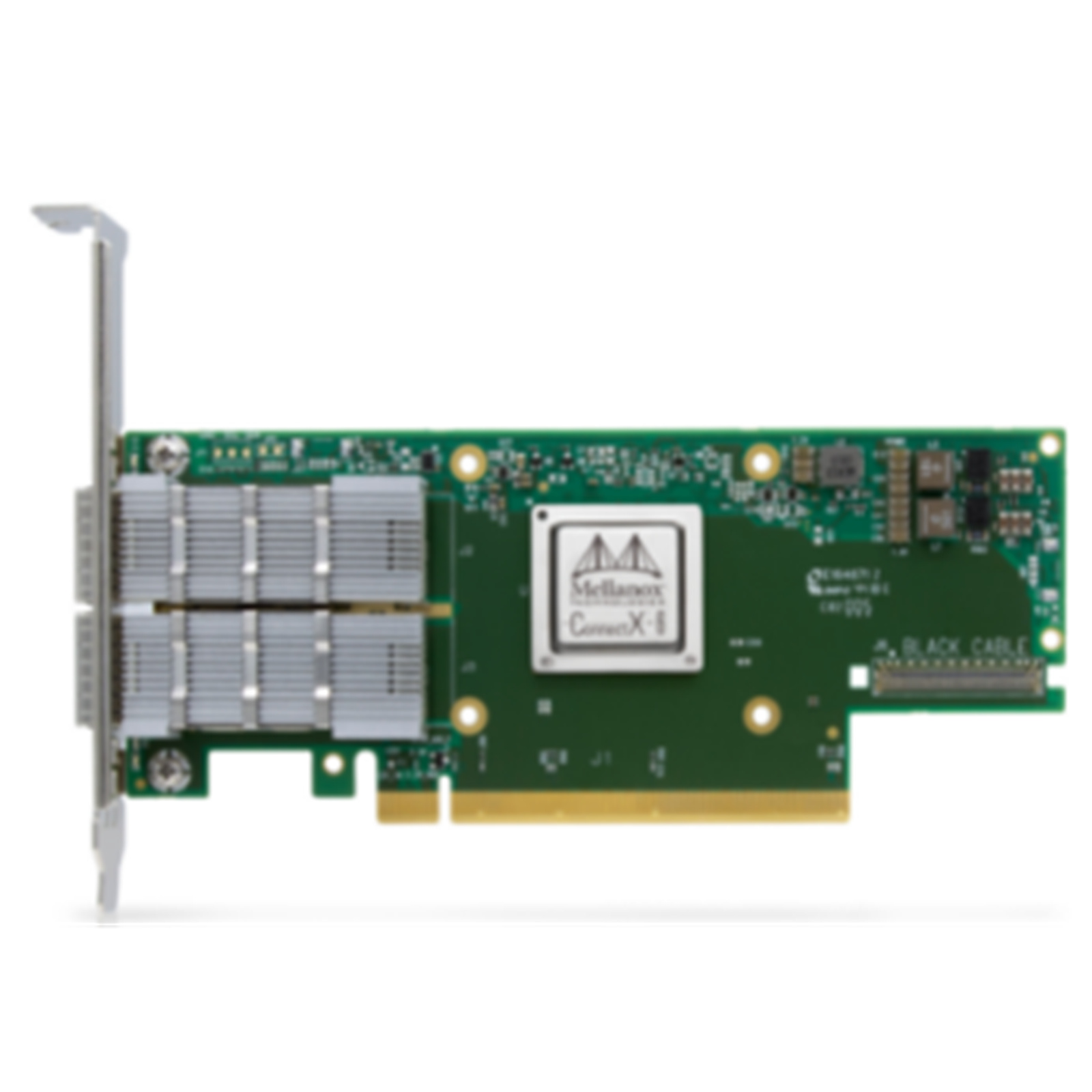

Mellanox ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket, single pack
Out of stock
Mellanox ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket, single pack
- Brand: Mellanox
- MPN: MCX653106A-HDAT-SP
- Part #: NICMLX1052
- UPC:
View all shipping info
- Brand: Mellanox
- MPN: MCX653106A-HDAT-SP
- Part #: NICMLX1052
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Network Cards (NIC)





Mellanox ConnectX-6 VPI adapter card, HDR IB (200Gb/s) and 200GbE, dual-port QSFP56, PCIe4.0 x16, tall bracket, single pack
- Brand: Mellanox
- MPN: MCX653106A-HDAT-SP
- Part #: NICMLX1052

Product URL: https://www.pbtech.com/au/product/NICMLX1052/Mellanox-ConnectX-6-VPI-adapter-card-HDR-IB-200Gbs
Features
NVIDIA MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR InfiniBand and 200GbE Dual-Port QSFP56 PCIe 4.0 x16 Tall Bracket (-SP indicates Single Pack)
ConnectX-6 VPI Card 200Gb/s InfiniBand & Ethernet Adapter Card
ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability.
ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.
-Up to 200Gb/s connectivity per port
-Max bandwidth of 200Gb/s
-Up to 215 million messages/sec
-Sub 0.6usec latency
-Block-level XTS-AES mode hardware encryption
-FIPS capable
-Advanced storage capabilities including block-level encryption and checksum offloads
-Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
-Best-in-class packet pacing with sub-nanosecond accuracy
-PCIe Gen 3.0 and Gen 4.0 support
-RoHS compliant
-ODCC compatible
Benefits
Industry-leading throughput, low CPU utilization and high message rate
Highest performance and most intelligent fabric for compute and storage infrastructures
Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
Host Chaining technology for economical rack design
Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and storage platforms
Flexible programmable pipeline for new network flows
Efficient service chaining enablement
Increased I/O consolidation efficiencies, reducing data center costs & complexity
Specifications
Technology
InfiniBand
Connector Type
QSFP56
Max Speed
HDR and 200GbE
Ports
Dual
