Honeywell EDA61K 4" LCD PDT 3G/32GB, WLAN, N6703 ENGINE,13MP CAM, ALPHA-NUMERIC, SCP PRELICE
Out of stock
Honeywell EDA61K 4" LCD PDT 3G/32GB, WLAN, N6703 ENGINE,13MP CAM, ALPHA-NUMERIC, SCP PRELICE
- Brand: Honeywell
- MPN: EDA61K-0AC934PEAK
- Part #: POSHON0907
- UPC:
View all shipping info
- Brand: Honeywell
- MPN: EDA61K-0AC934PEAK
- Part #: POSHON0907
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Portable Data Terminals





Honeywell EDA61K 4" LCD PDT 3G/32GB, WLAN, N6703 ENGINE,13MP CAM, ALPHA-NUMERIC, SCP PRELICE
- Brand: Honeywell
- MPN: EDA61K-0AC934PEAK
- Part #: POSHON0907

Product URL: https://www.pbtech.com/au/product/POSHON0907/Honeywell-EDA61K-4-LCD-PDT-3G32GB-WLAN-N6703-ENGIN
Features
EDA61K, Alpha-numeric Keypad, WLAN, 3G/32G, N6703 Scan Engine, 4' LCD WVGA, 13MP Camera, Android P GMS, Extend Battery, Warm Swap, NFC, SCP

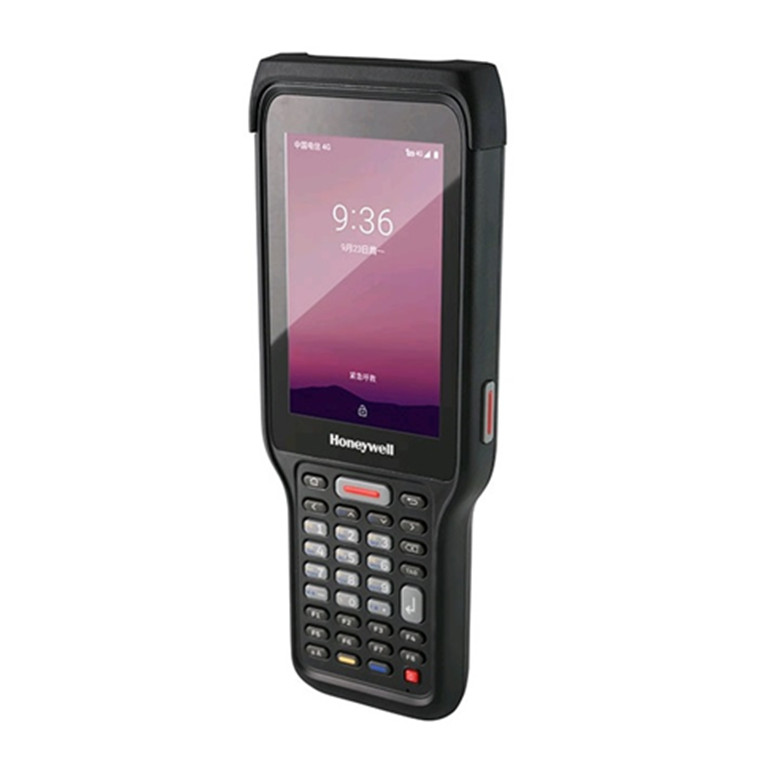

The Honeywell ScanPal™ EDA61K is a rugged, keyed mobile computer that helps businesses automate and error-proof workflows in indoor or outdoor warehouses, distribution centers and retail backrooms. With a battery that lasts for two to three shifts and a lightweight, ergonomically balanced design that minimizes user fatigue, the EDA61K helps keep material flowing smoothly all day long, even during peak season.
Fast Data Access
Responsive performance and quick access to business-critical information with the speedy Qualcomm® 1.8 GHz octa-core chipset, ample memory and reliable Wi-Fi.
Enhanced Productivity
Snappy, accurate data capture from a few centimeters to up to 15 meters with Honeywell's slim N6703 and long-range EX20 scan imagers, and a 13-megapixel, autofocus camera.
Reduced Operational Downtime
Uninterrupted operation for more than two full shifts with Honeywell's 7,000 mAh, hot-swappable, lithium-ion smart battery pack that lasts 25 hours on a single charge.
Reliable Connections
Stay connected with fast, dual-band, 802.11 a/b/g/n/ac Wi-Fi, Bluetooth® 4.2 and cellular support in most countries.
Specifications
MECHANICAL
Dimensions:
206 mm x 78 mm x 41.9 mm
Weight:
N6703 version: 435 g (15.3 oz)
EX20 version: 460 g (16.2 oz)
Display Size:
4 inch
Backlight:
LED
Touch Screen:
Multi-touch capacitive
Hard Keys:
Volume up/down, left/right scan, power, reset
I/O:
USB type C, OTG supported
ENVIRONMENTAL
Operating Temperature:
-20°C to +50°C
Storage Temperature:
-30°C to +70°C
Humidity:
10% to 90% (non-condensing)
Drop:
Multiple 1.5 m (5 ft) drops to concrete at room temperature
Tumble:
1,000 tumbles at 1 m (3.3 ft)
ESD: ±8 kV direct; ±12 kV air
Environmental Sealing:
IP65
Vibration:
Vertical rms = 1.04 g;
Transverse rms = 0.2 g; Longitudinal rms = 0.74 g
SYSTEM ARCHITECTURE
Processor:
Qualcomm SDM450 1.8 GHz octacore
Memory:
3 GB RAM, 32 GB Flash
Operating System:
Android 9, upgradable to Android 10
Default Languages:
World Wide English
Storage Expansion:
microSDHC (up to 128 GB)
Battery:
Li-Ion, 3.6V, 7,000 mAh
Button Batteries:
22 mF super cap
Real-Time Clock:
10 min backup via super cap
Charging Time:
5.5 hours
Battery Runtime:
25 hours (test profile: scan once every 9 seconds; display at 50% brightness; turn off keypad backlight and activate Wi-Fi only)
Scan Notification:
Red/Green light
Scan Engine:
EX20, N6703SR
Camera*:
13.0-megapixel color camera with autofocus and LED flash
Battery Condition:
Red/Green/Blue
WARRANTY
WLAN:
EEE 802.11 a/b/g/n/ac radio
WWAN:
GSM&EDGE: Band2/Band3/Band5/Band8
WCDMA: Band1/Band2/Band4/Band5/
Band6/Band8/Band9/Band19
CDMA: BC0/BC1/BC6
FDD-LTE: Band1/Band2/Band3/Band4/
Band5/Band7/Band8/Band9/Band12/
Band13/Band17/Band19/Band20/
Band25/Band26/Band28/Band30
TDD-LTE: Band38/Band39/Band40/
Band41
GPS
Integrated GPS
Bluetooth Class
4.2
ACCESSORIES
Charge Cradle
Single Charging Cradle
Hand Strap
Yes
Replacement Battery
Yes
Quad Battery Charger
Yes
Scan Handle
Yes
USB Communication Cable:
USB type C,
OTG supported
Yes
USB Wall adaptor:
5V/2A
