Vestel XN86D-4H NEW Vestel Extreme XN86+ - 86" 24/7
- VAP400 (Vestel Android Platform 400)
- 2 GB DDR4 / 16 GB eMMC
- Resolution: 3840x2160 (UHD)
- Brightness: 500 cd/m²
- Operation: 24/7
- Interface: HDMI 2.0 / USB 3.0 / RS232 / RJ45 (Gigabit Ethernet) / RJ12 / IR / MicroSD / Audio / Speaker
- Application Areas: Retail, Entertainment, Corporate, Control Rooms
Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.
Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.

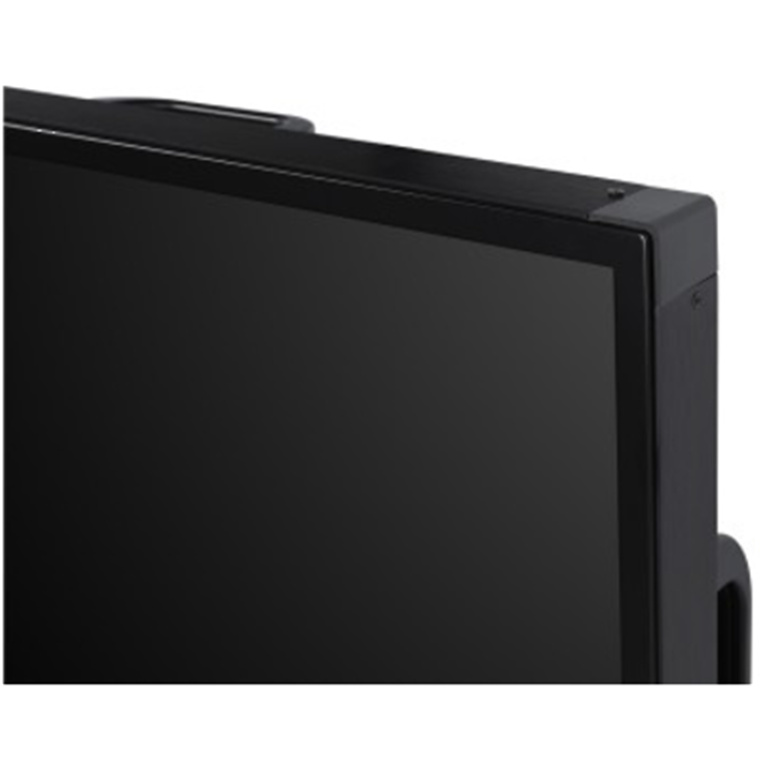

Subtle Design
This series' displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.
Signal Failover
Displays have a protection for "No Signal". If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.
Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.
Open Platform Support
SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on the displays.
External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, the monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.
Display Control
Digital Signage Display SoC enables the users to control displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.
Specifications
Panel
Screen Size
86"
Panel Technology
IPS
Backlight Type
ELED
Brightness (typical)
500 cd/m²
Native Resolution
3840 x 2160 (16:9) - UHD
Contrast Ratio (typical)
1200:1 (typ.)
Dynamic Contrast Ratio
50000:1
Panel Life Time ( Min. )
50000 Hrs
Response Time (typical)
8 ms
Active Area (H x V)
1895 (H) x 1066 (V) mm
Viewing Angle
178° Vert., 178° Hor.
(89U/89D/89L/89R) @ CR>10
Color Value
1.07B (10 bit)
Color Gamut
72% NTSC Haze Level 28
Refresh Rate
60 Hz Orientation Landscape / Portrait
Operation Hours
24/7
Area of Usage
Indoor
Built-in System
Mainboard Model
17MB400VS
Operating System
Custom OS (built on Android AOSP)
Memory
2 GB DDR4
Storage
16 GB eMMC
Additional Storage
Micro SD (up to 1TB) CPU Quad-Core ARM Cortex-A55
GPU
ARM Mali-G31 MP2 Wired 10/100 Mbps Ethernet - (via USB Dongle), IEEE 802.1X Authentication
WiFi
WiFi 5 (802.11 a/b/g/n/ac)- (via USB Dongle), IEEE 802.1X Authentication
Bluetooth
BT 5.1
HTML5 Browser
Vewd
Wireless Display
Miracast
Monitor Connectivity
Video Input
4 xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB
Video Output
1xHDMI2.0
Audio Output
Headphone, Optic SPDIF
External Control
RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12)
External Sensor
RJ12
Mechanical
Product Dimensions (WxDxH)
1928 x 80 x 1099 mm
Package Dimensions (WxDxH)
2164 x 380 x 1405 mm
Product Weight
62 kg
Package Weight
83.75 kg
Vesa Mounting
600 (W) x 400 (H) mm M8
Bezel Width
B/T/L/R: 12 mm
Environmental Conditions
Operating Temperature
0-40°C
Operating Humidity
10-90%
Power
Power Supply
110 VAC - 240 VAC - 50/60 Hz
Power Consumption
Typical
280 W
Maximum
400 W
Deep Stanby
=0.5 W
