Features
PX1200G

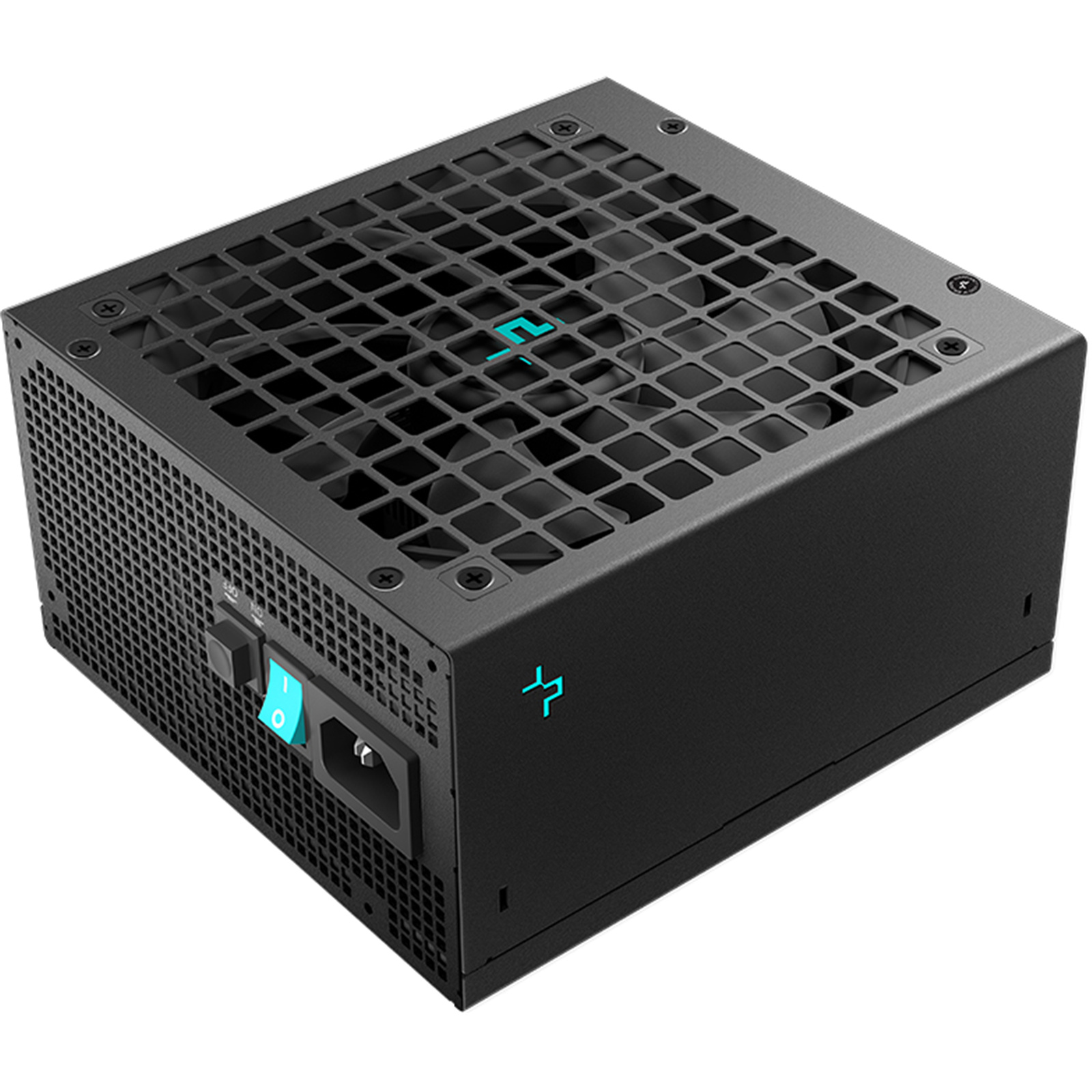

The DeepCool PX1200G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1200G provides stable power for a wide range of components.
PAST, PRESENT, AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1200G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
PREMIUM QUALITY
Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1100G will operate at altitudes up to 5000 meters above sea level.
RELIABLE STABILITY
Through the use of a dual main capacitor topology, the PX1200G can keep the hold-up time to = 16ms under full load.
PCI-E 5.0 POWER PERFECTED
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
STATIC TO DYNAMIC

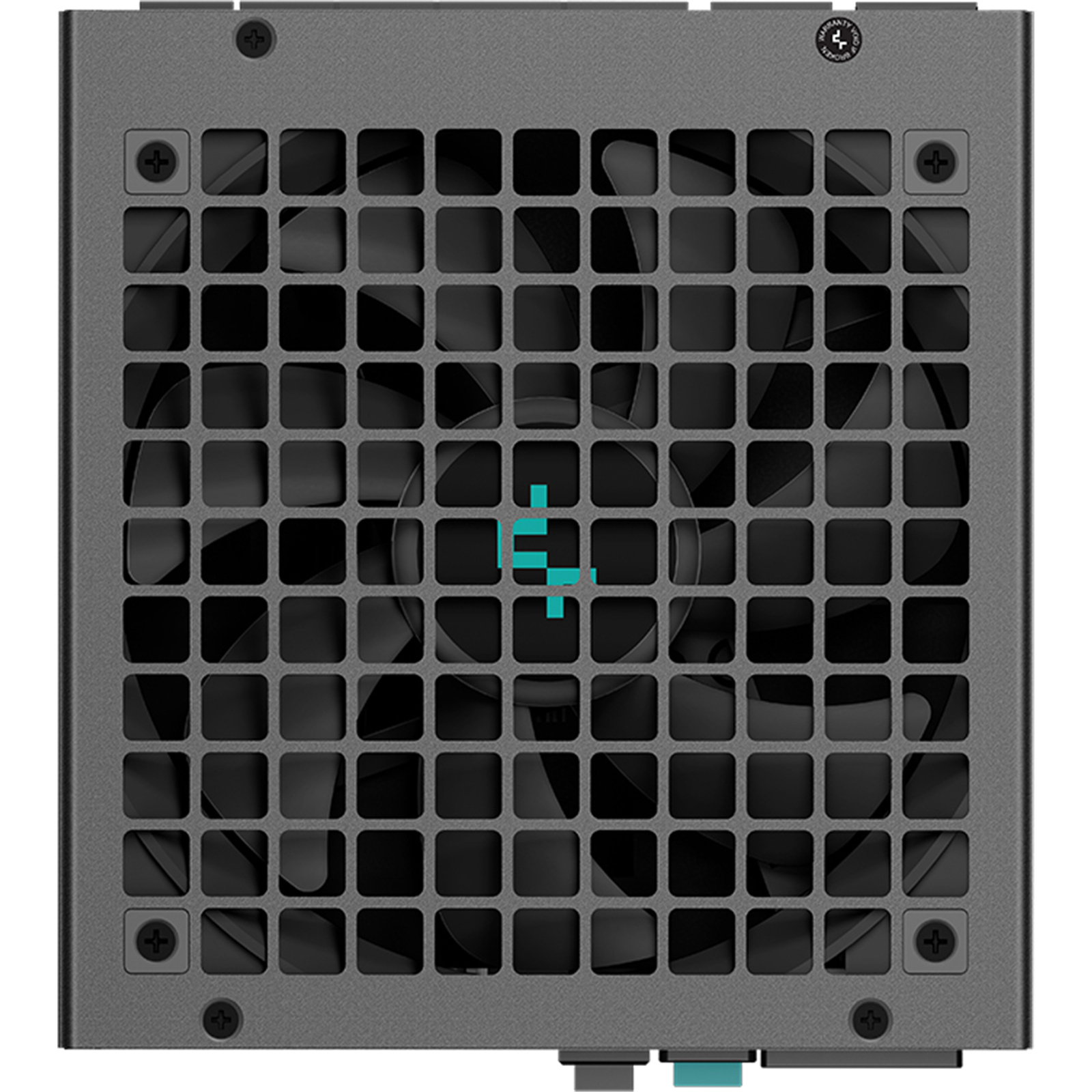

The PX1200G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
PEACE OF MIND
The PX1200G includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, and UVP.
THE GLORY OF GOLD
80 Plus Gold certified to ensure 90% efficiency under typical load conditions.
Specifications
Type
ATX12V V3.0
Product Dimensions
150×160×86mm (W x L x H)
Efficiency certification
80Plus GOLD/Cybenetics_Platinum
Fan Size
135mm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Topology
Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors
Full Japan Electrolytic Capacitors
Power Good Signal
100-150ms
Hold Up Time
=16ms
Efficiency
=90% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP
Operation Temperature
0 - 40?
Regulatory
CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC;
Erp Regulation
ErP 2014
Environment Protection
WEEE/RoHS/Triman
MTBF
100,000 Hours
