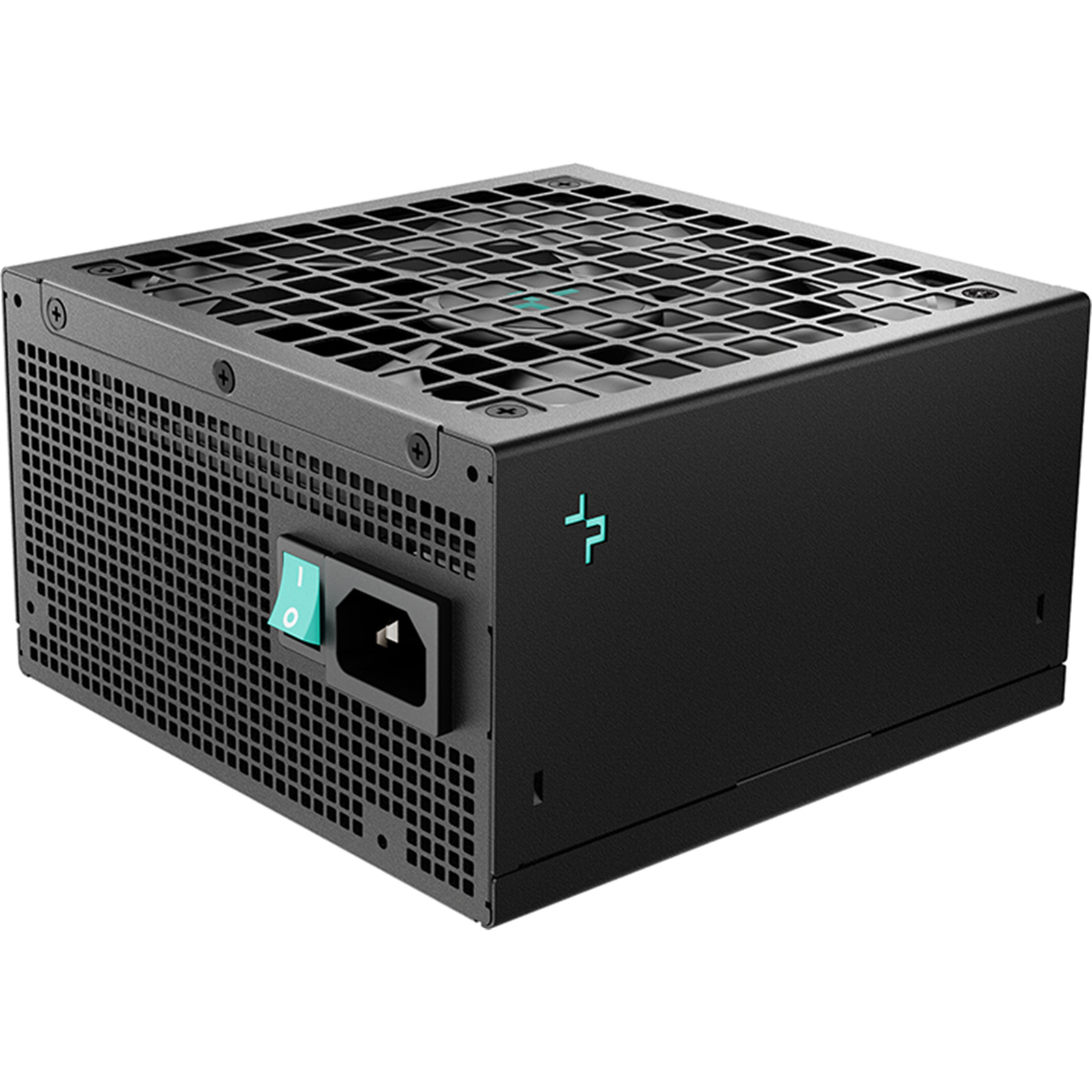

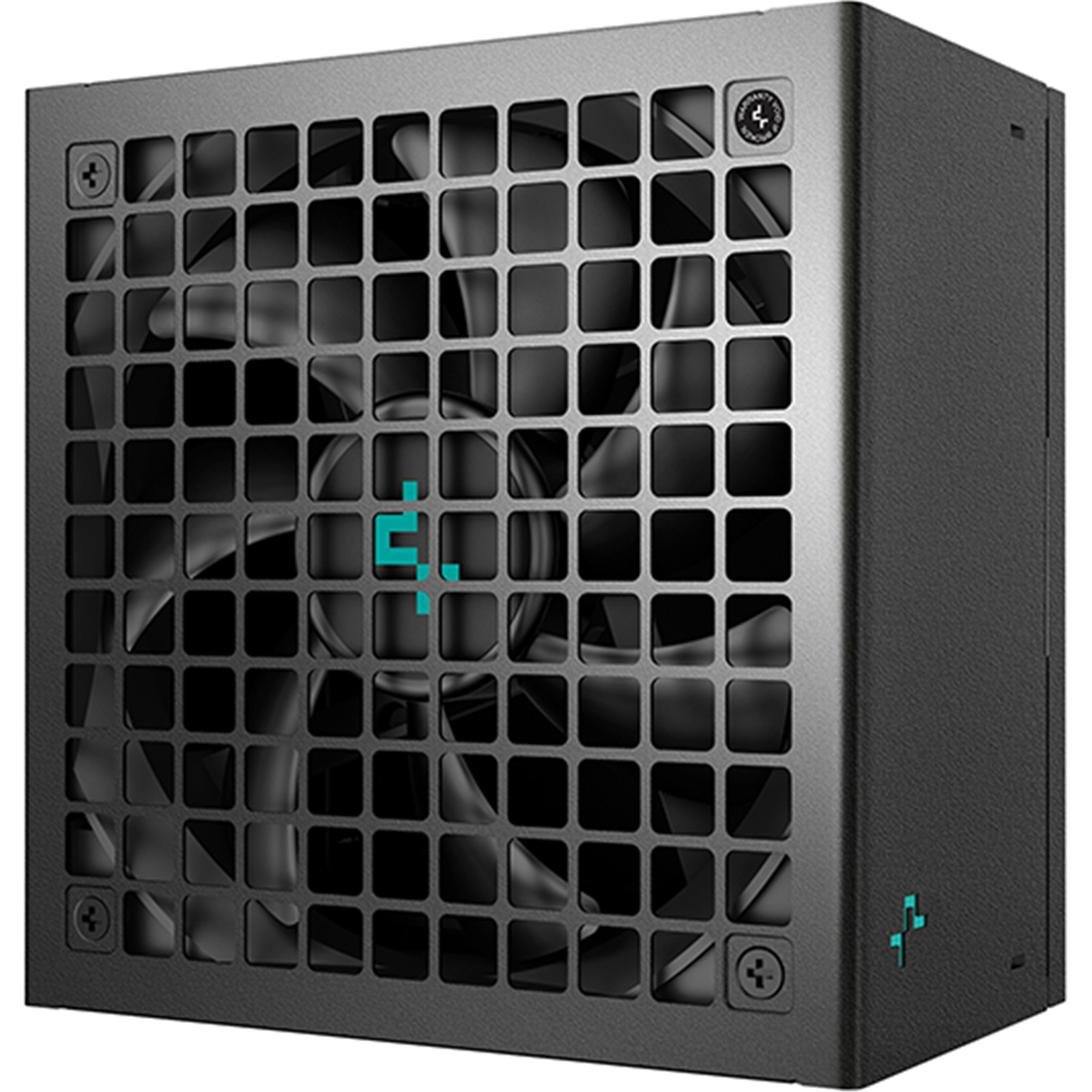

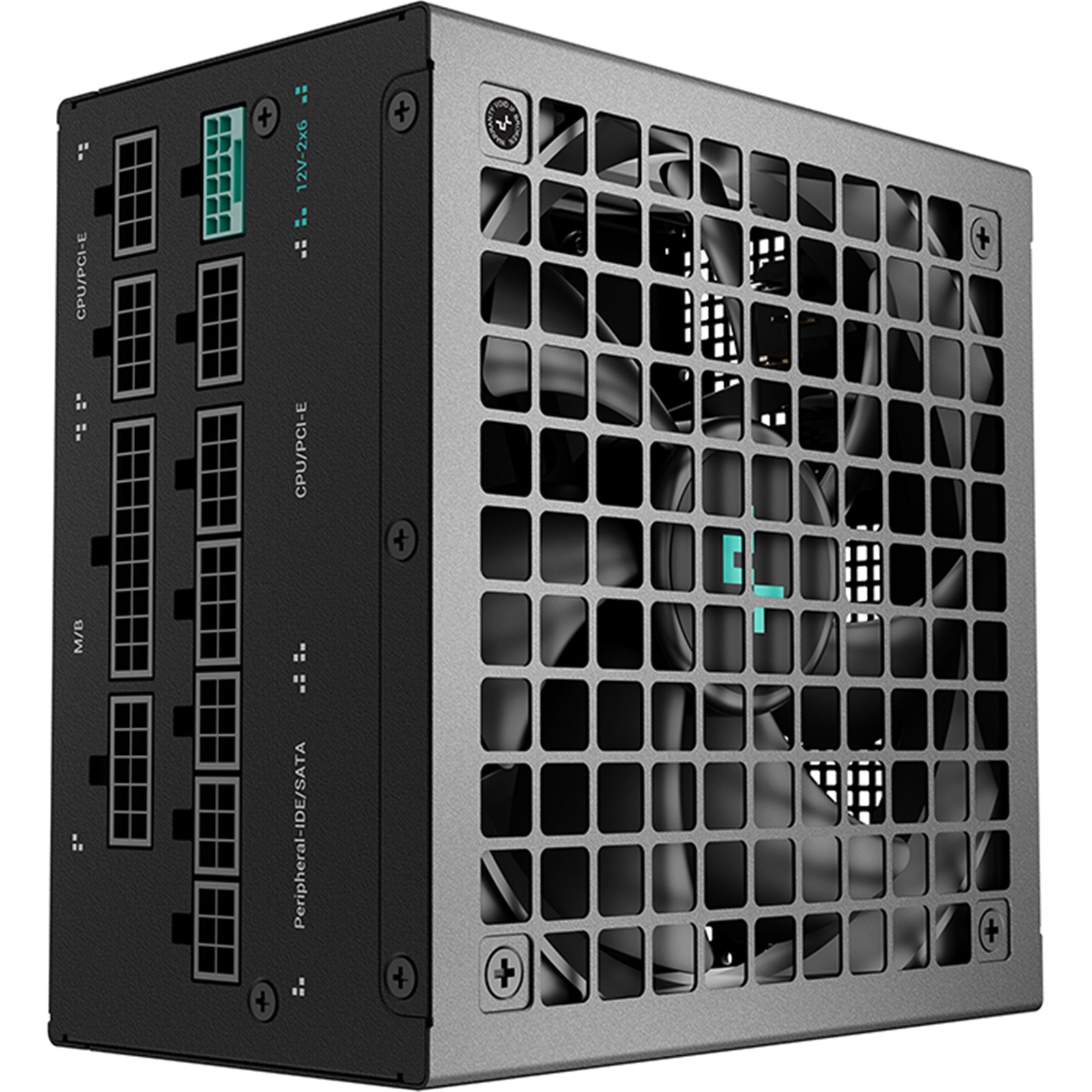

DEEPCOOL PN1000M 1000W ATX 3.1 Power Supply
80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
DEEPCOOL PN1000M 1000W ATX 3.1 Power Supply
80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
- Brand: DEEPCOOL
- MPN: R-PNA00M-FC0B-AU
- Part #: PSUDPC10540
- UPC:
View all shipping info
What PB Tech customers are saying about this product...
See More Reviews"The cables feel a little cheapish but the PSU itself is perfectly fine. Its running my 3080 with no troubles at all."
"Very reliable and absolutely silent!"
"Is running my new gpu in my pc great, no problems as of yet"
COMBO DEALS: Frequently Bought Together
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox...
$46.51 +GST
$51.16
Features
PN1000M

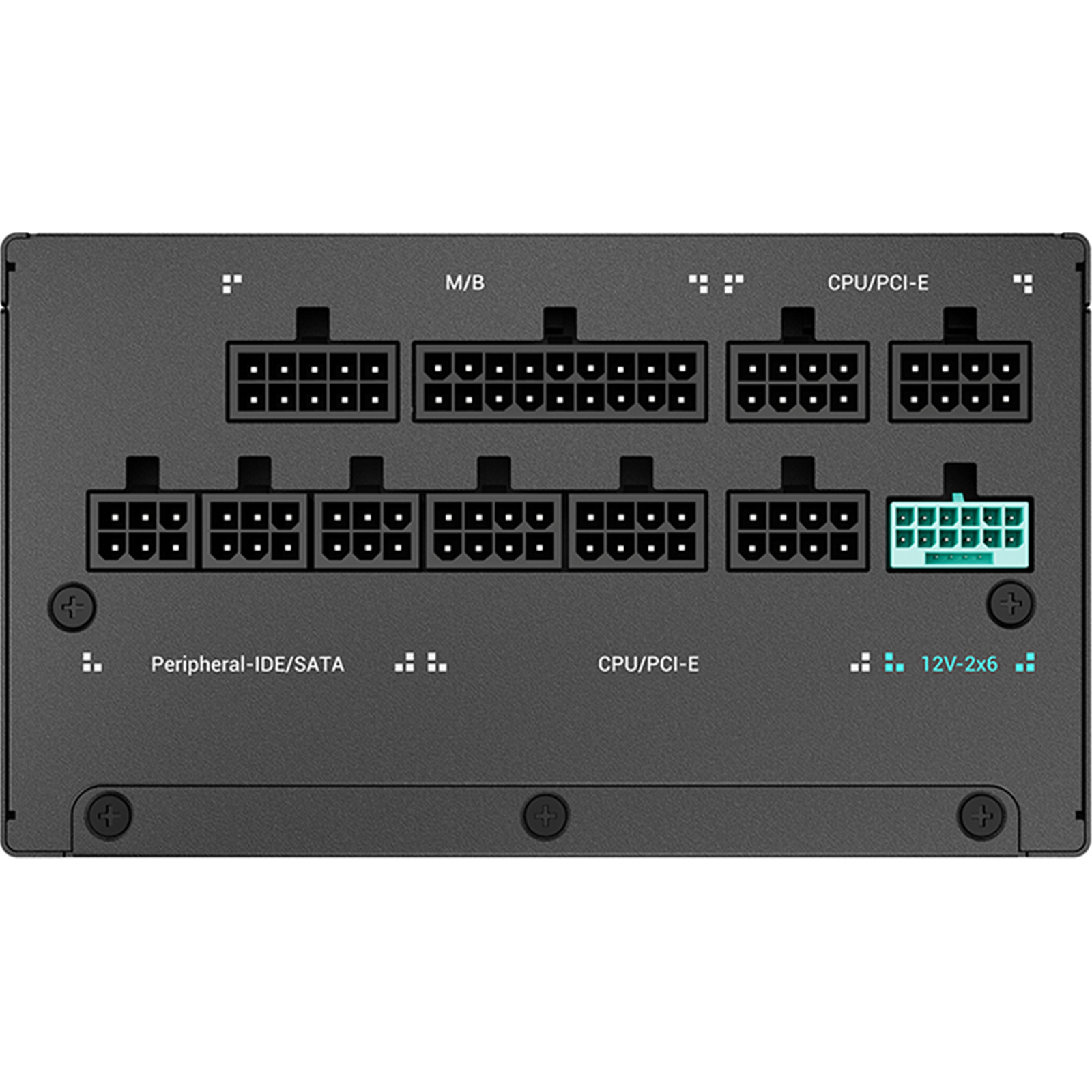

The DeepCool PN1000M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN1000M provides stable power for a wide range of modern high-power components.
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN1000M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC, and a DC-to-DC topology, the PN1000M can keep the hold-up time to = 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core 12V-2x6 cable, the PN1000M provides up to 600W for modern GPUs.
SLEEVED CABLES
The PN1000M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC FDB FAN

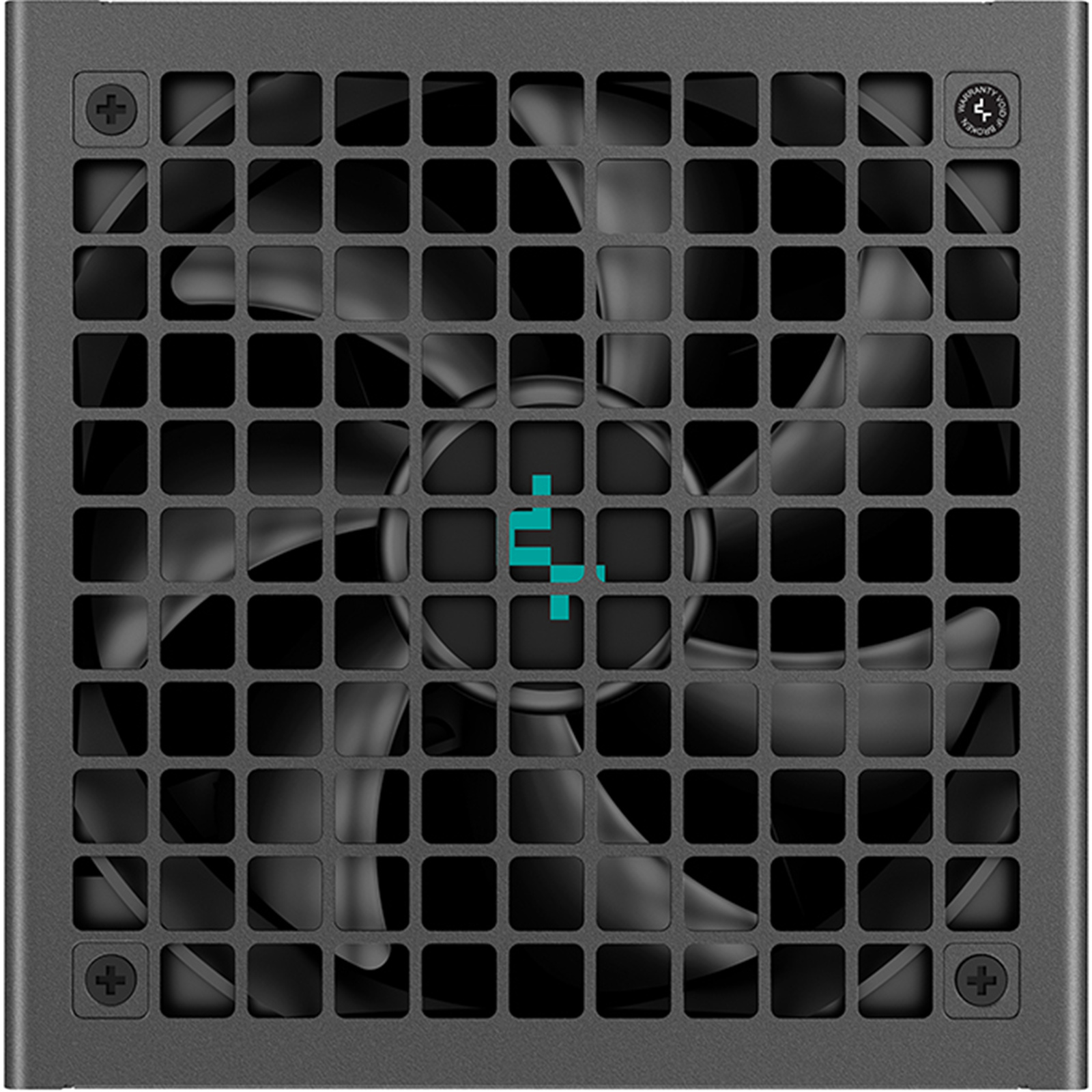

The PN1000M comes equipped with a dynamic 135mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN1000M will operate at altitudes up to 5000 meters above sea level.
IT WILL FIT!
Fitment into the vast majority of cases should not be an issue, as the PN1000M comes in at a compact 150x150x86mm size.
PEACE OF MIND
The PN1000M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- No Load Operation
- Surge & Inrush Protection
Specifications
Reviews
Do you own this product?
Works fine!
The cables feel a little cheapish but the PSU itself is perfectly fine. Its running my 3080 with no troubles at all.
Great product!
Very reliable and absolutely silent!
Works great
Is running my new gpu in my pc great, no problems as of yet
Very simple option
Nothing fancy about this PSU; it's on the cheaper side of 1000W supplies and has a gold rating, while being fully modular. It's an excellent budget option! The only bone I've got to pick with it is the fact that the stock cables look extremely cheap since they are just cable-tied standard braided cables. However, if you're looking for a high-wattage PSU on a budget, this does tick all the boxes.
Great product
Work's as advertised
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Desktop Power Supplies
DEEPCOOL PL750D 750W ATX 3.1 Power Supply 80 Plus Bronze - MEPS...
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full...
MSI MAG 650W Power Supply 230V - 80 Plus Bronze - MEPS Approved -...
Corsair RM750x 750W ATX 3.1 Power Supply Cybenetics Gold...
MSI MAG 850W Power Supply 80 Plus Gold - ATX 3.1 PCIe 5.0 Ready -...
DEEPCOOL PN1000M 1000W ATX 3.1 Power Supply 80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
- Brand: DEEPCOOL
- MPN: R-PNA00M-FC0B-AU
- Part #: PSUDPC10540
Product URL: https://www.pbtech.com/au/product/PSUDPC10540/DEEPCOOL-PN1000M-1000W-ATX-31-Power-Supply-80-Plus
Features
PN1000M
The DeepCool PN1000M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN1000M provides stable power for a wide range of modern high-power components.
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN1000M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC, and a DC-to-DC topology, the PN1000M can keep the hold-up time to = 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core 12V-2x6 cable, the PN1000M provides up to 600W for modern GPUs.
SLEEVED CABLES
The PN1000M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC FDB FAN
The PN1000M comes equipped with a dynamic 135mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN1000M will operate at altitudes up to 5000 meters above sea level.
IT WILL FIT!
Fitment into the vast majority of cases should not be an issue, as the PN1000M comes in at a compact 150x150x86mm size.
PEACE OF MIND
The PN1000M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
- Over Power Protection
- Over Voltage Protection
- Short Circuit Protection
- Over Temp Protection
- Over Current Protection
- Under Voltage Protection
- No Load Operation
- Surge & Inrush Protection
Specifications
Type
ATX12V V3.1
Product Dimensions
150×150×86mm (W x L x H)
Efficiency certification
80Plus Gold
Fan Size
135mm
Fan Bearing
FDB (Fluid Dynamic Bearing)
Topology
Active PFC + Half Bridge SRC LLC + DC to DC
Capacitors
Japanese Bulk Capacitor
Power Good Signal
100-150ms
Hold Up Time
=16ms(80% Load)
Efficiency
=90% Under Typical Load(50% Loading)
Protection
OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature
0 - 40?
Regulatory
CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC/BIS
Erp Regulation
ErP 2014
Environment Protection
WEEE/RoHS/Triman/P65
MTBF
100,000 Hours
