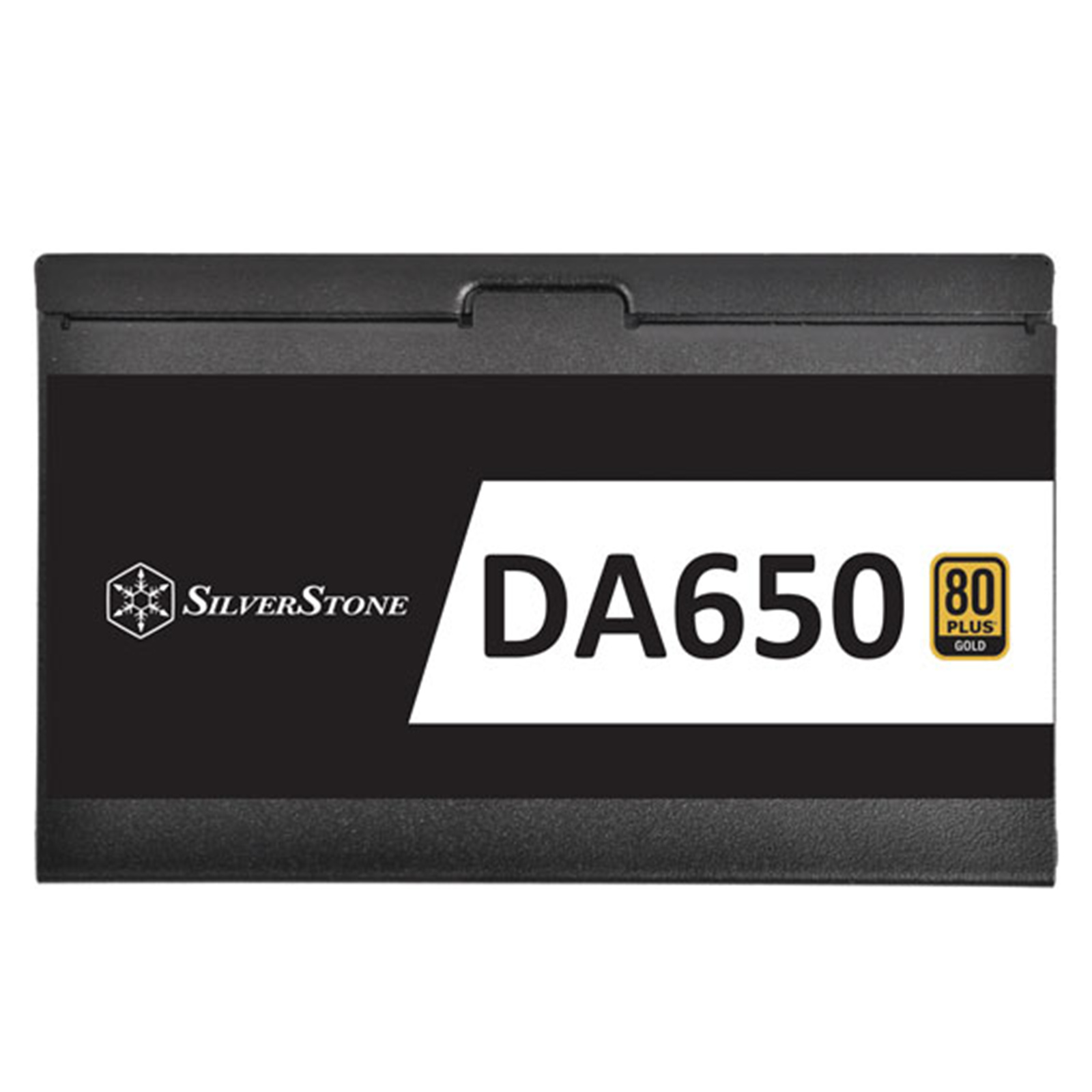

Silverstone DA650 650W ATX Power Supply

80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular

Normally $138.81
Normally $152.69
You save $8
You save $9
$ 129 .87
 +GST
$ 142 .86
 inc GST
$129.87  +GST
$142.86

Silverstone DA650 650W ATX Power Supply

80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular

  • Brand: Silverstone
  • MPN: SST-DA650-G
  • Part #: PSUSVT18650
  • UPC: 844761021115
NEW ARRIVAL
Normally $138.81
Normally $152.69
You save $8
You save $9
PB Tech price
$ 129 .87 $ 142 .86
 +GST  inc GST


Delivery: Order now and it ships tomorrow
Estimated Delivery Times
NSW, VIC, ACT, QLD - Within 4-8 working days
SA, WA, TAS, NT - Within 8-12 working days

View all shipping info
$129.87  +GST
$142.86

Six easy payments of $23.81 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

  • Brand: Silverstone
  • MPN: SST-DA650-G
  • Part #: PSUSVT18650
  • UPC: 844761021115

PSU Form Factor

ATX

Max Output Power

650W

80 Plus Rating

Gold

Modular

Full

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the Silverstone DA650 650W ATX Power Supply 80Plus...
Silverstone DA650 650W ATX Power Supply 80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular
Total:
$ 177 .87
 +GST
$ 195 .66
DEEPCOOL AG400 Plus CPU Cooler 2x 120mm Fans, 150mm Clearance, Support Intel LGA 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4
DEEPCOOL AG400 Plus CPU Cooler 2x 120mm Fans, 150mm Clearance, Support Intel LGA 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4

$48.00  +GST

$52.80

You save 6% You save 6%

Features

DA650 Gold

80 PLUS Gold 650W fully modular ATX power supply

- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail
- Silent running 120mm FDB fan with 18 dBA minimum
- Japanese electrolytic capacitors
- Specially designed cover increases effectiveness of residual heat dissipation
- Compact design with a 140mm depth for easy integration
- Strict ±3% voltage regulation and low ripple & noise

Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity



Built-in 120 mm fan has excellent airflow and low noise, perfect for quiet home or office use



Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking



Flat cables have much greater flexibility to allow for tighter folding and management of cables



Japanese electrolytic capacitors



Specially designed cover designed to effectively dissipate the residual heat



Advanced protections for safety and security

- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Over temperature protection



Connectors / Cable

Specifications

Product No.

SST-DA650-G

Model (safety certification)

SST-AX0650MCGD-A

Color

black (lead-free paint)

Max. DC Output

650W

Power density

360W per liter

Load Range

Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 54A 2.5A 0.3A
Peak (Amps) / / / / 3.0A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±3% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 30mV 30mV 40mV 30mV 40mV

Combined +3.3V & +5V

100W

Combined +12V

648W

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC (PF>0.9 at full load)

Efficiency

87% ~ 90% (at 20% ~ 100% loading)

MTBF

100,000 hours

Operating temperature

0 ~ 40°C

Protection

Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection

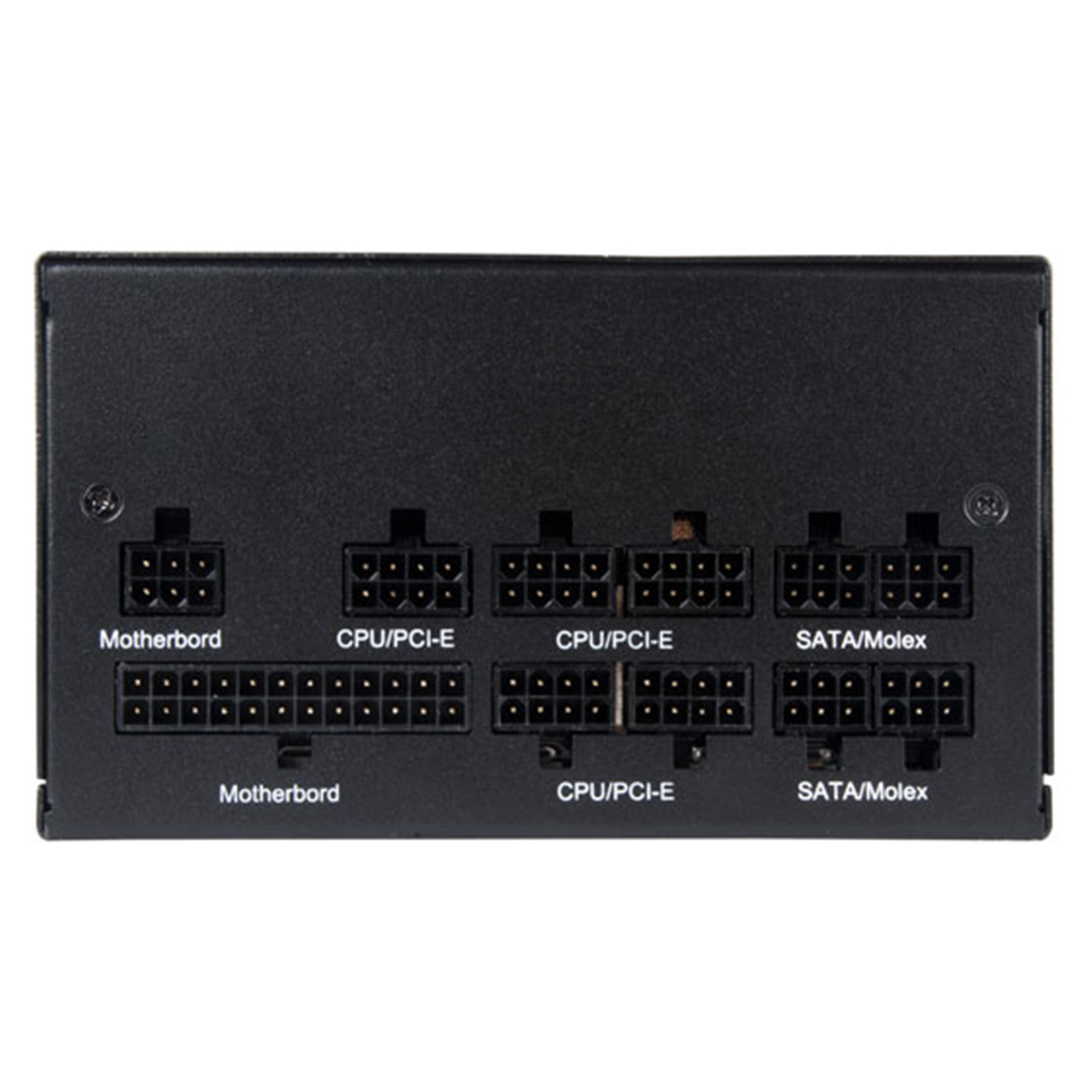

Connectors

1 x 24 / 20-Pin motherboard connector (600mm)
2 x 8 / 4-Pin EPS / ATX 12V connector ("750mm" x 2)
2 x 8 / 6-Pin PCIe connector ("650mm" x 2)
2 x 8 / 6-Pin PCIe connector ("650mm / 150mm")
8 x SATA connector ("600mm / 150mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector + 1 x 4-Pin Floppy adapter connector (600mm / 150mm / 150mm / 150mm)

Cooling System

Silent 120mm FDB fan

Noise Level

18 dBA minimum

Certification

80 PLUS Gold

Form factor

ATX (PS2)

Dimension

150mm (W) x 86mm (H) x 140mm (D)

Weight

1.42 kg

Manufacturer Part No:
SST-DA650-G
Brand:
Product Type:
Power Supply
UPC
844761021115
Product Family:
-
Shipping Weight:
2.35 kg
PB Part No:
PSUSVT18650
Product Model:
DA650
Warranty: 36 months *
