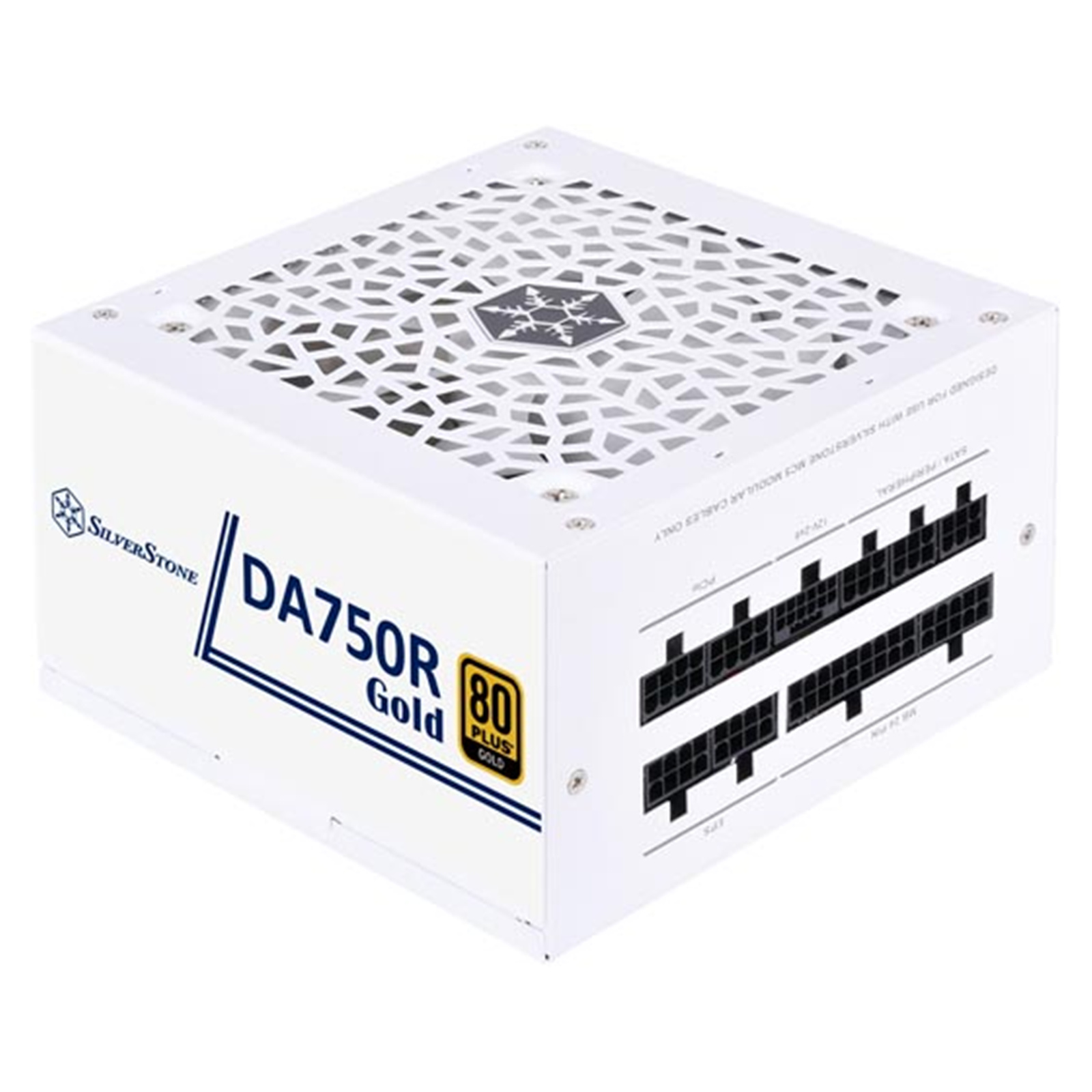

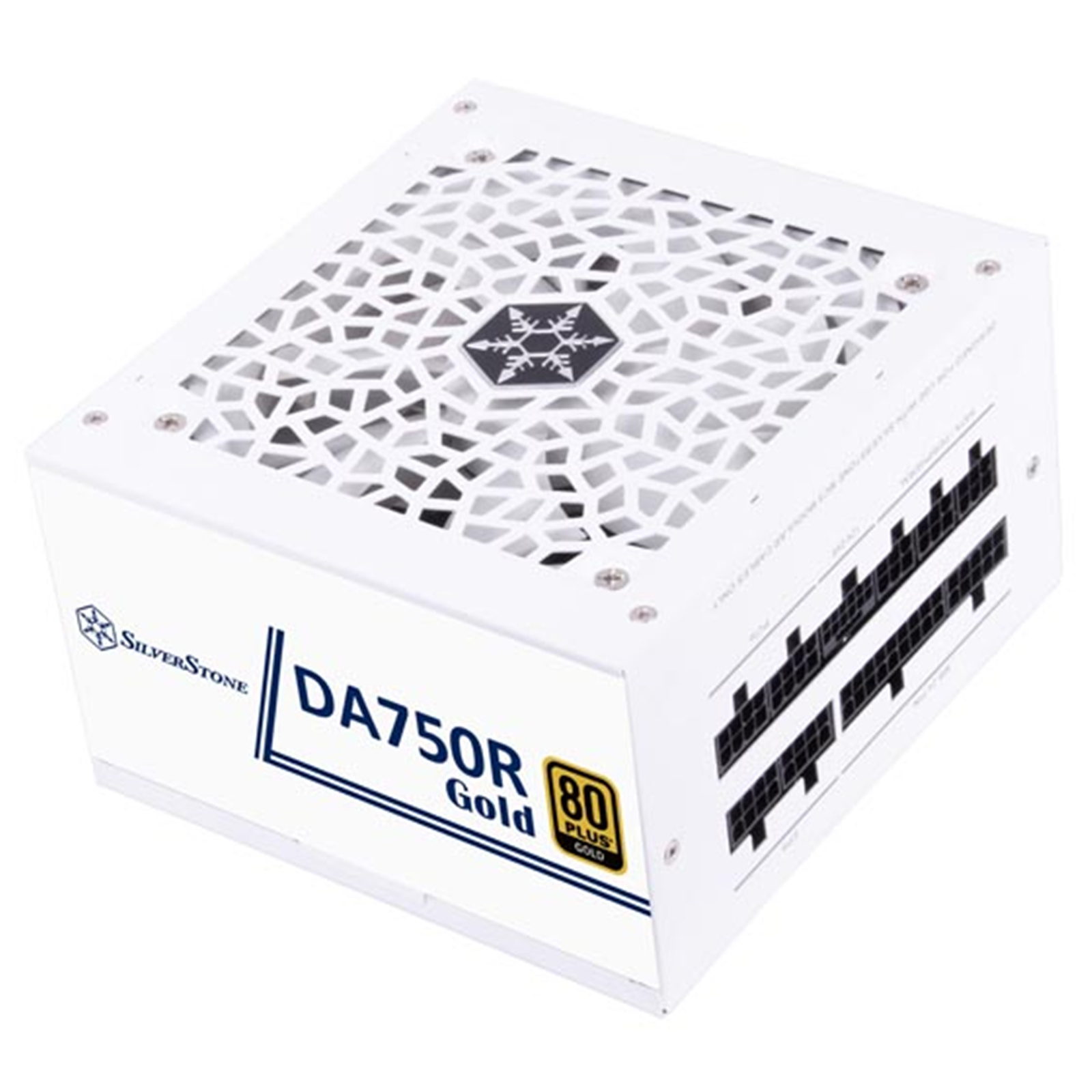

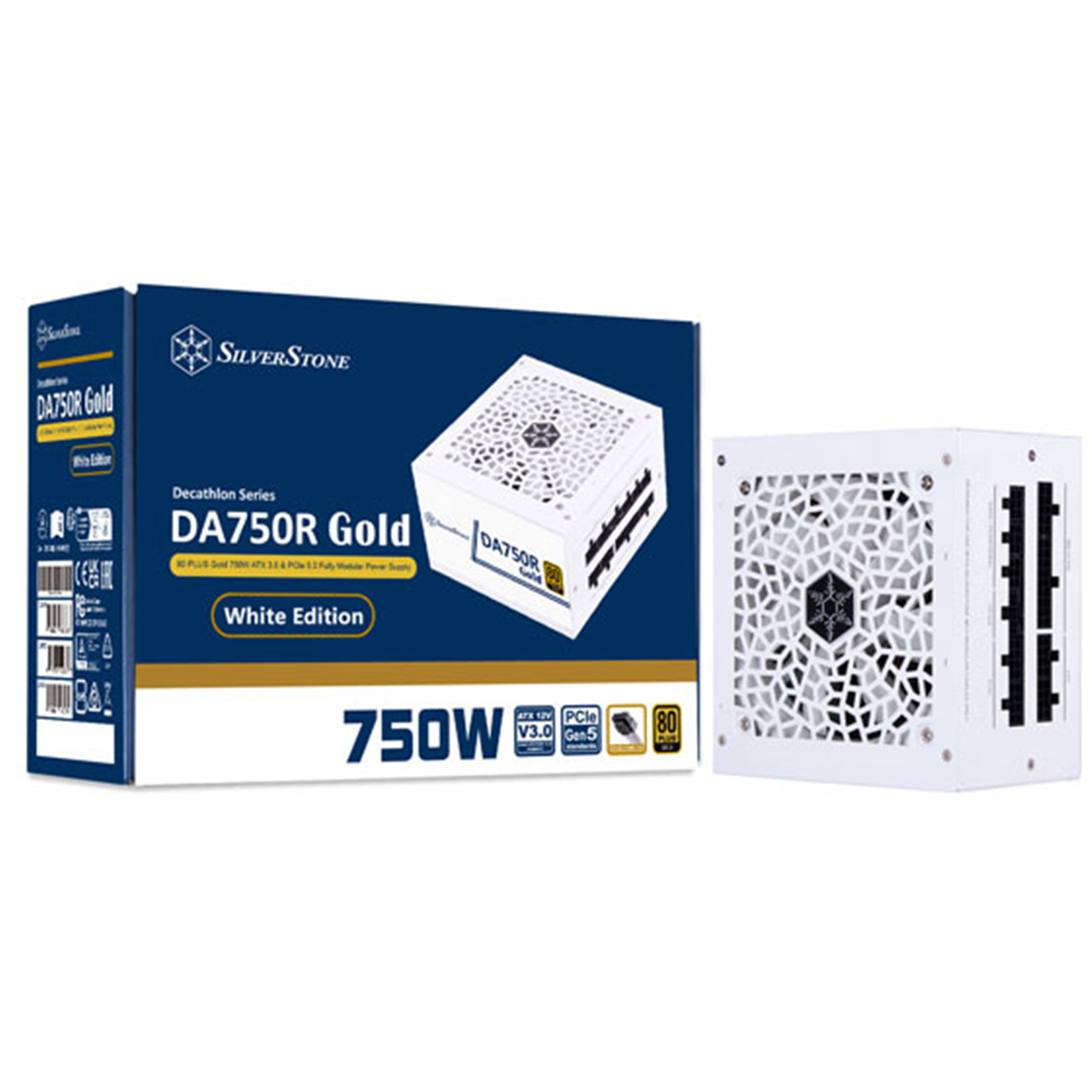

Silverstone DA750R White 750W ATX 3.1 Power Supply
80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular
Silverstone DA750R White 750W ATX 3.1 Power Supply
80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular
- Brand: Silverstone
- MPN: SST-DA750R-GMA-WWW
- Part #: PSUSVT18752
- UPC: 844761026837
View all shipping info
- Brand: Silverstone
- MPN: SST-DA750R-GMA-WWW
- Part #: PSUSVT18752
- UPC: 844761026837
What PB Tech customers are saying about this product...
See More Reviews"Was really after a simple and fully modular powersupply. I felt a little bad trying to save $50 and opting for this cheaper one, over other brands I have used before. But I was wor ...view more"
"Just a note, if you're doing a white out build, the cables are white, but the connections are black. Other than that, works as it should."
"Managed to get an open box model cheap. Very happy with it so far."
COMBO DEALS: Frequently Bought Together
ProsKit SD-9828 58 PCS Screwdriver & Bit Set Suitable For Home Appliances, iPhone MacBook Xbox...
$46.51 +GST
$51.16
Features

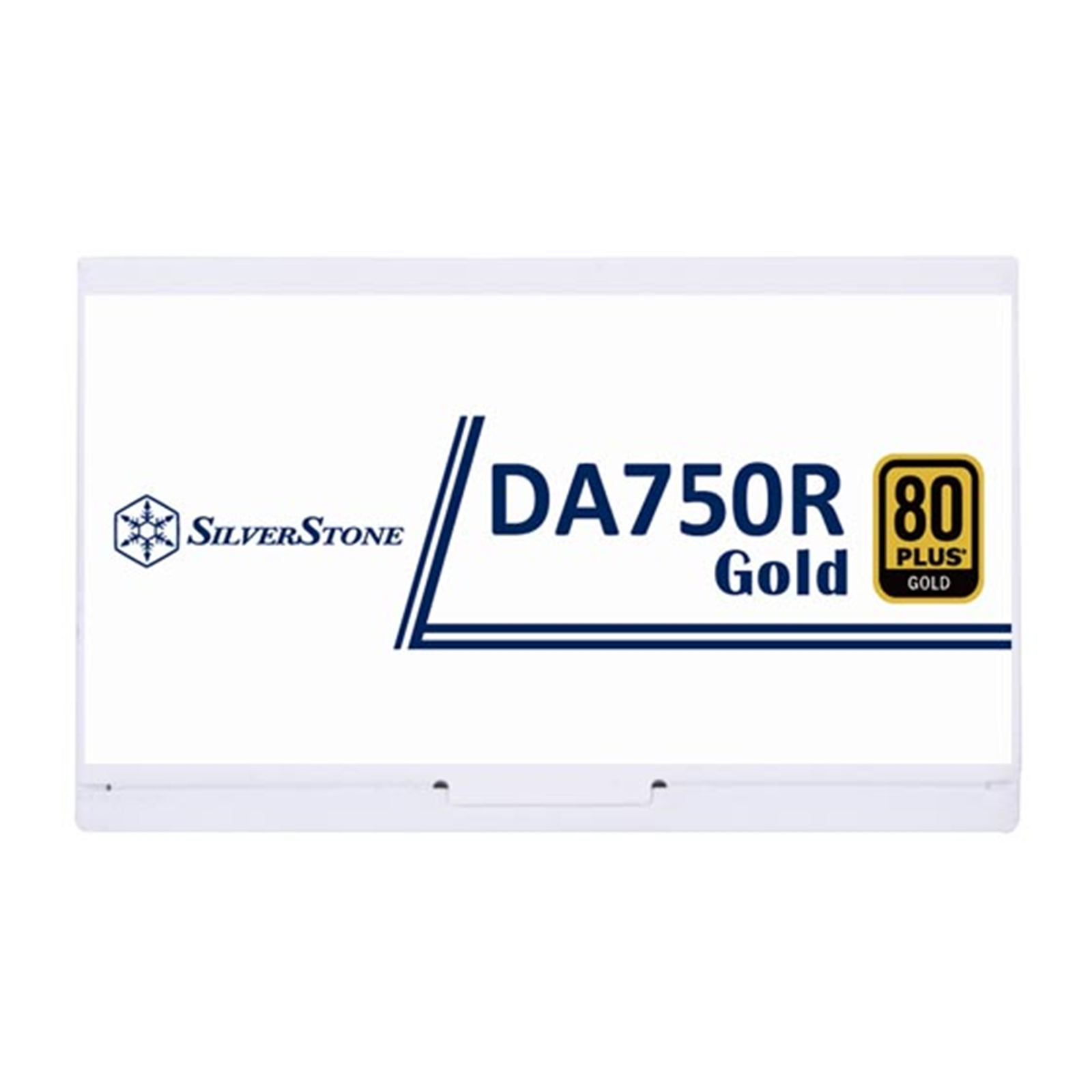

DA750R Gold
80 PLUS Gold 750W ATX 3.0 & PCIe 5.0 Fully Modular Power Supply
- 80 PLUS Gold efficiency certification
- Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- 24/7 continuous power output with 50?operating temperature
- Silent running 120mm fan with advanced semi-fanless operation
- Compact design with a 140mm depth for easy integration
12V-2x6 PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12V-2x6) design is capable of withstanding power failure caused by a running graphics card's instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems
Specially designed cover designed to effectively dissipate the residual heat
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity

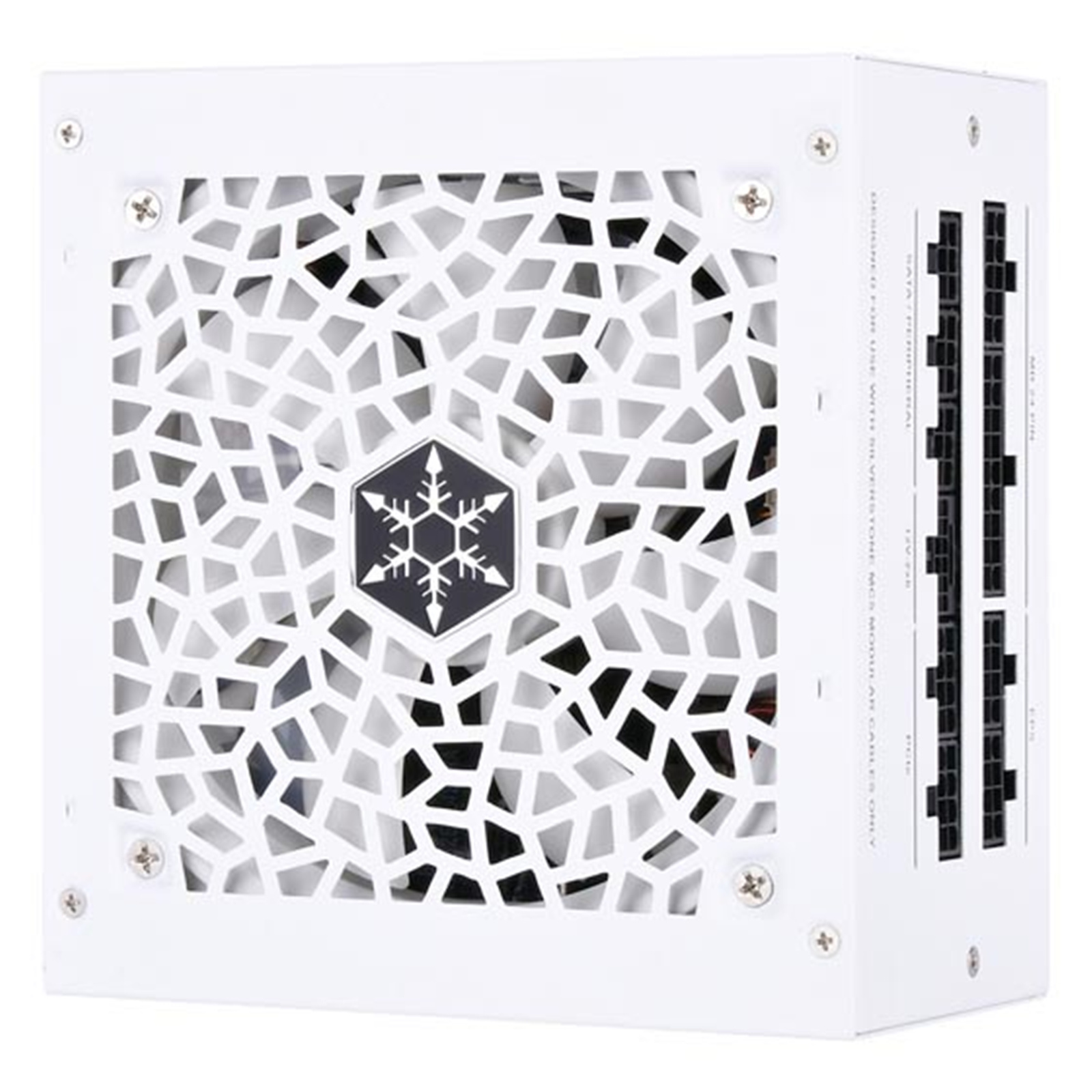

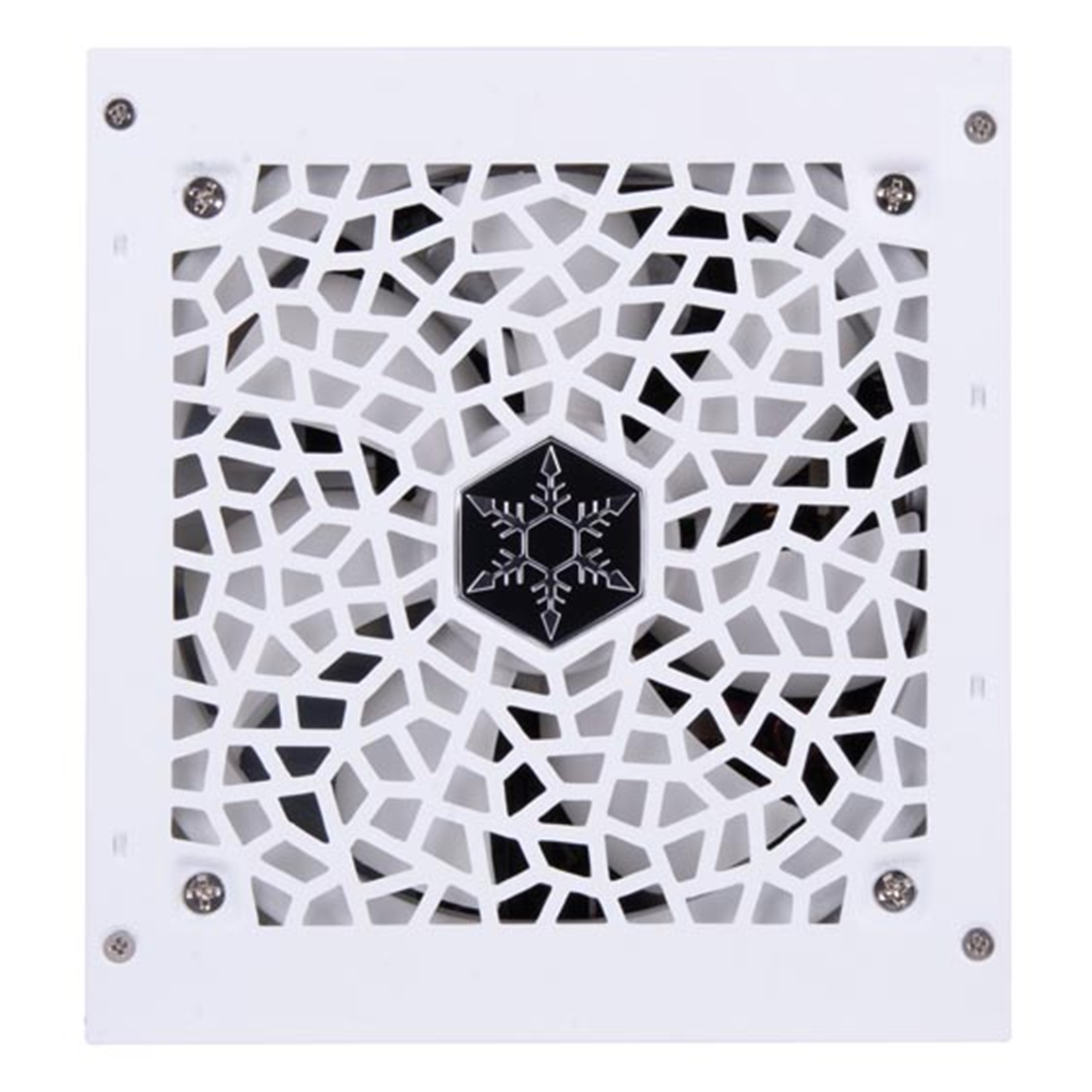

Silent running 120mm fan with advanced semi-fanless operation
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications
Reviews
Do you own this product?
Simple, and exactly what I needed
Was really after a simple and fully modular powersupply. I felt a little bad trying to save $50 and opting for this cheaper one, over other brands I have used before. But I was worried for nothing. This is exactly what I needed, and does a perfect job. No issues at all.
Good
Just a note, if you're doing a white out build, the cables are white, but the connections are black. Other than that, works as it should.
Good Value
Managed to get an open box model cheap. Very happy with it so far.
Thanks to this PSU I now have a silent PC.
Very happy with this PSU - no coil whine and it has a zero rpm mode for total silence, and even with zero rpm mode turned off the PSU is still very quiet.
Mean as
Does what a power unit should do. I'm running a Radeon 9070 GPU and a Ryzen 7 7700X CPU off of this and it handles it with no issues whatsoever. Also comes with all the cables you'll need for any basic computer including SATA cables. Definitely would recommend.
Good value for a modular PSU
Nice and quiet even when fan kicks on under load nice and quick shipping
Great power supply
Fantastic product very very happy 😁
Got the looks and performance
This PSU is quiet and capable of powering my 9700x and 9070xt without any issues.
The only gripe I have is that the provided power plug is black, which is disappointing given the PSU theme is white.
Great modular PSU
850W, probably overkill for a Ryzen 9600X and RX7600XT and a couple of NVMe SSDs, but that said - work fine, very quiet.
Good product
Works well, quiet as advertised
Quiet but deadly
Great power supply for anyone needing 850 watts of pure performance. Put this into my latest build and its holding up great. Minimal noise; wide array of spare connectors; and its overall simplistic design makes its great for virtually any build.
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Desktop Power Supplies
DEEPCOOL PL750D 750W ATX 3.1 Power Supply 80 Plus Bronze - MEPS...
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full...
MSI MAG 650W Power Supply 230V - 80 Plus Bronze - MEPS Approved -...
MSI MAG 850W Power Supply 80 Plus Gold - ATX 3.1 PCIe 5.0 Ready -...
Corsair RM750x 750W ATX 3.1 Power Supply Cybenetics Gold...
Silverstone DA750R White 750W ATX 3.1 Power Supply 80Plus Gold - Silent running - 120mm fan with 18 dBA - Fully Modular
- Brand: Silverstone
- MPN: SST-DA750R-GMA-WWW
- Part #: PSUSVT18752
- UPC:844761026837
Product URL: https://www.pbtech.com/au/product/PSUSVT18752/Silverstone-DA750R-White-750W-ATX-31-Power-Supply?is-review=1
Features
DA750R Gold
80 PLUS Gold 750W ATX 3.0 & PCIe 5.0 Fully Modular Power Supply
- 80 PLUS Gold efficiency certification
- Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
- Latest PCIe Gen 5 standard to support up to 2X power excursion
- 24/7 continuous power output with 50?operating temperature
- Silent running 120mm fan with advanced semi-fanless operation
- Compact design with a 140mm depth for easy integration
12V-2x6 PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12V-2x6) design is capable of withstanding power failure caused by a running graphics card's instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems
Specially designed cover designed to effectively dissipate the residual heat
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Silent running 120mm fan with advanced semi-fanless operation
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications

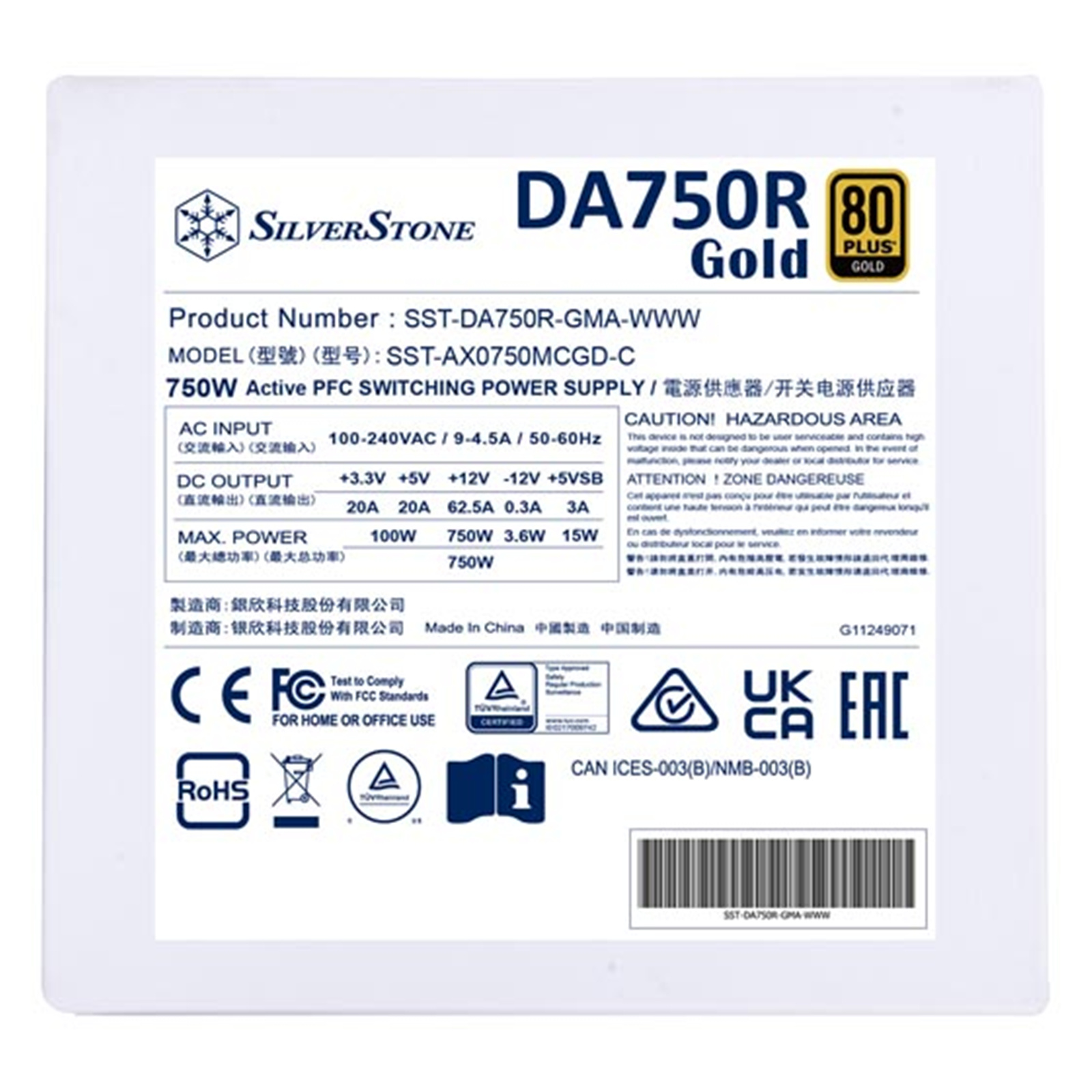

Product No.
SST-DA750R-GMA-WWW (White)
Model (safety certification)
SST-AX0750MCGD-C
Color
White (lead-free paint)
Max. DC Output
750W
Power density
415W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62.5A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% +5%-7% ±5% ±8%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V
100W
Combined +12V
750W

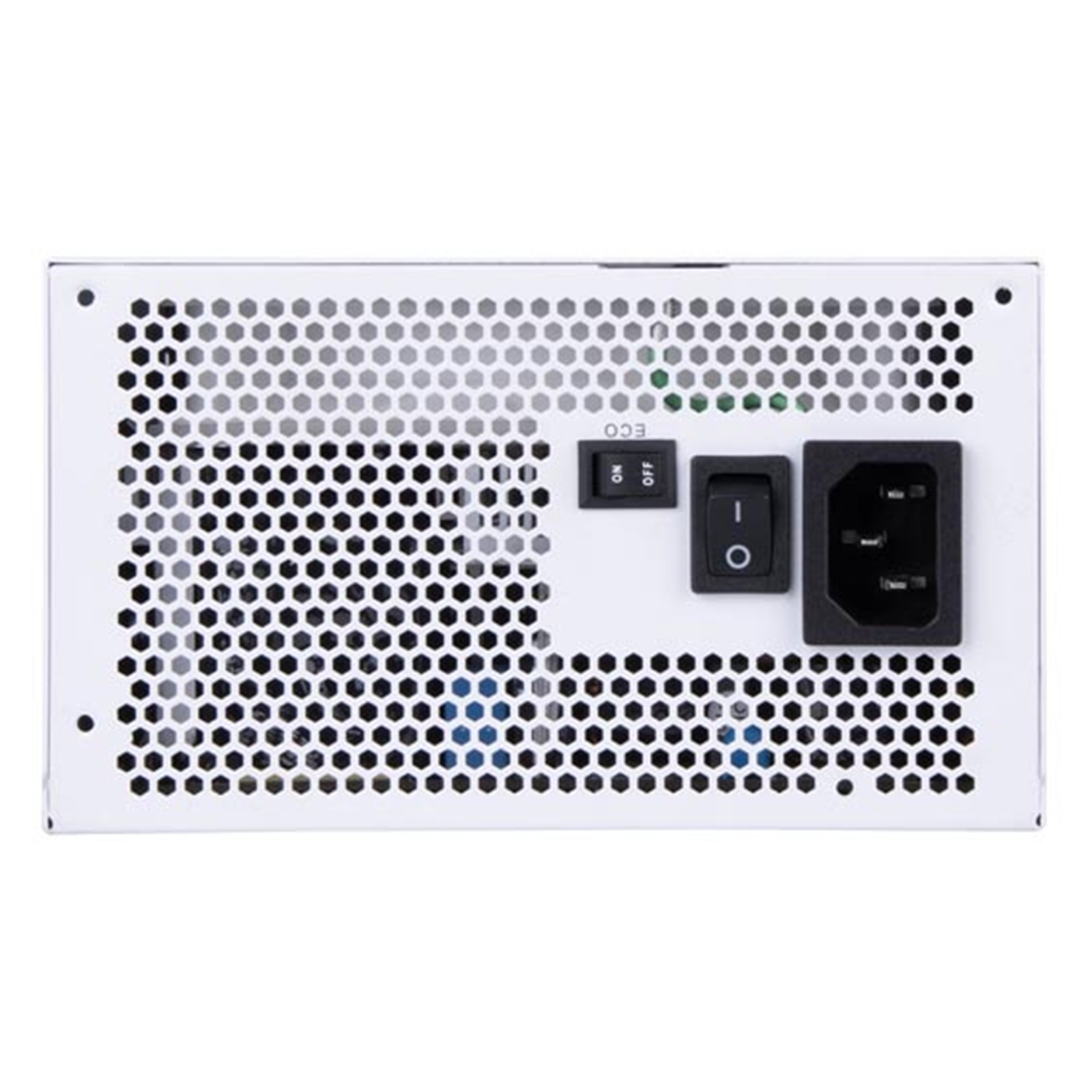

Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
=87% & <89%
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection

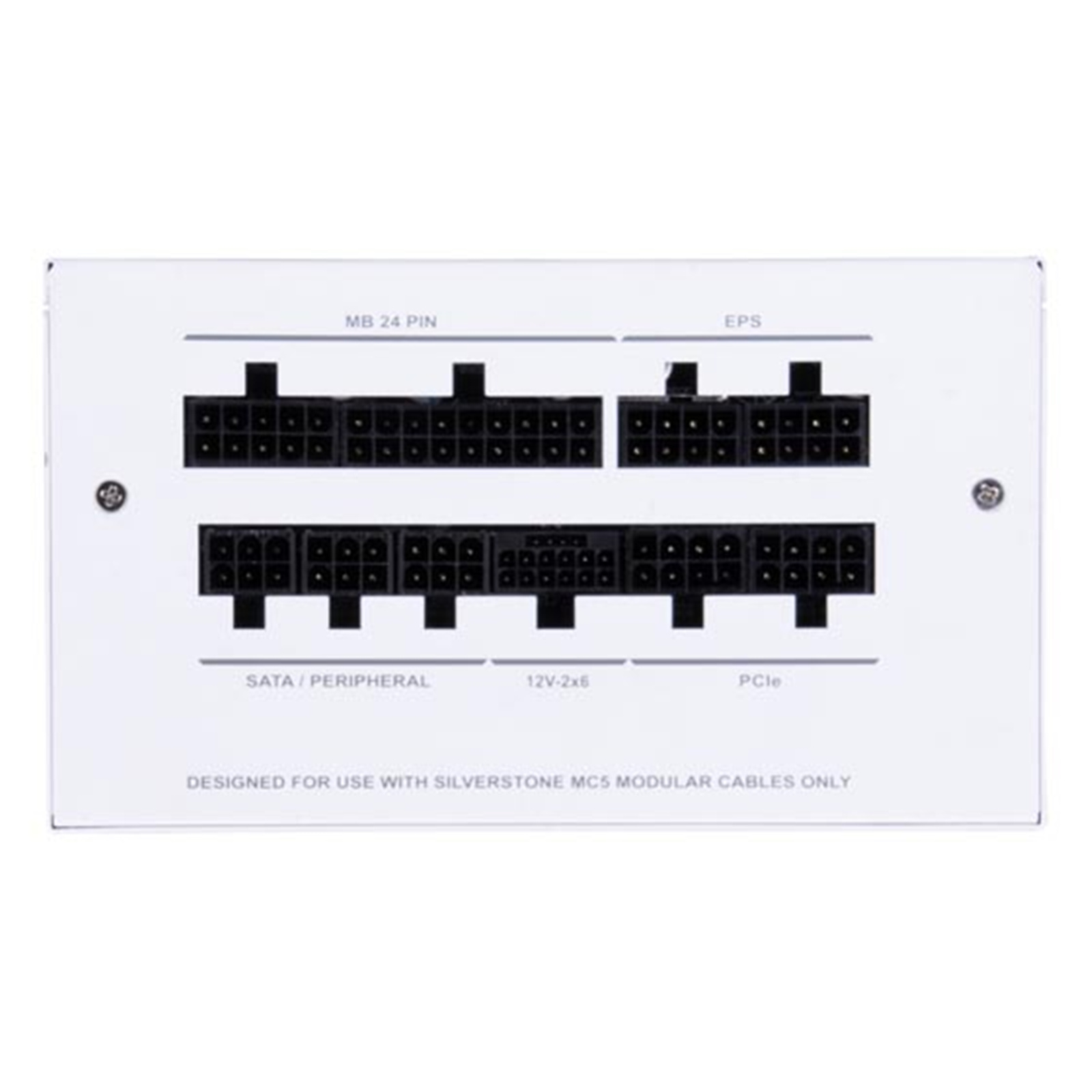

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
8 x SATA connectors
4 x 4-Pin Peripheral connector
* DA750R-GMA/DA750R-GMA-WWW are not compatible with PP05-E and PP06 cables.
Cooling System
Silent 120mm fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
2.08kg
