Features
ET550-HG
- High efficiency with 80 PLUS Gold certification
- Semi-modular cables facilitate cable management
- 24/7 continuous power output with 40°C operating temperature
- Class-leading single +12V rail
- Silent running 140mm fan with 18 dBA
- PCIe 8pin and PCIe 6pin connectors support
- All-black flat cables design
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
Built-in 140mm fan has excellent airflow and low noise, perfect for quiet home or office use.
Single 140mm silent fan

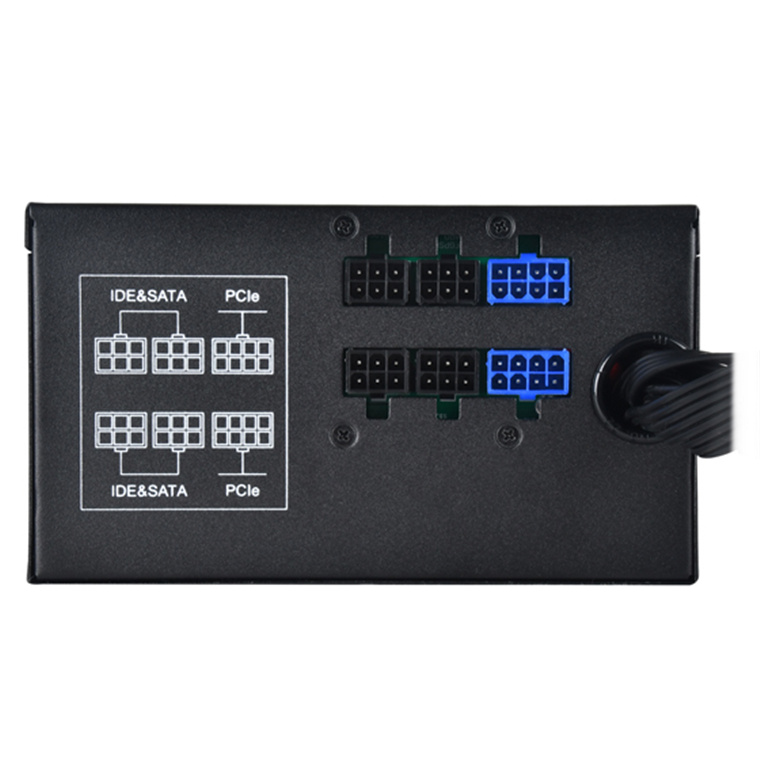

Semi-modular cables facilitate cable management
1 x 24 / 20-Pin motherboard connector
1 x 8 / 4-Pin EPS / ATX 12V connector
2 x 8 / 6-Pin PCIe connector
9 x SATA connector
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy connector
Specifications
Model No.
SST-ET550-HG
Max. DC Output
550W
Power density
267W per liter
Load Range
Max.(Amps)
+3.3V: 20A
+5V: 20A
+12V: 45A
+5VSB: 2.5A
-12V: 0.3A
Peak (Amps)
+3.3V: -
+5V: -
+12V: -
+5VSB: 3.0A
-12V: -
Min.(Amps)
+3.3V: 0A
+5V: 0A
+12V: 0A
+5VSB: 0A
-12V: 0A
Range (%)
+3.3V: ±5%
+5V: ±5%
+12V: ±5%
+5VSB: ±5%
-12V: ±10%
Line Reg.(%)
+3.3V: ±1%
+5V: ±1%
+12V: ±1%
+5VSB: ±1%
-12V: ±1%
Ripple(mVp-p)
+3.3V: 50mV
+5V: 50mV
+12V: 120mV
+5VSB: 50mV
-12V: 120mV
Color
Black(Lead-Free Paint)
Combined +3.3V & +5V
110W
Combined +12V
540W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC(PF>0.9 at full load)
Efficiency
87% ~ 90% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Connectors
V1.1
1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8 / 4-Pin EPS / ATX 12V connector (750mm)
2 x 8 / 6-Pin PCIe connector (500mm / 150mm)
8 x SATA connector ("500mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector (500mm / 150mm / 150mm)
1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
Cooling System
Single 140mm silent fan
Form factor
ATX
Noise Level
18dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 160 mm (D)
5.91" (W) x 3.39" (H) x 6.3" (D)
Weight
1.93 Kg
Certification
80 PLUS Gold
Other
Support GPU list
Compatible with ATX12V v2.4
