Bambu Lab Accessories AMS Hub Automatic Material System
Compatible with X1 Series & P1 Series
Bambu Lab Accessories AMS Hub Automatic Material System
Compatible with X1 Series & P1 Series
- Brand: Bambu Lab
- MPN: SA002-N
- Part #: PTABAM0003
- UPC:
View all shipping info
- Brand: Bambu Lab
- MPN: SA002-N
- Part #: PTABAM0003
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular 3D Printer Parts & Accessories





Bambu Lab Accessories AMS Hub Automatic Material System Compatible with X1 Series & P1 Series
- Brand: Bambu Lab
- MPN: SA002-N
- Part #: PTABAM0003

Product URL: https://www.pbtech.com/au/product/PTABAM0003/Bambu-Lab-Accessories-AMS-Hub-Automatic-Material-S
Features
How-to video
Check out our Wiki article: Connect AMS Hub and Multi-AMS

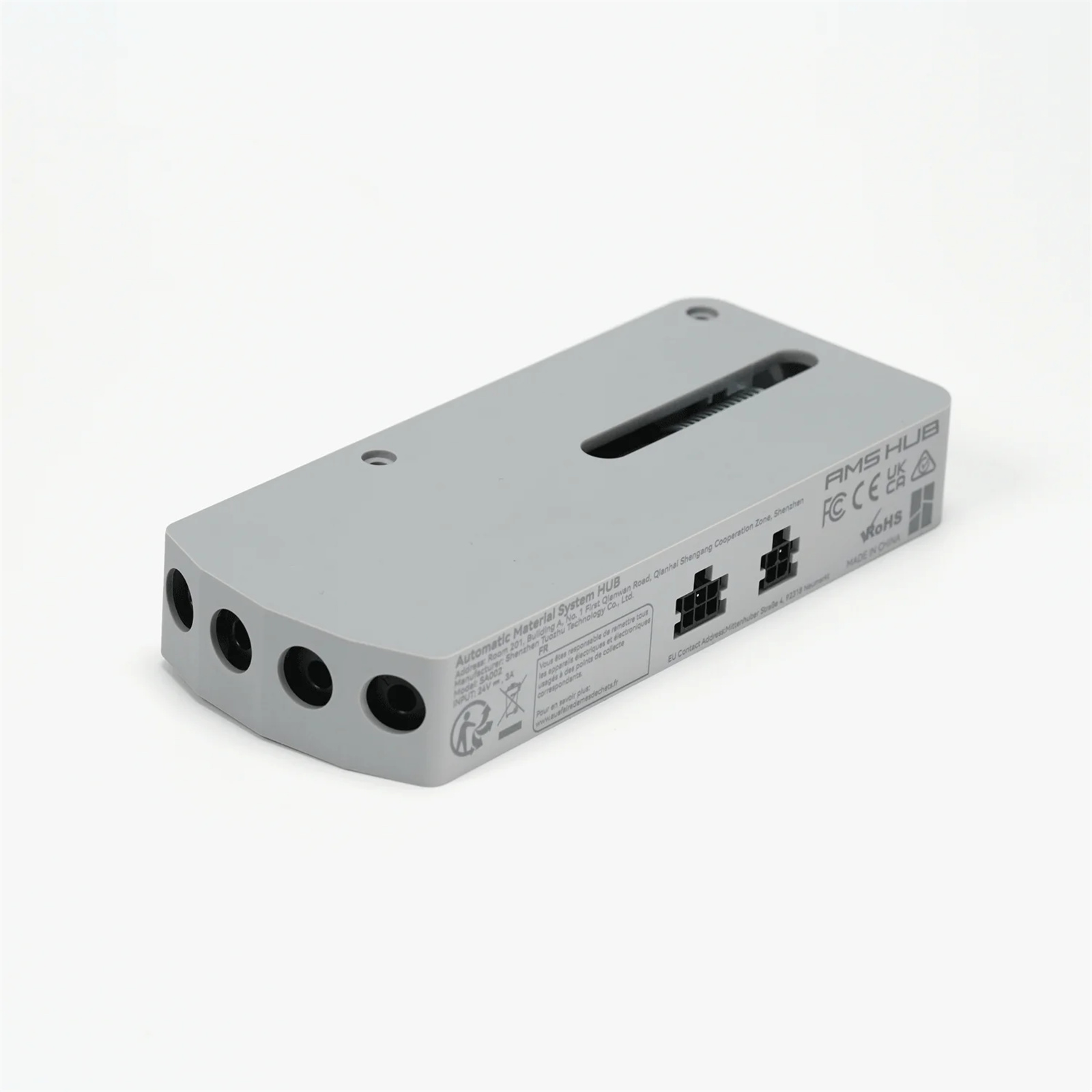

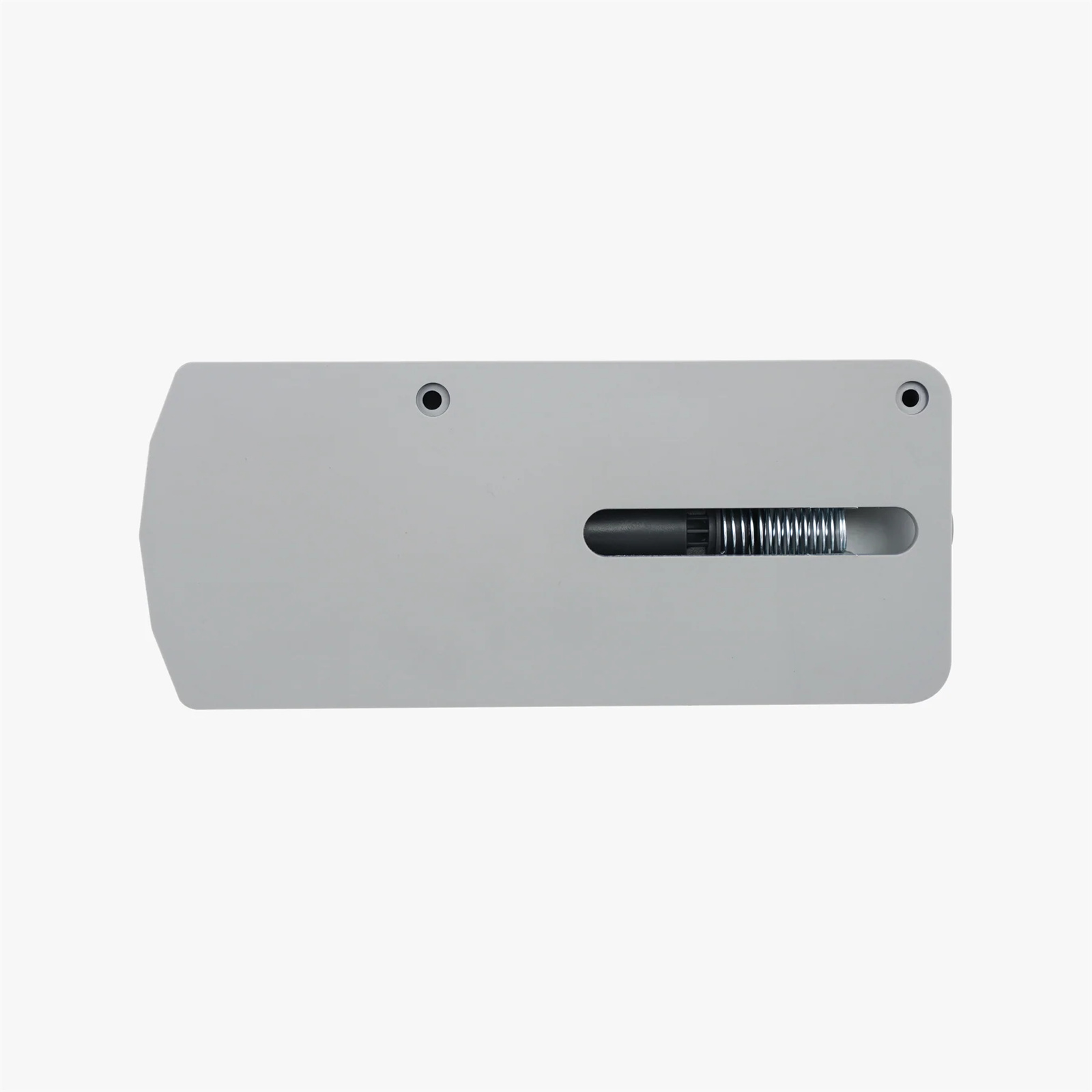

Bambu Lab AMS Hub
The AMS Hub is used to expand the number of AMS connected to Bambu X1/P1 series printers from 1 AMS unit (4 channels) to a maximum of 4 AMS units (16 channels) to improve the refueling speed across your multiple AMS units and support the redundancy of a buffered signal.
*The Bambu Lab AMS Hub includes the necessary accessories to connect 2x AMS units to the printer. If you wish to add more AMS units, you need to order additional Bus cable and PTFE Tube. To use 4x AMS units, you need to order additional 2x Bus cable (6pin) and 2x 2m PTFE Tube.

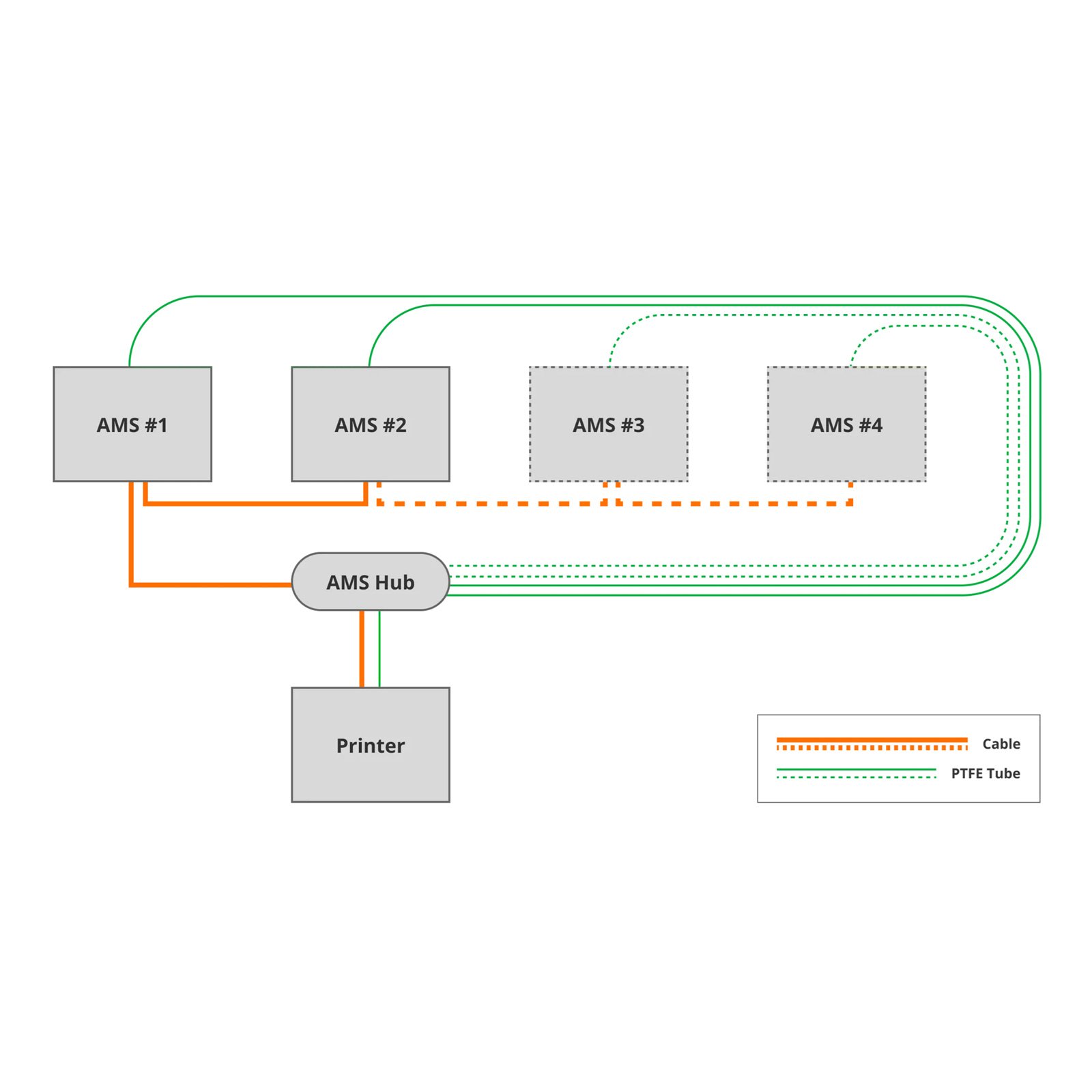

*The picture is for reference only, try to place the AMS on the left side of the AMS Hub when actually printing, otherwise the filament in the PTFE tube is easy to get stuck.

Expand Your AMS Options
The built-in buffer of the printer can only be connected to 1 AMS. When replaced with AMS Hub, the printer will be able to connect up to 4 AMS.
Installation
- Install the AMS Hub on the back of the printer, replacing the Filament buffer if you have one, and use the matching Bambu 4 Pin cable to connect to the printer, use the Bambu 6 Pin cable to connect to the first AMS, then continue to use the 6-pin cable to connect the remaining AMS in series.
- Use the matching PTFE Tube to connect the AMS Hub and the air tube connector on the back of the printer, the tube should pass between the 4-pin plug and the spool holder to reduce the resistance.
- According to the placement of the AMS and the printer, you can choose the appropriate length of the PTFE tube to connect the AMS and the AMS Hub. The tube should be as short as possible and avoid winding to reduce the feeding resistance.
Specifications
Product Size
140*60*22 mm
Package Size
235*167*40 mm
Product Weight
84 g
Gross Weight
321 g
Material
Plastic, metal, printed circuit board
Input
24V 3A
Color
Gray
What's in the box
AMS Hub
Bus Cable - (2x)6pin(1.5m)
PTFE Tube
M3*28 Screw (x2)
