Dynamix PPPR24S 1U Rotary 24 Ports SC Simplex
- Brand: Dynamix
- MPN: PPPR24S
- Part #: RACDNX1077

Product URL: https://www.pbtech.com/au/product/RACDNX1077/Dynamix-PPPR24S-1U-Rotary-24-Ports-SC-Simplex
Features

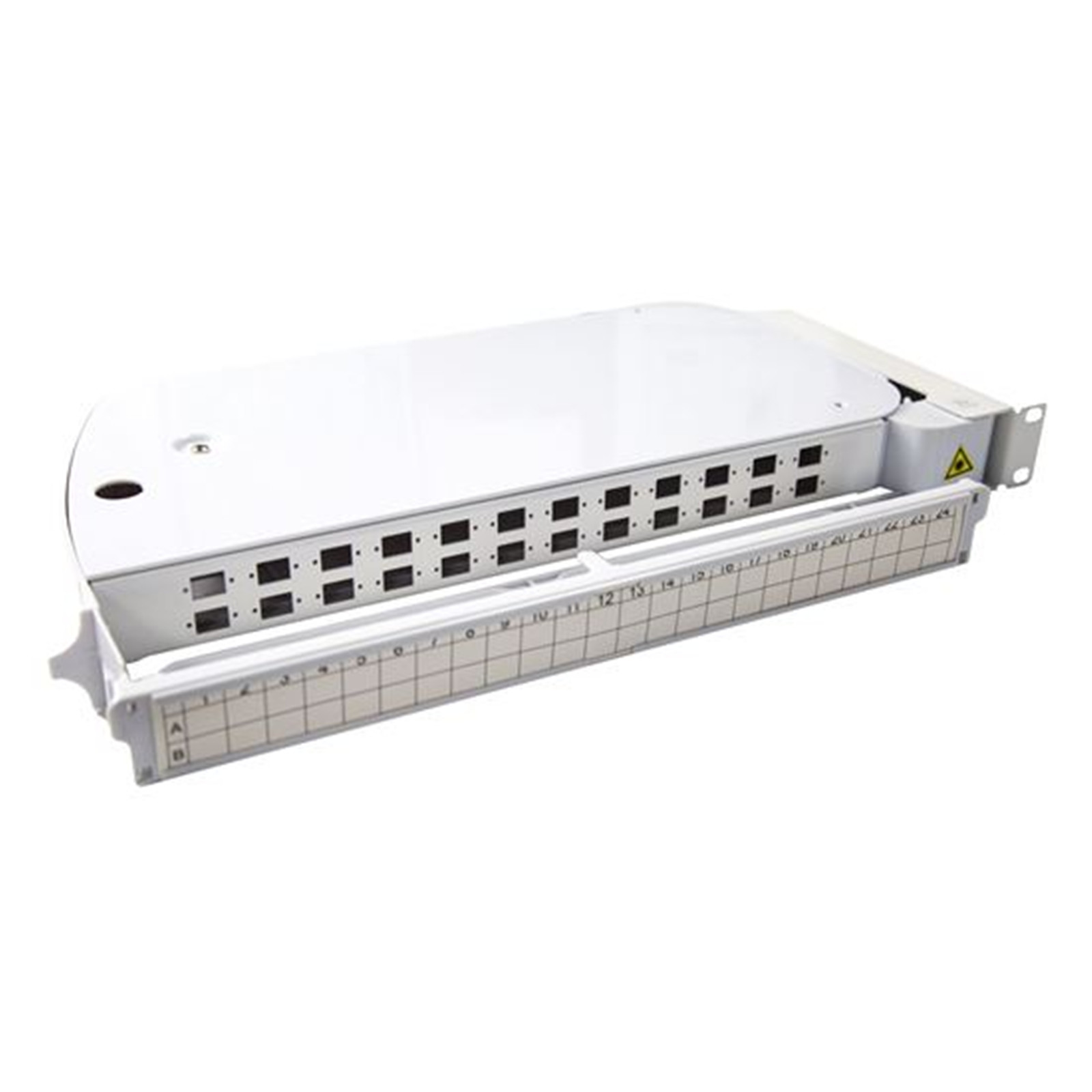

DYNAMIX 1U Rotary 24 Ports SC Simplex, Footprint Unloaded Right Hinge
ODF Rotary 1U panel is made of plastic ABS material and cold rolled steel pivotal bracket. An innovative high-density pivot panel designed to accept up to 24 SC simplex footprint adapters. The panel can pivot by up to 110° to allow easy access during installation or rework with no disturbance of the existing cable or fibres.
Key Features
- Holds up to 24 SC simplex footprint adapters
- Accepts loose tube, distribution and pre-terminated cables
- Designed for 19" standard distribution frame
- Dimensions: 482 x 280.40 x 44mm
Applications
- Telecommunications subscriber
- Fibre to the home (FTTH)
- LAN/WAN
- CATV
- Indoor Application
Specifications
Mounting Type
Rack 19"
Height Unit
1U
Material
Material ABS plastic body and cold rolled steel bracket
Housing Colour
White
Application Indoor
IP20
Lockable
No
Dimensions (W x D x H)
482 x 280.40 x 44mm
Net Weight
2kg
Opening Type
Right or left pivotal panel
Access Type
Front access
Front Cable Management
Front manager with hinged drop down bar
Cable Entry Direction
Sides
Rear Cable Management
6 x cable entries
Slot Type
SC Simplex /LC Duplex adapters footprint
Number of Slots
24
Fiber Capacity
24 in SC and LC
