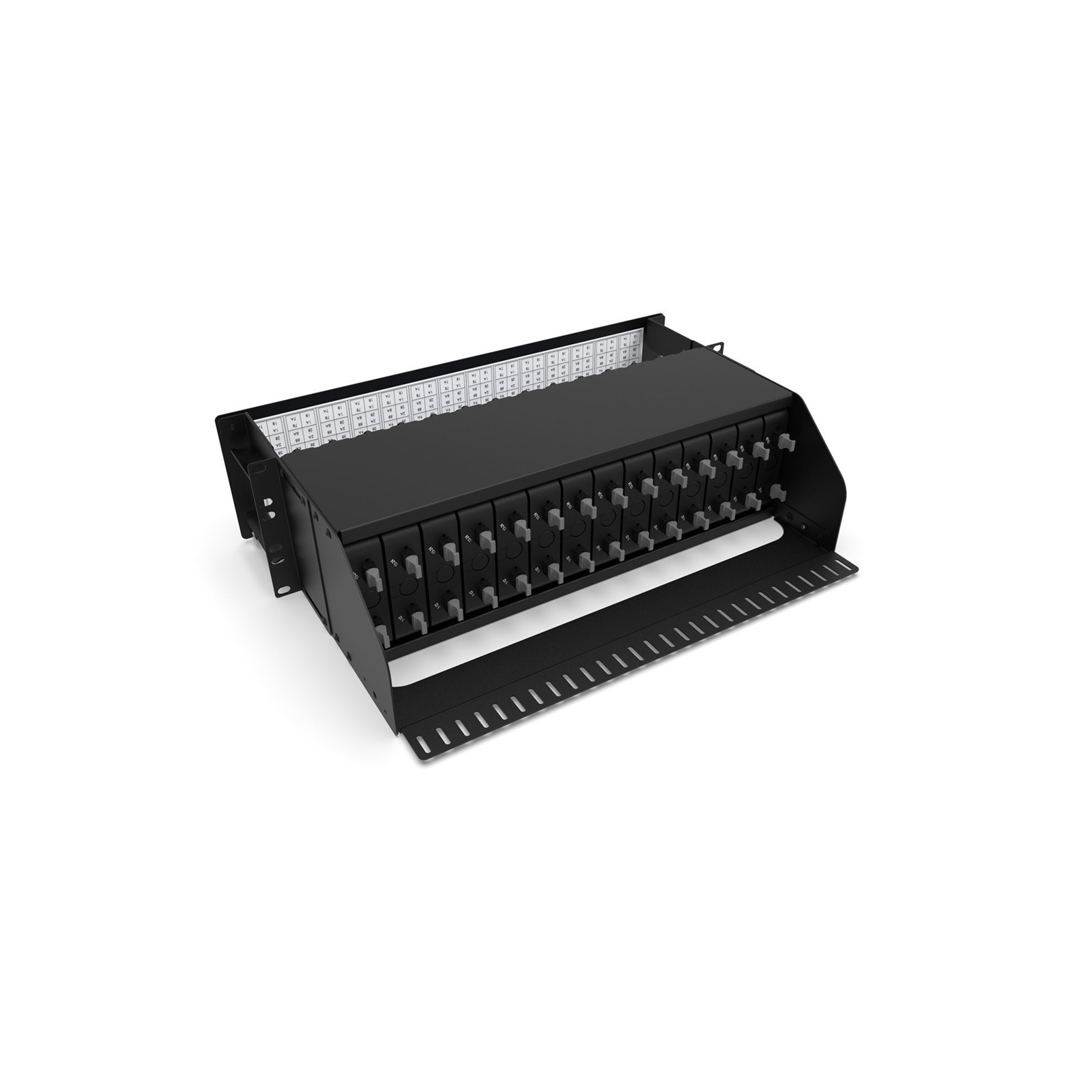

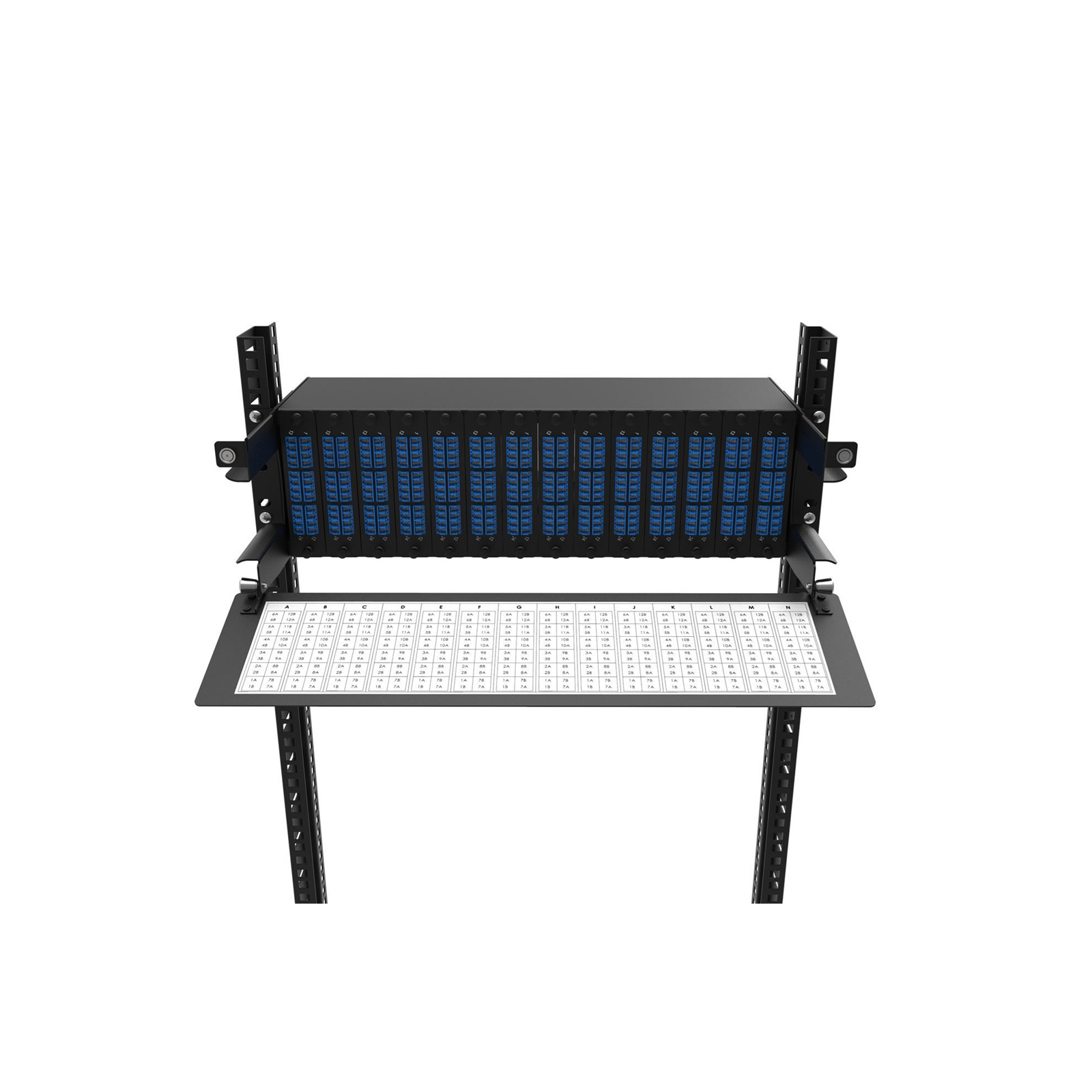

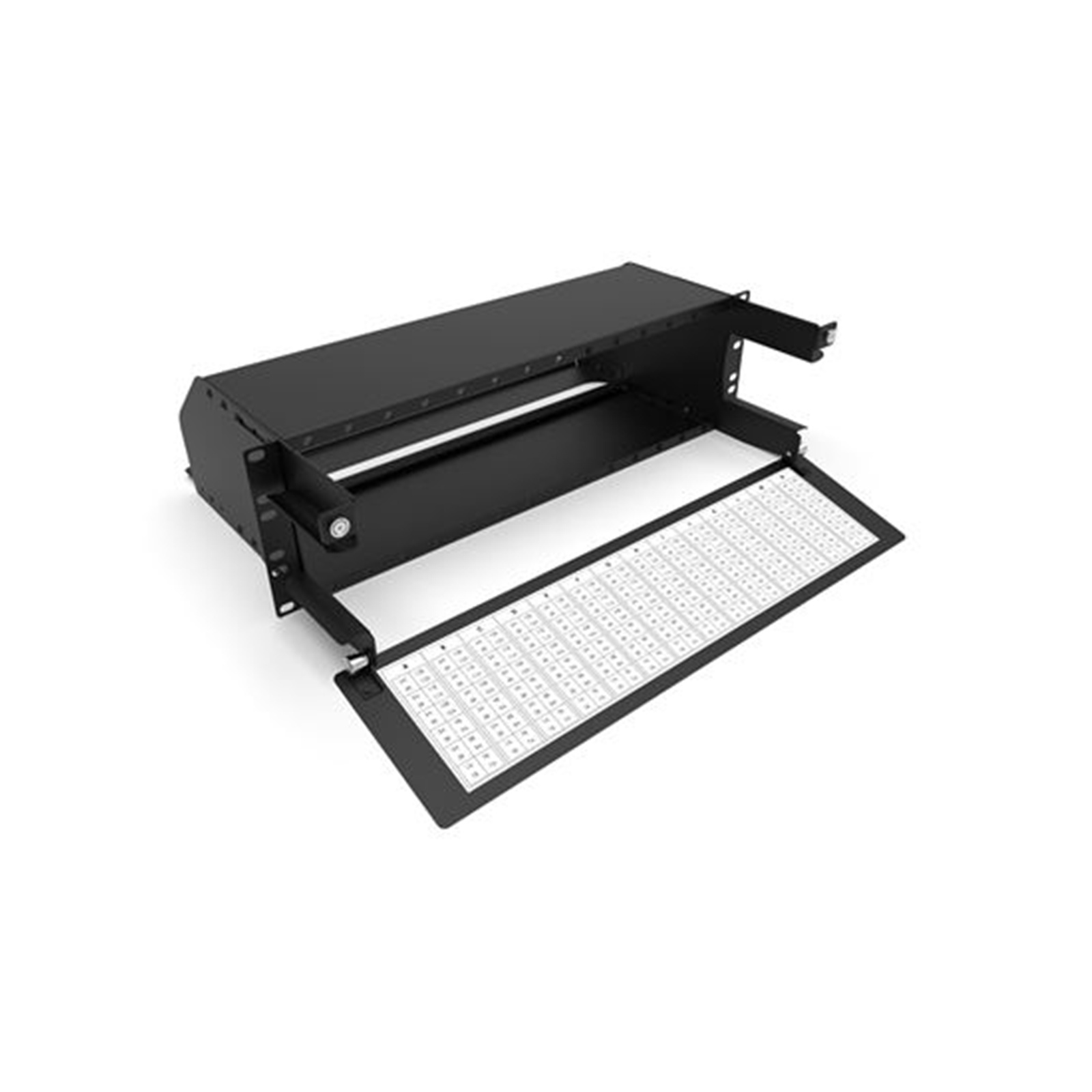

Dynamix LGX3U 3U 19" 14 Slots LGX Modular Frame. Up to 336 Fibre Optic in LC with Individually Labelled Ports. Compatible with LGX Adapter Plates, MPO Cassettes and Copper Fibre Hybrid Modules.
- Brand: Dynamix
- MPN: LGX3U
- Part #: RACDNX1142

Product URL: https://www.pbtech.com/au/product/RACDNX1142/Dynamix-LGX3U-3U-19-14-Slots-LGX-Modular-Frame-Up
Features

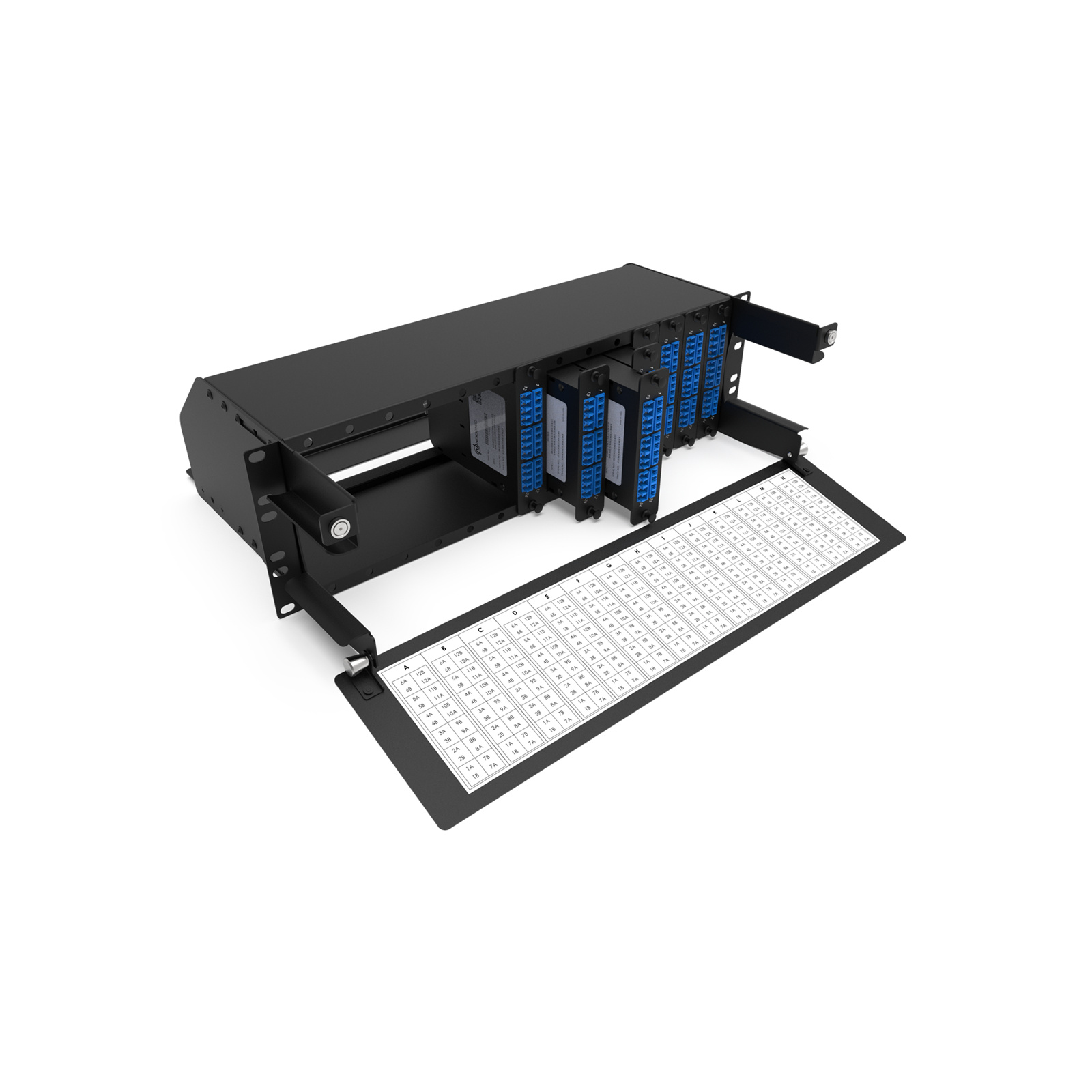

Dynamix™ 3U LGX High-Density frame allows to scale up to 14 LGX MTP®/MPO and Splicing Modules or adapter plates for a total of 336FO in LC ports in a compact chassis. Multi-functional chassis which allows easy access during installation or re-work with no disturbance of the existing cables or fibres.
- Colour coded for both T568A & T568B installs
- 14x Slots LGX in 3U space
- Up to 336FO in LC
- Fully integrated fibre management
- Individually labelled ports
- MTP®/MPO, Splicing, Patching Cassette
- Datacenter storage area network & Central Office, POP
- Indoor application
- Accepts Indoor and Outdoor cable
Specifications
Mounting Type
Rack 19"
Height Unit
3U
Material
Cold rolled steel
Housing Color
Black
Application
Indoor IP20
Lockable
No
Dimensions (W x D x H mm)
485 X 348 X 132
Net Weight
4 KG
Opening Type
Fixed chassis
Access Type
Front access
Front Cable Management
Hinged removable metal door
Cable Entry Direction
Rear
Rear Cable Management
Yes
Slot Type
LGX Modules
Number of Slots
14
Fiber Capacity
336 IN LC
