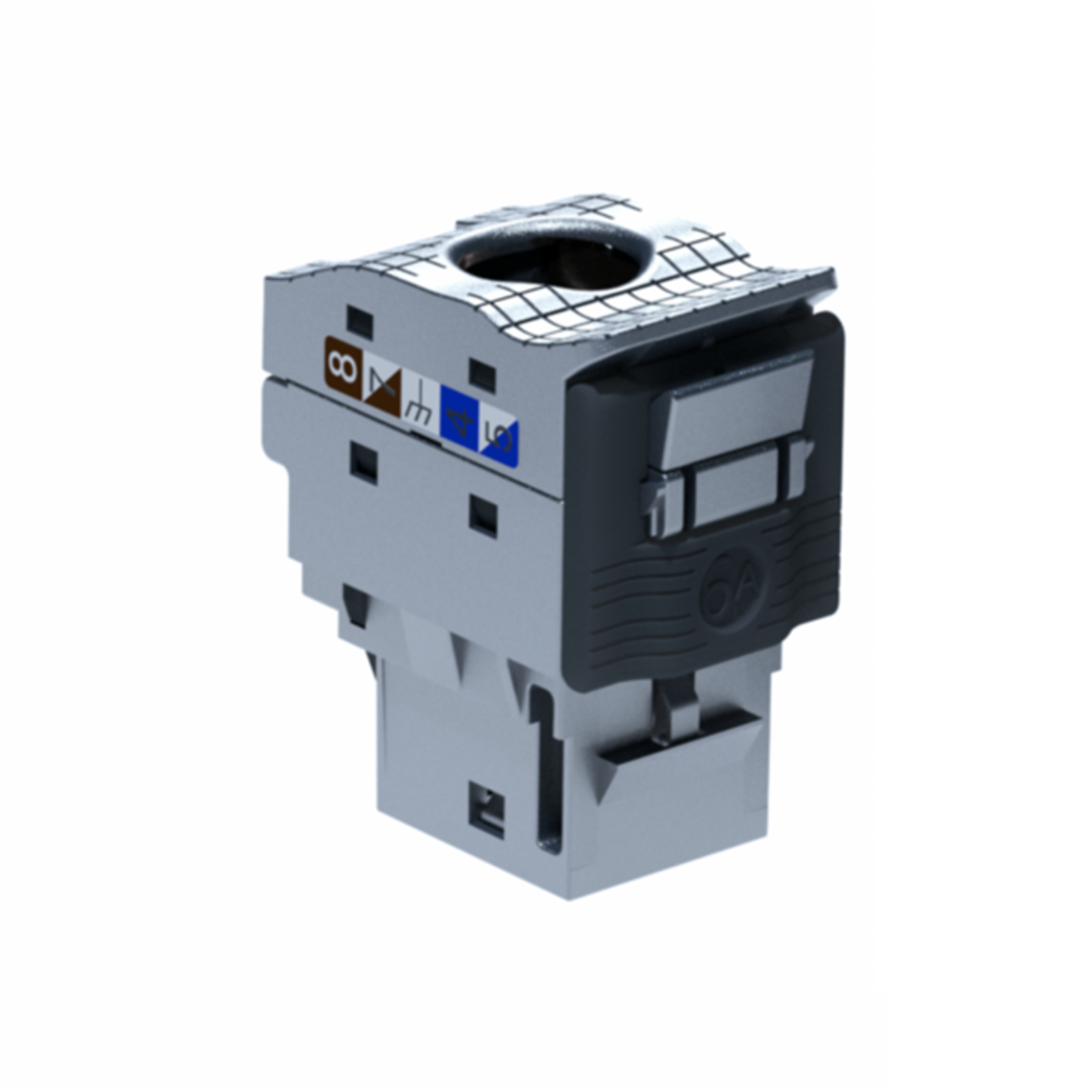

Legrand Cat6A RJ45 Connector - Linkeo C STP
- Brand: Legrand
- MPN: 632905
- Part #: RACLGD1097

Product URL: https://www.pbtech.com/au/product/RACLGD1097/Legrand-Cat6A-RJ45-Connector---Linkeo-C-STP
Features
Linkeo C - Set of 24 RJ45 connectors category 6A STP Keystone
- Category 6A STP : Data rate up to 10 GigaBit/s. This allows you to download a 1 GigaByte file in 1 second. Shielded connector.
- Ergonomic design enables quick toolless connection. A greater comfort for reduced effort.
- Anthracite grey locking tab
- Set of 24 connectors delivered in 100% recycled cardboard packaging, without plastic film and ready to use
Recommendation / Restriction
Conforms to standards ISO/IEC 11801 series ANSI/TIA 568 series EN 50173 series
The product's benefits
Installation
LINKEO C keystone connector is designed to make every step of the installation and maintenance process quick and easy. Each connector can be terminated under 1 minute 10 seconds. And disconnected and re-terminated, without tools or any damage, in a matter of seconds. Connectors stay ready to use, again and again.
Usage
The design of the connector eliminates any risk of accidental opening. Its mechanical locking clip secures the termination and transmission of data
Avantages
The jack and the lever can be separated to ease the process of re-termination.
Specifications
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
Yes
Category
6A (IEC)
Connection type
Insulation displacement connector
Special tool necessary
No
Suitable for round cable
Yes
Suitable for flat cable
No
Suitable for litz wire conductor
Yes
Suitable for solid conductors
Yes
Colour
Silver
Transparent
No
AWG-range
23-26
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Width
18 mm
Height
31 mm
Depth
34 mm
Degree of impact strength (IK)
IK04
Degree of protection (IP)
IP20
Operating / setting temperature
-10-60 °C
Storage temperature
-10-70 °C
Terminal marking indication
Yes
Antimicrobial treatment
No
Label space/information surface
No
Mounting method
Other
Maximum Input cable diameter
9 mm
Entry membrane gland type
Not applicable
