Features

IDEAL INDUSTRIES 1000V AC/DC Multimeter

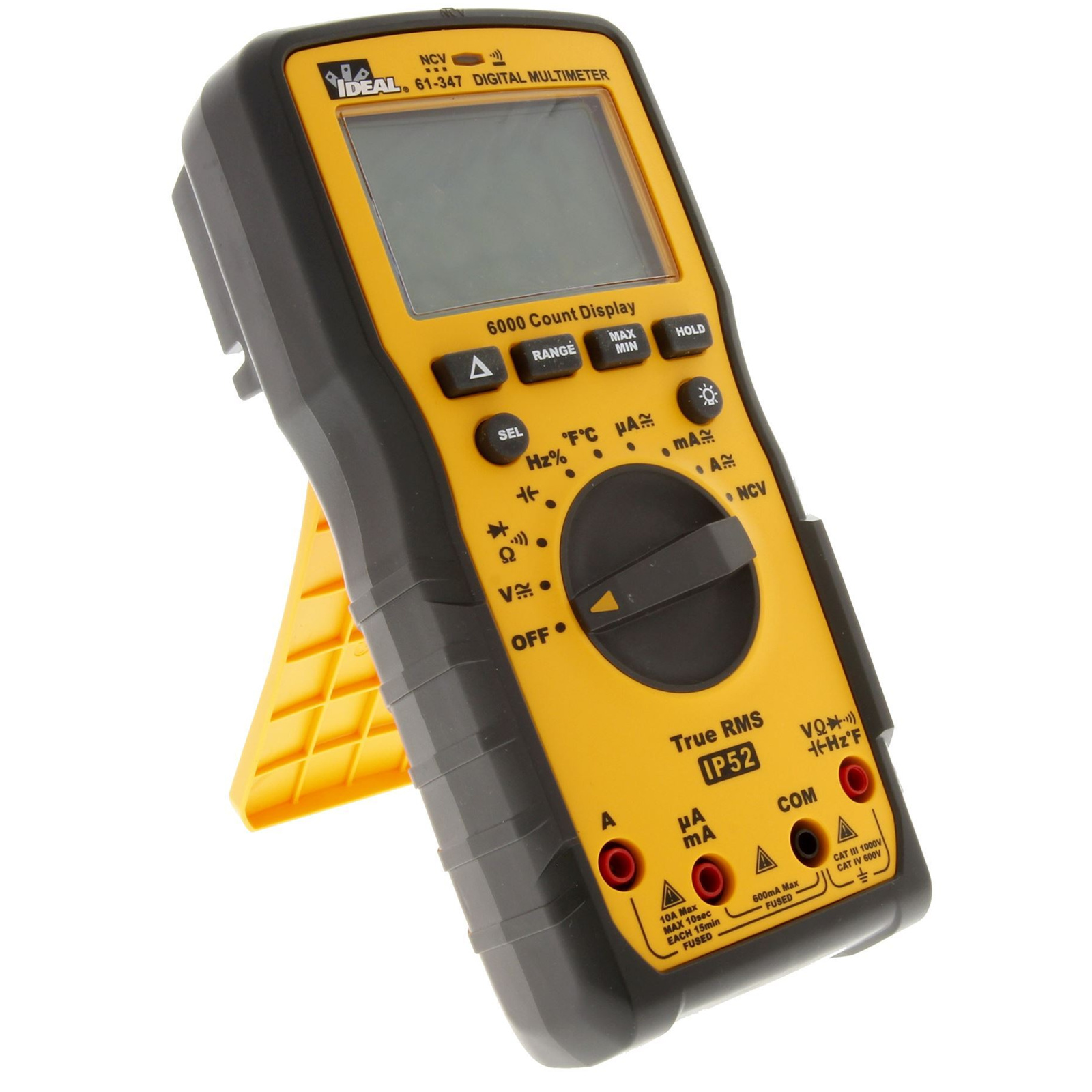

The IDEAL 61-347 Digital Multi Meter is a CAT IV 600 CAT III 1000V rated auto-ranging true root mean square (TRMS) digital multimeter that measures up to 10 Amps AC and DC via the test leads in series with the load. It measures up to 1000V AC and DC, LoZ (low impedance) AC V, frequency, resistance, continuity, capacitance, and diodes via test leads (included) and measures temperature (°F/°C) via a K-Type thermocouple (included). It's capable of detecting the presence of voltage between 40V to 600V via a non-contact sensor in the top center of the meter. Its display can be backlit. The unit uses an illuminated red LED in the centre of the meter and emits audible tones to notify when voltage is above 30 volts, when continuity is detected and when the NCV senses voltage within its set range.

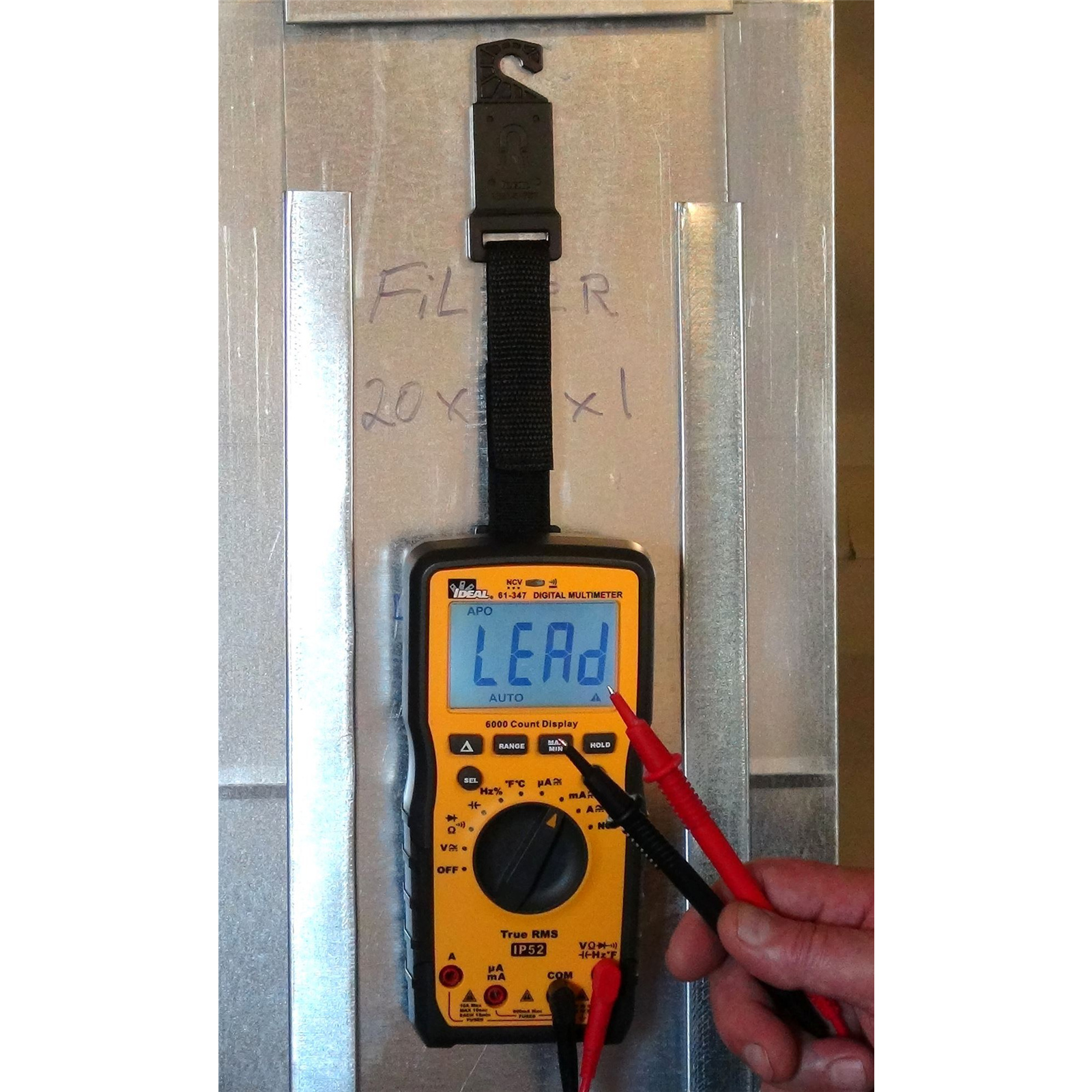

The rubber boot has two probe storage points, has built-in probe tip holders to allow measurements while holding the meter in one hand and the second lead in the other hand. The meter has a hanging strap mount (compatible with all other IDEAL meters with this feature) that allows for a hanging strap (sold separately) to be attached to the meter so it can be hung from a nail, screw or magnetic surface. An industrial grade moulding enhances grip and drop protection. This meter features HOLD, MIN/MAX, Relative, Range, and selectable Auto Power Off functions. The meter comes with 3 1.5V AAA Batteries and an easily open, fully accessible storage pouch with a belt loop that allows for meter, probes and thermocouple storage.

- UL Certified CAT IV 600V CAT III 1000V AC/DC 10A AC/DC TRMS Auto Ranging Digital Multimeter
- Provides True RMS AC voltage and current for accurate measurements of non-linear signals
- Measures AC/DC Current, AC/DC Voltage, frequency, resistance, continuity, capacitance, diodes, temperature and senses AC voltage
- Built-in probe tip holders and hanging strap clip allow safer, easier measurement (Hanging Strap sold separately)
- Large easy to read read-backlit display allows for safer/faster work in poorly lit environments
- Industrial grade boot enhances grip, allows the meter to withstand a 6.6 foot (2 m) drop

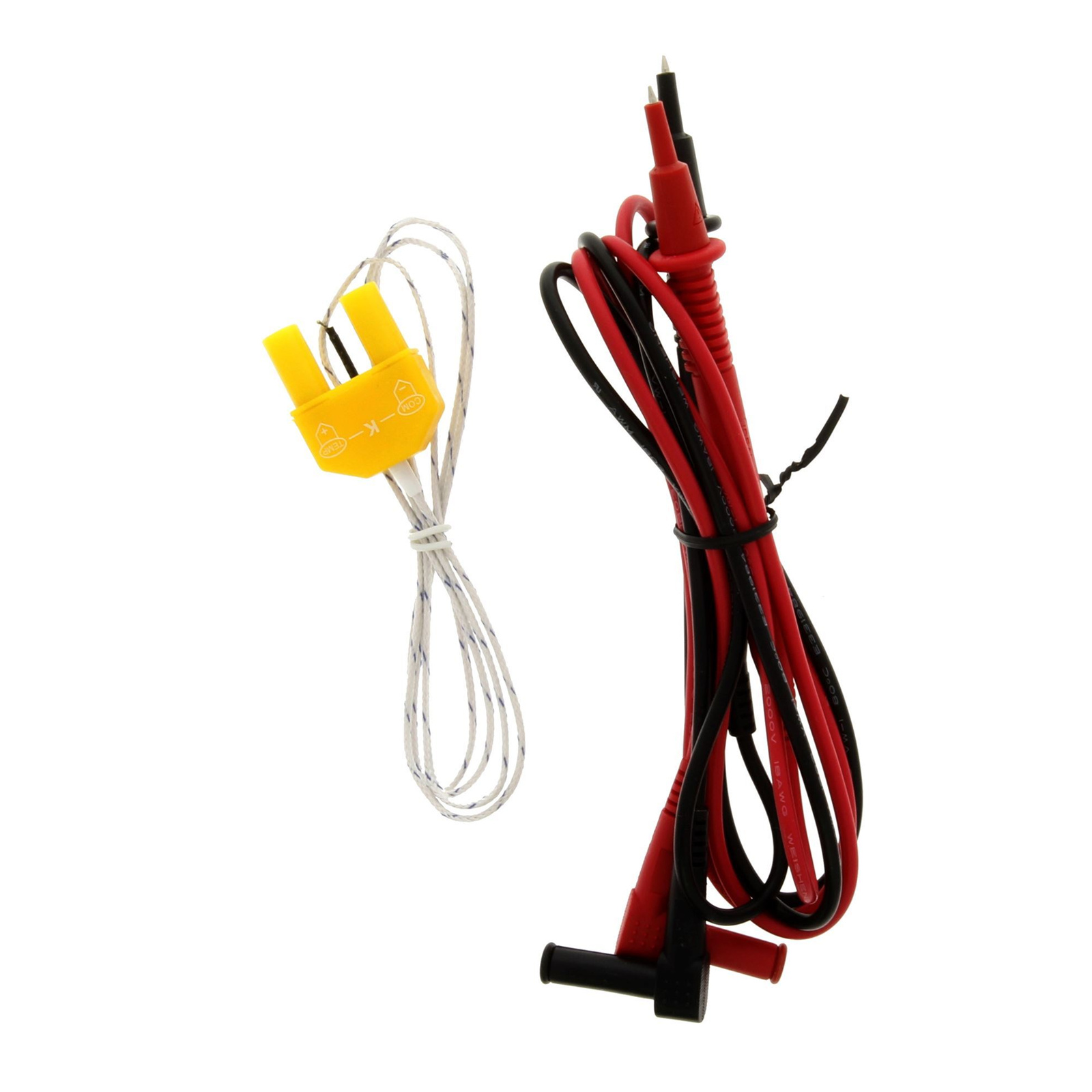

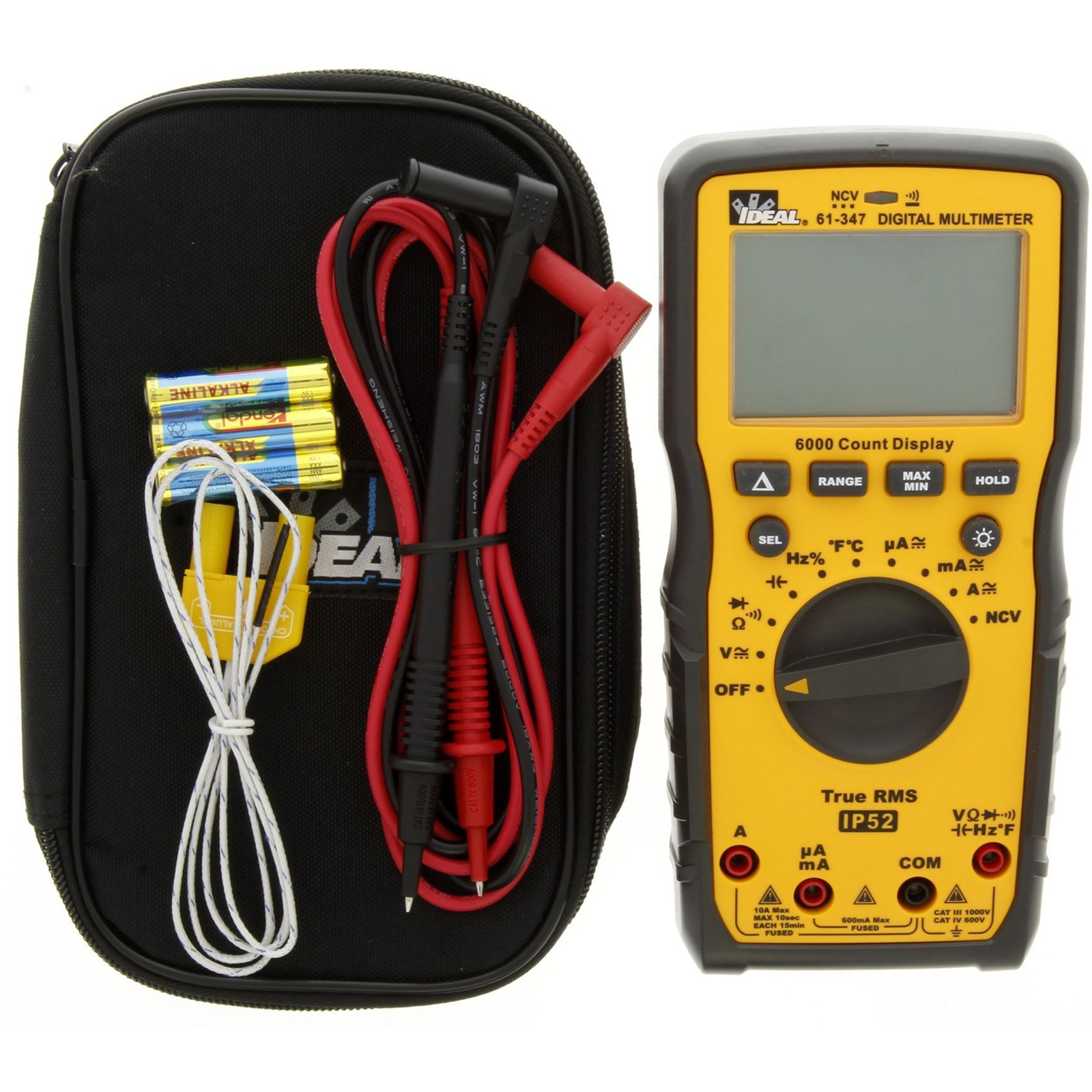

- Includes soft case, test leads, batteries, and K-Type Thermocouple

Specifications

CAT Rating (Safety)

CAT IV 600V
CAT III 1000V

Listing

cULus, CE, RCM

Drop Protection

6.6 ft. (2m)

Ingress Protection

IP52

AC Voltage (Volts)

1000V

DC Voltage (Volts)

1000V

AC Current (Amps)

10A

DC Current (Amps)

10A

Ohms (Resistance)

60MO

AC Millivolts

6000

DC Millivolts

6000

AC Milliamps

6000

DC Milliamps

6000

AC Microamps

6000

DC Microamps

6000

High Voltage Alarm

ACV/DCV | >30V

Temperature

-40 ~ 1832°F -40 ~ 1000°C

True RMS

Yes

Audible Continuity

Yes

Visual Continuity

Yes

Backlight

Yes

Capacitance Test

6000 µF

Frequency / Duty Cycle

10Hz - 9.99 KHz

Battery Type (Included)

3 x 1.5V AAA

LCD Display Count

6000

Manufacturer Part No:

IDL61-347

Brand:

Ideal Industries

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

SCBIDI0529

Product Model:

Warranty: 12 months *
