Ideal Industries IDL85-376 CAT6 UTP RJ45 Push Through Plug. Pack of 50. Compatible with 30-495
Ideal Industries IDL85-376 CAT6 UTP RJ45 Push Through Plug. Pack of 50. Compatible with 30-495
- Brand: Ideal Industries
- MPN: IDL85-376
- Part #: SCBIDI3762
- UPC: 783250853762
View all shipping info
- Brand: Ideal Industries
- MPN: IDL85-376
- Part #: SCBIDI3762
- UPC: 783250853762
Features
IDEAL INDUSTRIES CAT6 UTP RJ45 Push Through Plug. Pack of 50. Compatible with 30-495

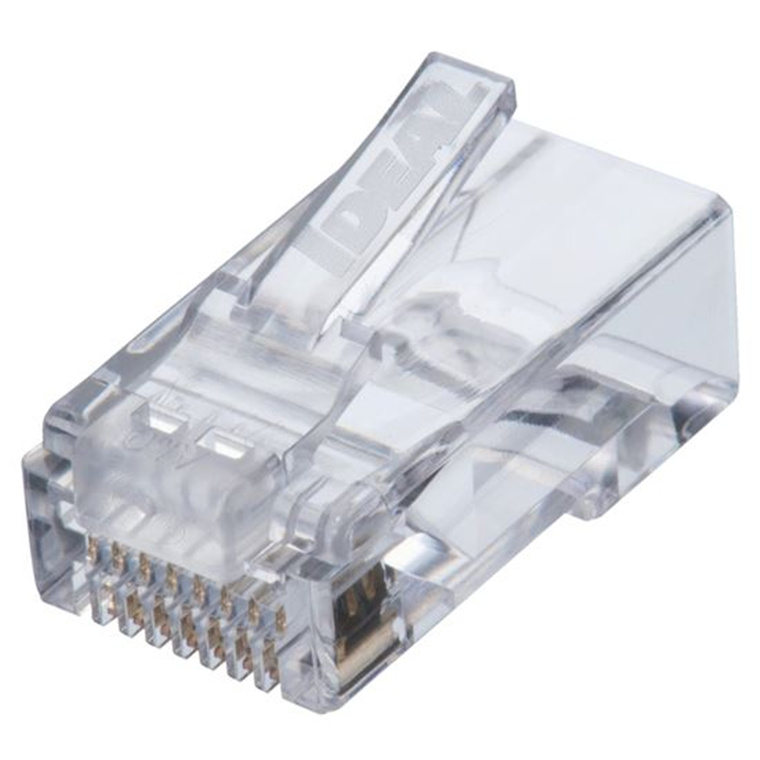

The IDEAL Feed-Thru CAT6 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45™ tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.
- Feed-Thru 8 position, 8 contact RJ-45 modular plug for 23AWG CAT6, 100O balanced twisted pair 250MHz cables. Compatible with most 24AWG CAT5e cables as well.
- 50 micro-inch gold plating on contact mating area for long-term reliability in connectivity, even after hundreds of mating cycles.
- Complies with industry-standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports.
- Designed to work seamlessly with IDEAL FT-45™ Modular Plug Crimp Tool. Also compatible with crimping (no cutting of conductors) in the IDEAL Telemaster™ crimping tools.
- Three-prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041" in diameter.
- Accepts outer jacket cable diameters up to .280"
- Permanent connection - once crimped they cannot be reused
- Primary strain relief support retains the cable jacket and minimizes conductor movement once crimped.
Feed-thru connectors have several additional advantages and improvements to traditional closed-end modular plugs in assembly and termination:

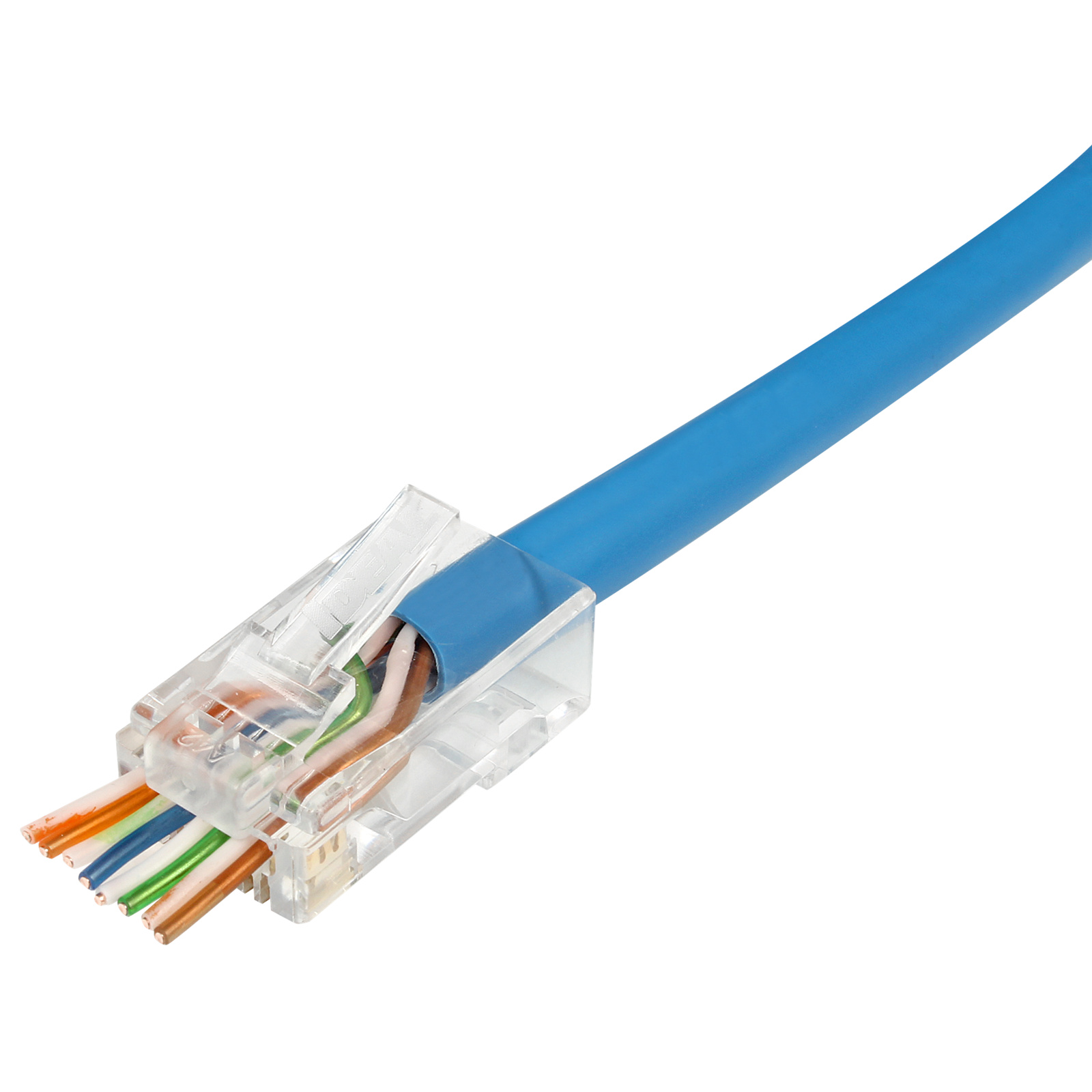

As conductors feed-thru the connector face, all are visibly inserted far enough to be pierced by the pin below - eliminating short wires or opens.
The conductor order can then be verified before the connector is crimped. This eliminates wasted connectors, saves time in assembly, and reduces the chances of finding an error during a wire map test of the cable.
The cable can be pushed or pulled into the connector to ensure that the twisted pairs are within 1/4" of the pin contacts and that the jacket is seated beyond the primary strain relief for a secure connection NEXT performance, minimal untwisted wires.
CAT6 single piece connector, no special assembly or sled & liner required help to simplify the assembly process - no measuring or exact cutting required. Same assembly as CAT5e Feed-Thru, just remove the cable spline if present.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
