PolyPhaser 2GHz - 6GHz High Pass Filter Protector
- Brand: PolyPhaser
- MPN: LP-29
- Part #: SCBPLP721392

Product URL: https://www.pbtech.com/au/product/SCBPLP721392/PolyPhaser-2GHz---6GHz-High-Pass-Filter-Protector
Features

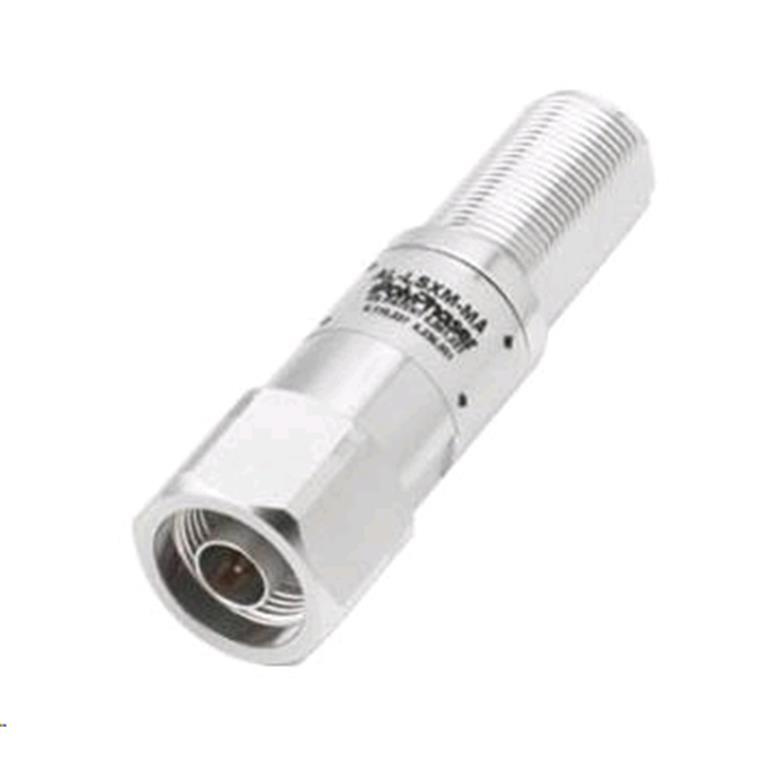

The PolyPhaser AL-LSXM-MA High Pass Filter is a Patented SX radio frequency dc blocked filter protector which is ideal for RF coaxial applications where dc is not required.
- RoHS compliant
- High surge current capability
- Low let-through voltage and throughput energy
- DC shorted filter design, no dc continuity between center pins
- Ideal use for applications where dc is not required on the coaxial cable
- Fully weatherized housing
- Elongated female connector allows for mounting through a 1/4" bulkhead or grounding bar
- Multi-strike capability
Specifications
Connector Type 1
N-Type Male
Connector Type 2
N-Type Female Bulkhead
Frequency Range
2.0 GHz to 6.0GHz
VSWR
= 1.2 to 1 over frequency range
RF Power
10 W
Insertion Loss
= 0.1 dB Typical, (= 0.2 dB Max)
Dimensions
7.11 x 2.57 x 2.57cm
