iBASE SI-22-415 Digital Signage Player AMD Embedded G-Series with 4 Cores 1.5 GHz APU, 4GB DDR3 SO-DIMM, 64GB mSATA, 60W OS not include
Out of stock
iBASE SI-22-415 Digital Signage Player AMD Embedded G-Series with 4 Cores 1.5 GHz APU, 4GB DDR3 SO-DIMM, 64GB mSATA, 60W OS not include
- Brand: iBASE
- MPN: SEVOEM9099
- Part #: SEVOEM9099
- UPC:
View all shipping info
- Brand: iBASE
- MPN: SEVOEM9099
- Part #: SEVOEM9099
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





iBASE SI-22-415 Digital Signage Player AMD Embedded G-Series with 4 Cores 1.5 GHz APU, 4GB DDR3 SO-DIMM, 64GB mSATA, 60W OS not include
- Brand: iBASE
- MPN: SEVOEM9099
- Part #: SEVOEM9099

Product URL: https://www.pbtech.com/au/product/SEVOEM9099/iBASE-SI-22-415-Digital-Signage-Player-AMD-Embedde?srsltid=AfmBOoqEtfieA0BKFjSEOL6bdT5cH20MwDQ2TekPuPQlOer6jEXx5QwW
Features
The SI-22 is an ultra-slim digital signage player based on AMD Embedded G-Series SOC with Radeon™ graphics.With a thickness of 19.5mm, it carries a fanless design to ensure long-term, 24/7 reliability. The SI-22 delivers smooth 1080P, ultra HD resolution over two HDMI display outputs, suitable for a variety of applications including advertising and digital menu boards for shopping malls, retail stores, hotels and restaurants to promote compelling messages about their products and services to target clients.
SI-22-415 Signage Player with G-Series Quad-Core @ 1.5 GHz APU, 4GB DDR3 SO-DIMM, 64GB mSATA, 60W power adaptor
SI-MK1 Mounting bracket for SI-06/08/12/18/22 series

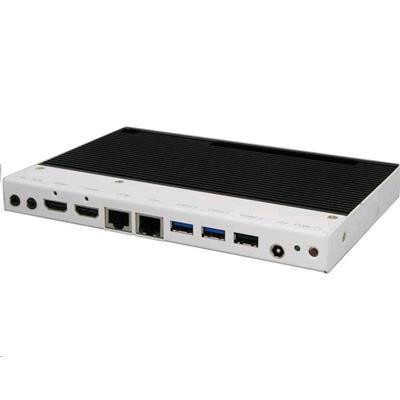

The system comes equipped with essential interface on the rear panel including audio, dual HDMI, RS232, GbE LAN, USB, and DC jack. Optional solutions for 3G, TV tuner, Bluetooth and WiFi connections are available. The DDR3-1600 system memory can be expanded up to 8GB. Measuring 190mm(W) x 130mm(D) x 19.5mm(H), the can easily disappear into tight spaces behind a wall mounted display.
Specifications
System Mainboard
IB922
CPU Type
AMD G-Series; Quad-Core @ 1.5GHz APU
CPU Socket
FT3 BGA package
Chipset
SoC Integrated
Memory
1x DDR3 1600 MHz SO-DIMM, Max. 8GB (Non-ECC)
Graphics
AMD Radeon™ HD8330E graphics processing system integrated in APU
DirectX 11.1
Direct Compute 11
Open GL 4.0
OpenCL 1.1
UVD4.2 Hardware Video Decoder
H.264, MPEG-2, VC-1, MPEG4 (DivX), and WMV
VCE 2.0
Video conferencing, wireless display. H.264, SVC
LAN
1x GbE (Realtek RTL 8111DP)
Expansion Slots
1x mPCIe(x1) for WiFi + Bluetooth, 3G, and TV tuner options
1x UIM/SIM card slot (for 3G/LTE adapter in mPCIe slot)
I/O Interface
2x HDMI 1.4a
2x USB 3.0 ports, 1x USB 2.0 port
1x RJ45 for LAN, 1x RJ45 for RS232
2x Microjack audio connectors for Line-in / Line-out
Power LED, 1x power on/off button
1x DC jack
Auto Control and Monitoring Watchdog Timer
256 segments, 0, 1, 2...255 (sec/min)
Power Requirement
+12V DC-in
Construction
Aluminum + SGCC
Weight
0.9Kg (1.98lbs)
Chassis
Color Black & White
Storage
1x mSATA
Power Supply
60W power adaptor
Mounting
Standard system bracket
Dimensions
190mm(W) x 130mm(D) x 19.5mm(H)
7.48"(W) x 5.12"(D) x 0.77"(H)
Operating Temperature
0°C~ 45°C (32°F~113°F)
Storage Temperature
-20°C ~ 80°C (-4°F~176°F)
Relative Humidity
5~90% @ 45°C, (non-condensing)
Vibration mSATA
5 grms / 5~500Hz / random operation
Certification
CE, FCC class B, VCCI class B, UL and CCC
