StarTech.com 9M351M-RS232-CABLE Serial Cable - 1m (3ft)
DB9 to 3.5mm - RS232
StarTech.com 9M351M-RS232-CABLE Serial Cable - 1m (3ft)
DB9 to 3.5mm - RS232
- Brand: StarTech.com
- MPN: 9M351M-RS232-CABLE
- Part #: STT5678876
- UPC:
View all shipping info
- Brand: StarTech.com
- MPN: 9M351M-RS232-CABLE
- Part #: STT5678876
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Audio Cables





StarTech.com 9M351M-RS232-CABLE Serial Cable - 1m (3ft) DB9 to 3.5mm - RS232
- Brand: StarTech.com
- MPN: 9M351M-RS232-CABLE
- Part #: STT5678876

Product URL: https://www.pbtech.com/au/product/STT5678876/StarTechcom-9M351M-RS232-CABLE-Serial-Cable---1m-3
Features
3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack
Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control
- DB9 TO 3.5 MM SERIAL CABLE: 3ft (1m) RS232 serial control cable enables configuration or calibration of a 3.5mm RS-232 serial devices - Use with TVs, projectors, digital signage displays requiring 3-conductor RS-232 serial control through 3.5mm audio jack
- QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors prevent EMI interference - Molded PVC connectors with strain reliefs and PVC jacket prevent damage due to bends or rough usage
- COMPATIBILITY: The DB9 to 3.5mm cable works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C) for computers that do not have a built-in serial port | Note: DB9 gender changer may be required such as our GC9SF (not included)
- SPECIFICATIONS: Length: 3.3ft (1m) - DB9 Male to 3.5 mm Male Serial Cable - Color: Black - 28 AWG - OD: 3.5mm - Jacket: PVC - DB9 Pin 3 to 3.5mm Tip - DB9 Pin 2 to 3.5mm Ring - DB9 Pin 5 to 3.5mm Sleeve
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this product is backed for life, including free lifetime 24/5 multi-lingual technical assistance

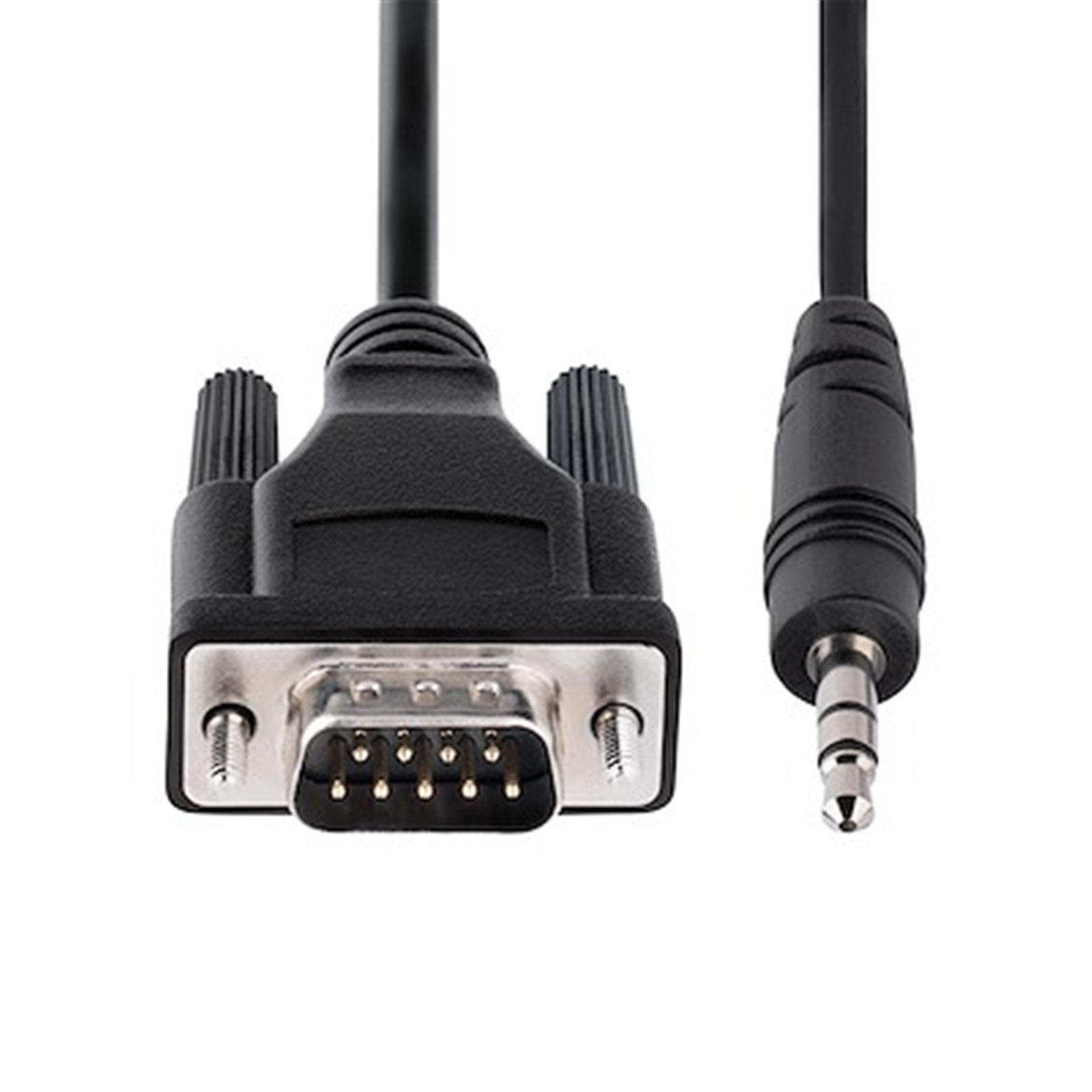

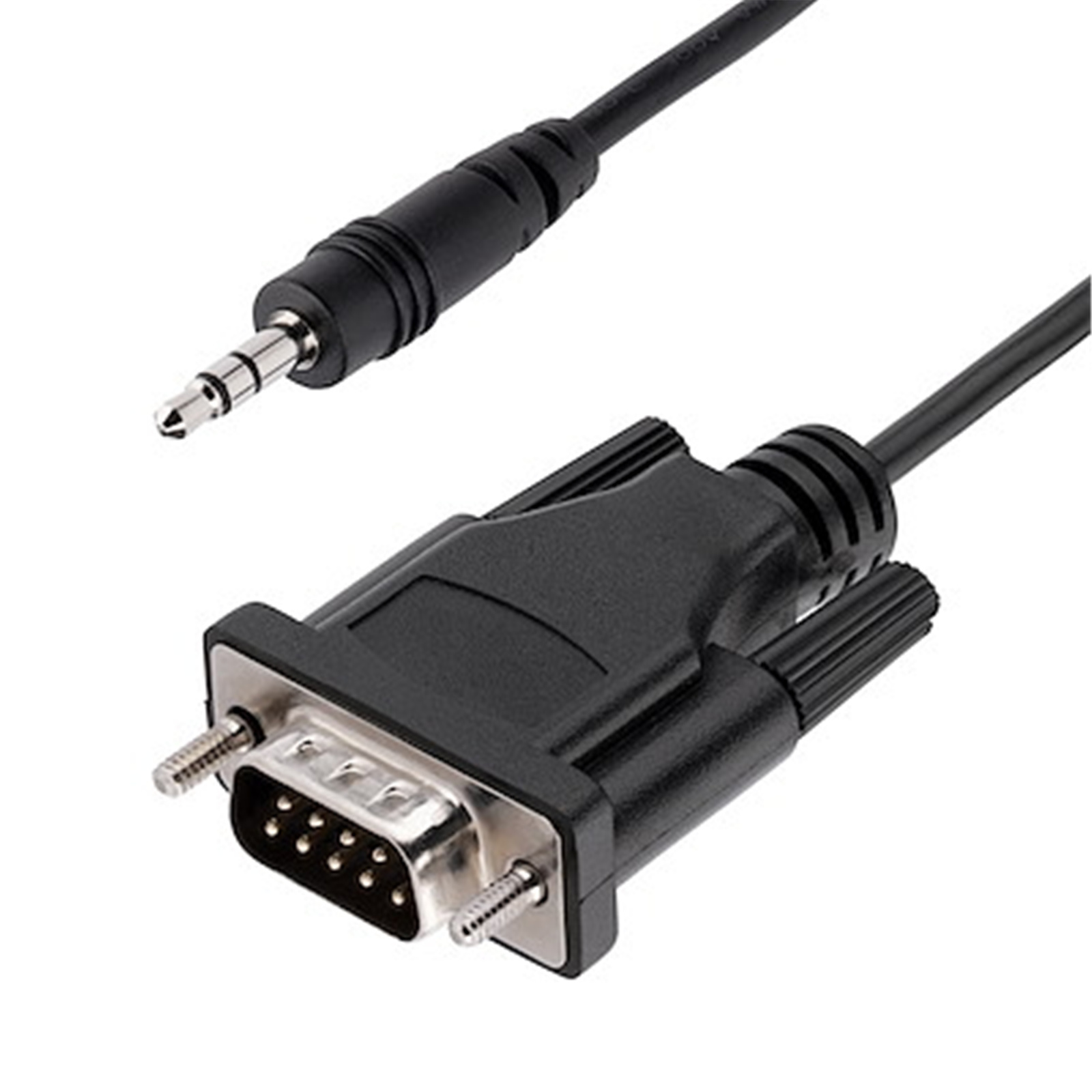

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
Specifications
Connector(s)
Connector A
1 - DB-9 (9 pin, D-Sub)
Connector B
1 - 3.5mm Stereo Male 4 pos
Environmental
Operating Temperature
-20 to 60°C (-4 to 140°F)
Storage Temperature
-20 to 60°C (-4 to 140°F)
Humidity
30 ~ 75%
Hardware
Number of Conductors
3
Connector Plating
Nickel
Cable Jacket Material
PVC
Packaging Information
Package Length
8.7 in [22.0 cm]
Package Width
5.0 in [12.8 cm]
Package Height
0.4 in [1.0 cm]
Shipping (Package) Weight
0.8 oz [23.0 g]
Package Quantity
1
Performance
Supported Protocols
RS232 Serial
Physical Characteristics
Colour
Black
Product Length
3.4 ft [1.0 m]
Product Width
1.3 in [3.3 cm]
Product Height
0.6 in [1.5 cm]
Weight of Product
1.4 oz [41.0 g]
Connector Style
Straight
Wire Gauge
28 AWG
Cable Length
3.3 ft [1 m]
What's in the Box
Included in Package
1 - DB9 to 3.5mm RS232 Serial Cable
