APC - SCHNEIDER SBP3000RMI SERVICE BYPASS PDU 230V 16AMP
- Brand: APC
- MPN: SBP3000RMI
- Part #: SURAPC1234220
- UPC:731304266747

Product URL: https://www.pbtech.com/au/product/SURAPC1234220/APC---SCHNEIDER-SBP3000RMI-SERVICE-BYPASS-PDU-230V
Features
SBP3000RMIFeatures

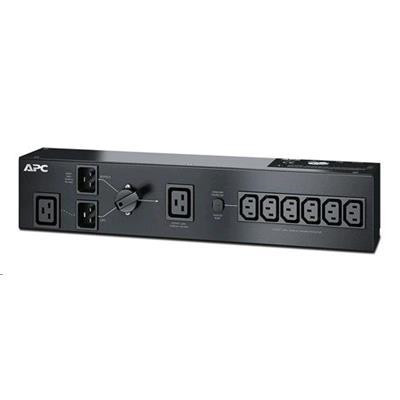

APC SERVICE BYPASS PDU, 230V 16AMP W/ (6) IEC C13 AND (1) C19
Extremely reliable service bypass panels designed for APC InfraStruXure® Type A, Smart-UPS, and Symmetra UPS products.
Includes : Rack Mounting Brackets , User Manual
Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Specifications
Output
Nominal Output Voltage
230V
Always on Outlets
7
Overload Protection
Yes
Cord Length
1meters
Maximum Total Current Draw
16
Output Connections
(1) IEC Jumpers (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz
Input Connections
IEC-320 C20
Cord Length
2.5meters
Acceptable Input Voltage
220-240VAC
Number of Power Cords
1
Load Power Factor Range
0 to 1
Load Capacity
3000VA
Maximum Input Current
16A
Maximum Line Current
16A
Physical
Maximum Height
89mm , 8.9cm
Maximum Width
432mm , 43.2cm
Maximum Depth
76mm , 7.6cm
Rack Height
2U
Net Weight
2.09kg
Colour
Black
Environmental
Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-4500meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Conformance
Approvals
VDE
Standard warranty
2 years repair or replace
