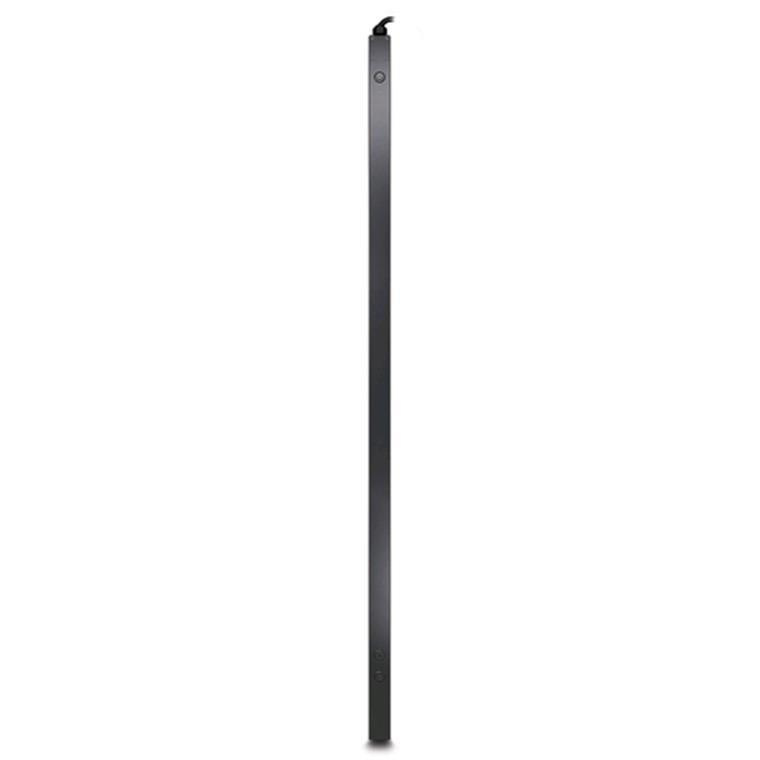

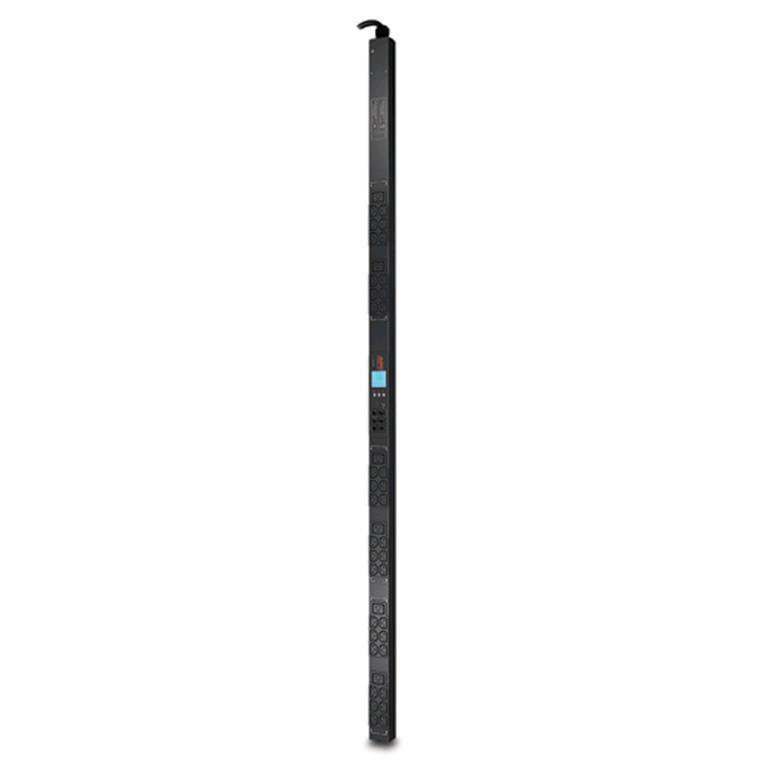

APC - SCHNEIDER AP8881 Rack PDU 2G Metered ZeroU 11kW 230V
APC - SCHNEIDER AP8881 Rack PDU 2G Metered ZeroU 11kW 230V
- Brand: APC
- MPN: AP8881
- Part #: SURAPC1531120
- UPC:
View all shipping info
- Brand: APC
- MPN: AP8881
- Part #: SURAPC1531120
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular PDUs





APC - SCHNEIDER AP8881 Rack PDU 2G Metered ZeroU 11kW 230V
- Brand: APC
- MPN: AP8881
- Part #: SURAPC1531120

Product URL: https://www.pbtech.com/au/product/SURAPC1531120/APC---SCHNEIDER-AP8881-Rack-PDU-2G-Metered-ZeroU-1
Features
AP8881Features
Rack PDU 2G, Metered, ZeroU, 11kW, 230V, (36) C13 & (6) C19
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Local and web-based monitoring
Status available to customers both in the data center and remotely
Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.
Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
Specifications
Output
Nominal Output Voltage
230V
Overload Protection
No
Maximum Total Current Draw
16
Output Connections
(6) IEC 320 C19 (Battery Backup)
(36) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage
400V 3PH
Input frequency
50/60 Hz

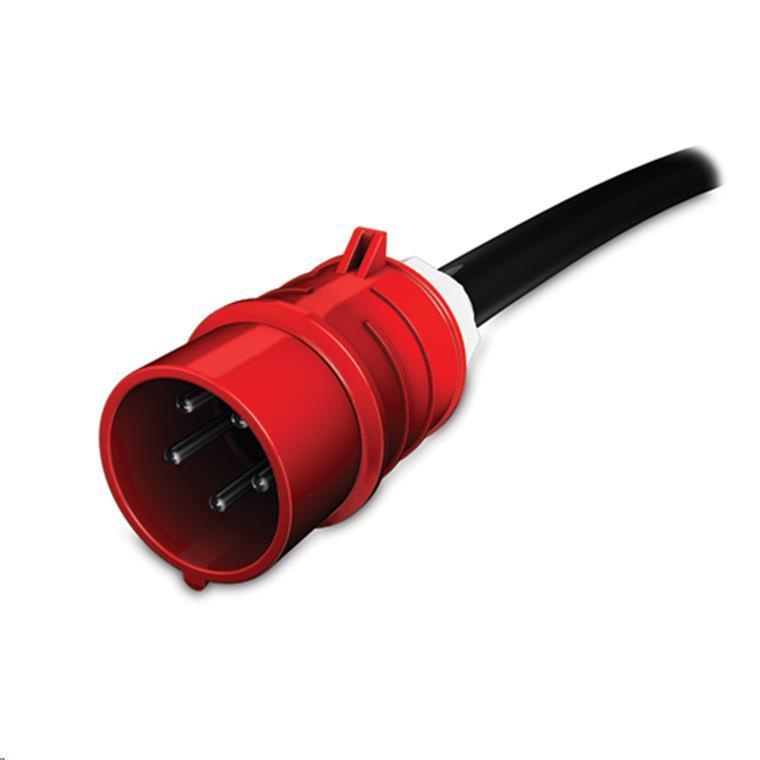

Input Connections
IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Cord Length
1.83meters
Number of Power Cords
1
Maximum Input Current
16A
Maximum Line Current
16A
Physical
Maximum Height
1791mm , 179.1cm
Maximum Width
56mm , 5.6cm
Maximum Depth
44mm , 4.4cm
Net Weight
6.38kg
Colour
Black
Environmental
Operating Environment
-5 - 45 °C
Operating Relative Humidity
5 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-25 - 65 °C
Storage Relative Humidity
5 - 95 %
Storage Elevation
0-15000meters
Conformance
Approvals
CSA C22.2 No. 60950, IEC 60950, UL 60950-1, VDE
Standard warranty
2 years repair or replace
