Supermicro 5019D-4C-FN8TP Embedded Barebone, 1U Short Depth, Xeon D-2123IT 4Core/8Thread 2.2GHz, 4 DIMM, 1x 3.5" or 4x 2.5" Internal Bay, 2x 10G SFP+, 2x 10G RJ-45, 4x 1G RJ-45, 1x PCI-e 3.0 x8, 1x 200W Low-noise Power Supply
Out of stock
Supermicro 5019D-4C-FN8TP Embedded Barebone, 1U Short Depth, Xeon D-2123IT 4Core/8Thread 2.2GHz, 4 DIMM, 1x 3.5" or 4x 2.5" Internal Bay, 2x 10G SFP+, 2x 10G RJ-45, 4x 1G RJ-45, 1x PCI-e 3.0 x8, 1x 200W Low-noise Power Supply
- Brand: Supermicro
- MPN: SYS-5019D-4C-FN8TP
- Part #: SVRSPM41127
- UPC: 672042372768
View all shipping info
- Brand: Supermicro
- MPN: SYS-5019D-4C-FN8TP
- Part #: SVRSPM41127
- UPC: 672042372768
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Servers
Supermicro 521R-T Mini Server - 1x Xeon E-2434 4C/8T 3.4GHz, 16GB...
Supermicro 5019D-4C-FN8TP Embedded Barebone, 1U Short Depth, Xeon D-2123IT 4Core/8Thread 2.2GHz, 4 DIMM, 1x 3.5" or 4x 2.5" Internal Bay, 2x 10G SFP+, 2x 10G RJ-45, 4x 1G RJ-45, 1x PCI-e 3.0 x8, 1x 200W Low-noise Power Supply
- Brand: Supermicro
- MPN: SYS-5019D-4C-FN8TP
- Part #: SVRSPM41127
- UPC:672042372768
Product URL: https://www.pbtech.com/au/product/SVRSPM41127/Supermicro-5019D-4C-FN8TP-Embedded-Barebone-1U-Sho
Features
Supermicro 5019D-4C-FN8TP
Network Security Appliance
SD-WAN, vCPE controller box
NFV Edge Computing Server
Virtualization Server
IoT Edge Computing
- Intel® Xeon® processor D-2123IT, 4-Core, 8 Threads, 60W
- 1 Internal 3.5" or 4 Internal 2.5" drive bays
- 1 M.2 slot M key for SSD, 2242/80, 1 M.2 B Key for SSD/ WAN card, 1 Mini PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
- Up to 512GB ECC LRDIMM, up to 256GB ECC DIMM DDR4-2666Mz; in 4 DIMM slots
- 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+ and 1 dedicated LAN for IPMI 2.0
- 1 VGA, 2 USB 3.0
- 3x 40x28mm 4-PIN PWM fans
- 200W Low-noise AC-DC power supply
Specifications
Product SKUs
SuperServer 5019D-4C-FN8TP (Black)
Motherboard
Super X11SDV-4C-TP8F
Processor/Cache
CPU
Intel® Xeon® processor D-2123IT, CPU TDP support 60W
Cores / Cache
4 Cores, 8 Threads
System Memory
Memory Capacity
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC DIMM
4 DIMM slots
Memory Type
2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC DIMM
DIMM Sizes
128GB, 64GB, 32GB, 16GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors
(using ECC memory)
On-Board Devices
SATA
SATA3 (6Gbps) ports via SoC controller
Network Controllers
Dual 10G SFP+ via SoC
Quad 1GbE with Intel I350-AM4
Dual 10GBase-T with Intel X557
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
Aspeed AST2500 BMC
Input / Output
SATA
4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD)
LAN
2 10G SFP+ ports
4 RJ45 1GbE LAN ports
2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
VGA
1 VGA port
Others
TPM 2.0 header
Chassis
Form Factor
1U Rackmount
Model
CSE-505-203B
Dimensions and Weight
Height
1.7" (43mm) / 6.1" (155mm) - pkg.
Width
17.2" (437mm) / 25.8" (655mm) - pkg.
Depth
9.8" (249mm) / 18.3" (465mm) - pkg.
Weight
Net Weight: 8 lbs (3.63 kg)
Gross Weight: 12 lbs (5.44 kg)
Available Colors
Black

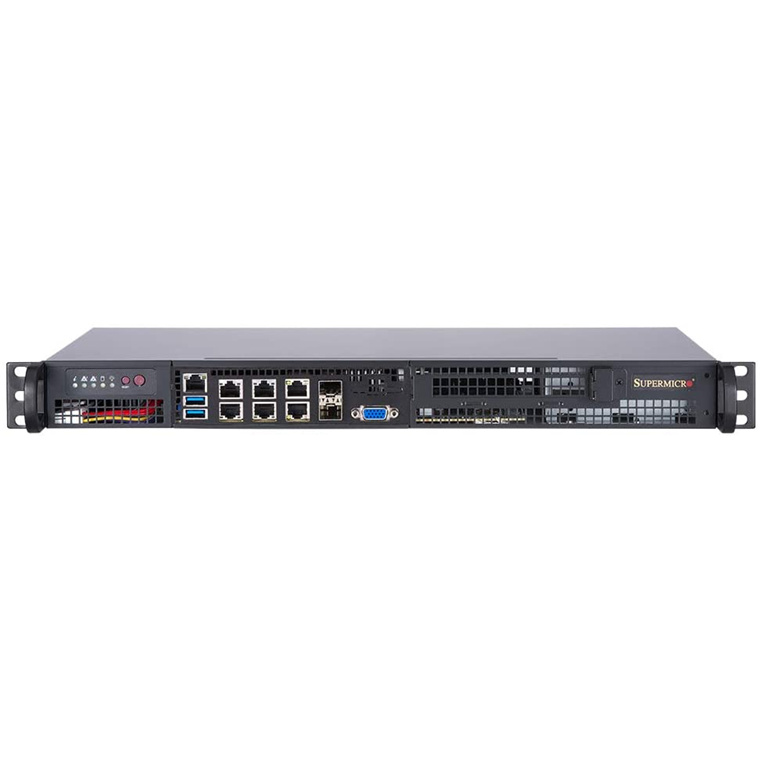

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status)
Expansion Slots
PCI-E
1 PCI-E 3.0 x8 slot
1 Mini-PCI-E with mSATA Support
M.2
1 M.2 slot M key for SSD, 2242/80
1 M.2 B Key for SSD/ WAN card
Drive Bays
Internal
1 Internal 3.5" or 4 Internal 2.5" drive bays
System Cooling

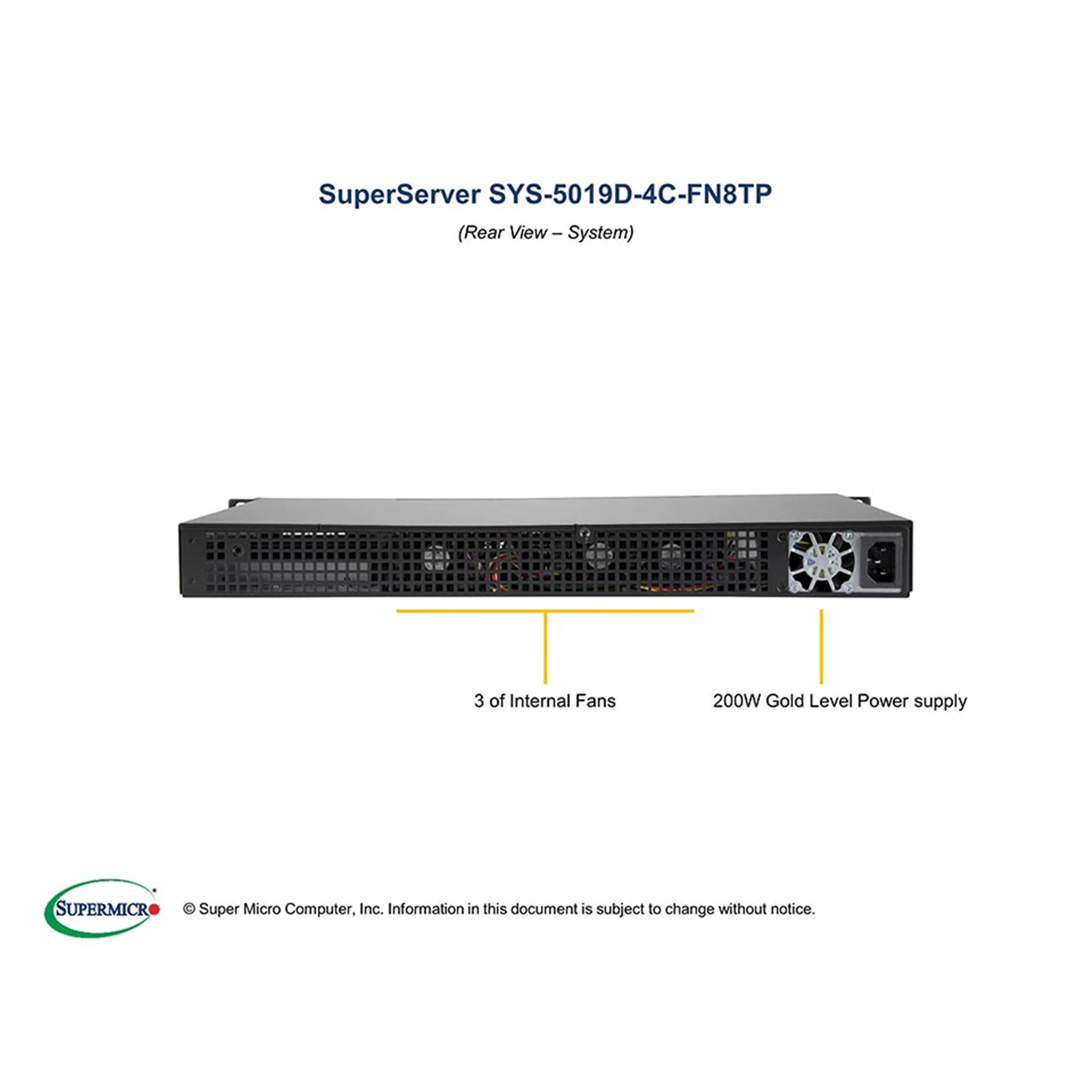

Fans
3x 40x28mm 4-PIN PWM fans
Power Supply
Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
8.0 Amp (max.)
+5V standby
2.0 Amp (max.)
+12V
16 Amp (max.)
-12V
0.5 Amp (max.)
+3.3V
8.0 Amp (max.)
Certification
Gold Certified
System BIOS
BIOS Type
128Mb SPI Flash with AMI BIOS
BIOS Features
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
