Supermicro 610P-ACR12N4L Barebone, 1U, 2x LGA4189, 16 DIMM, Broadcom 3224 SAS HBA, 12x 3.5" Top-Load Hot-Swap, 4x EDSFF Short Bay, 2x 2.5" SATA/NVMe 7mm, 2x 25G SFP28, AIOM, 2x 800W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-610P-ACR12N4L
- Part #: SVRSPM710106
Product URL: https://www.pbtech.com/au/product/SVRSPM710106/Supermicro-610P-ACR12N4L-Barebone-1U-2x-LGA4189-16
Features
Key Features
- Up to 4TB ECC DDR4-3200: LRDIMM/RDIMM2x 25G SFP+ Ports Onboard

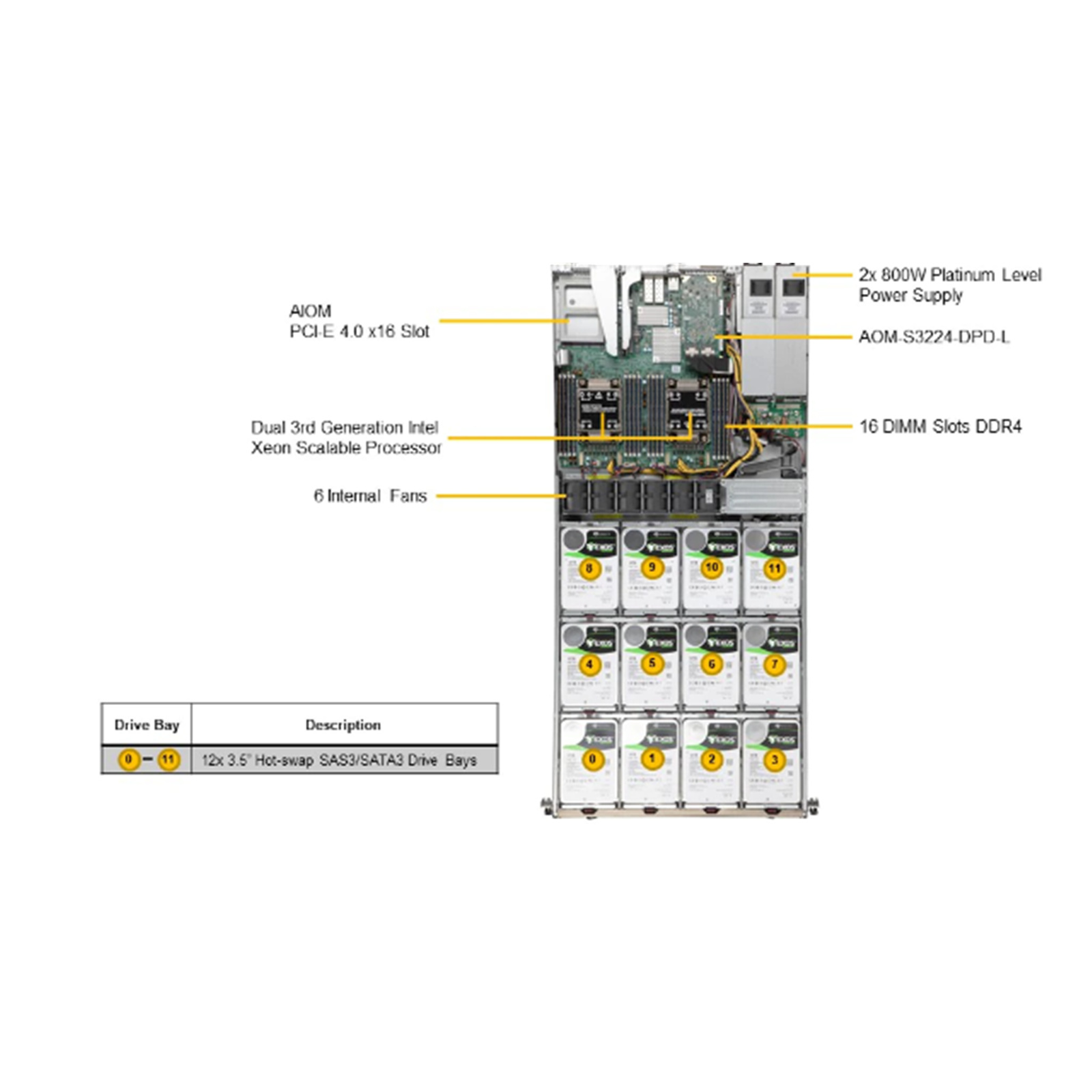

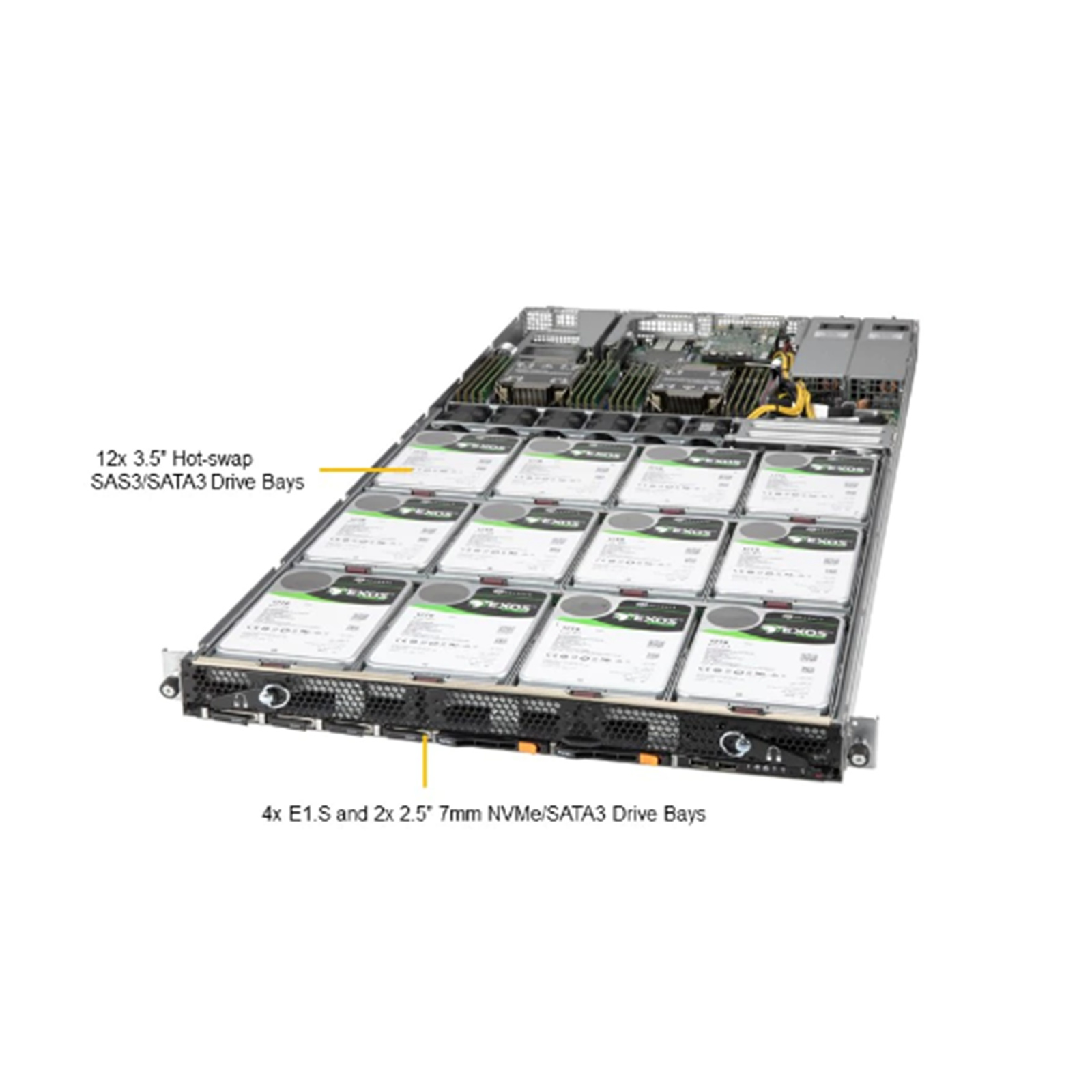

- 12x 3.5" hot-swap SAS/SATA, 4x hot-swap EDSFF Short Bays, 2x 2.5" 7mm NVMe/Hot-Swap SATA drive bays
- 4x E1.S (EDSFF Short) NVMe drives
- Host Bus Adapter via Broadcom® 3224
- PCI-E 4.0 x16 AIOM Support + 3 PCI-E 4.0 LP Slots
Specifications
Motherboard
Super X12DPD-A6M25
Processor
CPU
Dual Socket P+ (LG-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 120-205W
System Memory
Memory Capacity
16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type
3200MHz ECC DDR4 RDIMM;LRDIMM
Memory Voltage
1.2 V
Error Detection
ECC
On-Board Devices
Chipset
Intel® C621A
Network Connectivity
2x 25GbE SFP28 with Mellanox
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

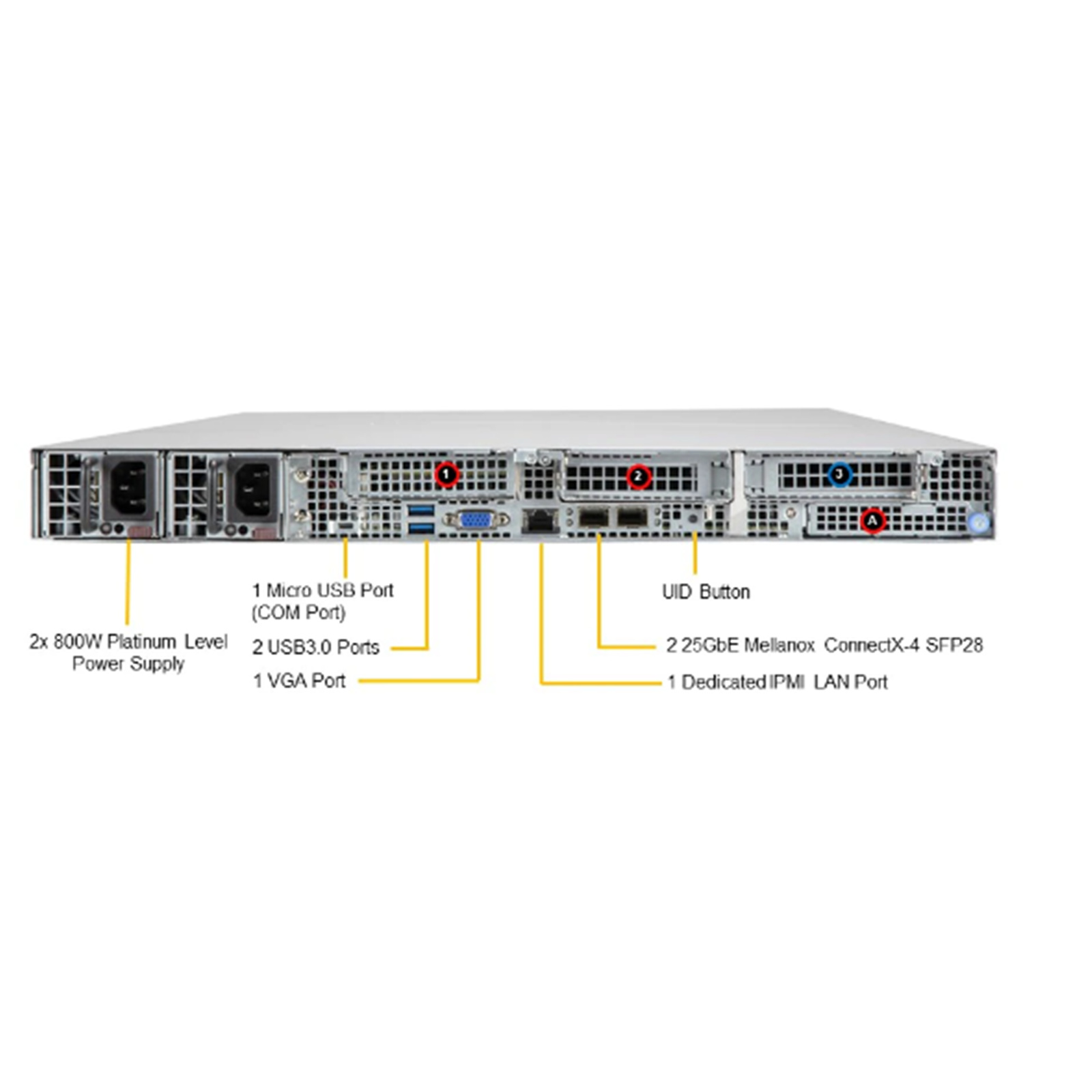

Input / Output
Ports
LAN 1 RJ45 Dedicated IPMI LAN port
1x 25G SFP+ LAN ports
USB
2 USB 2.0 port(s) (2 Front_USB)
2 USB 3.0 port(s) (2 Rear_USB)
Video
1 VGA port(s)
Serial Port
1 Serial
System BIOS
BIOS Type
AMI 128MB SPI Flash EEPROM
Management
Software
IPMI 2.0
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
CPU
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
1U Rackmount
Model
CSV-802ETS-R804AMP
Dimensions and Weight
Height
1.7"
Width
17.6"
Depth
37"
Package
12" (H) x 27" (W) x 53.15" (D)
Weight
Net Weight: 34 lbs (15.4 kg)
Gross Weight: 61 lbs (27.7 kg)

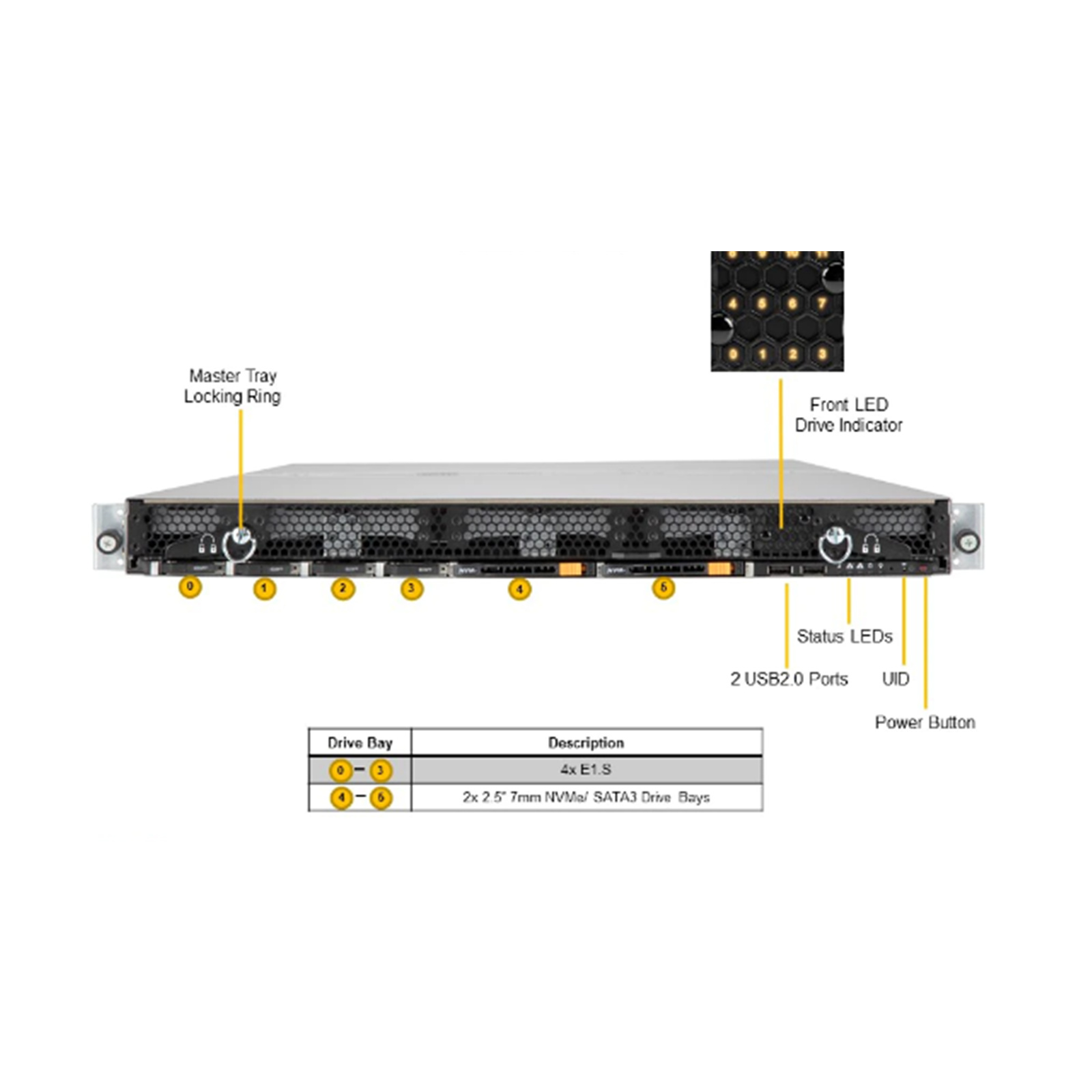

Front Panel
Buttons
Power On/Off
LEDs
HDD activity
Network activity
Power status
System information (overheat/UID)
Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x16 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x8 LP
Slot 4: PCI-E 4.0 x16 AIOM
Drive Bays / Storage
Hot-swap
12x 3.5" hot-swap SATA3/SAS3 drive bays
4x E1.S and 2x 2.5" 7mm
M.2
2 M.2 NVMe OR 2 M.2 SATA3
M-Key, 2280
System Cooling
Fans
6 Heavy Duty 4cm Fan(s)
Power Supply
Type
800W Redundant Power Supplies with PMBus
Dimension(W x H x L)
54.5 x 40 x 220 mm
AC Input
100-127Vac / 50-60Hz
200-240Vac / 50-60Hz
DC Input
230-240Vdc
+12V
Max: 62.5A / Min: 0A (100Vac-127Vac)
Max: 66.6A / Min: 0A (200Vac-240Vac)
Max: 66.6A / Min: 0A (230Vdc-240Vdc)
5V SB
Max: 4A / Min: 0A
Output Type
Gold Finger Connector
Certification Platinum Level
Certified94%+ Platinum Level
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
5% to 95% (Non-Condensing)
