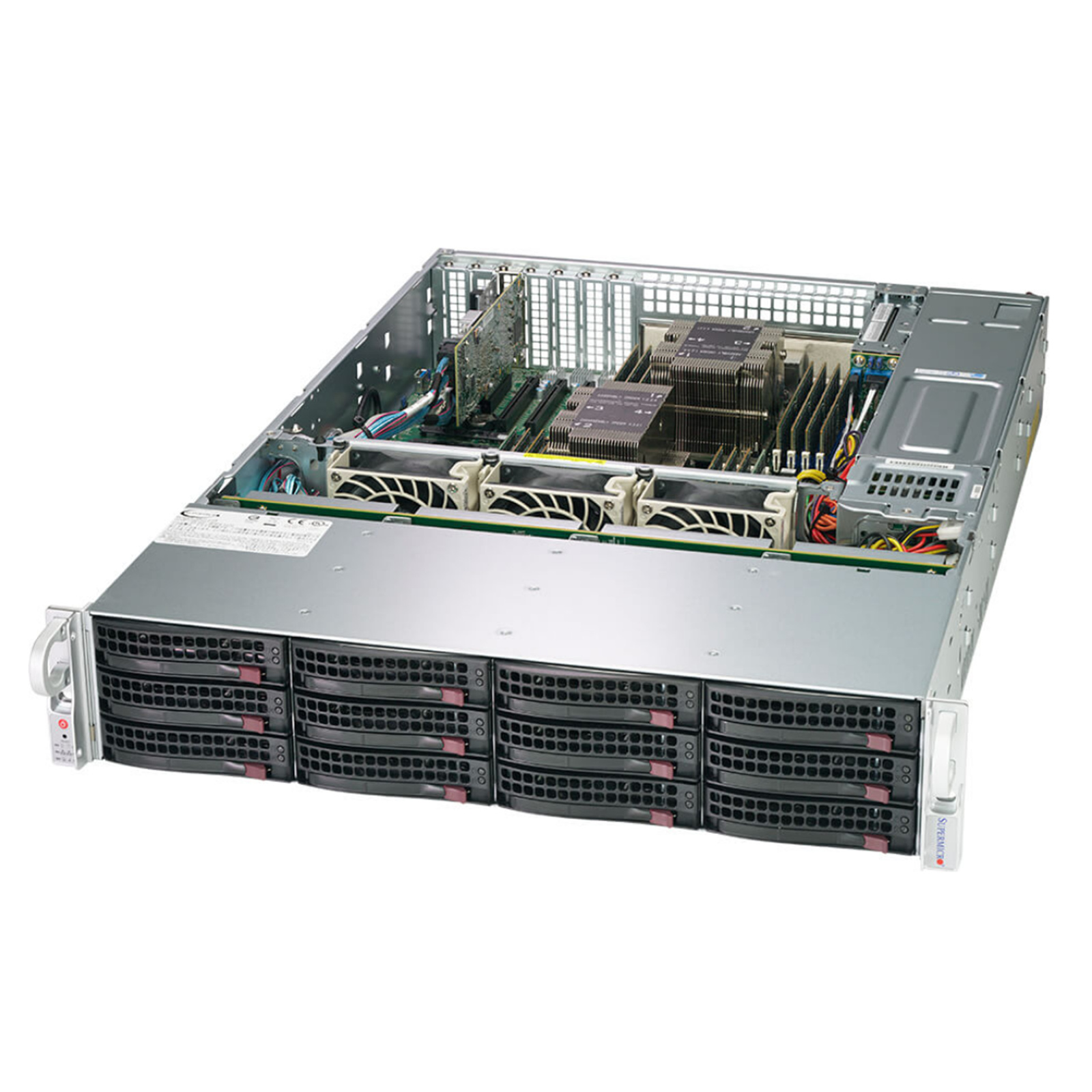

Supermicro 620P-ACR12L Barebone, 2U, 2x LGA4189, 16 DIMM, 12x 3.5" Hot-Swap / 4x Hybrid NVMe, Broadcom 3816 SAS HBA, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1200W Redundant Power Supplies
Out of stock
Supermicro 620P-ACR12L Barebone, 2U, 2x LGA4189, 16 DIMM, 12x 3.5" Hot-Swap / 4x Hybrid NVMe, Broadcom 3816 SAS HBA, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1200W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-620P-ACR12L
- Part #: SVRSPM720105
- UPC:
View all shipping info
- Brand: Supermicro
- MPN: SSG-620P-ACR12L
- Part #: SVRSPM720105
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Servers
Supermicro 521R-T Mini Server - 1x Xeon E-2434 4C/8T 3.4GHz, 16GB...
Supermicro 620P-ACR12L Barebone, 2U, 2x LGA4189, 16 DIMM, 12x 3.5" Hot-Swap / 4x Hybrid NVMe, Broadcom 3816 SAS HBA, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1200W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-620P-ACR12L
- Part #: SVRSPM720105
Product URL: https://www.pbtech.com/au/product/SVRSPM720105/Supermicro-620P-ACR12L-Barebone-2U-2x-LGA4189-16-D
Features
Key Features

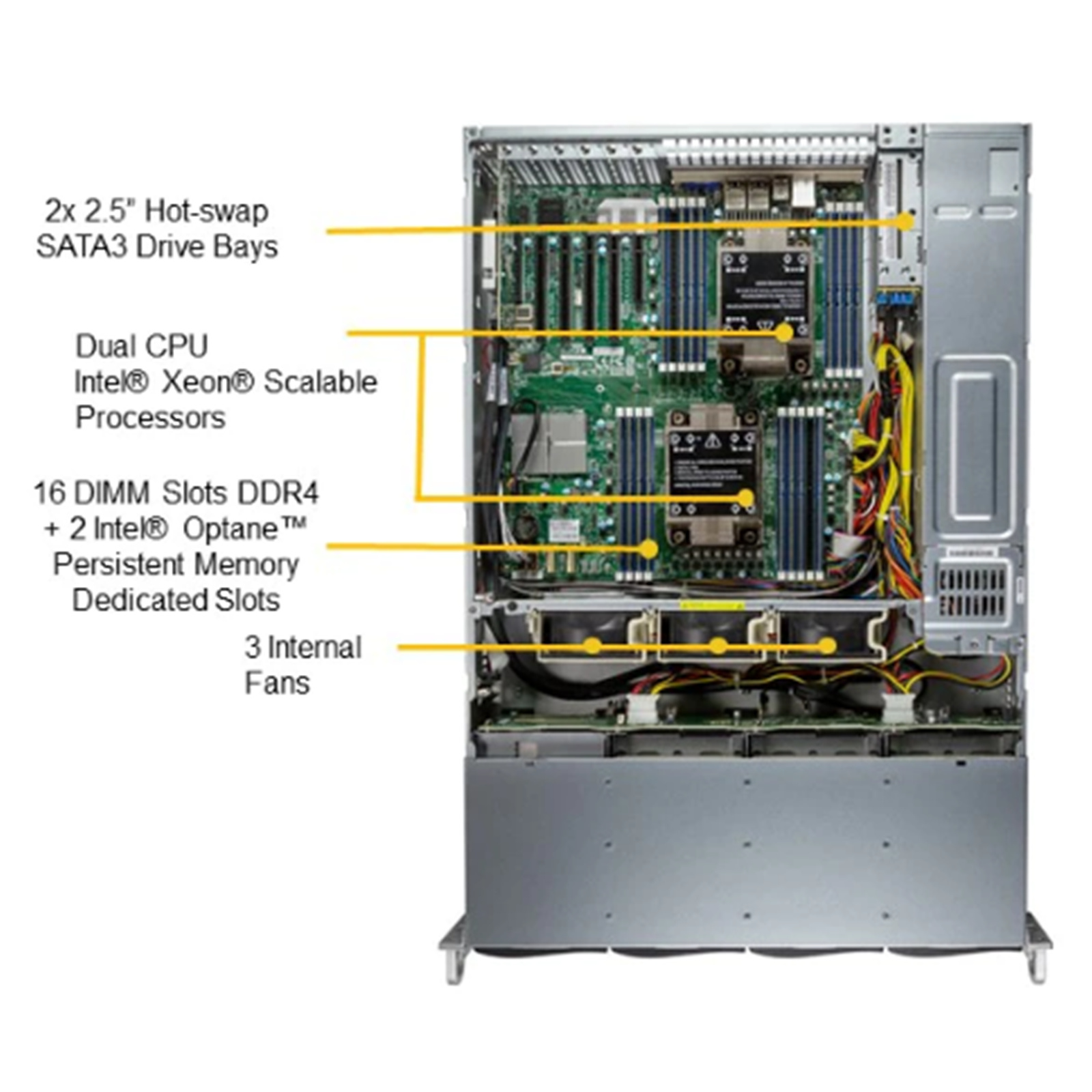

- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
- 2x 10Gbe
- 12x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5" slots; onboard 1 M.2 NVMe
- 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
- Broadcom® 3816 Controller
Specifications
Motherboard
Model
Super X12DPi-NT6
Processor
CPU
Dual Socket P+ (LG-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 120-270W
System Memory
Memory
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM and 8x 512 GB PMem
Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM
Intel® Optane™ persistent memory 200 series
Note
2 extra DIMM slots available for Intel® Optane™ DCPMM @ 2666MHz
Memory Voltage
1.2 V
Error Detection
ECC
On-Board Devices
Chipset
Intel® C621A
Network Connectivity
2x 10GbE BaseT with Intel® X550
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

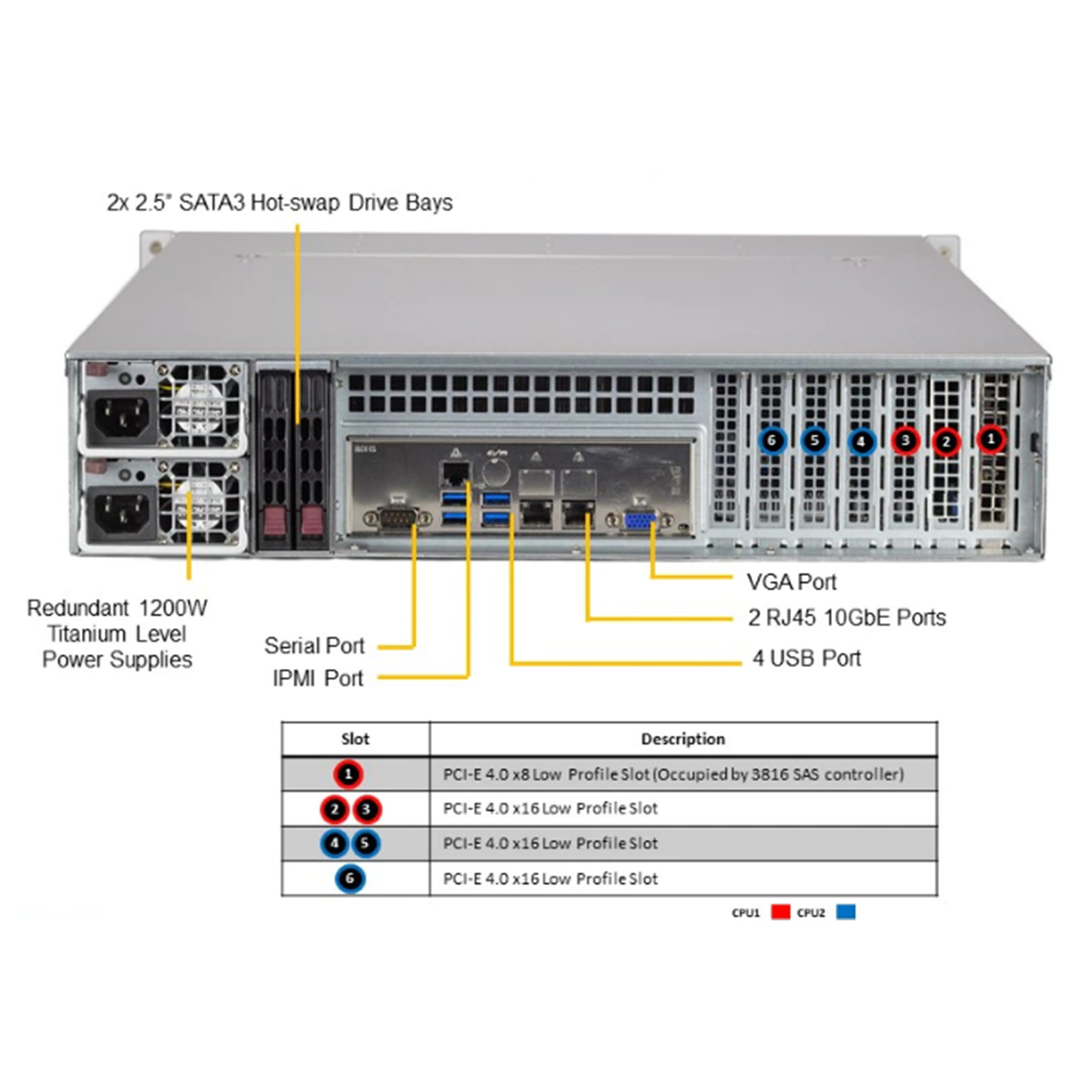

Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
2 RJ-45 10Gbase-T ports
USB
4 USB 3.0 port(s) (4 Rear_USB)
Video
1 VGA port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
AMI 128MB SPI Flash EEPROM
Management
Software
IPMI 2.0
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
CPU
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
2U Rackmount
Model
CSV-826BTS-R1K23LPBP2
Dimensions and Weight
Height
3.5"
Width
17.3"
Depth
25.5"
Package
12" (H) x 27" (W) x 35" (D)
Weight
Net Weight: 34 lbs (15.4 kg)
Gross Weight: 61 lbs (27.7 kg)
Available Color
Black
Front Panel
Buttons
Power On/Off
LEDs
HDD activity
Network activity
Power status
System information (overheat/UID)
Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x8 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP
Note
PCIe slot 1 is occupied by the Storage Controller

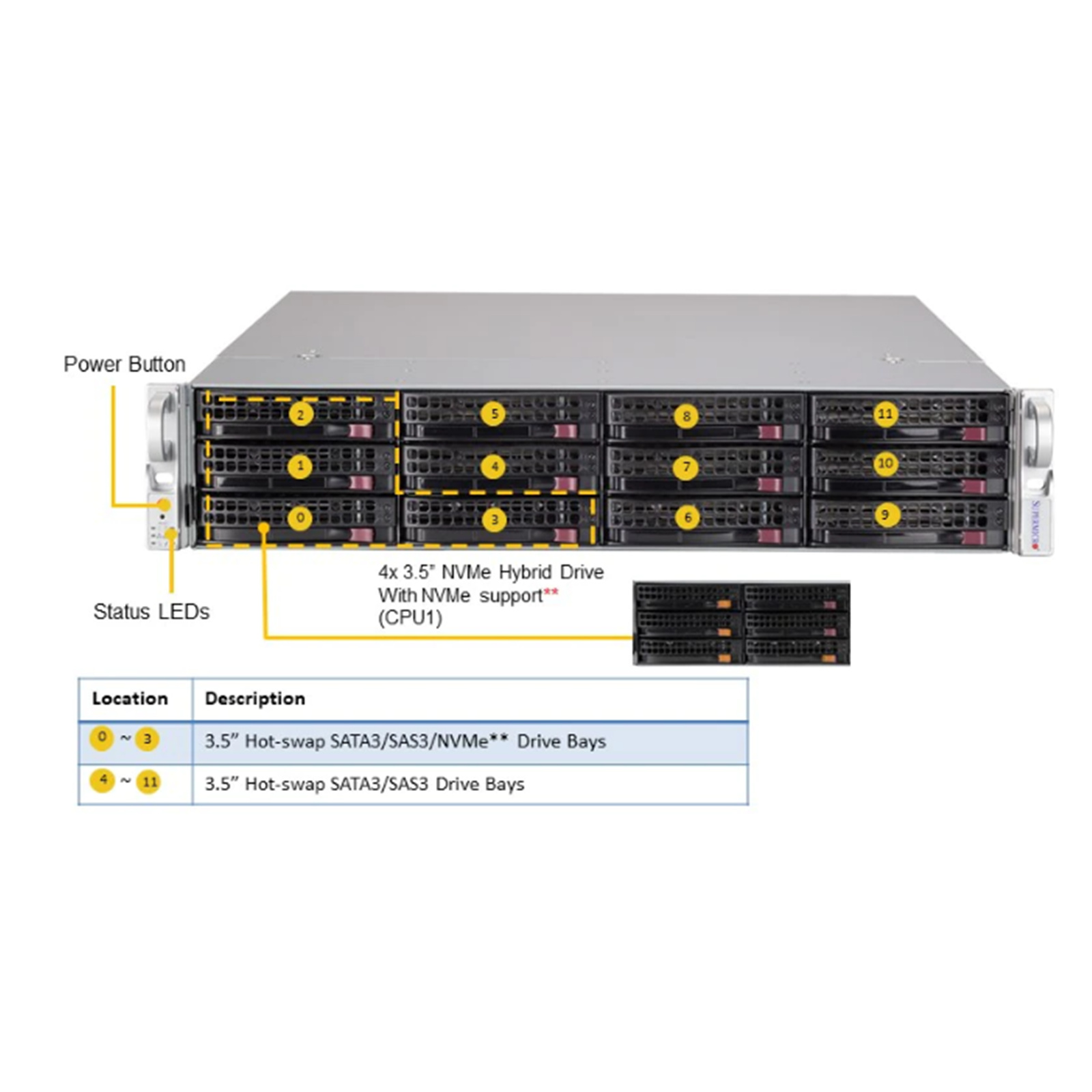

Drive Bays / Storage
Hot-swap
12x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5" NVMe hybrid)
M.2
1 M.2 NVMe
System Cooling
Fans
3 Heavy Duty 8cm Fan(s)
Power Supply
Power
AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH
Dimension (W x H x L)
76 x 40 x 336 mm
Output Type
Gold Finger
Certification
Titanium Level94%+ Titanium Level
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
5% to 95% (Non-Condensing)
