Supermicro 420GP-TNR Barebone, 4U, 2x LGA4189, 32 DIMM, 24x 2.5" Hot-Swap w/ 8x U.2 NVMe, 1x AIOM, 12x PCIe 4.0 x16 up to 10 GPU support, 4x 2000W Redundant Power Supplies
- Brand: Supermicro
- MPN: SYS-420GP-TNR
- Part #: SVRSPM740102
Product URL: https://www.pbtech.com/au/product/SVRSPM740102/Supermicro-420GP-TNR-Barebone-4U-2x-LGA4189-32-DIM
Features
Key Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 32 DIMM Slots;
- Up to 8TB DRAM;
Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM);
- 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM;
- Intel® Optane™ Persistent Memory 200 series
- 12 PCI-E Gen 4.0 X16 FHFL Slots
- AIOM/OCP 3.0 Support
- Flexible networking options
Specifications
Motherboard
model
Super X12DPG-OA6
Processor
CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W
Cores
Up to 40C/80T; Up to 60MB Cache
GPU
Supported GPU
HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board
CPU-GPU Interconnect
PCI-E 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect
PCI-E
System Memory
Memory
Memory Capacity: 32 DIMM slots
Up to 8TB: 32x 256 GB DRAM
Up to 12TB: 16x 512 GB PMem
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM/LRDIMM
Intel® Optane™ persistent memory 200 series
Memory Voltage
1.2 V
Error Detection
ECC
On-Board Devices
SATA
SATA3 (6Gbps); RAID 0/1/5/10 support
Chipset
Intel® C621A
Network Connectivity
2x 1GbE BaseT with Intel® I350
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
Video
1 VGA port(s)
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
Management
Software
OOB Management Package (SFT-OOB-LIC )
Redfish API
IPMI 2.0
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
CPU
7 +1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

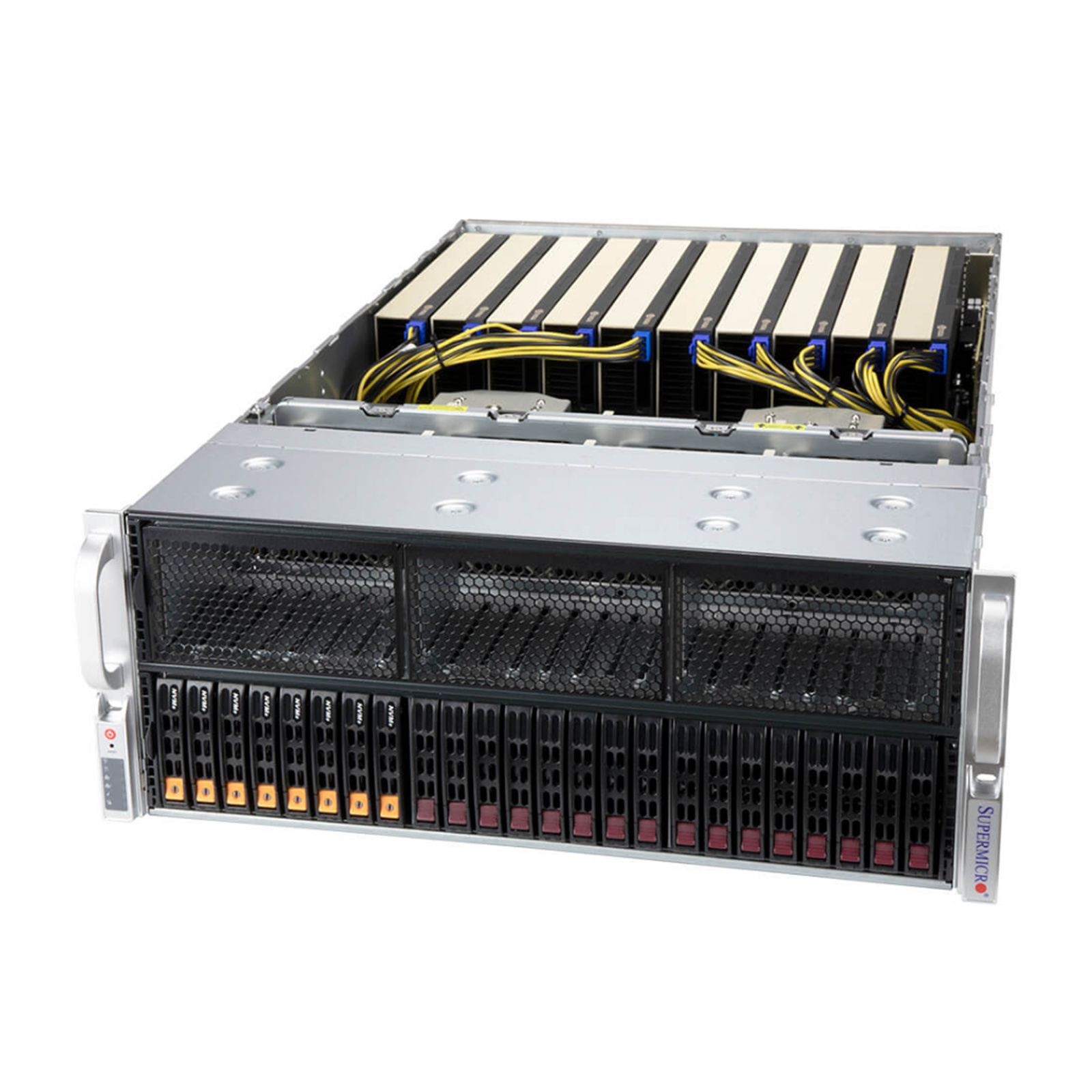

Chassis
Form Factor
4U Rackmount
Model
CSE-418G2TS-R4016BP
Dimensions and Weight
Height
7" (178mm)
Width
17.2" (437mm)
Depth
29" (737mm)
Package
26.57" (H) x 27" (W) x 41" (D)
Weight
Net Weight: 65.5 lbs (29.7 kg)
Gross Weight: 100 lbs (45.3 kg)
Available Color
Black Front & Silver Body
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED

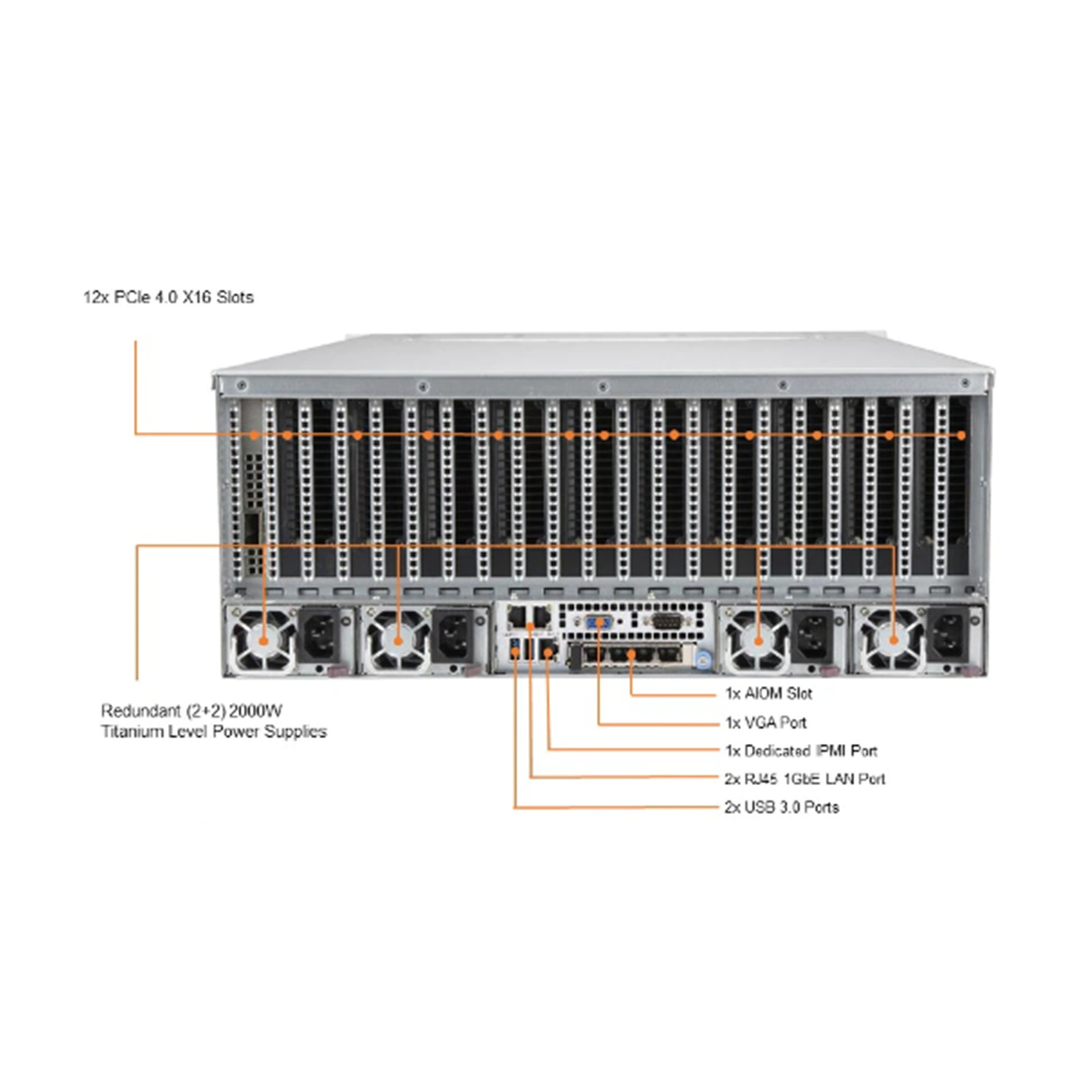

Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x16 FHFL
Slot 2: PCI-E 4.0 x16 FHFL
Slot 3: PCI-E 4.0 x16 FHFL
Slot 4: PCI-E 4.0 x16 FHFL
Slot 5: PCI-E 4.0 x16 FHFL
Slot 6: PCI-E 4.0 x16 FHFL
Slot 7: PCI-E 4.0 x16 FHFL
Slot 8: PCI-E 4.0 x16 FHFL
Slot 9: PCI-E 4.0 x16 FHFL
Slot 10: PCI-E 4.0 x16 FHFL
Slot 11: PCI-E 4.0 x16 FHFL
Slot 12: PCI-E 4.0 x16 FHFL

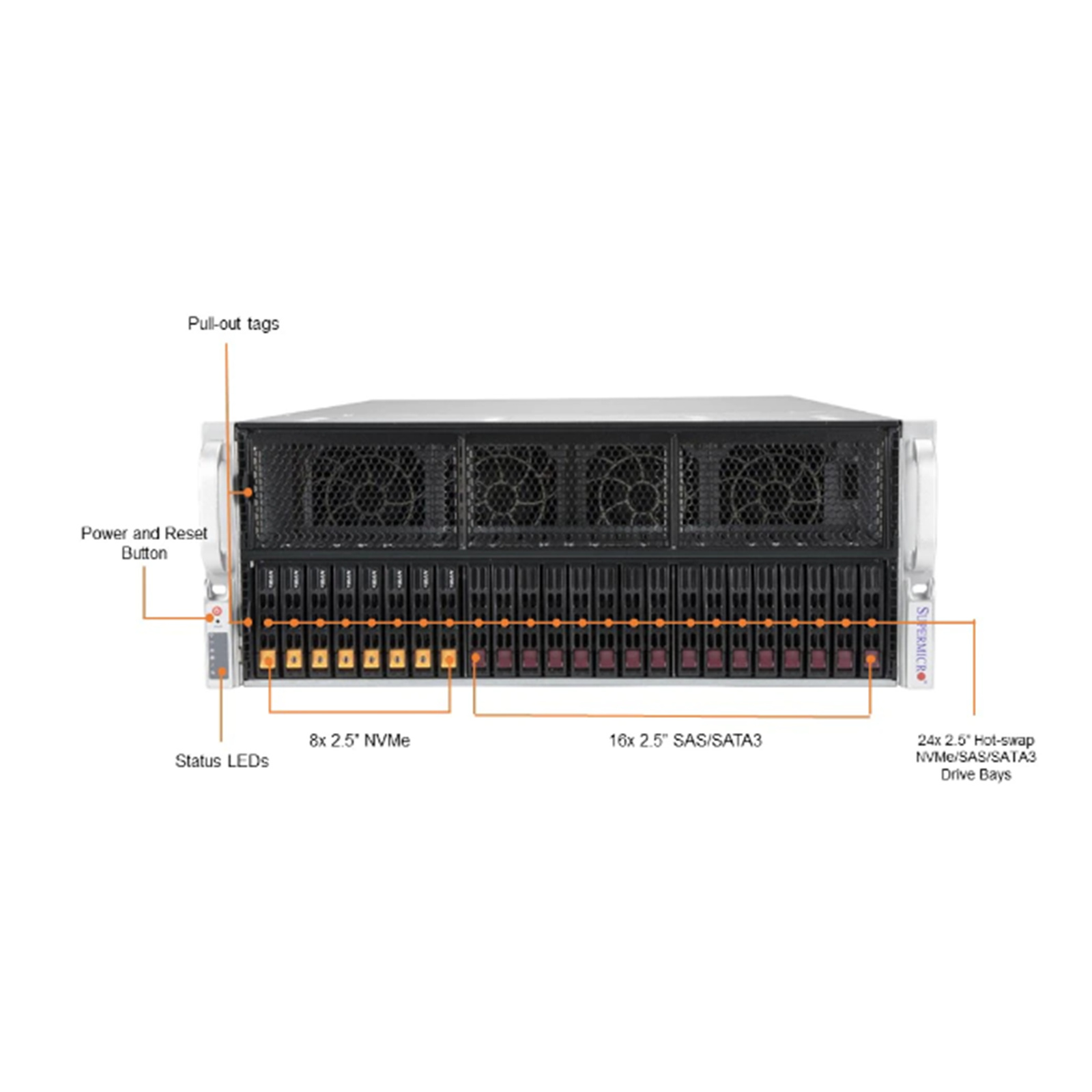

Drive Bays / Storage
Hot-swap
24x 2.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe dedicated)
M.2
2 M.2 NVMe OR 2 M.2 SATA3
System Cooling
Fans
8 heavy duty fans with optimal fan speed control
Power Supply
Type
4x 2000W Redundant Power Supplies, Titanium Level
Dimension(W x H x L)
73.5 x 40 x 203 mm
AC Input
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac / 50-60Hz
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
Max: 3.5A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Titanium Level94%+ Titanium Level
Operating Environment
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (no
