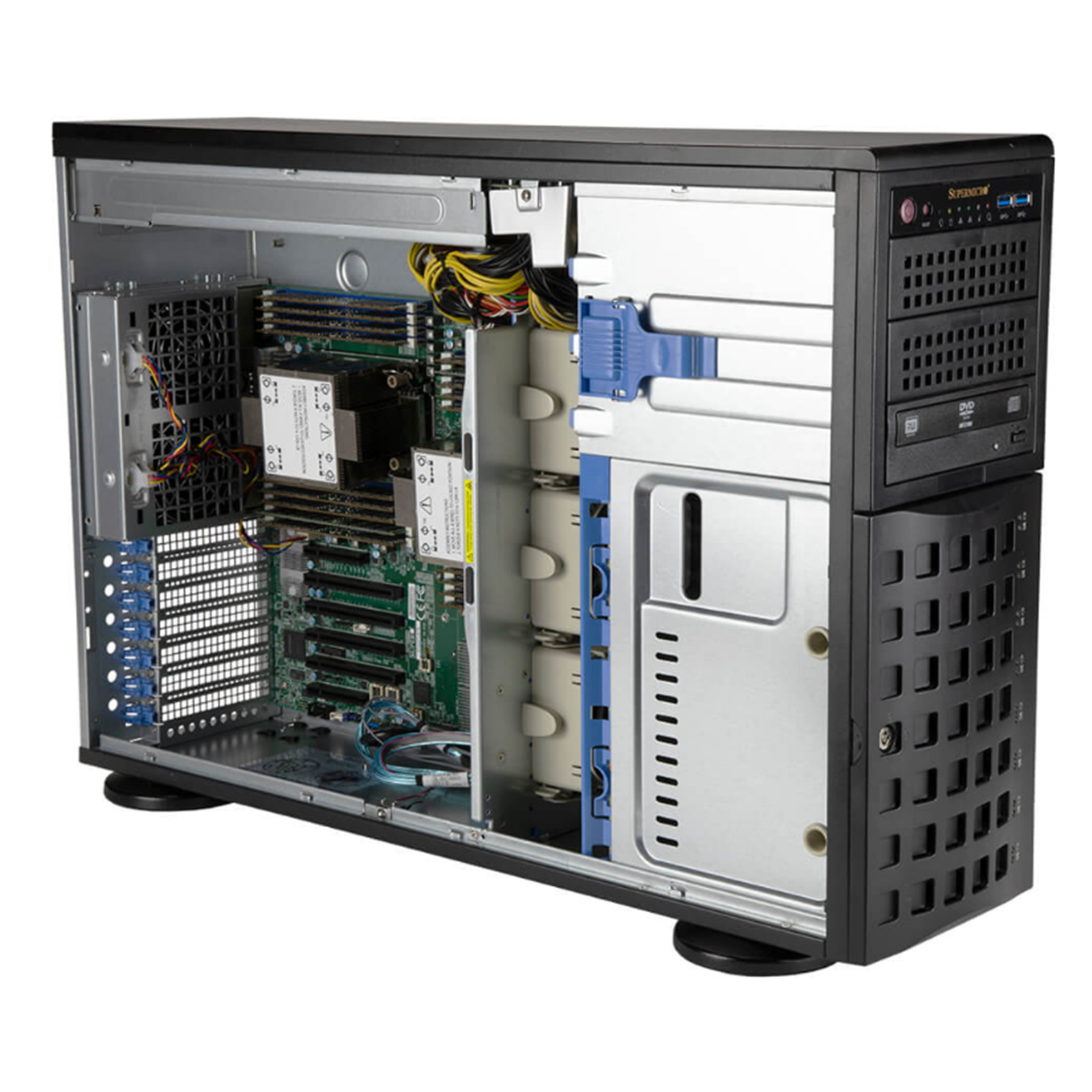

Supermicro 740P-TR Barebone, Pedestal, 2x LGA4189, 16 DIMM, 8x 3.5" Hot-Swap, 2x 1G RJ-45, 4x PCIe 4.0 x16, 2x PCIe 4.0 x8, 2x 1200W Redundant Power Supplies
Out of stock
Supermicro 740P-TR Barebone, Pedestal, 2x LGA4189, 16 DIMM, 8x 3.5" Hot-Swap, 2x 1G RJ-45, 4x PCIe 4.0 x16, 2x PCIe 4.0 x8, 2x 1200W Redundant Power Supplies
- Brand: Supermicro
- MPN: SYS-740P-TR
- Part #: SVRSPM740105
- UPC:
View all shipping info
- Brand: Supermicro
- MPN: SYS-740P-TR
- Part #: SVRSPM740105
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Servers
Supermicro 521R-T Mini Server - 1x Xeon E-2434 4C/8T 3.4GHz, 16GB...
Supermicro 740P-TR Barebone, Pedestal, 2x LGA4189, 16 DIMM, 8x 3.5" Hot-Swap, 2x 1G RJ-45, 4x PCIe 4.0 x16, 2x PCIe 4.0 x8, 2x 1200W Redundant Power Supplies
- Brand: Supermicro
- MPN: SYS-740P-TR
- Part #: SVRSPM740105
Product URL: https://www.pbtech.com/au/product/SVRSPM740105/Supermicro-740P-TR-Barebone-Pedestal-2x-LGA4189-16
Features
Key Features

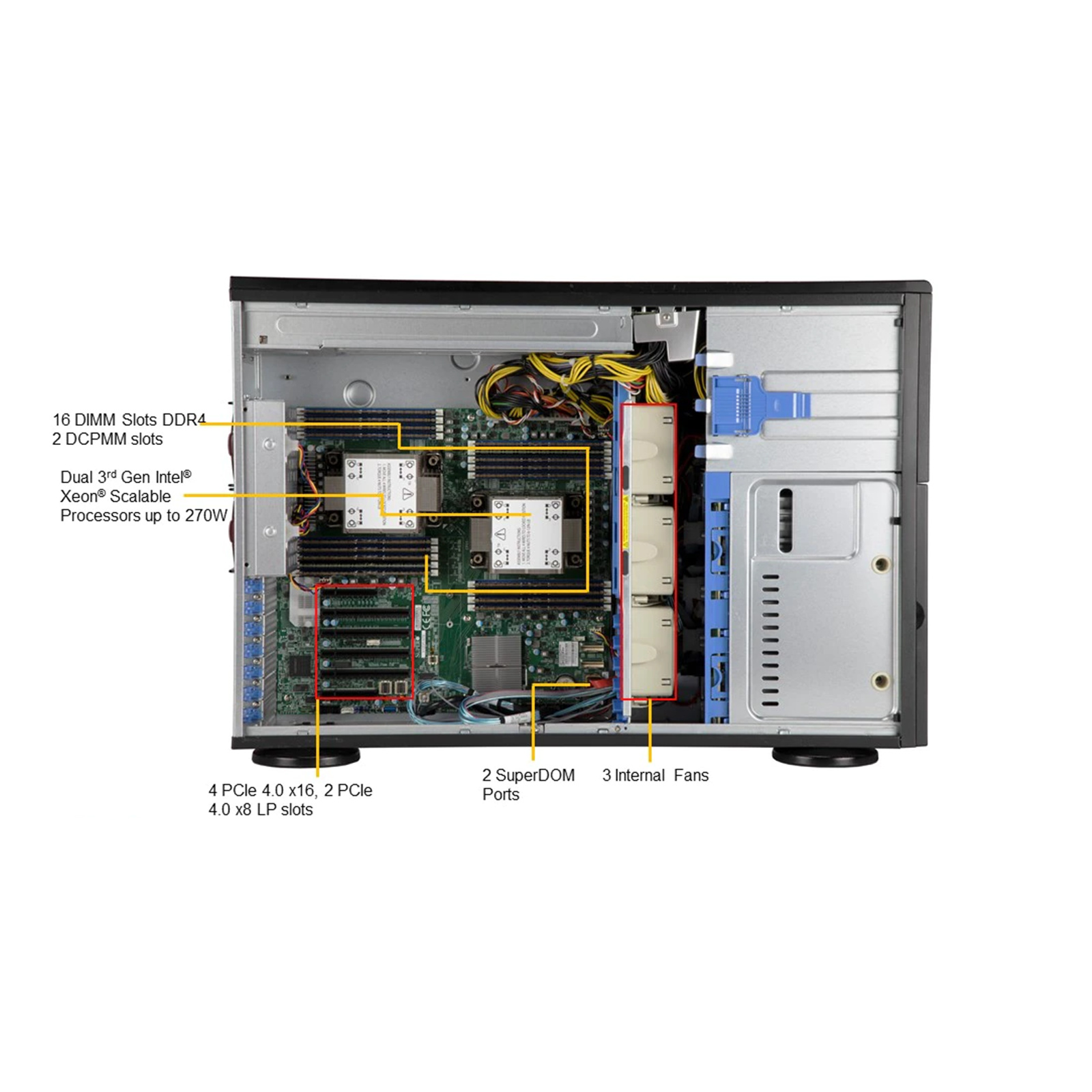

- Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
CPU TDP supports Up to 270W TDP
- 3 UPI up to 11.2 GT/s
- Intel® C621A Chipset
- Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
- 4 PCI-E 4.0 x16 Full Height (FH)
- 2 PCI-E 4.0 x8 Full Height (FH)
- Dual Gigabit LAN with Intel® i350 Ethernet Controller
Specifications
Motherboard
Model
Super X12DPi-N6
Processor
CPU
Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W
System Memory
Memory
Memory Capacity: 16 DIMM slots
Up to 4TB: PMem and DRAM
Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4
Intel® Optane™ persistent memory 200 series
On-Board Devices
Chipset
Intel® C621A
Network Connectivity
2x 1GbE port(s)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 decicated IPMI LAN port
USB
2 USB 2.0 port(s) (2 front)
4 USB 3.0 port(s) (4 rear)
Video
1 VGA port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
AMI 32MB SPI Flash EEPROM
Management
Software
Supermicro Out of Band (OOB) License (included in the unit)
IPMI2.0
Redfish API
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI
Power Configurations
ACPI/APM Power Management
PC Health Monitoring
CPU
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
Tower/4U
Model
CSE-745BTS-R1K23BP
Dimensions and Weight
Height
17.8" (452mm)
Width
7" (178mm)
Depth
25.5" (647mm)
Package
24.6" (H) x 14" (W) x 31.3" (D)
Weight
Net Weight: 56 lbs (25.6 kg)
Gross Weight: 73.5 lbs (33.6 kg)
Available Color
Black

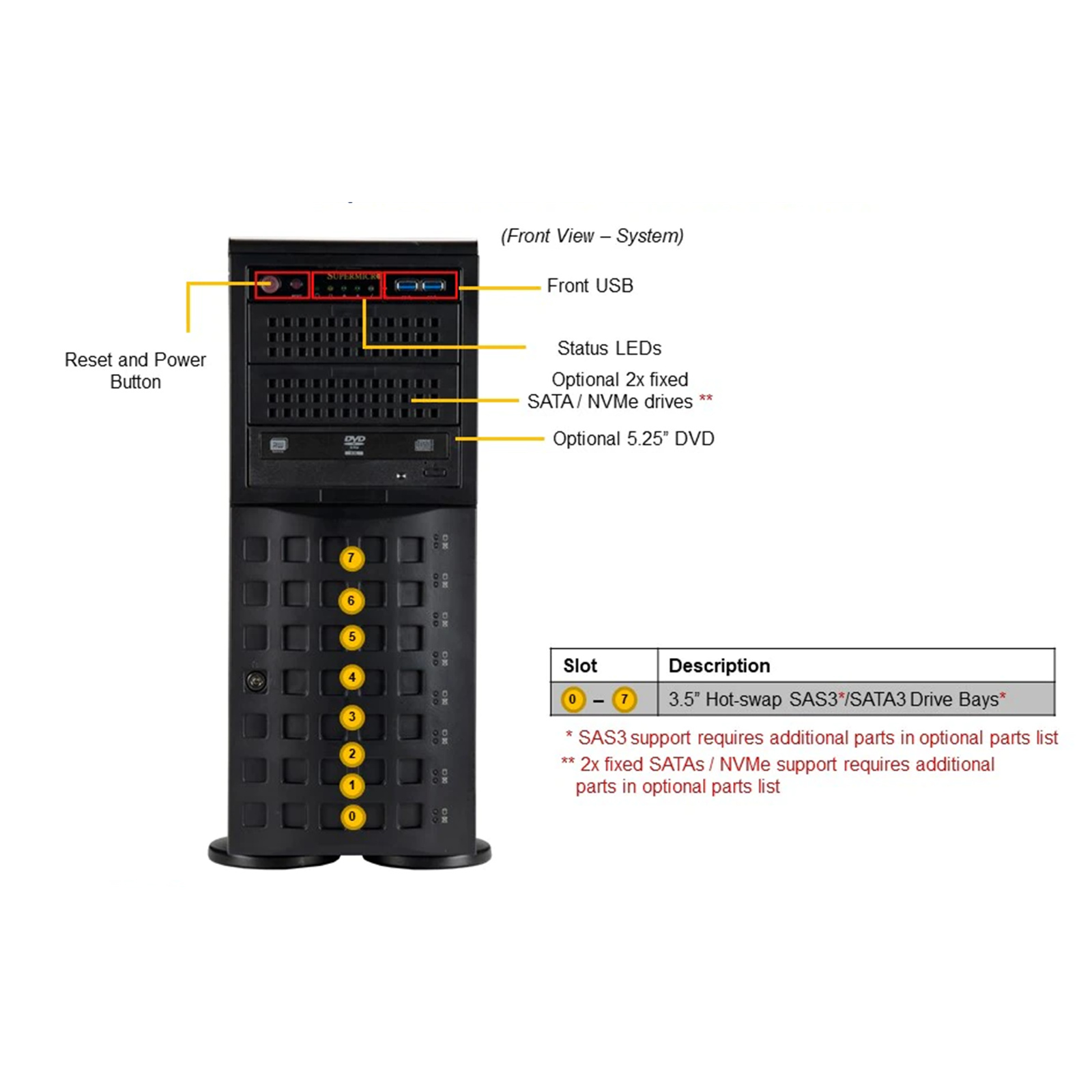

Front Panel
Buttons
Power On/Off
System Reset
LEDs
HDD activity
Network activity
Power status
System information (overheat/UID)

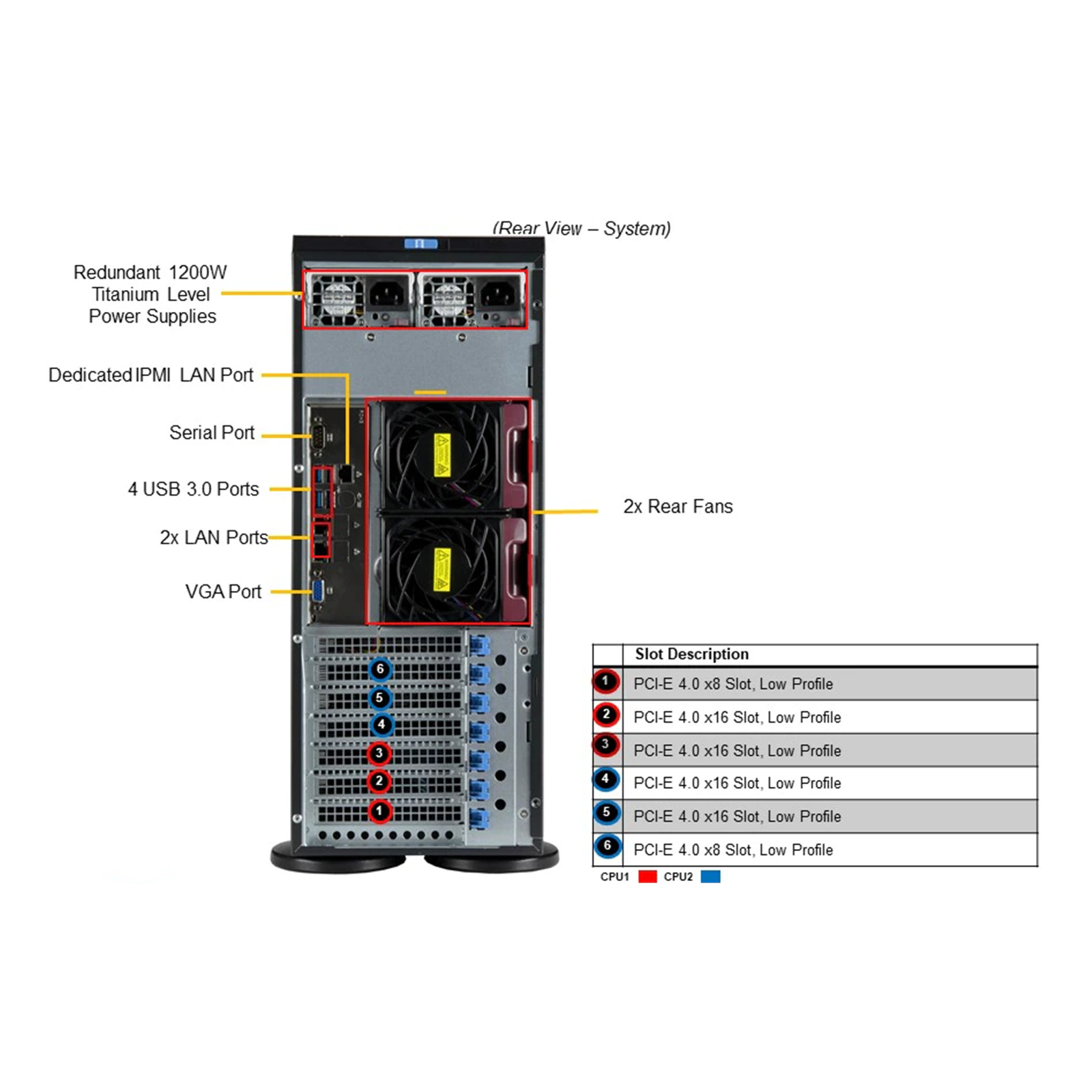

Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x8 Full-height
Slot 2: PCI-E 4.0 x16 Full-height
Slot 3: PCI-E 4.0 x16 Full-height
Slot 4: PCI-E 4.0 x16 Full-height
Slot 5: PCI-E 4.0 x16 Full-height
Slot 6: PCI-E 4.0 x8 Full-height
Drive Bays / Storage
Hot-swap

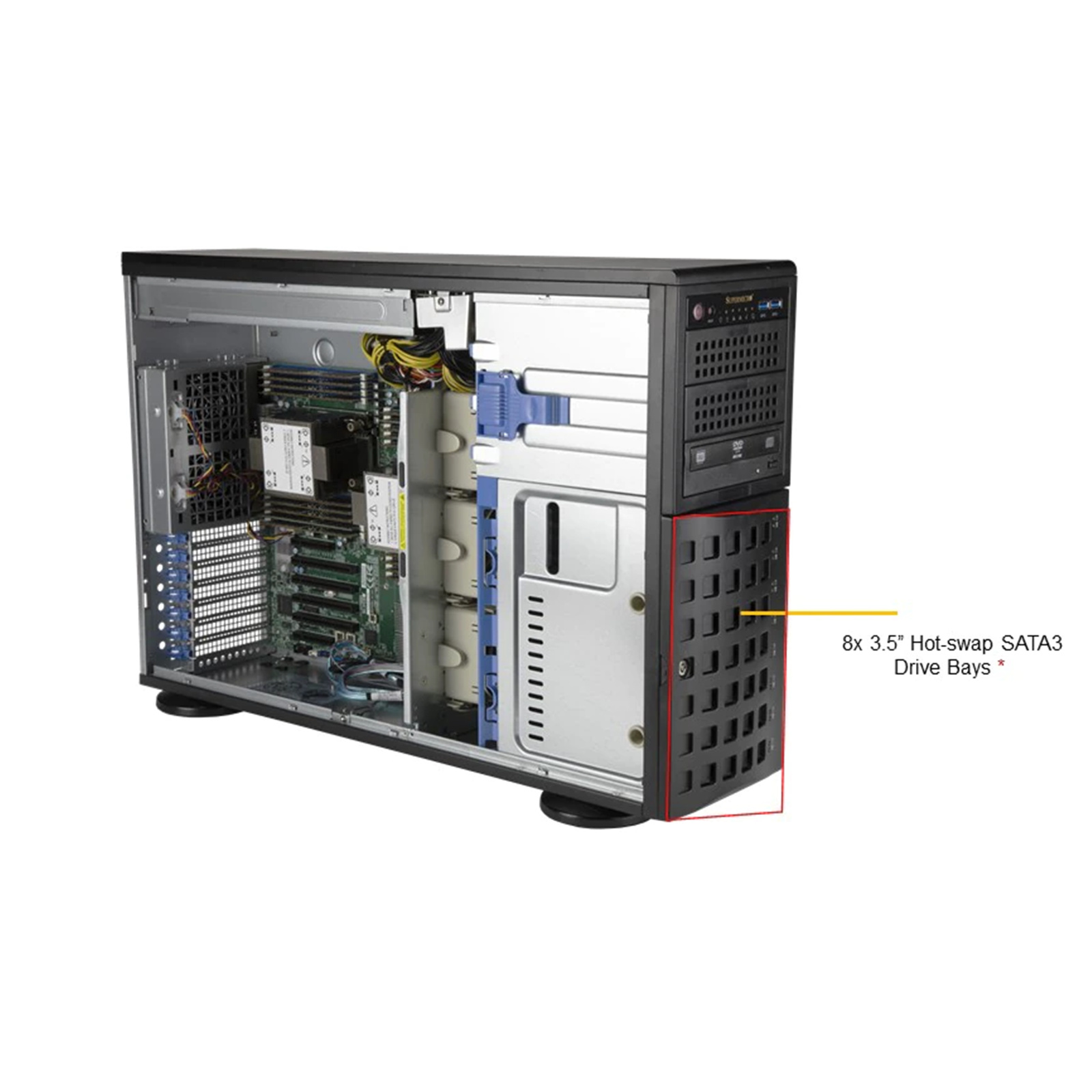

8x 3.5" hot-swap SATA3 drive bays (8x 3.5" hot-swap SATA drive bays can be converted to 8x SAS drive bays by adding 1x AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-01)
M.2
1 M.2 NVMe
Peripheral Bays
1x 5.25" DVD drive bays (optional)
System Cooling
Fans
2 rear Fan(s)
3 middle Fan(s)
Power Supply
Type
1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac
Dimension(W x H x L)
76 x 40 x 336 mm
AC Input
1200W: 100-127Vac / 12A-15A / 50-60Hz
1200W: 200-240Vac / 7A-8.5A / 50-60Hz
DC Output
200-240Vdc CCC only/ 7A-8.5A / 50-60Hz
Output Type
Gold Finger (19 pair connector)
Certification
Titanium Level94%+ Titanium Level
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
5% to 95% (Non-Condensing)
