Supermicro 640P-E1CR36H Barebone, 4U, 2x LGA4189, 16 DIMM, 36x 3.5" Hot-Swap SAS/SATA (Front/Rear), Broadcom 3908 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1600W Redundant Power Supplies
Out of stock
Supermicro 640P-E1CR36H Barebone, 4U, 2x LGA4189, 16 DIMM, 36x 3.5" Hot-Swap SAS/SATA (Front/Rear), Broadcom 3908 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1600W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-640P-E1CR36H
- Part #: SVRSPM740108
- UPC:
View all shipping info
- Brand: Supermicro
- MPN: SSG-640P-E1CR36H
- Part #: SVRSPM740108
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Servers
Supermicro 521R-T Mini Server - 1x Xeon E-2434 4C/8T 3.4GHz, 16GB...
Supermicro 640P-E1CR36H Barebone, 4U, 2x LGA4189, 16 DIMM, 36x 3.5" Hot-Swap SAS/SATA (Front/Rear), Broadcom 3908 HW RAID, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1600W Redundant Power Supplies
- Brand: Supermicro
- MPN: SSG-640P-E1CR36H
- Part #: SVRSPM740108
Product URL: https://www.pbtech.com/au/product/SVRSPM740108/Supermicro-640P-E1CR36H-Barebone-4U-2x-LGA4189-16
Features
Key Applications
- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database
Key Features
Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
2x 10Gbe
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node
36 3.5"/2.5" Hot-swap SAS3/SATA3 drives (4 Hybrid NVMe), 2x Rear SATA Slots, 1x SATA/NVMe M.2 (form factor: 2280 and 22110)
7x 8cm hot-swap counter-rotate redundant PWM cooling fans
1600W Redundant Power Supplies Titanium Level (96%)
HW RAID support via Broadcom® 3908
Specifications
Motherboard
Model
Super X12DPi-NT6
Processor
CPU
Dual Socket P+ (LG-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 120-270W
System Memory
Memory
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM
Memory Voltage
1.2 V
Error Detection
ECC
On-Board Devices
Chipset
Intel® C621A
Network Connectivity
2x 10GbE BaseT with Intel® X550
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
1 RJ45 Dedicated IPMI LAN port
USB
4 USB 3.0 port(s) (4 Rear_USB)
Video
1 VGA port(s)
Serial Port
1 COM Port(s) (1 rear)
DOM
2 SuperDOM (Disk on Module) port
System BIOS
BIOS Type
AMI 128MB SPI Flash EEPROM
Management
Software
IPMI 2.0
SUM
NMI
Watch Dog
SuperDoctor® 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
CPU
4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory
FAN
Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
4U Rackmount
Model
CSE-847BTS-R1K68LPBP4
Dimensions and Weight
Height
7"
Width
17.2"
Depth
27.5"
Package
15" (H) x 27" (W) x 39" (D)
Weight
Net Weight: 65.5 lbs (29.7 kg)
Gross Weight: 102.5 lbs (46.4 kg)
Available Color
Silver

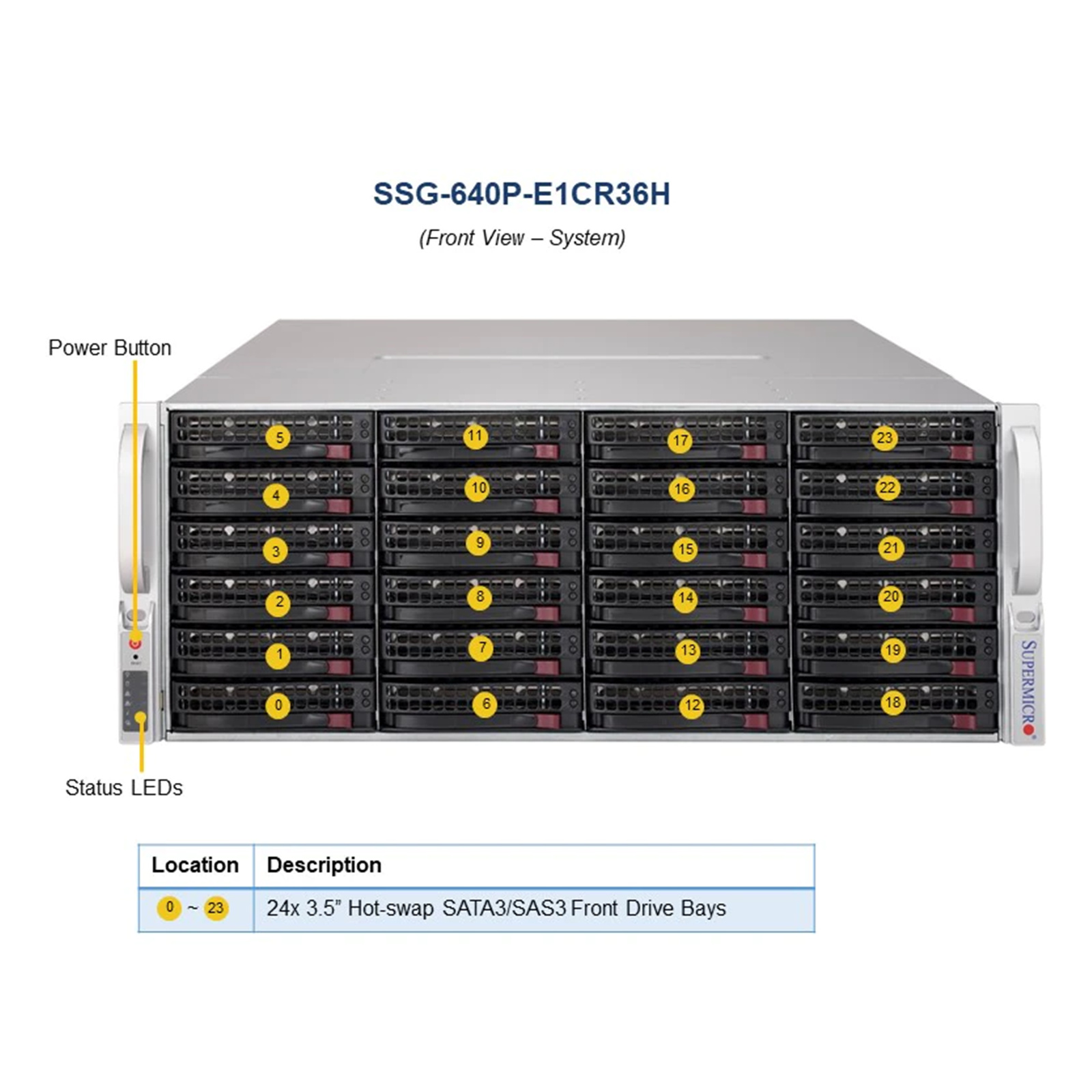

Front Panel
Buttons
Power On/Off
LEDs
HDD activity
Network activity
Power status
System information (overheat/UID)

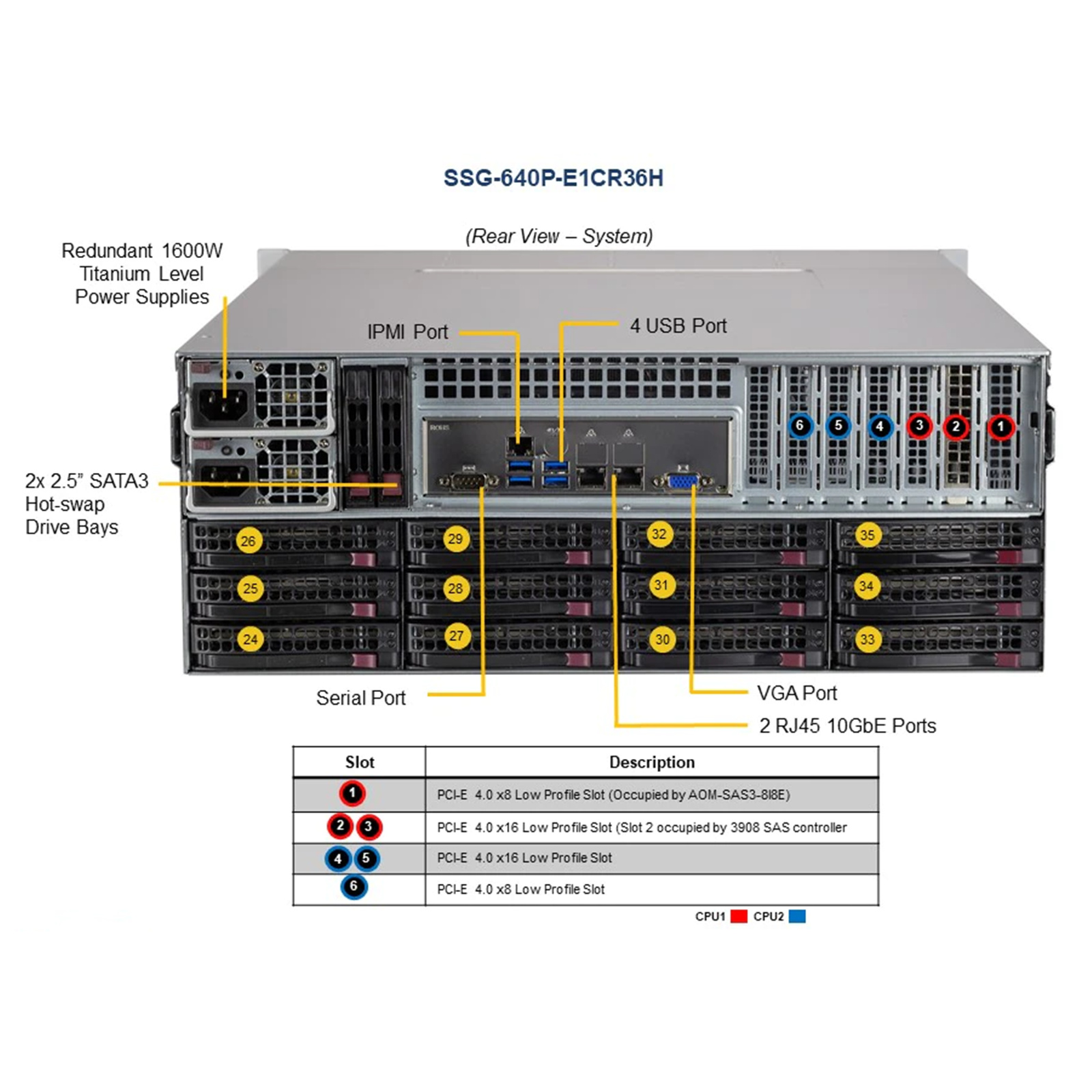

Expansion Slots
PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x8 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP
Note
PCIe slot 1/2 is occupied by the JBOD Expansion/Storage Controller
Drive Bays / Storage
Hot-swap
36x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5" NVMe hybrid)
M.2
1 M.2 NVMe
System Cooling
Fans
7 Heavy Duty 8cm Fan(s)
Power Supply
Type
1600W Redundant Power Supplies with PMBus
Dimension(W x H x L)
76.5 x 40 x 360 mm
AC Input
100-140Vac / 7A-10A / 50-60Hz
180-240Vac / 8A-11A / 50-60Hz
+12V
Max: 66A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
5V SB
Max: 1A / Min: 0A
Output Type
27 Pairs Gold Finger Connector
Certification
Titanium Level94%+ Titanium Level
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
5% to 95% (Non-Condensing)
