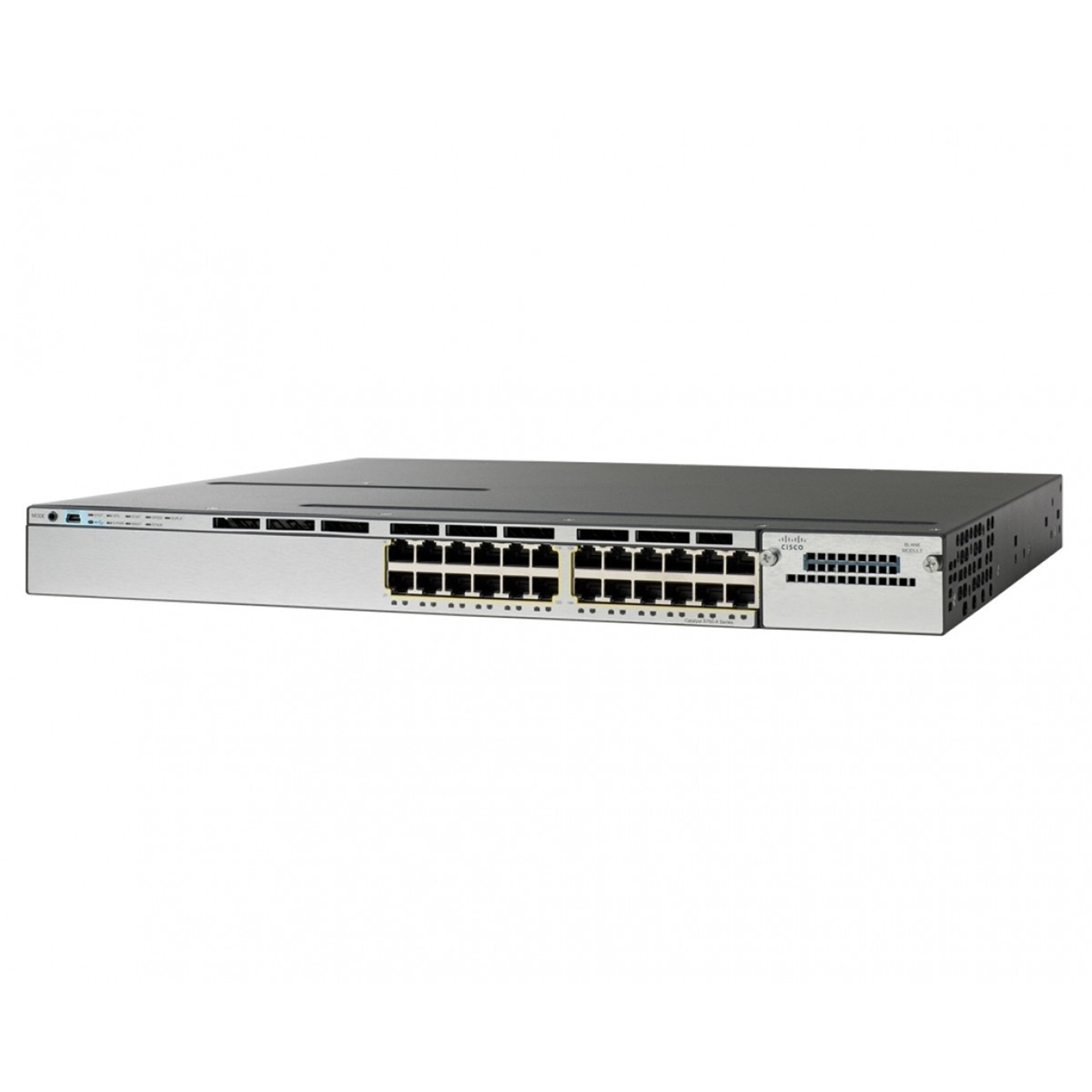

Cisco Catalyst WS-C3850-24P-S, 24-Port Gigabit Stackable IP Base Layer 3 Managed Unified Access PoE Switch with 24x PoE+ (Max 435W with 1x 715W PSU), 1 Network module slot

PB Tech price

$ 10,771 .38

+GST

$ 11,848 .52

inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Cisco Catalyst WS-C3850-24P-S, 24-Port Gigabit Stackable IP Base Layer 3 Managed Unified Access PoE Switch with 24x PoE+ (Max 435W with 1x 715W PSU), 1 Network module slot

Brand: Cisco
MPN: WS-C3850-24P-S
Part #: SWHCIS0135
UPC: 882658547713

PB Tech price

$ 11,848 .52

inc GST

+GST inc GST

Out of stock

Delivery: Out of stock

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Cisco
MPN: WS-C3850-24P-S
Part #: SWHCIS0135
UPC: 882658547713

Be the first to review this product

Form Factor

1U Rackmount

Management Level

Managed L3

Number of Ports

24 Ports

PoE Ports

24 Ports

PoE Budget

435 Watts

Stacking

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Base feature set.

The Cisco®Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

Product Overview

-   Integrated wireless controller capability with:
-    Up to 40G of wireless capacity per switch (48-port RJ45 models)
-    Support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)
-   24 and 48 10/100/1000Mbps data PoE+ and Cisco UPOE models with energy-efficient Ethernet (EEE)
-   24 and 48 100Mbps/1/2.5/5/10 Gbps Cisco UPOE models with energy-efficient Ethernet (EEE)
-   12- and 24-port 1 Gigabit Ethernet SFP-based models
-   12- and 24-port 1/10 Gigabit Ethernet SFP+-based models
-   48-port 1/10 Gigabit Ethernet SFP+ model with 4 fixed 40 Gigabit Ethernet QSFP+ uplinks[1]
-   Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput
-   Cisco StackPower™ technology provides power stacking among stack members for power redundancy2
-   Five optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, 4 x 10 Gigabit Ethernet, 8 x 10 Gigabit Ethernet5, or 2 x 40 Gigabit Ethernet QSFP+ ports
-   Dual redundant, modular power supplies and three modular fans providing redundancy
-   Full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 rack unit (RU) form factor
-   Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor
-   Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF), and enhanced security features
-   Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
-   Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Specifications

Model info:
WS-C3850-24P-S

Enclosure type
Rack-mountable - 1U

Ports
24 x 10/100/1000 (POE+)

Network management Interface
- Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
- Management console port: RJ-45-to-DB9 cable for PC connections

Available PoE Power
435W

Switching Capacity
92Gbps

Maximum stacking number
up to 9 switches with same IOS feature set in same series

Stack Bandwidth
480Gbps

Forwarding Performance
68.4Mpps

FNF entries
24,000 flows

Maximum VLANs IDs
1,000

MAC Address Table Size
32K

CPU
Multicore CPU

RAM
4 G

Flash Memory
2 G

Wireless

Number of AP per switch/stack
100
Number of wireless clients per switch/stack
2000
Total number of WLANs per switch
64
Wireless bandwidth per switch
up to 20Gbps
Supported Aironet AP series
3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports
USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)
1 network module slot and 1 power redundant slot
Network Modules Selection
- C3850-NM-4-1G: 4 x 1G uplinks network module
-C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable
-STACK-T1-50CM StackWise stacking cable with a 0.5 m length
-STACK-T1-1M StackWise stacking cable with a 1.0 m length
-STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended)
-CAB-SPWR-30CM stack power cable with a 30CM length
-CAB-SPWR-150CM stack power cable with a 150CM length
Power supply
PWR-C1-715WAC
Power Device
Power supply - redundant - plug-in module
Power Redundancy
optional
Voltage range (Auto)
100V-240V
Power Consumption of standalone(in Watts)
88.32 (max)

Miscellaneous

Width
17.5 Inches (44.5 cm)
Depth
17.7 Inches (44.5 Cm)
Height
1.75 Inches (4.45 cm)
Weight
16.3 Pounds (7.4Kg)
Rack Mounting Kit
optional
MTBF in hours
269,450
Compliant Standards
- IEEE 802.1D Spanning Tree Protoco
- IEEE 802.1p CoS Prioritization
- IEEE 802.1Q VLAN
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.1X
- IEEE 802.1X-Rev
-IEEE 802.11
- IEEE 802.1ab (LLDP)
- IEEE 802.3ad
- IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-X
- RMON I and II standards
- SNMP v1, v2c, and v3
-IEEE 802.3af and IEEE 802.3at

Manufacturer Part No:

WS-C3850-24P-S

Brand:

Cisco

Product Type:

UPC

882658547713

Product Family:

Catalyst

Shipping Weight:

10.7 kg

PB Part No:

SWHCIS0135

Product Model:

WS-C3850-24P-S,

Warranty: 12 months *
