Edgecore 24 Port Managed L2+/L3 Lite Gigabit Ethernet Switch with 4 x SFP+ 10G UplinkPorts.IPv6Management with Low Power Consumption and Fanless Design.
Edgecore 24 Port Managed L2+/L3 Lite Gigabit Ethernet Switch with 4 x SFP+ 10G UplinkPorts.IPv6Management with Low Power Consumption and Fanless Design.
- Brand: Edgecore
- MPN: ECS4150-28T
- Part #: SWHEDG1097
- UPC:
View all shipping info
- Brand: Edgecore
- MPN: ECS4150-28T
- Part #: SWHEDG1097
- UPC:
Features
The Edgecore ECS4150-28T switch is a Gigabit Ethernet access switch with four 10G SFP+ uplinks. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) wanting to provide home users with triple-play services with up to a Gigabit of bandwidth. This switch is also positioned as Cloud Edge access switch to connect IOT and other devices in Enterprises and SMB deployments. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks.
The ECS4150-28T is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
- Best price-performance Gigabit Ethernet access switch with 10G uplinks
- Low power consumption with fanless and noiseless design
- ITU-T G.8032 ERPS L2 Ring protection with <50 convergence time
- Comprehensive and field proven software features for ISP/ Carrier to provide broadband access, IPTV services
- L2+/ Lite L3 feature upgrades the L2 switch with routing functionality
- Enhanced Security,IPv6 and Multicast features
- Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
- Complete Private MIB to fully control and monitor the switch via customer's EMS

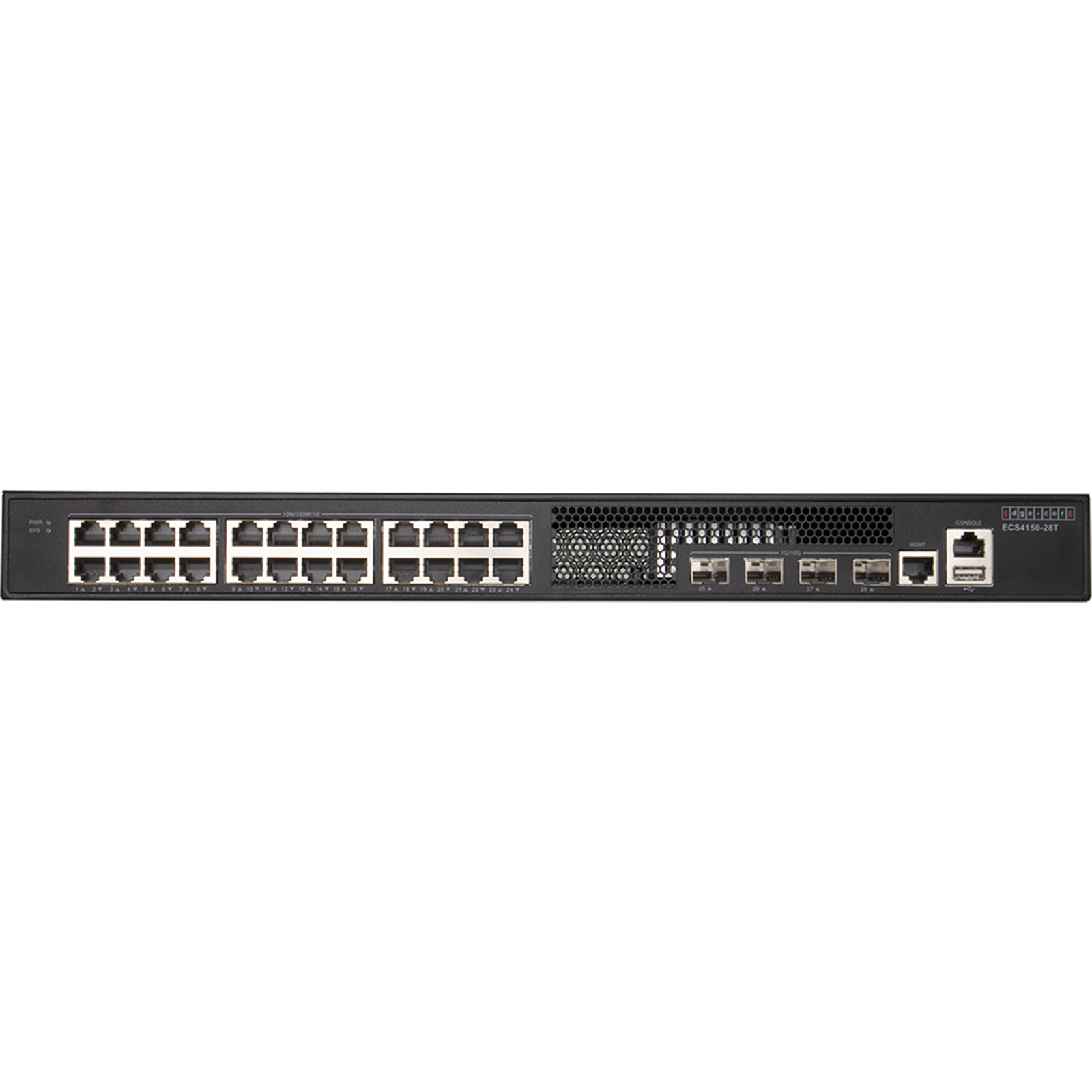

Interfaces
1.24 x RJ-45 10/100/1000BASE-T ports (ECS4150-28T)
2.24 x RJ-45 10/100/1000BASE-T PoE ports (ECS4150-28P)
3.4 x SFP+ 10 Gigabit uplink ports
4.RJ-45 management port
5.RJ-45 console port
6. USB management port
7.AC power input
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edgecore 24 Port Managed L2+/L3 Lite Gigabit Ethernet Switch with 4 x SFP+ 10G UplinkPorts.IPv6Management with Low Power Consumption and Fanless Design.
- Brand: Edgecore
- MPN: ECS4150-28T
- Part #: SWHEDG1097
Product URL: https://www.pbtech.com/au/product/SWHEDG1097/Edgecore-24-Port-Managed-L2L3-Lite-Gigabit-Etherne
Features
The Edgecore ECS4150-28T switch is a Gigabit Ethernet access switch with four 10G SFP+ uplinks. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) wanting to provide home users with triple-play services with up to a Gigabit of bandwidth. This switch is also positioned as Cloud Edge access switch to connect IOT and other devices in Enterprises and SMB deployments. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks.
The ECS4150-28T is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
- Best price-performance Gigabit Ethernet access switch with 10G uplinks
- Low power consumption with fanless and noiseless design
- ITU-T G.8032 ERPS L2 Ring protection with <50 convergence time
- Comprehensive and field proven software features for ISP/ Carrier to provide broadband access, IPTV services
- L2+/ Lite L3 feature upgrades the L2 switch with routing functionality
- Enhanced Security,IPv6 and Multicast features
- Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
- Complete Private MIB to fully control and monitor the switch via customer's EMS
Interfaces
1.24 x RJ-45 10/100/1000BASE-T ports (ECS4150-28T)
2.24 x RJ-45 10/100/1000BASE-T PoE ports (ECS4150-28P)
3.4 x SFP+ 10 Gigabit uplink ports
4.RJ-45 management port
5.RJ-45 console port
6. USB management port
7.AC power input
Specifications
Product Model
ECS4150-28T
Port
RJ-45 10/100/1000BASE-T Ports
24
SFP+ 10 Gigabit Uplink Ports
4
RJ-45 Console Port
1
USB port
1
Performance
Switching Capacity
128 Gbps
Forwarding Rate
95 Mpps
NAND Flash Memory
256 MB
DRAM
1 GB
MAC Address Table
16 K
Jumbo Frames
10 KB
Auto-negotiation, Auto-MDI/MDIX
Yes
Packet Buffer
1.5 MB
MTBF
563,074 hrs
Heat Dissipation
86 Btu/h
Acoustic Noise
N/A
Mechanical
Dimension (W x D x H) cm
44 x 22 x 4.4 cm
Weight
3.05 kg (6.72 lb)
Power Supply
AC 100-240 VAC, 50/60 Hz
Yes
Max System Power Consumption (Watts)
25 Watts
Environmental
Operating Temperature
-5 ~ 45ºC
Storage Temperature
-40 ~ 70ºC
Operating Humidity (non-condensing)
5% to 95%
Storage Humidity (non-condensing)
5% to 95%
Environmental Regulation compliance: WEEE
Yes
Environmental Regulation compliance: RoHS
Yes
Certification
FCC Class A
Yes
CE
Yes
Safety Compliance: CB (IEC/EN 62368-1)
Yes
Safety Compliance: UL (CSA 22.2 No 62368-1 & UL62368-1)
Yes
