Features
EDGECORE 5 Port Lite L2 Smart Gigabit Web Managed PoE Switch
The ECS1100 Series is Edgecore's latest generation of cost-effective smart switches. The ECS1100 Series is designed for SMB and enterprise markets with complete solutions from 5 to 28 ports, including 802.3af/at/bt PoE options. The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard and support IPv4 management features.

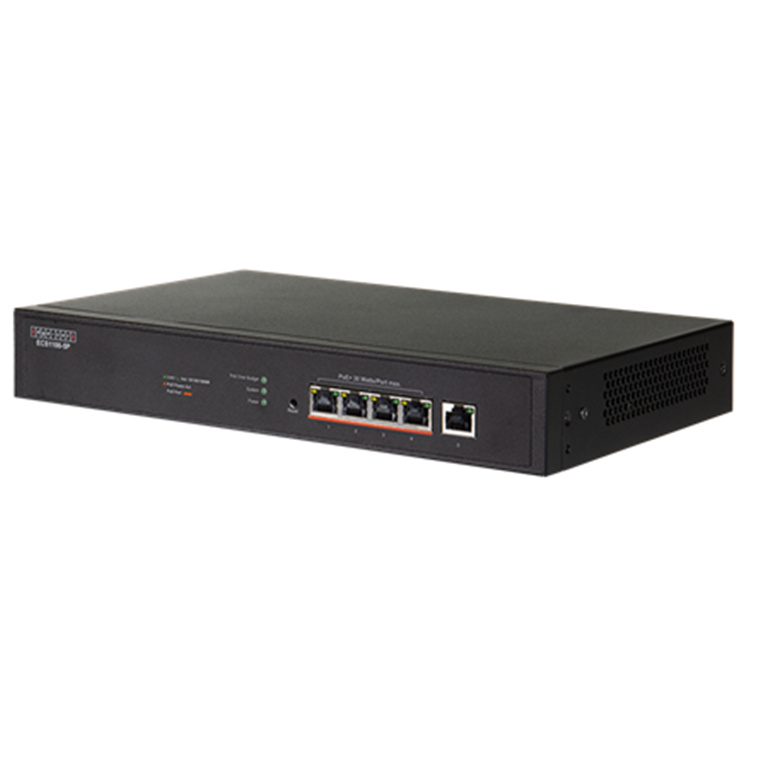

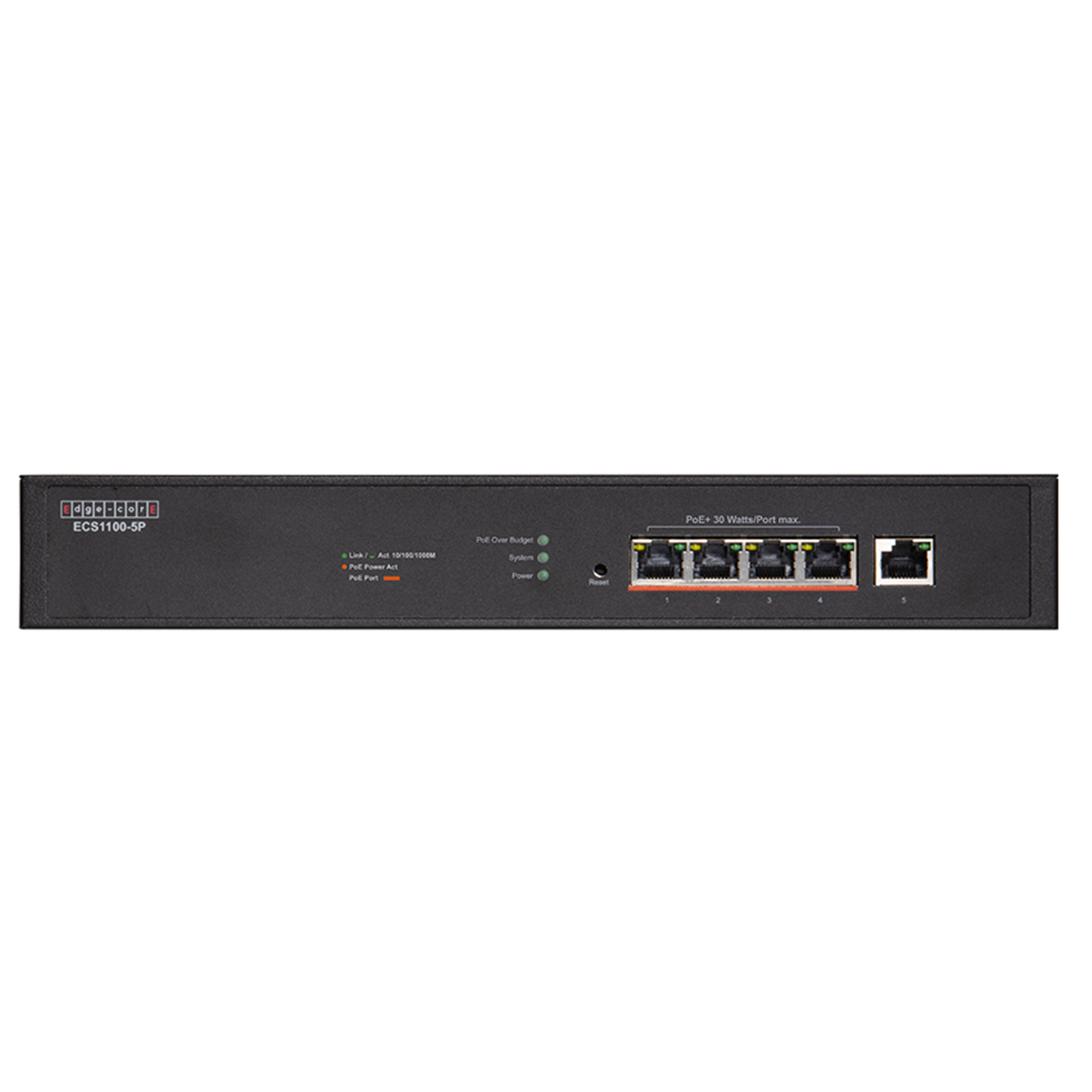

The ECS1100-5P is a rack-mountable PoE switch featuring a fanless design. It supports four ports, each delivering up to 30W, addressing the growing power requirements of users.
The switches comply with the IEEE 802.3az Energy Efficient Ethernet standard and support IPv4 management features.
- 1 x RJ-45 10/100/1000 Uplink Port
- 4 x RJ-45 PoE Ports
- af/at 120W
- 10 Gbps Switching Capacity
- Support ecCLOUD
Network Application
Specifications
Product Model
ECS1100-5P
Port
RJ-45 10/100/1000 Ports
5
100/1000 SFP Ports
0
Performance
Switching Capacity
10 Gbps
Forwarding Rate
7.44 Mpps
Flash Memory
8 MB
SRAM (Built-In)
256 KB
Packet Buffer Size
4 Mbits
MAC Address Table Size
8 K
Jumbo Frames
15 KB
Auto-negotiation, Auto-MDI/MDIX
Yes
Surge Protection
6KV (RJ-45), 6KV (Power)
MTBF
= 200,000 hrs
Heat Dissipation
477.7
Acoustic Noise
0
PoE
PoE Ports
4
PoE++ based on IEEE 802.3bt (up to 90 W)
No
PoE+ based on IEEE 802.3at/802.3af
Yes
Auto Disable a?ter Exceeding Power Budget
Yes
Dynamic Power Allocation
Yes
PoE Power Budget
120 W
Mechanical
Dimension (W x D x H)
294 x 180 x 44 mm
Weight
1.44 kg (3.17 lb)

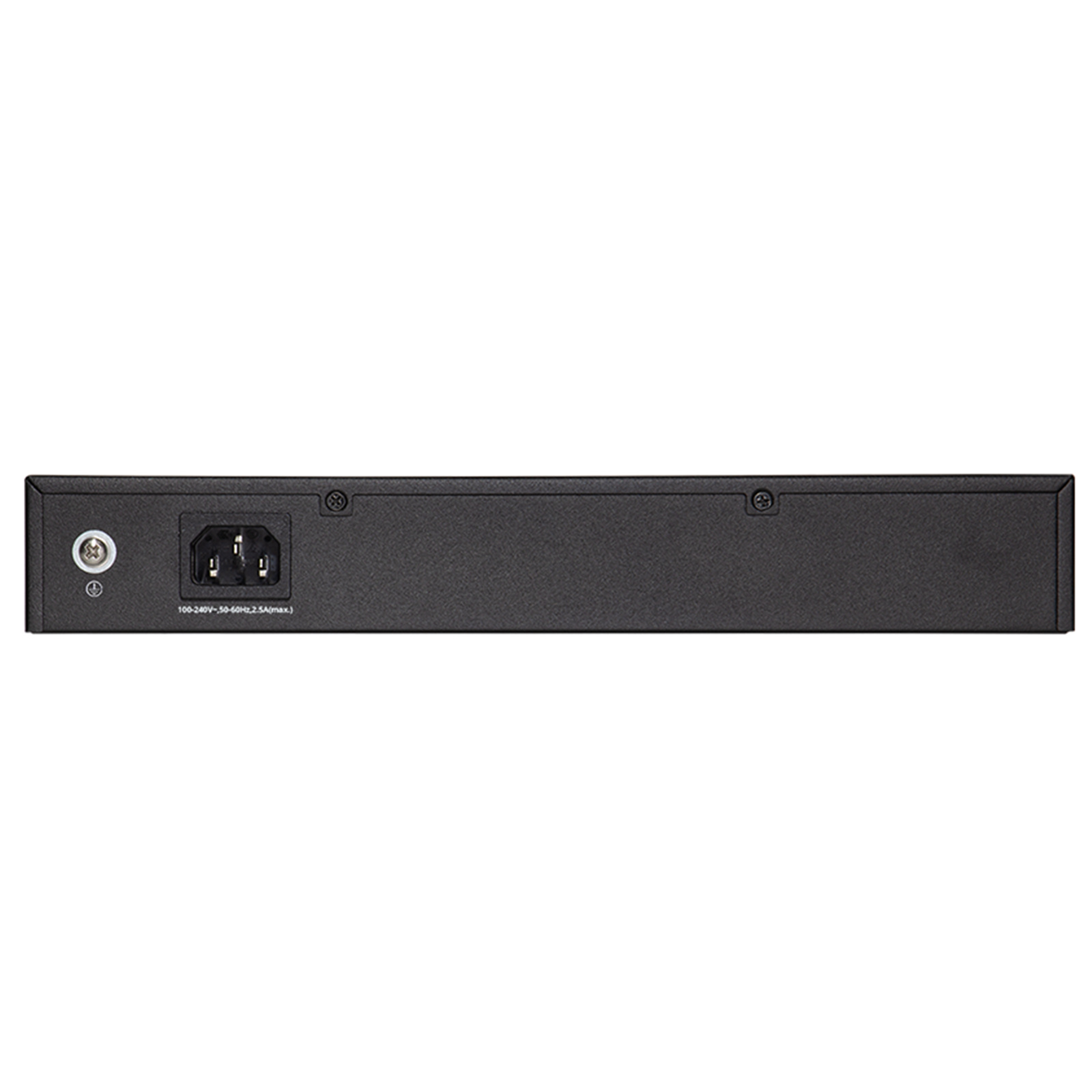

Power Supply
100-240 VAC, 50-60 Hz
Yes
Max System Power Consumption (Watts)
140 W
Environmental
Operating Temperature
0 - 50ºC
Storage Temperature
-40 - 70ºC
Operating Humidity (non-condensing)
10% to 90%
Storage Temperature (non-condensing)
10% to 90%
WEEE
Yes
RoHS
Yes
Certification
FCC Class A
Yes
CE
Yes
Safety Compliance: LVD
Yes
VCCI/BSMI
Yes
UKCA
Yes
