Edimax IGS-1105P Industrial 5-Port Gigabit PoE+ DIN Rail Switch. 4 x Gigabit Ethernet Ports, 1 SFP UplinkPort. PoE up to 200m 10Mps. QoS 802.1p for Video & Voice Traffic Priority Inputs, Surge Protection, IP30
Edimax IGS-1105P Industrial 5-Port Gigabit PoE+ DIN Rail Switch. 4 x Gigabit Ethernet Ports, 1 SFP UplinkPort. PoE up to 200m 10Mps. QoS 802.1p for Video & Voice Traffic Priority Inputs, Surge Protection, IP30
- Brand: Edimax
- MPN: IGS-1105P
- Part #: SWHEDM1055
- UPC:
View all shipping info
- Brand: Edimax
- MPN: IGS-1105P
- Part #: SWHEDM1055
- UPC:
Features

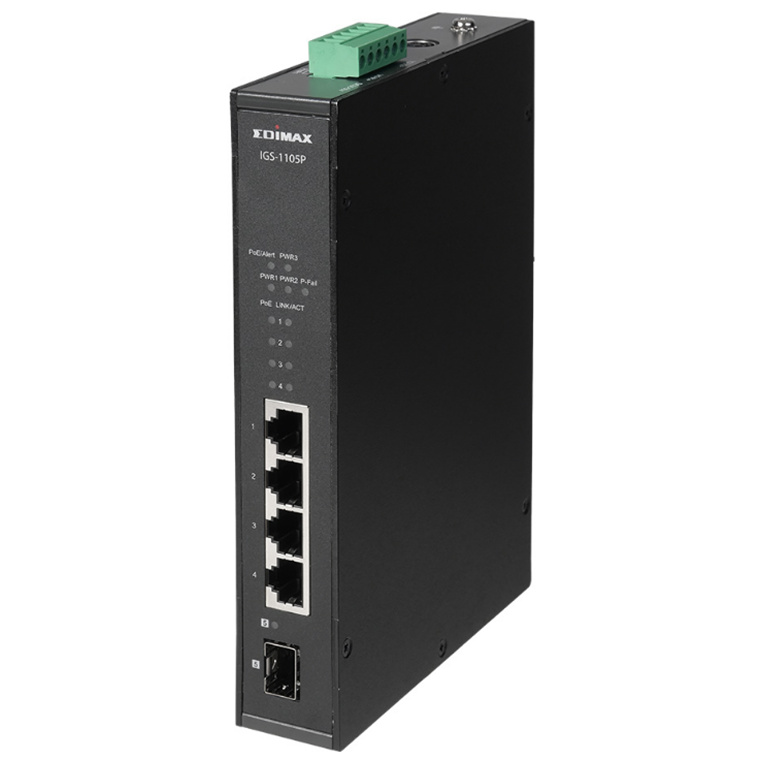

Edimax IGS-1105P Industrial 5-Port Gigabit PoE+ DIN Rail Switch
- 4 Gigabit Ethernet PoE+ ports and 1 SFP uplink port
- 6KV Surge protection to avoid damage of the switch and connected devices
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- P-fail relay with alarm and notification when an event of power failure occurs
- Supports QoS 802.1p for video & voice traffic priority
- Wide operating temperature range of -20° ~+70°C (-4° ~+158°F)
- IEEE 802.3af/at PoE compliant, supports up to 30W per port (power budget: up to 120Watts)
- Guaranteed PoE long distance to 200 meters (656 ft.)
- Power backfeed protection to avoid damaging the PoE ports
- Flexible deployment with DIN-Rail mounting kit and wall-mount feature
- IP30-rated, fanless rugged industrial design for harsh environments
6KV Surge & Power BackFeed Protection
Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power source. Further avoiding damage done to the switch and connected devices.
Wide Temperature Range
The industrial switch operates with a wide temperature range from -20°C to 70°C (-4°F to 158°F) for industrial network deployment in the extreme hot and freezing environments.
PoE Long Range Guaranteed 200M
Provides the PoE long range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance and parking lot applications.
Reliable Power Redundancy
Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.
QoS with Improved Traffic Efficiency
Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.

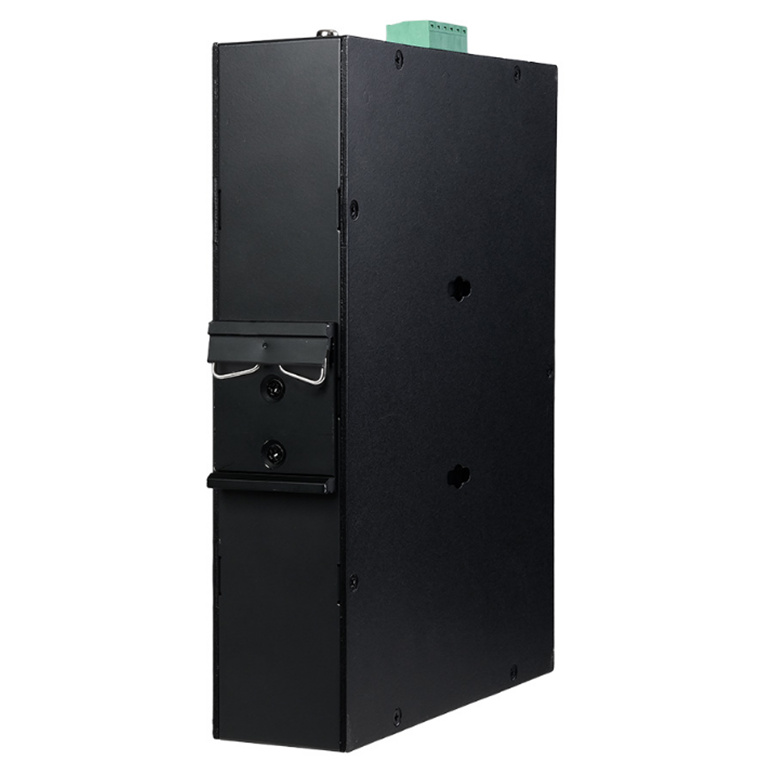

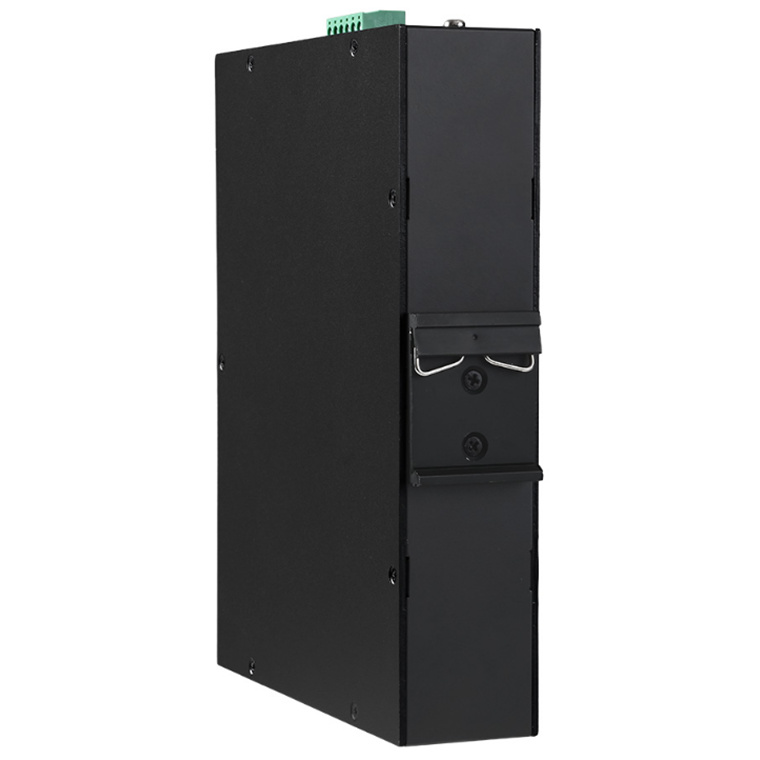

Flexible DIN-Rail & Wall Mount
The switch is designed with flexibility for whether DIN-rail mount or wall-mount deployment.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax IGS-1105P Industrial 5-Port Gigabit PoE+ DIN Rail Switch. 4 x Gigabit Ethernet Ports, 1 SFP UplinkPort. PoE up to 200m 10Mps. QoS 802.1p for Video & Voice Traffic Priority Inputs, Surge Protection, IP30
- Brand: Edimax
- MPN: IGS-1105P
- Part #: SWHEDM1055
Product URL: https://www.pbtech.com/au/product/SWHEDM1055/Edimax-IGS-1105P-Industrial-5-Port-Gigabit-PoE-DIN
Features
Edimax IGS-1105P Industrial 5-Port Gigabit PoE+ DIN Rail Switch
- 4 Gigabit Ethernet PoE+ ports and 1 SFP uplink port
- 6KV Surge protection to avoid damage of the switch and connected devices
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- P-fail relay with alarm and notification when an event of power failure occurs
- Supports QoS 802.1p for video & voice traffic priority
- Wide operating temperature range of -20° ~+70°C (-4° ~+158°F)
- IEEE 802.3af/at PoE compliant, supports up to 30W per port (power budget: up to 120Watts)
- Guaranteed PoE long distance to 200 meters (656 ft.)
- Power backfeed protection to avoid damaging the PoE ports
- Flexible deployment with DIN-Rail mounting kit and wall-mount feature
- IP30-rated, fanless rugged industrial design for harsh environments
6KV Surge & Power BackFeed Protection
Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power source. Further avoiding damage done to the switch and connected devices.
Wide Temperature Range
The industrial switch operates with a wide temperature range from -20°C to 70°C (-4°F to 158°F) for industrial network deployment in the extreme hot and freezing environments.
PoE Long Range Guaranteed 200M
Provides the PoE long range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance and parking lot applications.
Reliable Power Redundancy
Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.
QoS with Improved Traffic Efficiency
Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.
Flexible DIN-Rail & Wall Mount
The switch is designed with flexibility for whether DIN-rail mount or wall-mount deployment.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
HARDWARE
Ports
4 x RJ-45 10/100/1000Base-T Gigabit PoE+ Ports
1 x SFP Ports
Connector

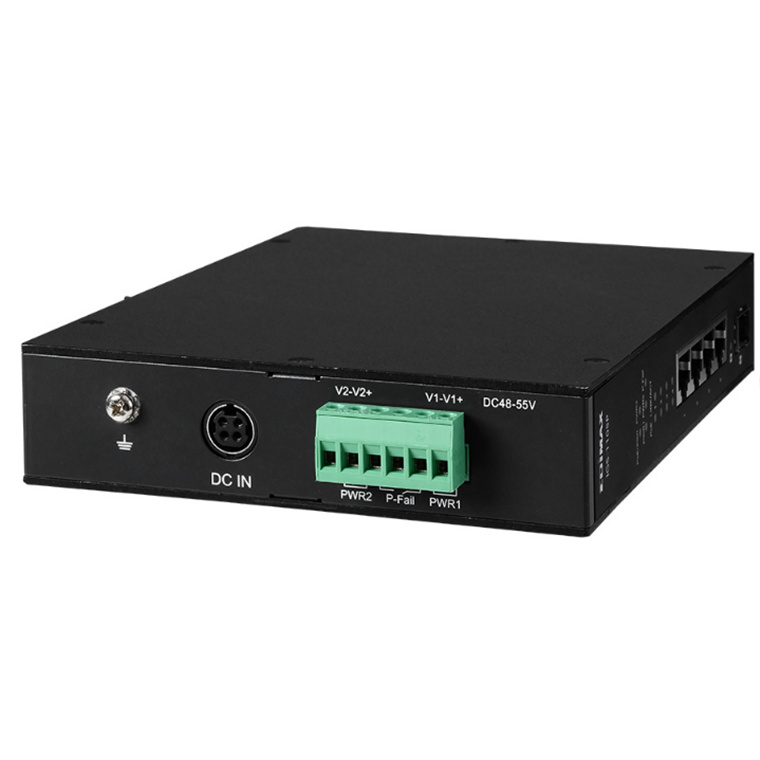

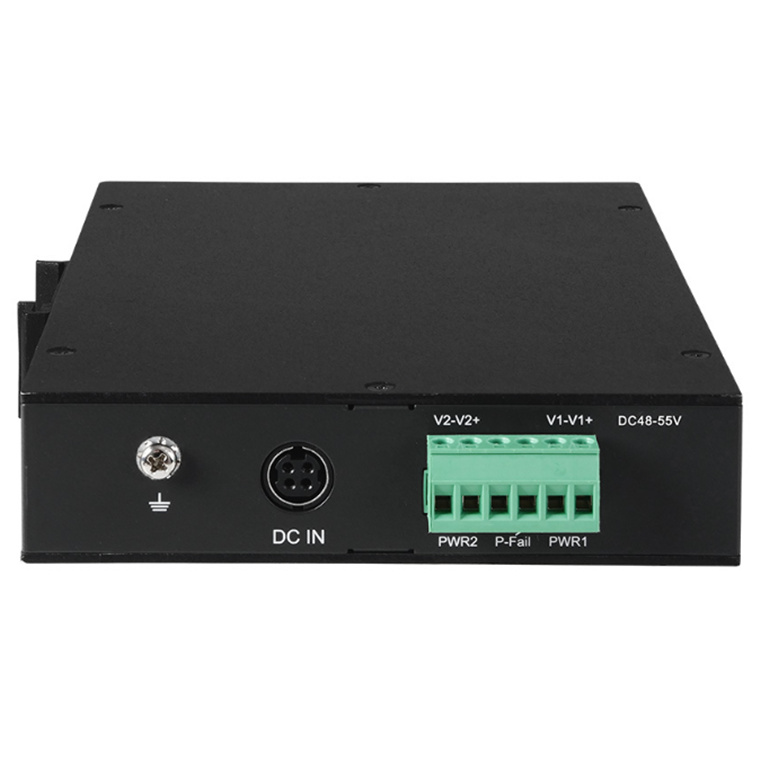

Removable 6-pin Terminal Block (Pin1/2 for Power 1, Pin 3/4 for P-Fail (Power Failure Alarm Relay), Pin 5/6 for Power 2)
Grounding Point with Screw
DC In (48-55V) Power Jack (for Power 3)
LED Indicators
Per Port: Link/Act, PoE
Per Unit: PoE/Alert, PWR1, PWR2, PWR3, P-Fail
Power Input
External Power Supply
Power Input: 48V~55VDC (Terminal Block)
Redundant Power Input:48~55VDC (Terminal Block)
DC Input: 48~55VDC
Operating Current: 0.25A @ 50VDC, 12.5W (System)
Mounting
DIN-rail Mount (DIN-rail Mount Kit Included) / Wall Mount
Housing
Metal, IP30-rated
Fan
Fanless
Dimensions
180(H) x 32(D) x 130(W) mm
Weight
675 g
PERFORMANCE
Switching Capacity
10Gbps
MAC Address
2K
Buffer Memory
2Mb
Jumbo Frame
9KB
Transmission Method
Store and Forward
Filtering / Forwarding Rates
Max. 7.44Mpps
?1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
Advanced Feature
IEEE 802.1p Quality of Service (QoS)
POWER OVER ETHERNET
Standard
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output
Up to 30W per Port
Total PoE Power Budget
Max. 120W
Pin Assignment
1/2(+), 3/6(-)
Advanced Feature
Guaranteed PoE Long Range to 200 Meters (656 ft.) at 10Mbps
Power Backfeed Protection?
OTHERS
Protection
Reverse Polarity
Overload Current
6KV Surge per RJ45 Port
MTBF
>1,000,000 hours @25°C (Mean Time Between Failure)
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.1p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy efficient Ethernet
Environmental Condition
Operating Temperature:-20~70°C ( -4~158°F)
Storage Temperature: -40~85°C (-40~185°F)
Operating Humidity: 10~95% (NonCondensing)
Storage Humidity: 10~95% (NonCondensing)
Certification
CE, FCC, BSMI
